REV. 1.0
12/05/2010

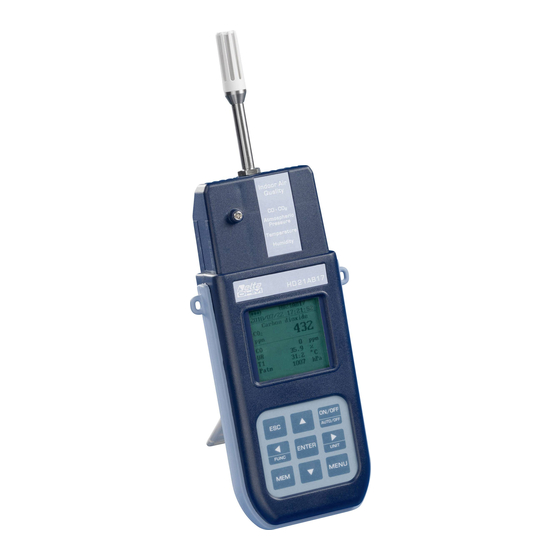

HD21AB
HD21AB17
IAQ MONITOR
ENGLISH
The quality level of our instruments is the result of the continuous development of the
product. This may produce some differences between the information written in this
manual and the instrument you have purchased. We cannot completely exclude errors in
the manual, for which we apologize.
The data, images and descriptions included in this manual cannot be legally asserted. We
reserve the right to make changes and corrections with no prior notice.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HD21AB and is the answer not in the manual?

Questions and answers

Related Manuals for Delta OHM HD21AB

Summary of Contents for Delta OHM HD21AB

  • Page 1 REV. 1.0 12/05/2010 HD21AB HD21AB17 IAQ MONITOR ENGLISH The quality level of our instruments is the result of the continuous development of the product. This may produce some differences between the information written in this manual and the instrument you have purchased. We cannot completely exclude errors in the manual, for which we apologize.
  • Page 2 HD21AB Indoor Air Quality Monitor...
  • Page 3 HD21AB 1. Input for CO calibration. 2. Backlit graphic display. 3. ESC key: It allows to exit from the menu or, in case of a submenu, to exit from the current level display. 4. Navigation key ▲: It allows navigation through the menus. During normal operation, it is used to select the resetting of the statistical data and to scroll the displayed quantities upwards.
  • Page 4 HD21AB17 Indoor Air Quality Monitor...
  • Page 5 HD21AB17 1. Input for CO calibration. 2. Backlit graphic display. 3. ESC key: It allows to exit from the menu or, in case of a submenu, to exit from the current level display. 4. Navigation key ▲: It allows navigation through the menus. During normal operation, it is used to select the resetting of the statistical data and to scroll the displayed quantities upwards.

  • Page 6: Table Of Contents

    TABLE OF CONTENTS 1. GENERAL CHARACTERISTICS..........................7 2. THE USER INTERFACE............................8 2.1 T HD21AB D ..............................8 ISPLAY 2.2 T HD21AB17 D ............................9 ISPLAY 2.3 T ................................10 EYBOARD 3. OPERATION ................................12 3.1.1 “►/UNIT” key for the unit of measurement....................13 3.1.2 The maximum, minimum and average values of the captured quantities ............

  • Page 7: General Characteristics

    The HD21AB17 instrument also measures Temperature and Relative Humidity, and it calculates Dew Point, Wet Bulb Temperature, Absolute Humidity, Mixing Ratio and Enthalpy. HD21AB and HD21AB17 are dataloggers with a memory capacity of 67600 recordings, divided in 64 blocks. They use the DeltaLog10 software from version 0.1.5.3.

  • Page 8: The User Interface

    The parameter displayed with a larger character is called main quantity. In order to select the parameter to be displayed as main quantity, use the ▲▼ keys. For some quantities, you can select the unit of measurement; temperature can be displayed as °C or °F. 2.1 T HD21AB D ISPLAY HD21AB 2010/02/10 08:00:00...

  • Page 9: The Hd21Ab17 Display

    2.2 T HD21AB17 D ISPLAY HD21AB17 2010/02/10 08:00:00 Carbon Dioxide 0 ppm Patm 1000 hPa 25.0 % 17.0 °C 1. Battery’s charge status and instrument code. In case the logging function is on, this line shows the current logging number and the time elapsed from logging start. 2.

  • Page 10: The Keyboard

    2.3 T EYBOARD The keys on the instrument perform the following functions: ON-OFF/AUTO-OFF key It turns the instrument on and off. When turning the instrument on, the first screen will be displayed. After few seconds the measured quantities will be displayed. Auto Power Off The instrument has an AutoPowerOff function that automatically turns the instrument off after about 8 minutes if no key is pressed.
  • Page 11 Key ◄/FUNC ◄ allows navigation through the menus. FUNC: In normal view, it allows to select the statistical data: maximum, minimum, and average. Key ▲ It allows navigation through the menus. During normal operation, it is used to select the resetting of the statistical data and to scroll the displayed quantities.

  • Page 12: Operation

    During turning on, the following message is displayed for about 10 seconds: Model HD21AB17 Indoor Air Quality Firm.Ver.=01.00 In addition to the Delta Ohm logo the instrument code and the firmware version are displayed. After about 10 seconds, the measurements will appear on the display: HD21AB HD21AB...

  • Page 13: Unit" Key For The Unit Of Measurement

    3.1.1 “►/UNIT” key for the unit of measurement It allows navigation through the menus. During normal operation, it changes the unit of measurement of the main quantity (solo HD21AB17). If the main quantity is Relative Humidity (solo HD21AB17), by repeatedly pressing the UNIT key you can display the following quantities: Relative Humidity (%) Dew Point (°C - °F)

  • Page 14: Main Menu

    4. MAIN MENU To access the programming menu press MENU: MAIN MENU 1) Informations 2) Logging 3) Serial 4) Settings 5) Probes Calibration 6) Language ▲▼ select <ENTER> confirm If you do not press any key within 2 minutes, the instrument goes back to the main display. Use the arrows ▲▼...
  • Page 15 To change the ID, press ENTER. Use the ◄► arrows to select the item, and edit it with the ▲▼ arrows. Proceed with the other items, and finally confirm with ENTER. By selecting Info Sensors, the following information on the sensors will be displayed: INFO SENSORS Type= CO2-CO Fw.V0R0 Cal = 2010/02/10...

  • Page 16: Logging Menu

    4.2 L OGGING Enter the main menu by pressing MENU; • Use the arrows ▲▼ to select Logging; • Press ENTER: The parameter setting submenu for the logging sessions (to be captured) will be displayed. LOGGING MENU 1) Log frequency 2) Auto switch off 3) Start/Stop Log 4) Start Log Erase...

  • Page 17: Autopoweroff- Autopoweroff Mode

    4.2.2 AutoPowerOff– AutoPowerOff Mode The Auto switch off item controls the instrument’s automatic turning off during logging, between the capture of a sample and the next one. When the interval is lower than 5 minutes, the instrument will always remain on. With intervals greater than or equal to 5 minutes, it is possible to turn off the instrument between loggings: it will turn on one minute before sampling and will turn off immediately afterwards, thus increasing the battery life.

  • Page 18: Start/Stop Log - Automatic Start

    4.2.3 Start/Stop Log – Automatic Start The logging start and end can be programmed by entering the date and time. Set the logging start date and time using the arrows. Confirm the logging start date and time using ENTER. Then you are asked to set the data to end the recording. Set the logging end date and time using the arrows.
  • Page 19 8. Once both values have been set, a summary will be displayed showing the start and end time of the LOG session. LOGGING MENU SETTED LOG START Date 2010/02/10 10:29:00 END Date 2010/02/10 10:39:00 <ESC> exit/cancel <ENTER> confirm 9. Press ENTER to confirm or ESC to exit without enabling the automatic start: In both cases, you will return to the LOGGING menu.

  • Page 20: Cancel Auto-Start

    4.2.4 Cancel Auto-Start Once the LOG session start and end times are set, you can inhibit the session automatic start by using Start Log Erase. Once you have accessed the LOGGING submenu: 1. Use the arrows ▲▼ to select Start Log Erase 2.

  • Page 21: Log File Manager

    4.2.5 Log File Manager This item allows managing the logs captured: The instrument allows displaying of the captured data files and erasing the entire memory (File Log Erase). The instrument can store up to 64 LOG sessions, progressively numbered from 00 to 63: The session list is arranged on 4 lines and 4 columns.
  • Page 22 See File Log: Selecting this item you can view the logging sessions in the instrument: LOG FILE 00– 01– 02– 03 04– 05– 06– 07 08– 09– 10– 11 12– 13– 14– 15 START Date: 2010/02/10 08:50:40 Record: 000039 ▲▼◄► select <MEM>...

  • Page 23: Serial Menu (Serial Communication )

    Log lasting (time set for recording) It represents the recording duration: After this set time, the recording is ended. The recording can be stopped earlier by pressing MEM. To disable this function, set the time to 0:00:00. In this case the recording ends by pressing MEM or when the memory is full.

  • Page 24: Print Interval

    4.3.1 Print Interval To set the Print Interval, proceed as follows: 1. Use the arrows ▲▼ to select the item; 2. Press ENTER: You will get the following message: COMMUNICATION MENU SERIAL PRINT INTERVAL h:mm:ss (1h max) 0:00:00 ▼▲ set <ESC>...

  • Page 25: Contrast

    4.4.1 Contrast This item of the Settings menu allows to increase or decrease the display contrast. To access the Contrast submenu, proceed as follows: 1. Use the arrows ▲▼ to select Contrast; 2. Press ENTER 3. You will get the following message CONTRAST LCD Contrast set: ▼▲...

  • Page 26: Sensors Calibration

    4.5 S ENSORS CALIBRATION The instruments and sensors are calibrated in the factory; no calibration is usually required by the user. However, you can perform a new calibration. You can perform the calibration of the CO (Carbon Monoxide) and CO (Carbon Dioxide) sensors.
  • Page 27 SENSORS CALIBRATION CALIBRATION CO <ESC> exit/cancel <ENTER> confirm The instrument display shows the measured CO The CO sensor can be calibrated: • at 400ppm in clean air • at 0ppm with nitrogen bottles (code MINICAN.12A). The instrument can automatically detect the calibration methods used: whether 400ppm or 0ppm. The calibration should be performed at one point only: each new calibration cancels the previous one.

  • Page 28: Co Calibration

    4.5.2 CO Calibration You can calibrate the zero of the CO sensor in clean air (the CO concentration is lower than 0.1 ppm outdoor) or using nitrogen bottles (code MINICAN.12A). Use the arrows ▲▼ to select the 2) Calibration CO item: SENSORS CALIBRATION 1) Calibration CO...
  • Page 29 CO zero calibration with nitrogen bottle (code MINICAN.12A): Using a screwdriver, open the back small door of the instrument. Connect the tube from the MINICAN.12A bottle with the rubber cap on the CO sensor head. Back door CO sensor Use the arrows ▲▼ to select the 2) Calibration CO item: SENSORS CALIBRATION 1) Calibration CO...
  • Page 30 Confirm with ENTER. The following screen will appear: SENSORS CALIBRATION CO CALIBRATION CAL ZERO Cal zero 0 ppm <ESC> exit/cancel <ENTER> confirm • Wait about 15 minutes before continuing. • Supply the gas adjusting the bottle flow meter to get a constant flow from 0.1 to 0.2 l/min. •...
  • Page 31 6. Use the arrows ▼▲ to select the 2) Calibration CO item: SENSORS CALIBRATION 1) Calibration CO 2) Calibration CO 3) Calibration RH ▼▲ select <ESC> exit/cancel <ENTER> confirm Confirm with ENTER. The following screen will appear: SENSORS CALIBRATION CALIBRATION CO 1) Cal zero 2) Set sensitivity ▼▲...

  • Page 32: Rh Calibration (Hd21Ab17 Only)

    4.5.3 RH calibration (HD21AB17 only) This procedure applies to HD21AB17 instrument. Before starting the calibration operation, you should check if you need a new calibration using the saturated solutions at 75.4%RH and 33%RH: You should proceed with the calibration, only if you find an error in one of the two above calibration points.
  • Page 33 V. The measuring chamber must be closed, otherwise it will not reach a balance. Screw the probe all the way in the container thread. VI. The tuning or calibration sequence of Delta Ohm instruments is as follows: • First solution: 75% RH.

  • Page 34: Language

    Relative Humidity Balance values of some saturated salt solutions from 0°C to 100°C Temp. °C Lithium chloride Magnesium chloride Sodium chloride 11.23 ± 0.54 33.66 ± 0.33 75.51 ± 0.34 11.26 ± 0.47 33.60 ± 0.28 75.65 ± 0.27 11.29 ± 0.41 33.47 ±...

  • Page 35: Usb Interface

    5. USB INTERFACE HD21AB and HD21AB17 are fitted with an USB 2.0 interface. Optionally, you can receive on request the serial connection cable CP23 with mini-USB connector on instrument’s side and USB 2.0 connector on computer’s side. The USB connection requires the previous installation of the driver saved on the CD-ROM of the instrument software.
  • Page 36 Command Response Description Immediate printing of data & Stop printing data & Start logging data & Stop logging data & Auto-power-off function = ENABLE & Auto-power-off function = DISABLE & Setting SELF off & Setting SELF on & Reading of PRINT interval set and label of the Sample print = 0sec measurements...

  • Page 37: Storing And Transferring Data To Apc

    RANSFERRING ATA TO A HD21AB and HD21AB17 can be connected to a personal computer via an USB port, and exchange data and information through the DeltaLog10 software (from version 0.1.5.3) running in a Windows operating environment. It is possible to store the measured values in the internal memory using the Logging function (MEM key).

  • Page 38: Connection To A Pc

    6. CONNECTION TO A PC HD21AB and HD21AB17 are fitted with a mini-USB connector for connecting the instruments to the PC. Use the CP23 cable for connection to the PC’s USB port. The instruments are supplied with the DeltaLog10 software (from version 0.1.5.3). The software manages the connection, data transfer, graphic presentation, and printing operations of the captured or logged measurements.
  • Page 39 b. In the next page, right click on “Autorun” and select “Run as administrator”: 3. From the initial software page, click on "USB drivers setup" to start the USB drivers installation. 4. The application checks the presence of the drivers on the PC: •...
  • Page 40 8. Press FINISH to close the installation program. 9. If the installation was started from the CD-Rom, you will get a message to connect the instrument to the USB port: Press OK and close the Delta Ohm software by pressing EXIT.
  • Page 41 “Device Manager”: In both cases, cancel the operation, disconnect the device, and repeat the procedure illustrated at the beginning of this guide. Note 2. If the drivers have been downloaded from the Delta Ohm web site: a. Unzip the “Driver_USB_TUSB3410.zip” into a temporary folder on the PC.

  • Page 42: Removing The Usb Drivers

    6.2 R USB D EMOVING THE RIVERS To remove the USB drivers, proceed as follows: 1. Disconnect the instrument from the PC. 2. On Windows XP use the control panel (START >> Settings >> Control Panel) to start “Add/Remove Software”. On Windows Vista and Windows 7 use the control panel (START >>...

  • Page 43: Instrument Signals And Faults

    7. INSTRUMENT SIGNALS AND FAULTS The following table lists all error indications and information displayed by the instrument and supplied to the user in different operating situations: Display indication Explanation This appears if the sensor relevant to the indicated physical quantity is - - - - not present or is faulty.

  • Page 44: Battery Symbol - Mains Power Supply

    8. B – M ATTERY SYMBOL AINS POWER SUPPLY The meter is provided with a pack of 4 x 1.2V-2200mA/h Ni-MH rechargeable batteries, placed in the battery compartment. The battery symbol on the display constantly shows the battery charge status. To the extent that batteries have discharged, the symbol "empties".

  • Page 45: Notes For The Batteries Use

    Replace the batteries package when the autonomy is reduced at some hours. • Use only Delta Ohm batteries package code BAT-40 and recharge it using SWD10 battery charger or one that complies with the specifications indicated in the technical data.

  • Page 46: Instrument Storage

    9. INSTRUMENT STORAGE Instrument storage conditions: • Temperature: -25…+65°C. • Humidity: less than 90% RH without condensation. • During storage avoid locations where: • humidity is high; • the instrument may be exposed to direct sunlight; • the instrument may be exposed to a source of high temperature; •...

  • Page 47: Technical Characteristics

    10. TECHNICAL CHARACTERISTICS Instrument Dimensions (Length x Width x Height) 210x90x40 mm (HD21AB) 300x90x40 mm (HD21AB17 with probe) Weight 470 g (batteries included) Materials ABS, rubber Display Backlit, Dot Matrix 160x160 dots, visible area 52x42 mm Operating conditions Operating temperature -5 …...

  • Page 48: Technical Data Of The Sensors

    10.1 T ECHNICAL DATA OF THE SENSORS Carbon Dioxide Sensor NDIR Dual Wavelength Measurement range 0 … 5000ppm Sensor working range -5 … 50°C Accuracy ±50ppm+3% of measure Resolution 1ppm Temperature dependence 0.1%f.s./°C Response time (T < 120 sec (wind speed = 2m/sec) Long-term stability 5% of measure/5 years CO Carbon Monoxide...

  • Page 49: Ordering Codes

    Complete protection in 10μ sintered PTFE for Ø 14mm probes. Protection grid in stainless steel and Pocan for Ø 14mm probes, thread M12x1. The Delta Ohm Metrological Laboratories are accredited by SIT in regards to Temperature, Humidity, Pressure, Photometry/Radiometry, Acoustics and Wind Speed. On request, the...
  • Page 50 Primary National Metrological Research Institute. Tipo Prodotto: Indoor Air Quality Monitor Product Type: Indoor Air Quality Monitor HD21AB – HD21AB17 Nome Prodotto: HD21AB – HD21AB17 Product Name: DELTA OHM SRL 35030 Caselle di Selvazzano (PD) Italy Via Marconi, 5 Tel.
  • Page 51 All DELTA OHM instruments are subject to accurate testing, and are guaranteed for 24 months from the date of purchase. DELTA OHM will repair or replace free of charge the parts that, within the warranty period, shall be deemed non efficient according to its own judgement. Complete replacement is excluded and no damage claims are accepted.
