  • Page 1 REV. 1.6 June, 28 2012 HD2301.0R ENGLISH Our instruments' quality level is the results of the product continuous development. This can bring about differences between the information written in this manual and the instrument that you have purchased. We cannot entirely exclude errors in the manual, for which we apologize.
  • Page 2 Thermohygrometer HD2301.0R...

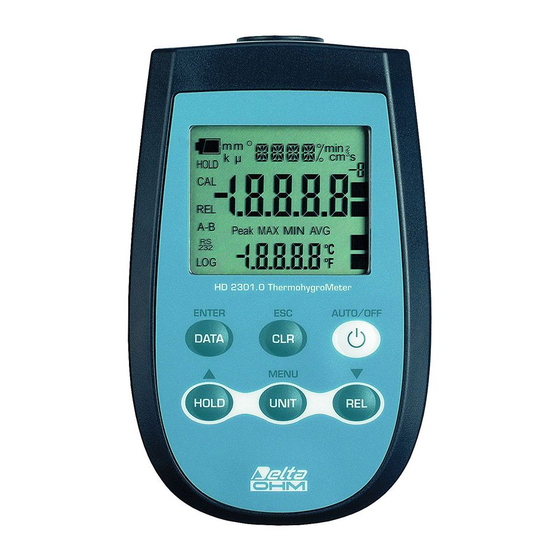

  • Page 3 HD2301.0R 1. Input for probes, 8-pole DIN45326 connector. 2. Battery symbol: displays the battery charge level. 3. Function indicators. 4. Secondary temperature display line. 5. DATA/ENTER key: during normal operation displays the maximum (MAX), the minimum (MIN) and the average (AVG) of current measurements; in the menu, confirms the current selection.

  • Page 4: Table Of Contents

    TABLE OF CONTENTS 1. GENERAL CHARACTERISTICS ..........................6 2. DESCRIPTION OF THE FUNCTIONS ........................7 3. THE PROGRAMMING MENU ..........................10 4. PROBES AND MEASUREMENTS .......................... 11 4.1 Measurement of relative humidity ......................... 11 4.1.1 Performing the measurement.......................... 11 4.1.2 Calibration of the combined humidity/temperature probe ................12 4.2 Direct input into Pt100 and Pt1000 Temperature probes ..................
  • Page 5 CERTIFICATO DI CONFORMITÀ DEL COSTRUTTORE MANUFACTURER’S CERTIFICATE OF CONFORMITY rilasciato da issued by DELTA OHM SRL STRUMENTI DI MISURA DATA 2012/06/28 DATE Si certifica che gli strumenti sotto riportati hanno superato positivamente tutti i test di produzione e sono conformi alle specifiche, valide alla data del test, riportate nella documentazione tecnica.

  • Page 6: General Characteristics

    1. GENERAL CHARACTERISTICS The Thermohygrometer Model HD2301.0R is a portable instrument that measures an environment's temperature and relative humidity. It is fitted with a large LCD display for excellent visualization of the measured data. The Thermohygrometer Model HD2301.0R measures: • relative humidity and temperature using combined probes, fitted with a Pt100 temperature sensor or thermocouple;...

  • Page 7: Description Of The Functions

    2. DESCRIPTION OF THE FUNCTIONS The keyboard of the Thermohygrometer HD2301.0R is composed of double-function keys. The function on the key is the "main function", while the one above the key is the "secondary function". When the instrument is in standard measurement mode, the main function is active.
  • Page 8 In this case, remember to turn the instrument off using the ON/OFF key: disabling of the automatic turning off is shown by the blinking battery symbol. CLR/ESC key The "CLR" key has two functions: • CLEAR (CLR): allows to reset the maximum (MAX), minimum (MIN) and average (AVG) value of the captured measurements;...
  • Page 9 UNIT/MENU key The "UNIT" key is used for the following functions: • UNIT: by pressing this key the unit of measurement of the main input quantity is selected: the unit of measurement will appear in the upper part of the display; the measured value will be displayed in the central line.

  • Page 10: The Programming Menu

    • direct 4 wire "Pt100" probes complete with TP47 module • 2 wire "Pt1000" probes complete with TP47 module NOTE: The probes fitted with SICRAM module, and Delta Ohm "Pt1000" probes, are automatically detected by the instrument upon turning on. The type of probe is configured by the instrument and cannot be modified by the user.

  • Page 11: Probes And Measurements

    The Delta Ohm Pt1000 probes are automatically detected while the direct 4 wire Pt100 temperature probe is not automatically detected by the instrument and must be set up in the Probe type menu item (please see the menu description on chapter 3).

  • Page 12: Calibration Of The Combined Humidity/Temperature Probe

    4.1.2 Calibration of the combined humidity/temperature probe Caution! To calibrate the probes correctly, a knowledge of and abiding by the physical phenomena on which the measurement is based is fundamental: this is the reason why it is recommended to abide by what is reported below carefully and only to perform new calibrations if technically proficient.
  • Page 13 10. To return to measurement mode, use the arrows until the message "nonE" appears in the central display and press UNIT. 11. Remove the probe from the 75%RH container and close it immediately using its cap. Calibrating the points at 33%RH and 11%RH Repeat the points from 3) to 9) using the saturated salts at 33%RH and 11%RH When completed, unscrew the ring with the cap, and screw the protection grid back on the sensors.

  • Page 14: Direct Input Into Pt100 And Pt1000 Temperature Probes

    4.2.2 Connecting the TP47 connector for the 4 wire Pt100 and 2 wire Pt1000 probes All probes produced by Delta Ohm are provided with a connector. The Thermohygrometer Model HD2301.0R also work with direct 4 wire Pt100, and 2 wire Pt1000 probes manufactured by other producers: for the instrument connection is prescribed the TP47 connector to which the probe's wires should be welded.
  • Page 15 5. open the two module shells: the printed circuit to which the probe must be connected is housed inside. On the left there are the 1…4 points on which the sensor wires must be welded. The JP1…JP4 jumpers are in the center of the board. These must be closed with a tin bead for some type of sensors: Not Used Ni1000...

  • Page 16: Direct Connection Of 4 Wire Pt100 Sensors

    4.2.3 Direct connection of 4 wire Pt100 sensors 4 wire Pt100 sensors can be soldered directly Sensor Direct soldering to the connector to the pins of the flying female connector without making use of the TP47 board. The 4 wires of the Pt100 sensors have to be soldered as indicated in the figure on the left.

  • Page 17: Warnings

    5. WARNINGS 1. Probes are not insulated from their external casing; be very careful not to come into contact with live parts (above 48V). This could be extremely dangerous for the instrument as well as for the operator, who could be electrocuted. 2.

  • Page 18: Instrument Signals And Faults

    6. INSTRUMENT SIGNALS AND FAULTS The following table lists all error indications and information displayed by the instrument and supplied to the user in different operating situations: Display indication Explanation This appears in the display central line when a temperature only probe is connected. In the lower line - - - the temperature is shown correctly.

  • Page 19: Low Battery Warning And Battery Replacement

    7. LOW BATTERY WARNING AND BATTERY REPLACEMENT The battery symbol on the display constantly shows the battery charge status. To the extent that batteries have discharged, the symbol "empties". When the charge decreases still further it starts blinking. In this case, batteries should be replaced as soon as possible. If you continue to use it, the instrument can no longer ensure correct measurement.

  • Page 20: Instrument Storage

    8. INSTRUMENT STORAGE Instrument storage conditions: • Temperature: -25…+65°C. • Humidity: less than 90%RH without condensation. • Do not store the instrument in places where: • humidity is high; • the instrument may be exposed to direct sunlight; • the instrument may be exposed to a source of high temperature; •...

  • Page 21: Technical Characteristics

    10. TECHNICAL CHARACTERISTICS 10.1 T ECHNICAL INFORMATION ON THE HERMOHYGROMETER Instrument Dimensions (Length x Width x Height) 140 x 88 x 38 mm Weight 160 g (complete with batteries) Material Display 2x4½ digits plus symbols Visible area: 52 x 42 mm Operating conditions -5 ÷...

  • Page 22: On Line Instrument Probes And Modules Technical Data

    10.2 O N LINE INSTRUMENT PROBES AND MODULES TECHNICAL DATA 10.2.1 T Pt100 EMPERATURE PROBES SENSOR USING SICRAM MODULE Model Type Application range Accuracy ±0.25°C (-196°C…+350°C) Immersion -196°C…+500°C TP472I ±0.4°C (+350°C…+500°C) Immersion -50°C…+300°C ±0.25°C (-50°C…+300°C) TP472I.0 ±0.25°C (-50°C…+350°C) Penetration -50°C…+400°C TP473P.I ±0.4°C (+350°C…+400°C) Penetration...

  • Page 23: Relative Humidity And Temperature Probes Using Sicram Module

    10.2.2 R ELATIVE HUMIDITY AND TEMPERATURE PROBES USING SICRAM MODULE Application range Accuracy Temperature Model sensor Temperature Temp. Pt100 0...100%RH -20°C…+80°C ±0.3°C HP472ACR ±1.5%RH (0...90%RH), Thermocouple K 0...100%RH -20°C…+80°C ±0.5°C HP572ACR ±2.0%RH (elsewhere) Pt100 0...100%RH -20°C…+80°C ±0.3°C HP473ACR for T=15…35°C Pt100 0...100%RH -40°C…+150°C ±0.3°C...

  • Page 24: Order Codes

    11. ORDER CODES The kit is composed of the instrument HD2301.0R, 3 1.5V alkaline batteries, HD2301.0R operating manual and case. 11.1 P SICRAM ROBES COMPLETE WITH MODULE TEMPERATURE PROBES Pt100 sensor immersion probe. Stem Ø 3 mm, length 300 mm. Cable length 2 m.
  • Page 25 COMBINED RELATIVE HUMIDITY AND TEMPERATURE PROBES Combined probe %RH and temperature, dimensions Ø 26x170mm. Connection HP472ACR cable length 2 m. Combined probe %RH and temperature - thermocouple K sensor. Dimensions Ø HP572ACR 26x170mm. Connection cable length 2 m. Combined probe %RH and temperature. Dimensions handle Ø 26x130mm, probe HP473ACR Ø...

  • Page 26: Temperature Probes Without Sicram Module

    11.2 T SICRAM EMPERATURE PROBES WITHOUT MODULE Direct 4 wire Pt100 sensor immersion probe. Probe's stem Ø 3 mm, length 230 TP47.100.O mm. 4 wire connection cable with connector, length 2 metres. Pt1000 sensor immersion probe. Probe's stem Ø 3 mm, length 230 mm. 2 wire TP47.1000.O connection cable with connector, length 2 metres.
  • Page 28 All DELTA OHM instruments are subject to accurate testing, and are guaranteed for 24 months from the date of purchase. DELTA OHM will repair or replace free of charge the parts that, within the warranty period, shall be deemed non efficient according to its own judgement. Complete replacement is excluded and no damage claims are accepted.
