- Page 1 English Operating manual Tipping bucket rain gauge HD2013 www.deltaohm.com Keep for future reference.
-
Page 2: Table Of Contents
LECTRICAL CONNECTIONS ................. 9 ONFIGURATION OF ANALOG OUTPUT ....................10 IPPING BUCKET ..................11 NSTALLATION MODES SERIAL COMMANDS .................... 14 SDI-12 PROTOCOL ....................20 MAINTENANCE ....................27 INSTRUMENT STORAGE ..................29 SAFETY INSTRUCTIONS ..................29 ORDERING CODES ....................30 HD2013 V1.5... -
Page 3: Introduction

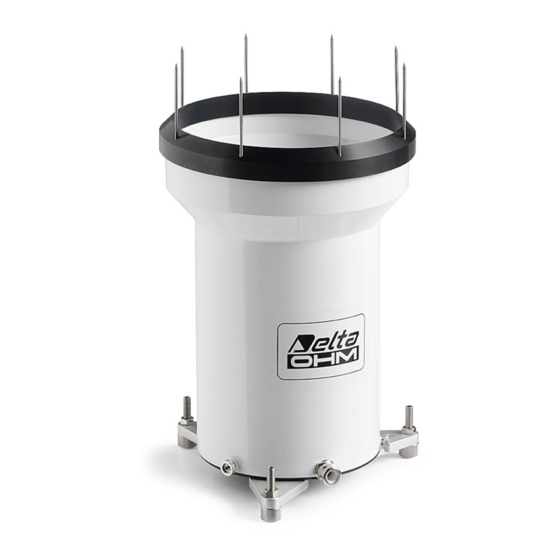

1 INTRODUCTION The HD2013 is a reliable and sturdy tipping bucket rain gauge, built entirely from cor- rosion resistant materials in order to guarantee its durability. So as to ensure accurate measurement even with low temperature climatic conditions or during and after pre- cipitations of snow, a version with heating which is automatically activated around +4 °C has been developed so that snow deposits and ice formations are prevented. -
Page 4: Technical Specifications
(fig. 1 and 2), the error is typically less than ± 2% in the in- terval 0…200 mm/h. If the HD2013-DB data logger is used, the measurement can be automatically corrected according to the graphs in fig. 1 and 2. - Page 5 From the graph in fig.1 we obtain the normalized corrected resolution: R = 0.198 mm. The corrected resolution of the rain gauge is: R / 0.2 = 0.202 mm. The amount of rain detected is 25 x 0.202 = 5.05 mm. HD2013 V1.5...
-
Page 6: Installation
The rain gauge contact output, indicated at point 1 in the figure 3, must be con- nected to the input of the HD2013-DB rain gauge data logger (please see the details in the manual of the data logger) or to a pulse counter or to a data logger. - Page 7 Connector of the cone heater Fig. 3 – Connections of contact output and heating Connection of analog output (only HD2013…A… and HD2013…V…): Perform the connections as shown in figure 4. Set the SW1 switch up, towards the IN- TERNAL indication (the contact output is disabled).
- Page 8 3 Vdc (and lower than or equal to the power supply) for at least 1 s, then reconnect the line to GND. Connection of SDI-12 digital output (only HD2013…S…): Perform the connections as shown in figure 5.
-
Page 9: Configuration Of Analog Output
CRW (see the table of the serial commands). COM PC serial port Fig. 6 – Dip switches Warning: after reaching the full scale value, the measurement is reset and the analog output returns to the initial scale value. HD2013 V1.5... -
Page 10: Tipping Bucket
Fig. 7 – Locking and unlocking the tipping bucket The oscillation of the tipping bucket can be adjusted through the two threaded rods located under the bucket, as illustrated in fig.8. Fig. 8 – Adjustment of the tipping bucket HD2013 V1.5... -
Page 11: Installation Modes
3.4 I NSTALLATION MODES Fig. 9 – Mechanical dimensions, installation modes Fig. 10 – Base for ground fastening (HD2003.78) HD2013 V1.5... - Page 12 Fig. 11 – Ground installation HD2013 V1.5...
- Page 13 Fig. 12 – Installation raised above ground HD2013 V1.5...
-
Page 14: Serial Commands
Reply of the instrument: &| if date and time are accepted ? if date and time are not correct Reads the date (year/month/day) and the time (hour/minutes/seconds) set in the rain gauge. Reply of the instrument: yyyy/mm/dd hh:mm:ss HD2013 V1.5... - Page 15 Reply of the instrument: v…vm…mf…fs…s, with: v…v (8 characters) = name of the manufacturer (DELTAOHM) m…m (6 characters) = model (HD2013) f…f (3 characters) = firmware version s…s (max. 13 characters) = serial number Unit of measurement...
- Page 16 &| if the setting is accepted ? if the index n is not correct Reads the type of the rain gauge output contact. Reply of the instrument: 0 if the contact is normally OPEN 1 if the contact is normally CLOSED HD2013 V1.5...
- Page 17 Analog output (only HD2013…A… and HD2013…V…) Command Description CPOE Enables the offset of the analog output initial value: 4…20 mA or 2…10 V. Reply of the instrument: &| CPOD Disables the offset of the analog output initial value: 0…20 mA or 0…10 V.
- Page 18 (see the example below). The multiplication factor must be between 0.500 and 2.000. The rainfall rate must be between 0 and 7200. Reply of the instrument: &| if the parameters are correct ? if the parameters are not correct HD2013 V1.5...
- Page 19 CTW0+0+1 CTW1+25+1.02 CTW2+50+1.04 CTW3+75+1.06 CTW4+90+1.08 CTW5+120+1.1 CTW6+150+1.12 CTW7+180+1.15 CTW8+220+1.18 CTW9+260+1.2 Note that the sequence of the CTW commands must be preceded by the command CTS and follwed by the command CTE. HD2013 V1.5...
-
Page 20: Sdi-12 Protocol
5 SDI-12 PROTOCOL The HD2013…S… rain gauge is equipped with an SDI-12 communication interface compliant with the version 1.3 of the protocol, which allows the connection to SDI-12 sensor networks. The communication parameters of the protocol are: • Baud Rate = 1200 •... - Page 21 The instrument with address 0 has recorded 12 emptying of the tipping bucket and the partial amount of rainfall is 2.4 mm or inches depending on the set unit. Note: after reaching 99999.99, the partial rainfall counter restarts from zero. HD2013 V1.5...
- Page 22 (mm or inches) ⇒ Example of response: 0+8+1.6 The instrument with address 0 has recorded 2 emp- tying of the tipping bucket and the amount of rain- fall yesterday was 1.6 mm or inches depending on the set unit. HD2013 V1.5...
- Page 23 Reads the total amount of rainfall (from when the in- with: strument is powered). n = number of emptying of the tipping bucket r…r = total amount of rainfall in the unit of meas- urement set in the instrument (mm or inch- HD2013 V1.5...
- Page 24 Reads the amount of rain- fall in the previous day. with: n = number of emptying of the tipping bucket r…r = amount of rainfall in the previous day in the unit of measurement set in the instrument (mm or inches) HD2013 V1.5...
- Page 25 Reads the amount of rain- aR3! fall in the previous day. with: n = number of emptying of the tipping bucket r…r = amount of rainfall in the previous day in the unit of measurement set in the instrument (mm or inches) HD2013 V1.5...
- Page 26 For example, to set °F as temperature unit of measurement in the instrument with address 0, send: 0PWDmypass! Sends the password (assuming password=mypass) 0TUWF! Sets °F The reply to an extended command is always preceded by the address of the instru- ment that replies. HD2013 V1.5...
-
Page 27: Maintenance
2: filter support 3: filter 4: birds dissuader 5: tip 6: ring 7: housing 8: pin 9: funnel 10: nozzle 11: gasket 12: washer 13: nut 14: heater Fig. 13 – Exploded view of the upper part (version with heating) HD2013 V1.5... - Page 28 25: cable gland 26: junction 27: screw 28: bracket 29: spacer 30: pin 31: protection 32: washer 33: circuit 34: screw 35: support 36: cable clamp 37: screw Fig. 14 – Exploded view of the lower part (version with heating) HD2013 V1.5...
-
Page 29: Instrument Storage
User obligations The instrument operator shall follow the directives and regulations below that refer to the treatment of dangerous materials: EEC directives on workplace safety. • National law regulations on workplace safety. • Accident prevention regulations. • HD2013 V1.5... -
Page 30: Ordering Codes
Flat base for fastening the support of the rain gauge raised above ground. DELTA OHM metrology laboratories LAT N° 124 are ISO/IEC 17025 accredited by AC- CREDIA for Temperature, Humidity, Pressure, Photometry / Radiometry, Acoustics and Air Velocity. They can supply calibration certificates for the accredited quantities. - Page 32 | sales@deltaohm.com WARRANTY Delta OHM is required to respond to the "factory warranty" only in those cases provided by Legislative Decree 6 September 2005 - n. 206. Each instrument is sold after rigorous inspections; if any manufacturing defect is found, it is necessary to contact the distributor where the instrument was purchased from.
