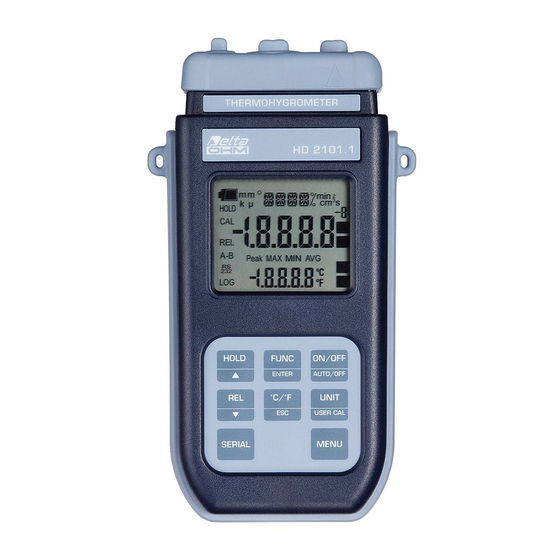

Delta OHM HD2101.1 User Manual

Hygro-thermometer
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
The quality level of our instruments is the result of a continuous improve of product. This
situation can cause possible differences comparing this manual with the instrument you
bought. We regret in advance for any possible mistake in this manual.
Data, drawings and descriptions included in this manual cannot be juridically in force. We
reserve us the right to modify and correct the manual without prior notice.
HD2101.1
HD2101.2
ENGLISH
REV. 2.2
29/11/2016

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HD2101.1 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Delta OHM HD2101.1

Summary of Contents for Delta OHM HD2101.1

  • Page 1 REV. 2.2 29/11/2016 HD2101.1 HD2101.2 ENGLISH The quality level of our instruments is the result of a continuous improve of product. This situation can cause possible differences comparing this manual with the instrument you bought. We regret in advance for any possible mistake in this manual.
  • Page 2 CONTENTS INTRODUCTION ..............................3 KEYBOARD AND MENU DESCRIPTION ......................8 THE PROBES ................................14 ........................14 EASUREMENT OF RELATIVE HUMIDITY Calibration of the combined humidity/temperature probe ...................14 Humidity and Comfort indices ...........................16 Pt100, Pt1000 Ni1000 T ..............18 IRECT INPUT INTO EMPERATURE PROBES How to measure ..............................18 Instructions to connect the TP47 connector for 4 wire Pt100, Pt1000 and Ni1000 probes ........18 Direct connection of 4 wire Pt100 sensors ......................20...

  • Page 3: Introduction

    The HD2101.1 and HD2101.2 models are fitted with an RS232C serial port and can transfer the acquired measurements in real time to a PC or to a portable printer.
  • Page 4 Hygro-Thermometer HD2101.1 - 4 -...
  • Page 5 HD2101.1 1. Input for probes, 8-pole DIN45326 connector. 2. External auxiliary power supply connector input. 3. Battery symbol: displays the battery charge level. 4. Functions indicators. 5. Secondary display line. 6. HOLD/ key: freezes the measurement during normal operation; in the menu, increases the current value.
  • Page 6 Hygro-Thermometer HD2101.2 - 6 -...
  • Page 7 HD2101.2 1. Input for probes, 8-pole DIN45326 connector. 2. External auxiliary power supply connector input. 3. Battery symbol: displays the battery charge level. 4. Main display line. 5. Secondary display line. 6. HOLD/ key: freezes the measurement during normal operation; in the menu, increases the current value.

  • Page 8: Keyboard And Menu Description

    KEYBOARD AND MENU DESCRIPTION Foreword The instrument keyboard is composed of single-function keys, like the MENU key, and double- function keys such as the ON-OFF/Auto-OFF key. In the double-keys, the function in the upper part is the "main function", while the one in the bottom part is the "secondary function".
  • Page 9 This setting changes the information displayed and the immediate print of data (SERIAL key). The data recorded using the LOG function (HD2101.2) and sent to the printer or PC through the serial port using the SERIAL function (HD2101.1 and HD2101.2), keep the chosen unit of measurement and display it.
  • Page 10 %RH probe calibration Simultaneous pressure on the UNIT and FUNC keys starts the calibration procedure of the probe connected to the instrument. Please see the paragraph dedicated to calibration on page 14. °C/°F - ESC key Changes the unit of measurement for the temperature from degrees Celsius to Fahrenheit for both the main and secondary variable.
  • Page 11 2 wire Ni1000 probes complete with TP47 module Upon turning on the instrument automatically detects the probes fitted with SICRAM module, the Delta Ohm Pt1000 and Ni1000: the Probe Type menu item is configured by the instrument and cannot be modified by the user.
  • Page 12 When the LOG key is pressed after the MENU key, the transfer of the logged data on the serial port is started. Please see the paragraph dedicated to data transfer on page 28. SERIAL key - only HD2101.1 SERIAL/EraseLOG key - only HD2101.2 In measurement mode, this function starts and stops the data transfer to the RS232C serial output.
  • Page 13 The printing operation is accompanied by the display of the RS232 symbol and the blinking of the battery symbol; when using an external power supply the battery symbol does not appear. Press SERIAL to end the continuous printing. Before starting the printing with SERIAL, set the baud rate. To do so, select the Baud Rate menu item and select the maximum value equal to 38400 baud by using the arrows.

  • Page 14: The Probes

    The Delta Ohm Pt1000 and Ni1000 probes are automatically detected while the direct 4 wire Pt100 temperature probe is not automatically detected by the instrument and must be set up in the Probe type menu item (please see the description of the menu on page 11).
  • Page 15 The probes are calibrated in our laboratory at 23°C at the points of 75%RH, 33%RH and 11.4%RH. On request, the probes can be checked at different isotherms. The calibration of the temperature sensor by the user is not required: the sensor is calibrated in the factory and the Callendar Van Dusen parameters are recorded in the SICRAM module.

  • Page 16: Humidity And Comfort Indices

    this case the chamber cannot reach its saturation anymore. For the saturated solutions at 75%RH, check that the salt is not dry (crystallized) for in order to reach the saturation, it needs to be wet 5) Storage of the saturated solutions: the saturated solutions must be stored in a dark environment at a constant temperature of about 20°C with the container well closed inside a dry room Relative humidity of saturated salts at different temperatures Temp...
  • Page 17 According to the value supplied by the DI index (Discomfort Index), the climatic conditions range from comfortable to somewhat annoying, and then intolerable: Comfortable Not very annoying Annoying Very annoying Intolerable There are four possible causes of local discomfort: • high vertical difference of temperature •...

  • Page 18: Instructions To Connect The Tp47 Connector For 4 Wire Pt100, Pt1000 And Ni1000 Probes

    A tolerance according to norm IEC751 - BS1904 - DIN43760. The probes with SICRAM module, the Delta OHM Pt1000 and Ni1000, are detected by the instru- ment; but the model configuration is required for the other probes (please see the description of the Probe Type menu item on page 11).
  • Page 19 Open the two module shells: the printed circuit to which the probe must be connected is housed inside. On the left there are the 1…4 points on which the sensor wires must be welded. The JP1…JP4 jumpers are in the center of the board. These must be closed with a tin bead for some type of sensors: Not Used Ni1000...

  • Page 20: Direct Connection Of 4 Wire Pt100 Sensors

    Direct connection of 4 wire Pt100 sensors 4 wire Pt100 sensors can be soldered di- Sensor Direct soldering to the connector rectly to the pins of the free female con- nector without making use of the TP47 board. The 4 wires of the Pt100 sensors have to be soldered as indicated in the figure on the left.

  • Page 21: Warnings And Operating Instructions

    WARNINGS AND OPERATING INSTRUCTIONS 1. Do not expose the probes to gases or liquids that could corrode the material of the sensor or the probe itself. Clean the probe carefully after each measurement. 2. Do not bend the probe connectors or force them upward or downward. 3.

  • Page 22: Instrument Signals And Faults

    INSTRUMENT SIGNALS AND FAULTS The following table lists all error indications and information displayed by the instrument and supplied to the user in different operating situations: Display indications Explanation This appears if the probe has already been detected by the instrument, but is disconnected.
  • Page 23 The following table reports the indications provided by the instrument as they appear on the display, together with their description. Display indications Explanation >>>_LOG_DUMP_or_ERAS transfer or erase data >>>_PRBE_TYPE type of probe connected battery discharged - replace it immediately BATT TOO LOW - CHNG NOW baud rate value BAUDRATE >>>...

  • Page 24: Low Battery Warning And Battery Replacement

    LOW BATTERY WARNING AND BATTERY REPLACEMENT The battery symbol on the display constantly shows the battery charge status. To the extent that batteries have discharged, the symbol "empties". When the charge decreases still further it starts blinking… In this case, batteries should be replaced as soon as possible. If you continue to use it, the instrument can no longer ensure correct measurement.

  • Page 25: Instrument Storage

    ALFUNCTIONING UPON TURNING ON AFTER BATTERY REPLACEMENT After replacing the batteries, the instrument may not restart correctly; in this case, repeat the operation. After disconnecting the batteries, wait a few minutes in order to allow circuit condensers to discharge completely; then reinsert the batteries. ARNING ABOUT BATTERY USE •...

  • Page 26: Serial Interface And Usb

    SERIAL INTERFACE AND USB The HD2101.1 and HD2101.2 instruments are fitted with an electrically isolated RS-232C serial interface; the HD2101.2 also has a USB 2.0 interface. The following serial cables can be used: • HD2110CSNM: serial connection cable with 8-pole MiniDin connector on one end and 9-pole Sub D connector on the other end;...
  • Page 27 Command Response Description M=Thermo-Hygrometer Model description SN=12345678 Instrument serial number Firm.Ver.=01-00 Firmware version Firm.Date=2004/06/15 Firmware date cal 0000/00/00 00:00:00 Calibration date and time Probe=Sicram RH-Pt100 Type of probe connected to input Probe SN=11119999 Probe serial number Probe cal.=2004/01/12 Probe calibration date User ID=0000000000000000 User code (set with T2xxxxxxxxxxxxxxxx) Print instrument's heading...

  • Page 28: Storing And Transferring Data To A Personal Computer

    STORING AND TRANSFERRING DATA TO A PERSONAL COMPUTER The HD2101.1 and HD2101.2 instruments can be connected to a personal computer via an RS232C serial port or USB 2.0 port, and exchange data and information through the DeltaLog9 software running in a Windows operating environment. Both models can send in real time input measured values directly to a PC, through the PRINT function;...
  • Page 29 PRINT FUNCTION The PRINT function sends the measurements taken in real time by the instrument inputs directly to a PC or a printer. Print data units of measurements are the same as those used on the display. The function is started by pressing SERIAL. The time interval between two consecutive prints can be set from 1 second to 1 hour (please see the Print and log interval menu item on page 10).

  • Page 30: Connection To A Pc

    SERIAL PORT OF THE INSTRUMENT 1. The measurement instrument must be switched off. 2. Using the Delta Ohm HD2110CSNM or C.206 cable, connect the measuring instrument to the first free RS232C (COM) or USB serial port of the PC. 3. Turn on the instrument and set the baud rate to 38400 (MENU >> ENTER until the Baud Rate parameter >>...
  • Page 31 NOTES ABOUT WORKING AND OPERATING SAFETY Authorized use The technical specifications as given in chapter "TECHNICAL CHARACTERISTICS" must be ob- served. Only the operation and running of the measuring instrument according to the instructions given in this operating manual is authorized. Any other use is considered unauthorized. General safety instructions This measuring system is constructed and tested in compliance with the EN 61010-1:2010 safety regulations for electronic measuring instruments.

  • Page 32: Instrument Technical Characteristics

    INSTRUMENT TECHNICAL CHARACTERISTICS Instrument Dimensions (Length x Width x Height) 185x90x40mm Weight 470g (complete with batteries) Materials ABS, rubber Display 2x4½ digits plus symbols Visible area: 52x42mm Operating conditions Working temperature -5…50°C Stocking temperature -25…65°C Working relative humidity 0…90%RH without condensation Protection degree IP66 Power Supply...
  • Page 33 USB interface - model HD2101.2 Type 1.1 - 2.0 electrically isolated Connections Input module for the probes 8-pole male DIN45326 connector RS232 serial interface 8-pole MiniDin connector USB interface (only HD2101.2) Mini-USB type B connector Mains adapter (cod. SWD10) 2-pole connector (positive at centre) Relative humidity measurement Measurement range 0…100%RH...

  • Page 34: Sensor Using Sicram Module

    ECHNICAL DATA OF PROBES AND MODULES IN LINE WITH THE INSTRUMENT Pt100 EMPERATURE PROBES SENSOR USING SICRAM MODULE Model Type Application range Accuracy ±0.25°C (-196°C…+300°C) TP472I Immersion -196°C…+500°C ±0.5°C (+300°C…+500°C) TP472I.0 Immersion -50°C…+300°C ±0.25°C 1/3 DIN – Thin Film ±0.25°C (-50°C…+300°C) TP473P.I Penetration -50°C…+400°C...

  • Page 35: Wires

    ELATIVE HUMIDITY AND TEMPERATURE PROBES USING SICRAM MODULE Application range Accuracy Temperature Model sensor Temperature Temp. HP472ACR Pt100 0…100%RH -20°C…+80°C ±0.3°C HP572ACR Thermocouple K 0…100%RH -20°C…+80°C ±0.5°C ±1.5% (0…90%RH) Pt100 0…100%RH -20°C…+80°C ±2% (90…100%RH) ±0.3°C HP473ACR Pt100 0…100%RH -40°C…+150°C ±0.3°C HP474ACR @ T=15…35°C Pt100...

  • Page 36: Order Codes

    ORDER CODES HD2101.1 The kit includes the instrument HD2101.1, 4 x 1.5V alkaline batteries, operating manual, case and DeltaLog9 software. HD2101.2 The kit includes the HD2101.2 datalogger, 4 x 1.5V alkaline batteries, operating manual, case and DeltaLog9 software. Probes, saturated solutions and cables have to be ordered separately.
  • Page 37 TP49AC.I Contact probe, sensor Pt100. Stem Ø 4 mm, length 150 mm. Cable length 2 metres. Aluminium handle. TP49AP.I Penetration probe, sensor Pt100. Stem Ø 2.7 mm, length 150 mm. Cable length 2 metres. Aluminium handle. TP875.I Globe-thermometer Ø 150 mm with handle. Cable length 2 metres. TP876.I Globe-thermometer Ø...
  • Page 38 20μm PTFE protection for probes Ø 14 mm, thread M12×1 20µ stainless steel grid and Pocan protection for probes Ø 14 mm, thread M12×1 DELTA OHM metrology laboratories LAT N° 124 are accredited by ACCREDIA for Tem- perature, Humidity, Pressure, Photometry / Radiometry, Acoustics and Air Velocity. They can supply calibration certificates for the accredited quantities.
  • Page 39 DICHIARAZIONE DI CONFORMITÀ UE EU DECLARATION OF CONFORMITY GHM Messtechnik GmbH location Delta OHM, via G. Marconi 5, 35030 Selvazzano (PD), Italy Documento Nr. / Mese.Anno: 5006 / 11.2016 Document-No. / Month.Year : Si dichiara con la presente, in qualità di produttore e sotto la propria responsabilità esclusiva, che i seguenti prodotti...

  • Page 40: Serial Number

    All DELTA OHM instruments are subject to accurate testing, and are guaranteed for 24 months from the date of purchase. DELTA OHM will repair or replace free of charge the parts that, within the warranty period, shall be deemed non efficient according to its own judgement. Complete replacement is excluded and no damage claims are accepted.
