For cleaning equipment and supplies visit www.southeasternequipment.net

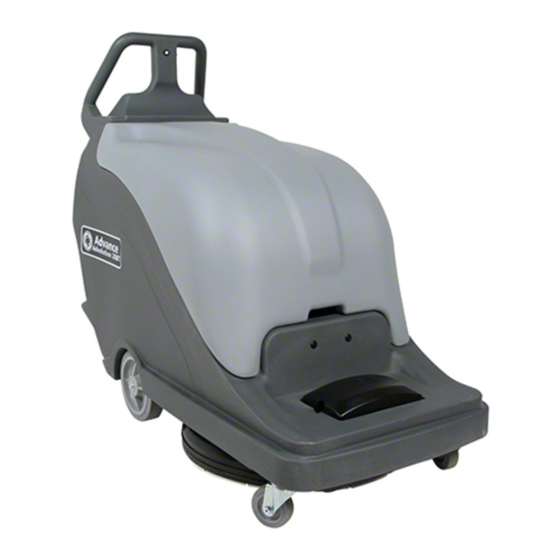

Advolution 20B
Advolution 20BT
Instructions For Use and Parts List
Instrucciones para el uso y lista de piezas
Guides d'utilisation et liste des pièces
This manual is only for machines after serial number 3000117136.
Advance Models:
Advance Models
(w/Active Vac):
For cleaning equipment and supplies visit www.southeasternequipment.net
01594A (20BT 200AH), 01595A (20B 200AH),
01596A (20BT 234AH AGM), 01597A (20B 234AH AGM)
01584A (20BT 200AH), 01585A (20B 200AH),
01586A (20BT 234AH AGM), 01587A (20B 234AH AGM)
English (2 - 9)
EN
Español (10 - 17)
ES
Français (18 - 25)
FR
PARTS LIST (26 - 49)
12/12 revised 8/13 Form Number 56091083

Advertisement

Chapters

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 01594A and is the answer not in the manual?

Questions and answers

Related Manuals for Advance acoustic 01594A

Summary of Contents for Advance acoustic 01594A

  • Page 1 Guides d’utilisation et liste des pièces This manual is only for machines after serial number 3000117136. Advance Models: 01594A (20BT 200AH), 01595A (20B 200AH), 01596A (20BT 234AH AGM), 01597A (20B 234AH AGM) Advance Models 01584A (20BT 200AH), 01585A (20B 200AH),...
