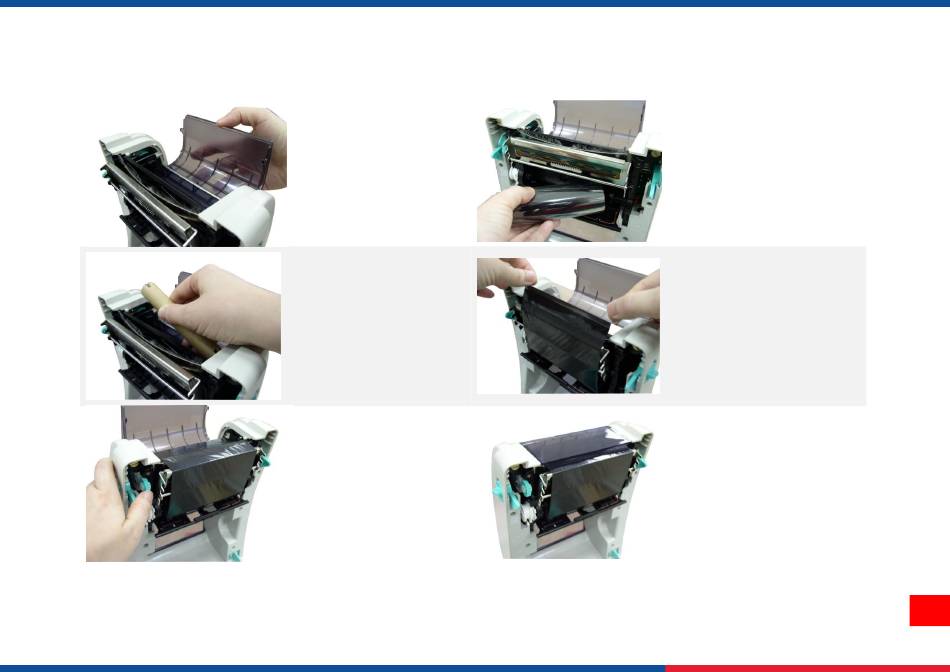

3.3 Loading the Ribbon

1.
Open the printer top
cover and the ribbon
access cover.
3.
Insert the paper core
right side onto the
rewind hub. Align the
notches on the left side
and mount onto the
spokes.
5.
Turn the ribbon rewind
gear until the ribbon
plastic leader is
thoroughly wound and
the black section of the
ribbon covers the print
head.
2.
Insert the ribbon right side
onto the supply hub. Align
the notches on the left side
and mount onto the spokes.
4.
Stick the ribbon onto the
ribbon rewind paper core.
6.
Close the ribbon access
cover and the top cover.
