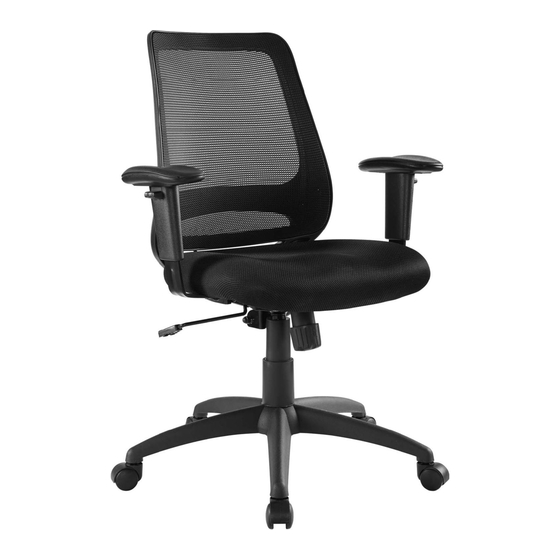

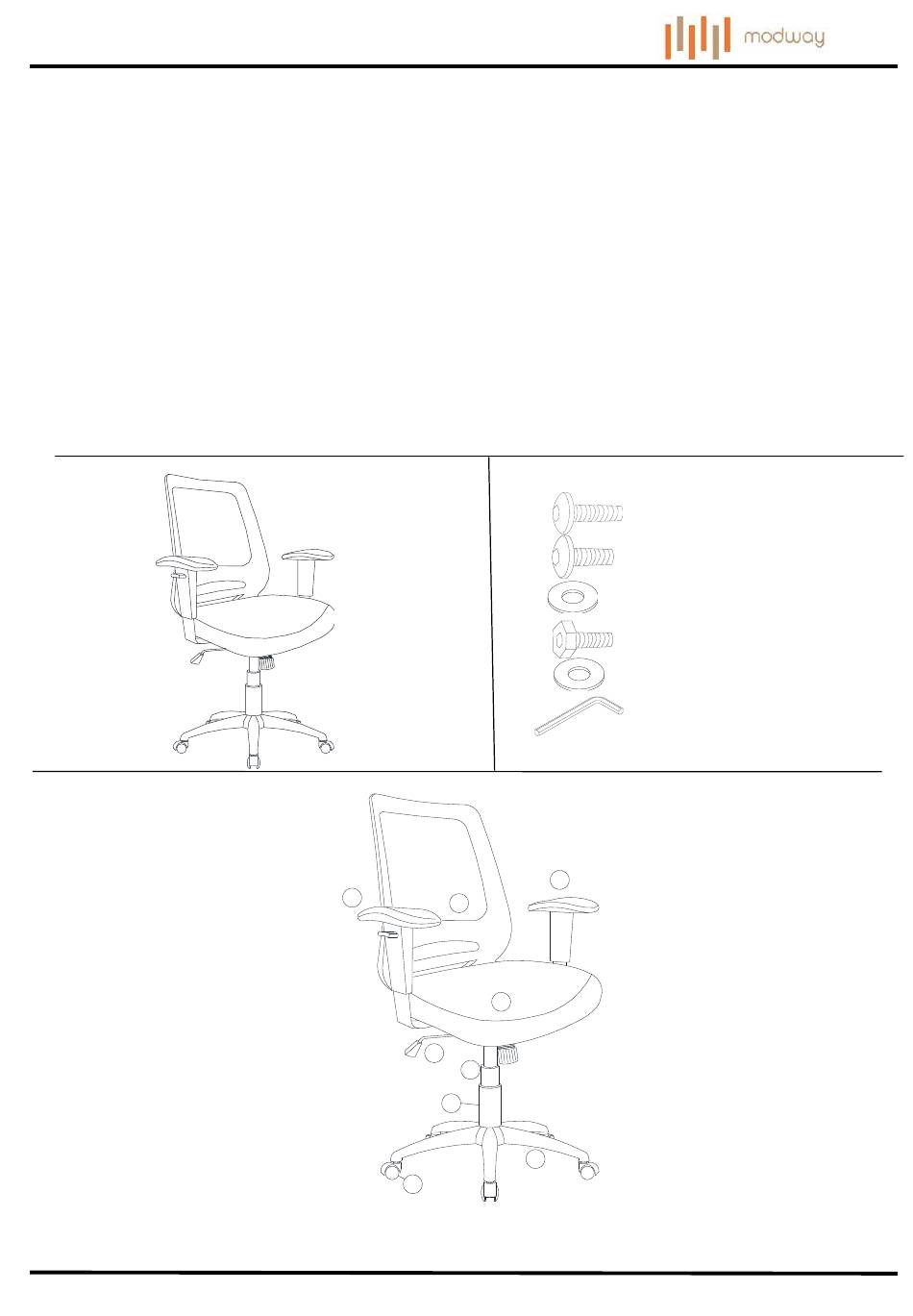

EEI –3195 Office Chair
Thank you for purchasing the MODWAY OFFICE CHAIR.
Before you start, here are some helpful advice:
1. We suggest you spend a short time reading through this leaflet and then follow the simple step-by-step
instructions.
2. Owing to the size and weight of the chair, we recommend that it is assembled by two adults, on a carpeted or
padded area, in the room that it is intended for. Approximate assembly time: 30 minutes.
3. Please do not use any tools other than those provided or recommended in these instructions.
4. Please do not throw away any of the packaging or the instruction until you have checked all the components
and hardware and the furniture is fully assembled. Please ensure that the packaging is disposed of in a safe
and environmentally friendly way.
5. Assemble all components loosely until advised to tighten. Depending on use, it may be necessary to tighten
the components from time to time, so please save the tools that have been provided.
6. Please keep all fitting out of reach of children.
Component:
1
Base x1
2 Cylinder Column x1
6 Left Arm x1 7 Right Arm x1
Customer Service 908-368-1025︱www.modwayfurniture.com
Hardware:
A.
B.
C.
D.
E.
F.
7
5
4
3
2
9
8
3 Control Mechanism x1
8 Castor x5
Bolt M6x25mm
Bolt M6x20mm
Flat Washer M6*18mm x 10
Bolt 5/16"x7/8"
Flat Washer M8*18mm
Allen Wrench
6
1
4 Seat x1
9 Round casing x1
x 6
x 4
x 3
x3
x1
5 Back Frame x1
Page 1 of 4
Advertisement
Related Manuals for modway EEI-3195
Summary of Contents for modway EEI-3195
- Page 1 EEI –3195 Office Chair Thank you for purchasing the MODWAY OFFICE CHAIR. Before you start, here are some helpful advice: 1. We suggest you spend a short time reading through this leaflet and then follow the simple step-by-step instructions. 2. Owing to the size and weight of the chair, we recommend that it is assembled by two adults, on a carpeted or padded area, in the room that it is intended for.
- Page 2 EEI –3195 Office Chair STEP 1: Please put Base (1) on a carpeted or padded surface. Insert 1 piece of Castor (8) into the Base (1) as shown by hand. Repeat the same steps for the remaining 4 pieces of Castors (8). STEP 2: Carefully turn over the assembled base from step 1.
- Page 3 EEI –3195 Office Chair STEP 3: Attach Left Arm (6) and Right Arm (7) to the bottom of Seat (4) by using 6 pieces of Bolts (A) with 6 pieces of Flat Washers (C) as shown. Tighten Bolts (A) by using Allen Wrench (F) as shown. FRONT Hardware &...
- Page 4 Hardware & Tools required EEI –3195 Office Chair STEP 5: Insert the Back Frame (5) to the hole of Control Mechanism (3) hole by using 3 pieces of Bolts (D) and 3 pieces of Flat Washers (E) as shown. Tighten Bolts (D) and Bolts (B) in the previous step by using Allen Wrench (F) as shown.
