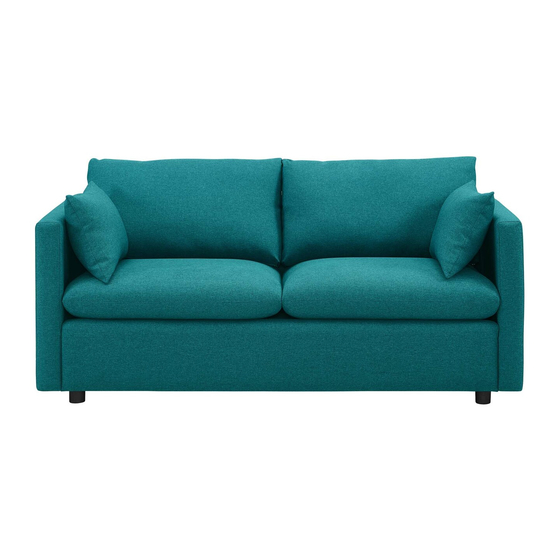

EEI-3044 Sofa
Thank you for purchasing the MODWAY SOFA.
Before you start, here are some helpful advice:
1. We suggest you spend a short time reading through this leaflet and then follow the simple step-by-step
instructions.
2. Owing to the size and weight of the sofa, we recommend that it is assembled by two adults, on a carpeted or
padded area, in the room that it is intended for. Approximate assembly time: 25 minutes.
3. Please do not use any tools other than those provided or recommended in these instructions.
4. Please do not throw away any of the packaging or the instruction until you have checked all the components
and hardware and the furniture is fully assembled. Please ensure that the packaging is disposed of in a safe
and environmentally friendly way.
5. Assemble all components loosely until advised to tighten. Depending on use, it may be necessary to tighten
the components from time to time, so please save the tools that have been provided.
6. Please keep all fitting out of reach of children.
Component:
1
Back Cushion x2
5 Right Arm x1
Customer Service 908-368-1025︱www.modwayfurniture.com
7
2 Seat Cushion x2
6 Seat Frame x1
Hardware:
A.
B.
C.
5
6
3 Pillow x2
7 Back Frame x1 8 Leg x4
Bolt M8x60mm
Flat Washer M8
Allen Wrench
3
4 Left Arm x1
Page 1 of 5
x 11
x 11
x1
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for modway EEI-3044
Summary of Contents for modway EEI-3044
- Page 1 EEI-3044 Sofa Thank you for purchasing the MODWAY SOFA. Before you start, here are some helpful advice: 1. We suggest you spend a short time reading through this leaflet and then follow the simple step-by-step instructions. 2. Owing to the size and weight of the sofa, we recommend that it is assembled by two adults, on a carpeted or padded area, in the room that it is intended for.
- Page 2 EEI-3044 Sofa STEP 1: Please take the Left Arm (4), Right Arm (5), Leg (8) and hardwares bag from the bottom of Seat Frame (6). Then carefully remove plastic packaging of the compressed Seat Cushions (2) and Back Cushions (1). Being carefully not to cut through to them.
- Page 3 EEI-3044 Sofa STEP 3: Attach Left Arm (4) to the side of Seat Frame (6) by using 4 pieces of Bolts (A) with 4 pieces of Flat Washers (B) as shown. Tighten Bolts (A) by using Allen Wrench (C) fully as shown.
- Page 4 EEI-3044 Sofa STEP 5: Slide the two clips of Back Frame (7) to the clips of the side of the Left Arm (4), Right Arm (5) by hand in the direction of the arrow as shown. STEP 6: Insert 3 pieces of Bolts (A) with 3 pieces of Flat Washers (b) into the pre-drilled holes on Seat Frame (6) .
- Page 5 EEI-3044 Sofa STEP7: Carefully turn over the assembled unit from step 6 as shown. Put Back Cushion (1), Seat Cushion (2), and Pillow (3) to the assembled sofa as shown. Assembly is complete. Your Sofa is ready to be used now! Customer Service 908-368-1025︱www.modwayfurniture.com...
- Page 6 SOFA USER GUIDELINE This product makes a long journey to reach you and the cushion is compressed, please reshape the cushion to restore to its original beauty before using, steps as follows: 1.Carefully remove the plastic packing 2.Press the back cushions with both and put the cushion on a flat surface in hands from side edge.
