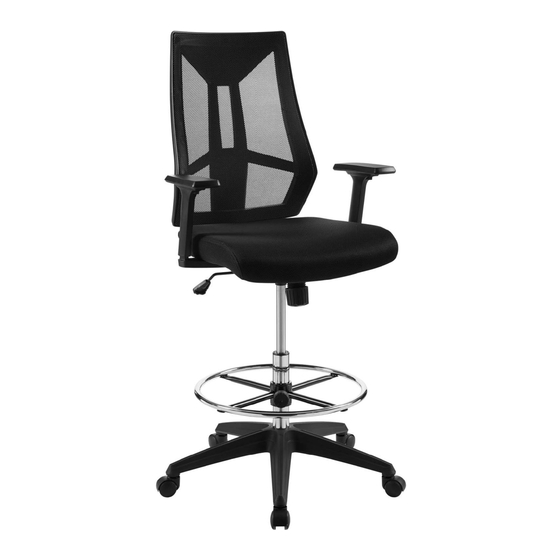

EEI –3192 Office Chair
Thank you for purchasing the MODWAY OFFICE CHAIR.
Before you start, here are some helpful advice:
1. We suggest you spend a short time reading through this leaflet and then follow the simple step-by-step
instructions.
2. Owing to the size and weight of the chair, we recommend that it is assembled by two adults, on a carpeted or
padded area, in the room that it is intended for. Approximate assembly time: 30 minutes.
3. Please do not use any tools other than those provided or recommended in these instructions.
4. Please do not throw away any of the packaging or the instruction until you have checked all the components
and hardware and the furniture is fully assembled. Please ensure that the packaging is disposed of in a safe
and environmentally friendly way.
5. Assemble all components loosely until advised to tighten. Depending on use, it may be necessary to tighten
the components from time to time, so please save the tools that have been provided.
6. Please keep all fitting out of reach of children.
Component:
Customer Service 908-368-1025︱www.modwayfurniture.com
5
7
10
9
4
3 2
11
1
Hardware:
A.
B.
C.
D.
E.
F.
G.
H
I
1
6
2
3 Control Mechanism x1
4 Seat x1
5 Back Frame x1
6 Left Arm x1
7 Right Arm x1
8 Castor x5
9 Back support x1
10 Back Cover x1
11 Foot Ring x1
Bolt M6x35mm
Bolt M6x20mm
Bolt M8x20mm
ScrewM4x14mm x 2
Flat Washer 15mm x 6
Flat Washer 18mm x 10
Allen Wrench M6
Spring Washer
Screwdriver not included x1
Base x1
Cylinder Column x1
x 6
x 7
x 3
x1
x 3
Page 1 of 7
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for modway EEI–3192
Summary of Contents for modway EEI–3192
- Page 1 EEI –3192 Office Chair Thank you for purchasing the MODWAY OFFICE CHAIR. Before you start, here are some helpful advice: 1. We suggest you spend a short time reading through this leaflet and then follow the simple step-by-step instructions. 2. Owing to the size and weight of the chair, we recommend that it is assembled by two adults, on a carpeted or padded area, in the room that it is intended for.
- Page 2 EEI –3192 Office Chair STEP 1: Please put Base (1) on a carpeted or padded surface. Insert 1 piece of Castor (8) into the Base (1) as shown by hand. Repeat the same steps for the remaining 4 pieces of Castors (8). STEP 2: Carefully turn over the assembled base from step 1.
- Page 3 EEI –3192 Office Chair STEP 3: Insert the Foot Ring (11) into the assembled Cylinder Column (2) at your desired height. But at least one inch from the top of the outer circle of Cylinder Column (2). Please follow the direction of the arrow as shown to tighten the knob by hand on the Foot Ring (11) until the Foot Ring (11) is fixed.
- Page 4 Hardware & Tools required EEI –3192 Office Chair STEP 5: Attach Control Mechanism (3) to the Seat (4) by using 4 pieces of Bolts (B) with 4 pieces of Flat Washers (F) as shown. Tighten Bolts (B) by using Allen Wrench (G) as shown. FRONT Hardware &...
- Page 5 EEI –3192 Office Chair STEP 7: Attach Back Cover (10) to the Back Support (9) by using 2 pieces of Screw (D) as shown. Tighten Screw (D) by using Screwdriver (I) (not included) as shown. Hardware & Tools required STEP 8: Insert the Back Support (9) to the hole of Control Mechanism (3) by using 3 pieces of Bolts (C) and 3 pieces of Spring Washers (H) and 3 pieces of Flat Washers (F) as shown.
- Page 6 EEI –3192 Office Chair STEP 9: Insert Control Mechanism (3) into the Cylinder Column (2) as shown STEP 9: Assembly is complete. Your office chair is ready to be used now! Customer Service 908-368-1025︱www.modwayfurniture.com Page 6 of 7...
- Page 7 EEI –3192 Office Chair Attention: When you use the handle to adjust the height to be lower, pls move away your legs from the foot ring at the same time. Attention: Be careful! Pls do not use tilt function once the Cylinder Column is adjusted to the topest height.
