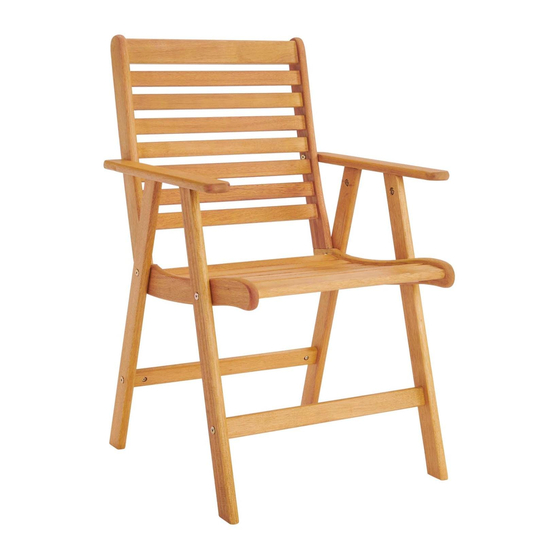

Thank you for purchasing the MODWAY DINING CHAIR!
Before you start, here are some helpful advice:
1.We suggest you spend a short time reading through this leaflet and then follow the simple step by step
instructions.
2.Owing to the size and weight of the dining chair, we recommend that it is assembled by two adults, on a
carpeted or padded area, in the room that it is intended for. Approximate assembly time: 30 minutes.
3.Please do not use any tools other than those provided or recommended in these instructions.
4.Please do not throw away any of the packaging or instructions until you have checked all the components and
hardware and the furniture is fully assembled.
5.Assemble all components loosely until advised to tighten. Depending on use, it may be necessary to tighten the
components from time to time, so please save the tools that have been provided.
6.Please keep all pieces out of reach of children.
Component:
Customer Service 609-256-9000 www.modway.com
DINING CHAIR
1
2
5
Hardware:
A
B
C
D
E
F
G
H
K
3
4
Bolt M6x60mm
Bolt M6x45mm
Nut M6
Bolt M6x30mm
Cap M6
Pin
Barrel
Screw M6x80mm
Allen Wrench M4
1. Back
2. Seat
3. Arm
4. Leg Frame
5. Brace Rail
Page 1 of 5
x 4
x 2
x 6
x 4
x 4
x 4
x 4
x 2
x 2
x1
x1
x2
x2
x2
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for modway EEI-3676-NAT
Summary of Contents for modway EEI-3676-NAT
- Page 1 EEI-3676-NAT DINING CHAIR Thank you for purchasing the MODWAY DINING CHAIR! Before you start, here are some helpful advice: 1.We suggest you spend a short time reading through this leaflet and then follow the simple step by step instructions. 2.Owing to the size and weight of the dining chair, we recommend that it is assembled by two adults, on a carpeted or padded area, in the room that it is intended for.
- Page 2 Insert 2 pieces of Barrels (G) through Leg Frame (4), then insert the Arm (3) into the Leg Frame (4). Tighten with Screw Driver (Not provided). Repeat steps for the other Leg Frame (4) and Arm (3). Screw Driver (Not provided) Hardware & Tool required Customer Service 609-256-9000 www.modway.com Page 2 of 5...
- Page 3 Insert 2 pieces of Caps (E) into Seat (2), then insert 2 pieces of Bolts (D) through Leg Frame (4) into Seat (2). Tighten Bolts and Nuts with Allen Wrench (K). Hardware & Tool required Customer Service 609-256-9000 www.modway.com Page 3 of 5...
- Page 4 Insert 2 pieces of Caps (E) into Seat (2), then insert 2 pieces of Bolts (D) through Leg Frame (4) into Seat (2). Tighten Bolts and Nuts with Allen Wrench (K). Hardware & Tool required Customer Service 609-256-9000 www.modway.com Page 4 of 5...
- Page 5 Tighten with 2 pieces of Allen Wrench (K). Hardware & Tool required STEP 8: Carefully position the assembled dining chair to the desired location. Assembly is complete. Your dining chair is ready to be used now! Customer Service 609-256-9000 www.modway.com Page 5 of 5...
- Page 6 STEP 1: Do not fully tighten the Pin (F). Hardware & Tool required STEP 2: Use Screw Driver to lift the Barrel (G). Then insert Pin (F) into Holes of Barrel (G). Customer Service 609-256-9000 www.modway.com Page 1 of 2...
- Page 7 STEP 3: Make sure the curved part of Pin (F) is in the center of Barrel (G) before tightening the nut. STEP 4: Tighten the nut as shown. Customer Service 609-256-9000 www.modway.com Customer Service 609-256-9000 www.modway.com Page 2 of 2...
