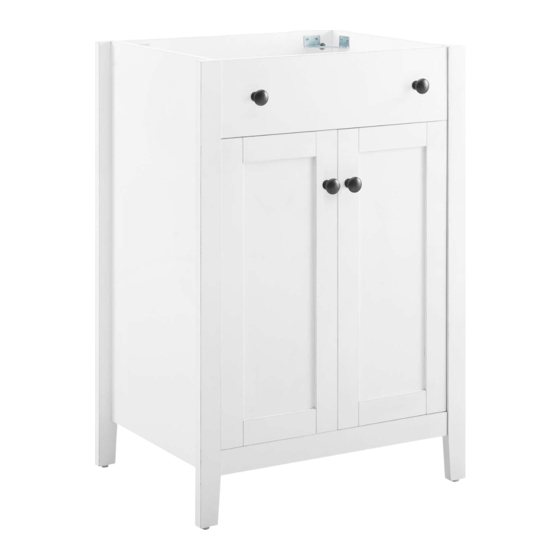

Thank you for purchasing the MODWAY Vanity!
Before you start, here are some helpful advice:
1.We suggest you spend a short time reading through this leaflet and then follow the simple step-by-step instructions.
2.Owing to the size and weight of the vanity, we recommend that it is assembled by two adults, on a carpeted or
padded area, in the room that it is intended for. Approximate assembly time: 60 minutes.
3.Please do not use any tools other than those provide or recommended in these instructions.
4.Please do not throw away any of the packaging or instructions until you have checked all the components and
hardware and the furniture is fully assembled.
5.Assemble all components loosely until advised to tighten. Depending on use, it may be necessary to tighten the
components from time to time, so please save the tools that have been provided.
6.Please keep all pieces out of reach of children.
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for modway EEI-3875-WHI
Summary of Contents for modway EEI-3875-WHI

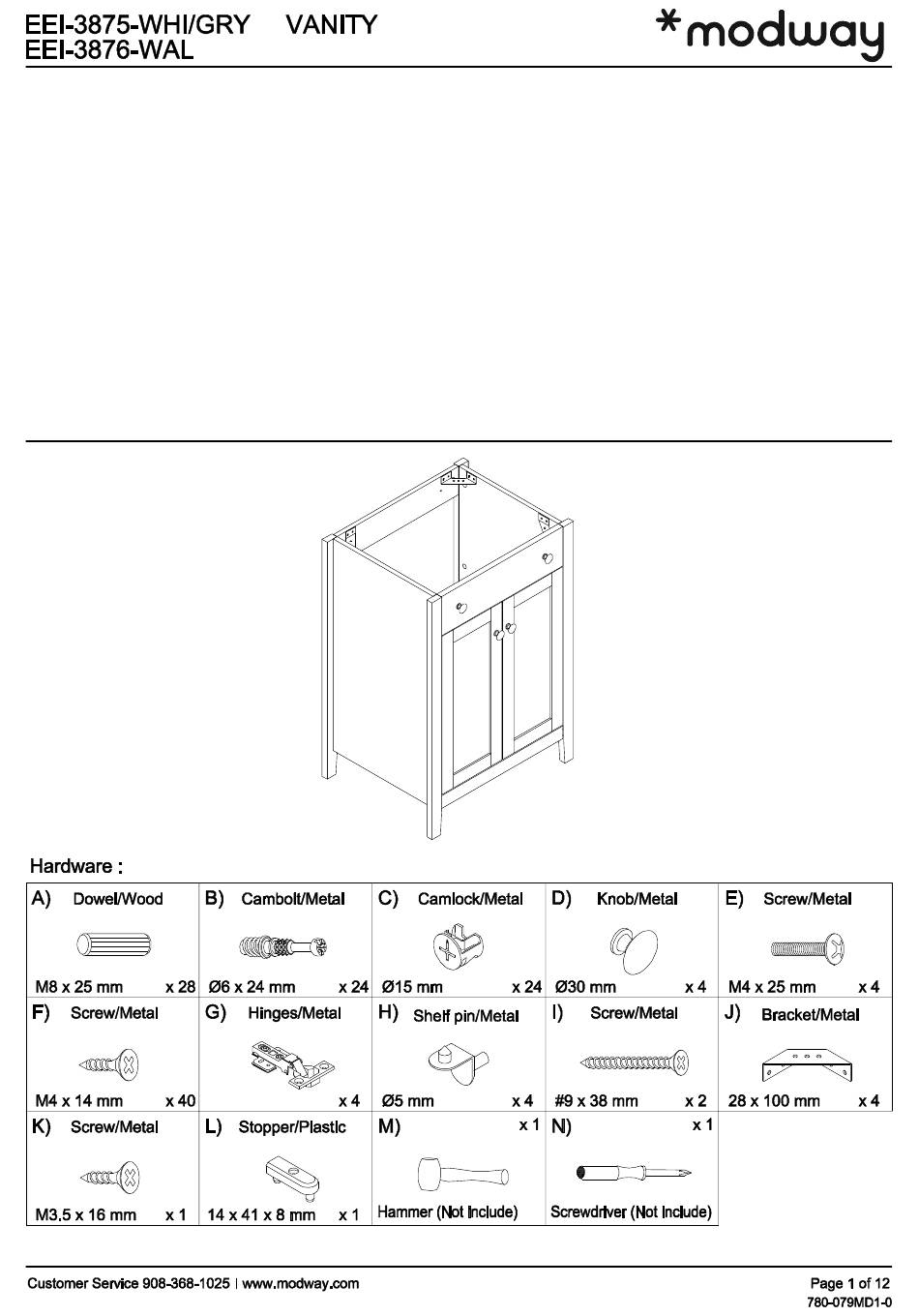

- Page 1 Thank you for purchasing the MODWAY Vanity! Before you start, here are some helpful advice: 1.We suggest you spend a short time reading through this leaflet and then follow the simple step-by-step instructions. 2.Owing to the size and weight of the vanity, we recommend that it is assembled by two adults, on a carpeted or padded area, in the room that it is intended for.
- Page 3 Carefully insert the Wood Dowels (A) at the designated holes on the relevant parts. Hardware required. Hammer not included (Power tool not recommended) Use Philips screwdriver to insert the Cambolt (B) carefully at the designated holes on the relevant parts. Please ensure the Cambolt is inserted and secured at the correct pre-drilled holes.
- Page 4 Secure the Door Stopper (L) to the Bottom Panel (3) with Screw (K). Hardware required. Screwdriver not included Secure the Base Panel (15) to the Adjustable Shelf (6) with 2 pieces of Wood Screw (I). This assembly namely Shelf Panel Assembly Hardware required.
- Page 5 Assemble 2 pieces of Door Hinges (G) to the 'Door Left (9)' and 'Door Right (10)' on each sides and secure it with 2 pieces of Screws (F) for each hinges. Hardware required. Screwdriver not included Properly insert the Camlock (C) in the pre-drilled hole then align it to the assembled Cambolt (B) to secure both of Front Panel (7) and Base Panel (8) to the Vertical Panel 1 (11) and Vertical Panel 2 (12).
- Page 6 Repeat Step 6 to secure the Back Panel 1 (5) and the Back Panel 2 (16) to the Vertical Panel 4 (14) and Vertical Panel 3 (13). This assembly namely Back Frame Assembly Hardware required. Screwdriver not included 8.1- Lay flat the Side Panel Left (1) which already assembled with 4 pieces of Wood Dowel (A) and 3 pieces of Cambolt (B).
- Page 7 Repeat step 8.2 - 8.3 to secure the Side Panel Right (2) to the Base Panel 1 (4) and Bottom Panel (3). This assembly namely Carcass Assembly Hardware (L) face front. Hardware required. Screwdriver not included 10.1- Lay flat the Back Frame Assembly which already completed on Step 7, 10.2- Due to the unstable structure, properly lift the Carcass Assembly and align both pre-assemble wood dowels and Cambolt (B) to the pre drilled hole on the Back Frame Assembly and properly secure the inserted Camlock (C).
- Page 8 11.1- Once Step 10 is completed, lay flat the Semi Completed Assembly with Back Frame Assembly facing down. 11.2- Carefully align all 4 pieces of wooden dowel and Cambolt (B) to the pre-drilled holes at the Front Frame Assembly which completed on Step 6 and secure it with the inserted Camlock (C). Hardware required.
- Page 9 Properly align the pre-drilled hole at the bottom of the Shelf Panel Assembly which already completed on Step 4 to shelf pin. 13.2 - Once fixed the shelf will be secured. Hardware required. Screwdriver not included...
- Page 10 Assemble Door Knob (D) on each 'Door Left (9)' and 'Door Right (10)' and secure it with a Screw (E) by using screwdriver. Hardware required. Screwdriver not included Secure 2 pieces of Knobs (D) with Screw (E) to the pre-drilled holes on the Front Panel (7). Hardware required.
- Page 11 Use Screwdriver to secure the Metal Bracket (J) on each corner of the top portion of the Vanity Cabinet with 4 pieces of Screw (F). Hardware required. Screwdriver not included Note: Professional work required. Hole=Ø6mm Screw and Wall Plug are not provided. Please use appropriate fixtures for your wall.
