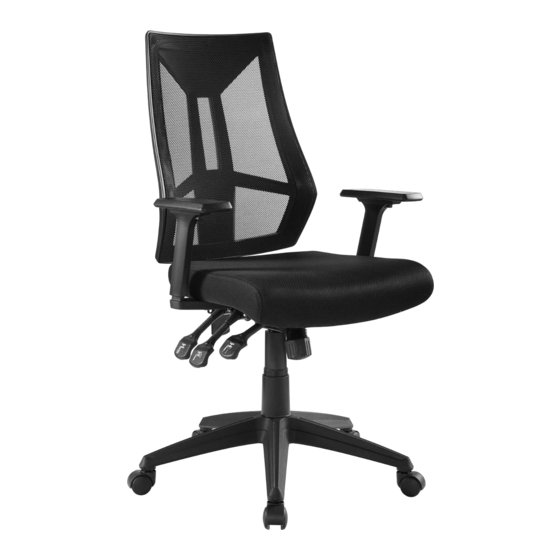

EEI –3191 Office Chair
Thank you for purchasing the MODWAY OFFICE CHAIR .
Before you start, here is some helpful advice:
1.We suggest you spend a short time reading through this leaflet and then follow the simple step-by-step
instructions.
2.Owing to the size and weight of the chair, we recommend that it is assembled by two adults, on a carpeted or
padded area, in the room that it is intended for. Approximate assembly time: 30 minutes.
3.Please do not use any tools other than those provided or recommended in these instructions.
4.Please do not throw away any of the packaging or the instruction until you have checked all the components
and hardware and the furniture is fully assembled. Please ensure that the packaging is disposed of in a safe
and environmentally friendly way.
5.Assemble all components loosely until advised to tighten. Depending on use, it may be necessary to tighten the
components from time to time, so please save the tools that have been provided.
6.Please keep all fitting out of reach of children.
Component:
Customer Service 908-368-1025︱www.modwayfurniture.com
5
6
7
10
9
4
3
2
11
1
8
Hardware:
A.
B.
C.
D.
E.
F.
G.
H.
I.
J.
1
Base x1
2
Cylinder Column x1
3 Control Mechanism x1
4 Seat x1
5 Back Frame x1
6 Left Arm x1
7 Right Arm x1
8 Castor x5
9 Back support x1
10 Back Cover x1
11 Round casing x1
8
Bolt M6x35mm
x 6
Bolt M6x20mm
x 5
Bolt M6x30mm
x 2
ScrewM4x14mm x 2
Bolt M8x16mm
x 1
Nut M8
x 1
Flat Washer 15
x 6
Flat Washer 18
x 7
Allen Wrench M6
x1
Allen Wrench M8
x1
Page 1 of 6
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for modway Extol EEI-3191
Summary of Contents for modway Extol EEI-3191
- Page 1 EEI –3191 Office Chair Thank you for purchasing the MODWAY OFFICE CHAIR . Before you start, here is some helpful advice: 1.We suggest you spend a short time reading through this leaflet and then follow the simple step-by-step instructions. 2.Owing to the size and weight of the chair, we recommend that it is assembled by two adults, on a carpeted or padded area, in the room that it is intended for.
- Page 2 EEI –3191 Office Chair STEP 1: Please put Base (1) on a carpeted or padded surface. Insert 1 piece of Castor (8) into the Base (1) as shown by hand. Repeat the same steps for the remaining 4 pieces of Castors (8). STEP 2: Carefully turn over the assembled base from step 1.
- Page 3 EEI –3191 Office Chair STEP 3: Attach Left Arm (6) and Right Arm (7) to the bottom of Seat (4) by using 6 pieces of Bolts (A) with 6 pieces of Flat Washers (A) as shown. Tighten Bolts (A) by using Allen Wrench (I) as shown. FRONT Hardware &...
- Page 4 EEI –3191 Office Chair STEP 5: Insert Control Mechanism (3) into the Cylinder Column (2) as shown. STEP 6: Attach Back Support (9) to the Back Frame (5) by using 3 pieces of Bolts (B) and 3 pieces of Flat Washers (H) as shown.
- Page 5 EEI –3191 Office Chair STEP 7: Attach Back Cover (10) to the Back Support (9) by using 2 pieces of Screw (D) as shown. Tighten Screw (D) by using screwdriver (not included) as shown. Hardware & Tools required STEP 8: Insert the Back Frame (5) to the hole of Control Mechanism (3) by using 1 piece of Bolt (E) and 1 piece of Nut (F) as shown.
- Page 6 EEI –3191 Office Chair STEP 9: Assembly is completed. Your office chair is ready to be used now! Customer Service 908-368-1025︱www.modwayfurniture.com Page 6 of 6...
