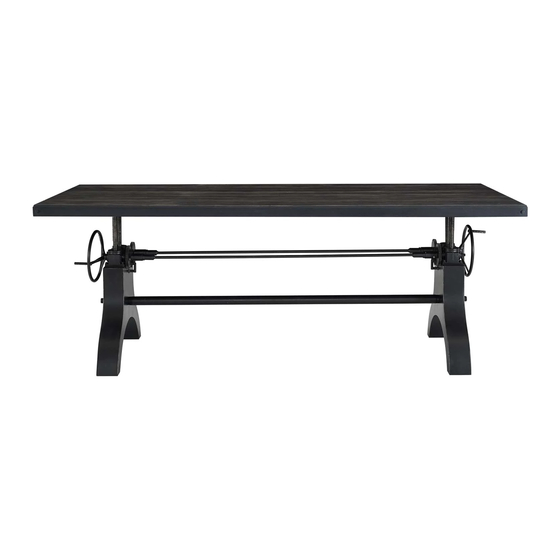

EEI-3147 DINING TABLE
Thank you for purchasing the MODWAY Dining Table.
Before you start, here are some helpful advice:
1. We suggest you spend a short time reading through this leaflet and then follow the simple step-by-step
instructions.
2. Owing to the size and weight of the Dining Table, we recommend that it is assembled by two adults, on a
carpeted or padded area, in the room that it is intended for. Approximate assembly time: 45 minutes.
3. Please do not use any tools other than those provided or recommended in these instructions.
4. Please do not throw away any of the packaging or the instruction until you have checked all the components
and hardware and the furniture is fully assembled. Please ensure that the packaging is disposed of in a safe
and environmentally friendly way.
5. Assemble all components loosely until advised to tighten. Depending on use, it may be necessary to tighten
the components from time to time, so please save the tools that have been provided.
6. Please keep all pieces out of reach of children.
Components:
1. Leg
x2
2. Handle
Customer Service 609-256-9000︱www.modway.com
x2
3. Top Panel
Hardware:
A.
B.
C.
D.
E.
F.
G.
H.
* Not include hardware bag
x1
4. Upper Rail
Bolt M8x30mm
x16
Bolt M6x15mm
Small Flat Washer
x18
Big Flat Washer
Allen Wrench M8
Allen Wrench M6
Big Nut
Adjustable Spanner
x2
5. Bottom Support
Page 1 of 5
x2
x4
x1
x1
x2
x1
x1
