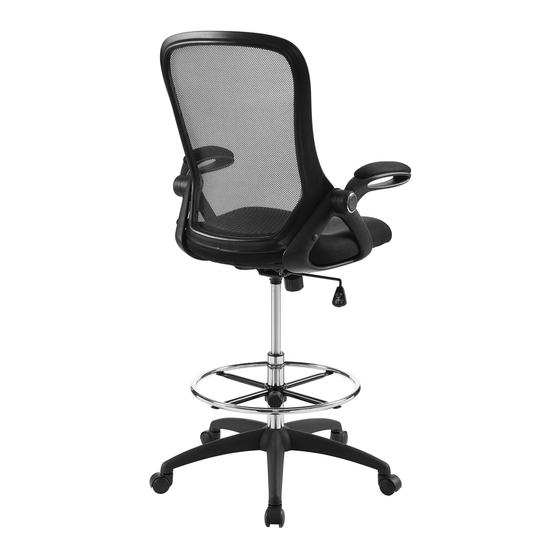

EEI –3190 Office Chair
Thank you for purchasing the MODWAY OFFICE CHAIR .
Before you start, here are some helpful advice:
1. We suggest you spend a short time reading through this leaflet and then follow the simple step-by-step
instructions.
2. Owing to the size and weight of the chair, we recommend that it is assembled by two adults, on a carpeted
or padded area, in the room that it is intended for. Approximate assembly time: 30 minutes.
3. Please do not use any tools other than those provided or recommended in these instructions.
4. Please do not throw away any of the packaging or the instruction until you have checked all the components
and hardware and the furniture is fully assembled. Please ensure that the packaging is disposed of in a safe
and environmentally friendly way.
5. Assemble all components loosely until advised to tighten. Depending on use, it may be necessary to tighten
the components from time to time, so please save the tools that have been provided.
6. Please keep all fitting out of reach of children.

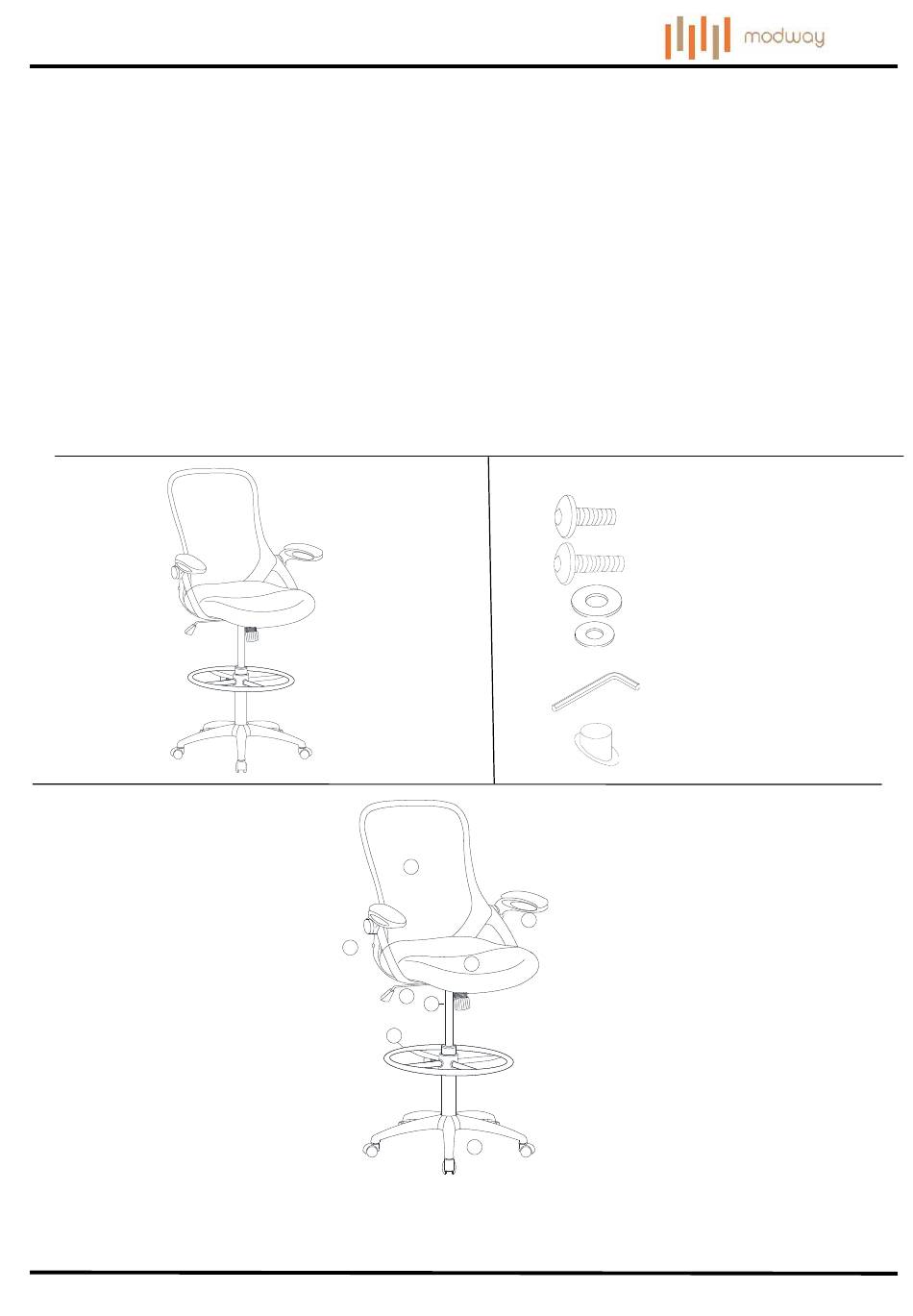

Component:
1
Base x1
2 Cylinder Column x1
6 Left Arm x1 7 Right Arm x1
Customer Service 908-368-1025︱www.modwayfurniture.com
Hardware:
A.
B.
C.
D.
E.
F.
G.
5
6
4
3 2
9
1
3 Control Mechanism x1
8 Castor x5
Bolt M6x20mm
Bolt M6x35mm
Flat Washer 18
Flat Washer 14
Allen Wrench
Cover
7
4 Seat x1
9 Foot Ring x1
x 8
x 4
x 8
x 4
x1
x4
5 Back Frame x1
Page 1 of 6
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for modway EEI-3190
Summary of Contents for modway EEI-3190
- Page 1 EEI –3190 Office Chair Thank you for purchasing the MODWAY OFFICE CHAIR . Before you start, here are some helpful advice: 1. We suggest you spend a short time reading through this leaflet and then follow the simple step-by-step instructions.
- Page 2 EEI –3190 Office Chair STEP 1: Please put Base (1) on a carpeted or padded surface. Insert 1 piece of Castor (8) into the Base (1) as shown by hand. Repeat the same steps for the remaining 4 pieces of Castors (8). STEP 2: Carefully turn over the assembled Base (1) from step 1.
- Page 3 EEI –3190 Office Chair STEP 3: Insert the Foot Ring (9) into the assembled Cylinder Column (2) at your desired height. But at least one inch from the top of the outer circle of Cylinder Column (2). Tighten the knob by hand on the Foot Ring (9) and follow the direction of the arrow as shown. The side up 1 inch STEP 4:...
- Page 4 EEI –3190 Office Chair STEP 5: Attach Cap Cover (F) to the holes on Left Arm (6) and Right Arm (7) by hand as shown. Hardware & Tools required STEP 6: Attach assembly unit to the Seat (4) by using 4 pieces of Bolts (B) and 4 pieces of Flat Washers (C) as shown. Tighten Bolts (B) by using Allen Wrench (E) as shown.
- Page 5 EEI –3190 Office Chair STEP 7: Attach Control Mechanism (3) to the Seat (4) by using 4 pieces of Bolts (A) and 4 pieces of Flat Washers (C) as shown. Tighten Bolts (A) by using Allen Wrench (E) as shown. Hardware &...
- Page 6 EEI –3190 Office Chair Attention: When you use the handle to adjust the height to be lower, pls move away your legs from the foot ring at the same time. Attention:Be careful! Pls do not use tilt function once the Cylinder Column is adjusted to the topest height.
