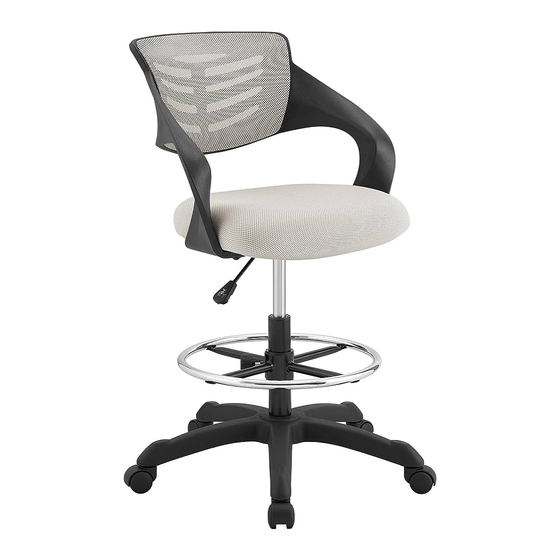

EEI –3040 Office Chair
Thank you for purchasing the MODWAY OFFICE CHAIR.
Before you start, here is some helpful advice:
1.We suggest you spend a short time reading through this leaflet and then follow the simple step-by-step
instructions.
2.Owing to the size and weight of the chair, we recommend that it is assembled by two adults, on a carpeted or
padded area, in the room that it is intended for. Approximate assembly time: 30 minutes.
3.Please do not use any tools other than those provided or recommended in these instructions.
4.Please do not throw away any of the packaging or the instruction until you have checked all the components
and hardware and the furniture is fully assembled. Please ensure that the packaging is disposed of in a safe
and environmentally friendly way.
5.Assemble all components loosely until advised to tighten. Depending on use, it may be necessary to tighten the
components from time to time, so please save the tools that have been provided.
6.Please keep all fitting out of reach of children.
Component:
1
Base x1
4 Seat x1
Customer Service 908-368-1025︱www.modwayfurniture.com
6
6
2 Cylinder Column x1
5 Back Frame x1
Hardware:
A.
B.
C.
D.
E.
5
4
3
7
1
6
6
6
3 Control Mechanism x1
6 Castor x5
Bolt M6x20mm
x 4
Bolt M6x40mm
x 4
Flat Washer M6
x 4
Allen Wrench
x1
7 Foot Ring x1
Page 1 of 6
Advertisement
Table of Contents
Related Manuals for modway EEI –3040
Summary of Contents for modway EEI –3040
- Page 1 EEI –3040 Office Chair Thank you for purchasing the MODWAY OFFICE CHAIR. Before you start, here is some helpful advice: 1.We suggest you spend a short time reading through this leaflet and then follow the simple step-by-step instructions. 2.Owing to the size and weight of the chair, we recommend that it is assembled by two adults, on a carpeted or padded area, in the room that it is intended for.
- Page 2 EEI –3040 Office Chair STEP 1: Please put Base (1) on a carpeted or padded surface. Insert 1 piece of Castor (6) into the Base (1) as shown by hand. Repeat the same steps for the remaining 4 pieces of Castors (6). STEP 2: Carefully turn over the assembled base from step 1.
- Page 3 EEI –3040 Office Chair STEP 3: Insert the Foot Ring (7) into the assembled Cylinder Column (2) as shown. Please note the orientation of the top of the Foot Ring (7). Top of the Foot Ring Bottom of the Foot Ring STEP 4: Insert the Foot Ring (7) into the assembled Cylinder Column (2) at your desired height, but at least one inch...
- Page 4 EEI –3040 Office Chair STEP 5: Attach Back Frame (5) to the bottom of Seat (4) by using 4 pieces of Bolts (B) with 4 pieces of Flat Washers (C) as shown. Tighten Bolts (B) by using Allen Wrench (D) as shown. Hardware &...
- Page 5 EEI –3040 Office Chair STEP 7: Insert the bottom holes of Control Mechanism (3) into the top end of Cylinder Column (2) as shown. STEP 8: Use the handle of Control Mechanism (3) to adjust the height of the office chair. Customer Service 908-368-1025︱www.modwayfurniture.com Page 5 of 6...
- Page 6 EEI –3040 Office Chair STEP 9: If you need to lower down the height of the office chair. Please do not place feet or other objects between the Seat (4) and the Foot Ring (7). Do not place feet or other objects between the seat and the foot ring .
