Installation with cables through the centre of the base plate

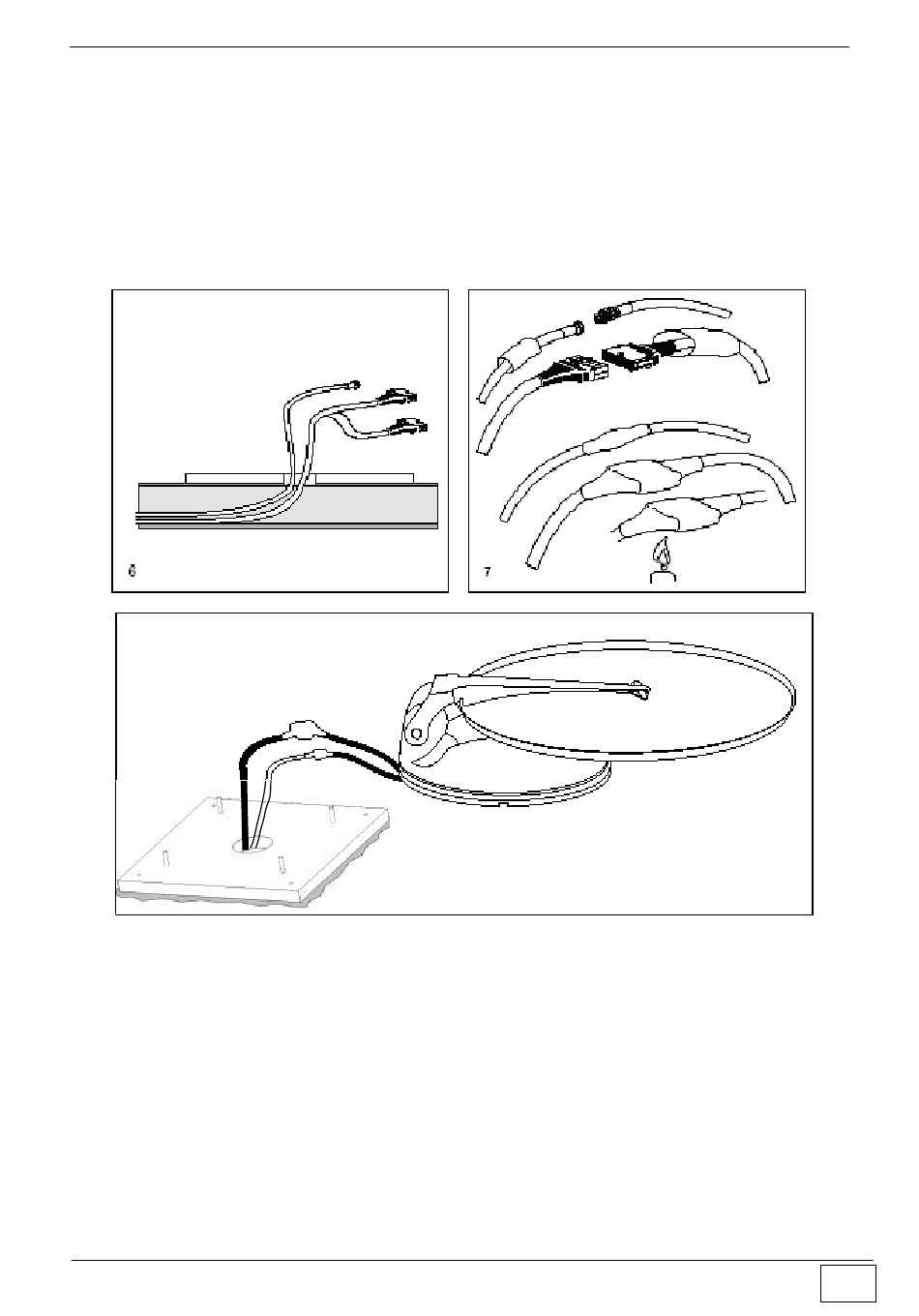

10) Connect the Grey and White cables, coming from inside the vehicle (Fig. 6) to the
two cables of the outside unit, waterproofing them using two pieces of HEAT-
SHRINKING TUBE (Fig. 7)
WARNING When performing this operation, do not draw the cables coming from the
centre of the outside unit forcefully, as this might pull them out.
Vers. 003
Magic Sat Easy
Assembly instructions
7
