Teleco Voyager Digimatic SM 65 Installation Manual And User's Manual

Short mast 33cm

Advertisement

Quick Links

SHORT MAST 33 cm
INSTALLATION GUIDE
AND USER MANUAL
UK

Advertisement

loading

Summary of Contents for Teleco Voyager Digimatic SM 65

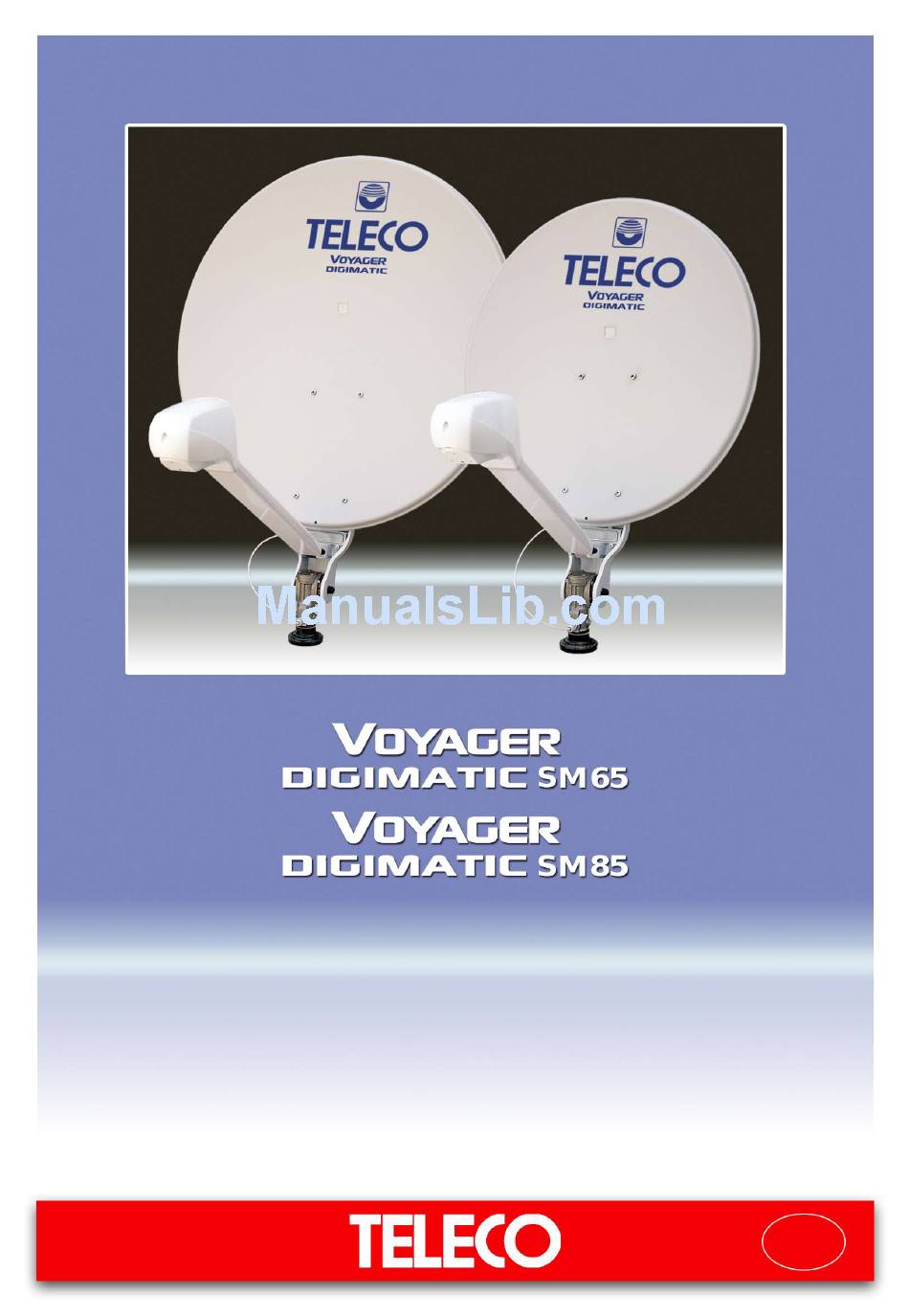

  • Page 1 SHORT MAST 33 cm INSTALLATION GUIDE AND USER MANUAL...
  • Page 2 Web site: www.telecogroup.com Technical attendance: 899.899.856 TELECO .p.a. declines all responsibility for any errors contained in this manual. All the contained information are up to the dates of printing and of the above-mentioned software revisions. TELECO .p.a. reserves the right to introduce any modification made necessary by...
  • Page 3: Installation Instructions

    Installation instructions Caution: Mount the antenna away from the vehicle roof edge to avoid overhanding the roof line when travelling. The Voyager Digimatic antenna must be installed near a vertical wall where the wall outlet can be fitted Set the drilling jig in place. Drill in the middle of the jig (page 22) …and then drill the outside wall.
  • Page 4 Insert the mast roof mounting bracket in Fasten the ring nut using self-tapping the dia. 42 hole bored in the roof, making screws. Place the rubber gasket over the sure you apply a layer of silicone under ring nut. ( Screws not supplied ) the ring nut.
  • Page 5 Spread a thin film of Vaseline inside the Tight the locking ring nut seal and introduce the mast This mast locking device must be screwed tight every time you wish to secure the antenna in the desired position. To turn or lift the mast, loosen this ring nut.
  • Page 6 Caution: Extend the dish mast all the way as shown in the figure Tighten the indicator screw hard, to the Insert the cable in the plastic handle hole end of the thread as shown in the figure.
  • Page 7 Before fitting the plastic handle in the Make sure that the cable runs in front tube, make sure that the holes A and C of the pointer reference mark B are aligned with the reference mark B Using the Force the screw, fasten flexible tongues the plastic...
  • Page 8 Lower the dish until the right travelling position is reached. Fix the steel plate to the roof with cement or both-sides adhesive tape under the LNB spacer Make sure that the antenna is exactly in its stowed position. Place the sticker on the mast in such a way that you can...
  • Page 9 CONNECTIONS DSF80E DSF80E is a device designed to quickly find required DIGITAL satellites according to a manual dish pointing system. The 8 most popular satellites used in Europe are stored in the system memory: Astra 28E, Astra23E, Astra19E, Hotbird 13E, Eurobird 9E, Thor 1W, Atlantic Bird 5W and Hispsat 30W.
  • Page 10 1) Connect the coaxial cable coming from the mast handle to the ANT connector of the DSF80E device 2) Plug the REC connector of the DSF80 in the LNB connector of your satellite receiver via the supplied coaxial cable. 3) Connect the 12Vdc input cable to the 12Vdc connector of the DSF80E device. Plug the other end of the cable into the vehicle battery or a 12Vdc power outlet.
  • Page 11 Instructions for DSF80E initial set-up with Voyager systems Set-up operations should only be carried out once upon system installation. After completing all the required connections, perform inclinometer "ADJUSTMENT" to the vehicle on which it is installed. 1) Check the Adjustment Table to identify the correct dish angle for the selected satellite pointing (e.g.
  • Page 12 Country Town HOT BIRD ASTRA ATLANTIC 13° EST 19° EST BIRD 3 5° WEST GIBRALTAR GREECE Athens Iraklion Patras Thessalonica HUNGARY Budapest Pecs ICELAND Reykjavik ITALY Brindisi Cagliari Firenze Milano Napoli Palermo Roma Venezia LYBIA Tripoli MAROCCO Casablanca Marrakech Tangiers NETHERLANDS Amsterdam Eindhoven Rotterdam...
  • Page 13 INSTRUCTIONS FOR USE 1) Switch on and prepare the SAT receiver and the TV set for reception following the instructions of their respective manufacturers. 2) It is critical to make sure that there are no obstacles (e.g. houses, trees etc.) between the antenna and the satellite southwards.
  • Page 14 If a satellite different from the required one has been pointed, the SAT NOT OK LED will light up and the dish must Wait for the SAT OK LED to light up, be rotated again until the "BEEP" confirming that the pointed satellite is sound is heard again and the SAT OK the required one.
  • Page 15 Before starting the vehicle, make sure you have brought down the antenna to its standby position and tightened the knob hard Failure to comply with these conditions may result in product degradation which the manufacturer cannot be held responsible for. 1) It is recommended not to use the antenna under strong wind conditions (80 km/h).
  • Page 16 LNB rotation for ideal reception in Europe’s extreme (South-West or South-East) areas Remember that the outside converter (a.k.a. LNB) has its own assembly position which must be complied with. Otherwise you will not receive any signal. The pre-set mounting position for the LNB is along the centre line of the disk (fig.
  • Page 17 Dish elevation maps To correctly point the dish towards your required satellite, it is very important to tilt the dish to the exact angle. Check your position on the map, then set the dish elevation figure in degrees according to the figure on the required satellite map. The grey sections in the various maps identify the geographical areas in which LNB adjustment may be necessary.
  • Page 20 Pos. Code Description Q.ty 03676 Parabolic antenna D=650 mm Pos. Code Description Q.ty 07364 Parabolic antenna D=850 mm 10910 Screw M6X12 UNI 7687 10548 LNB PLASTIC TOP 03684 Self-locking nut M6 UNI 7474 10547 LNB PLASTIC BOTTOM 10998 Support dish arm 06132 Arm rest 10979...
  • Page 21 Pos. Code Description Q.ty Pos. Code Description Q.ty 03605 Tear rivet 12044 Supporting tube 05799 Arm locking dowel 02125 Nut- M6x1,5 UNI 5588 07446 Arm locking screw 02354 Fastening bracket 11200 Reduction gear 02018 Lock UNIT KNOB 11805 Trilobed screws 5X12 02083 Self-tapping screws 03244...
  • Page 23: Conformity Certificate

    Cut-out drawing mounting position in 1:1 scale CONFORMITY CERTIFICATE The manifacturer Teleco Spa Via Majorana nr. 49, 48022 Lugo ( RA ) Declares under its own responsibility that the following products: VOYAGER SM DIGIMATIC 65 - VOYAGER SM DIGIMATIC 85 which are the subject of this certificate, conform to the following norms: EN 60065: 2002 - EN 55013: 2001 + A1: 2003 - EN 61000 –...
  • Page 24 26/09/2014...

This manual is also suitable for:

Voyager digimatic sm 85Voyager digimatic 50
