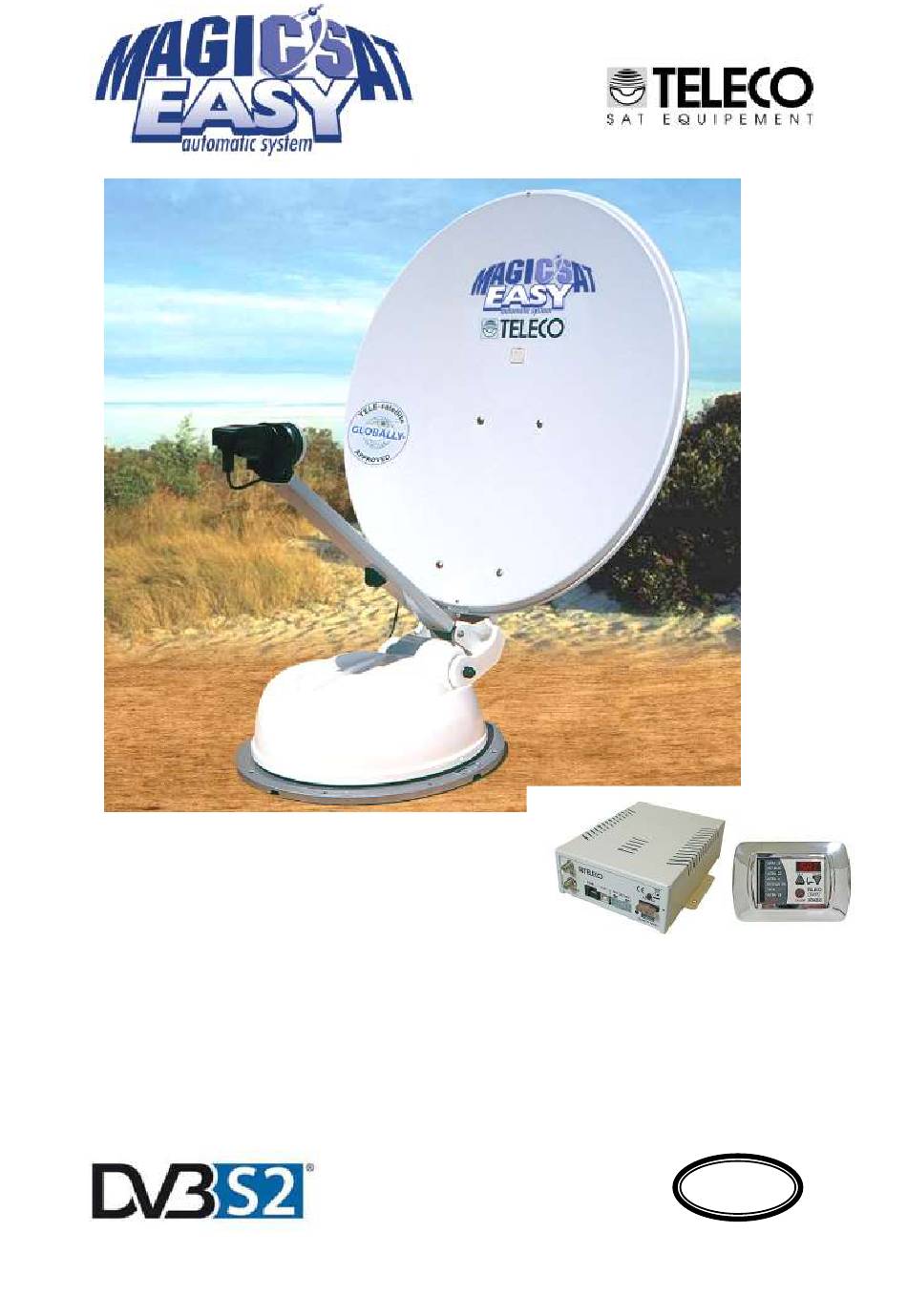

INSTALLATION GUIDE and USER MANUAL
of the
MAGIC SAT EASY
GB
Vers. 003

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MAGIC SAT EASY and is the answer not in the manual?

Questions and answers

Related Manuals for Teleco MAGIC SAT EASY

Summary of Contents for Teleco MAGIC SAT EASY

  • Page 1 INSTALLATION GUIDE and USER MANUAL of the MAGIC SAT EASY Vers. 003...

  • Page 2: Table Of Contents

    Technical attendance: 899.899.856 TELECO s.p.a. declines all responsibility for any errors contained in this manual. All the contained information are up to the dates of printing and of the above-mentioned software revisions. TELECO s.p.a. reserves the right to introduce any modification made necessary by the development of its products.

  • Page 3: List Of Accessories

    List of accessories List of accessories Magic Sat Easy is delivered inside a cardboard case that has been specially made to protect it from knocks and pressure. The following accessories are supplied: External motor-driven unit 50 - 65 - 85 cm dish...

  • Page 4: Important Notice

    3) Power the Control Box using a battery. 4) Press the switch-on button and wait for the dish support mast to rise. 5) Once the desired position has been reached, turn off the Magic Sat Easy via the same button.

  • Page 5: Assembly Instructions

    6) Remembering that the OUTSIDE UNIT must be fastened as shown on figure 3, remove the BASE PLATE from the outside unit, unscrewing all 4 nuts. Position the base plate as shown on figure 4, with the short side towards the driving direction of the vehicle. Vers. 003 Magic Sat Easy...
  • Page 6 9) Apply a layer of silicone all around the BASE PLATE in order to make it completely waterproof (Fig. 5) Magic Sat Easy Vers. 003...

  • Page 7: Installation With Cables Through The Centre Of The Base Plate

    HEAT- SHRINKING TUBE (Fig. 7) WARNING When performing this operation, do not draw the cables coming from the centre of the outside unit forcefully, as this might pull them out. Vers. 003 Magic Sat Easy...
  • Page 8 Apply an abundant layer of silicone on both the base plate and the bottom of the driving unit (Fig. 10) so as to prevent any infiltration by water. Screw down the 4 supplied nuts by the screws and tighten properly (Fig. 11) Magic Sat Easy Vers. 003...

  • Page 9: Installation With Cables Coming Out Sideways

    14) Accomodate the cables into a protection raceway up to the point where the cables go into the vehicle, using the suitable supplied fairlead. 15) Seal the fairlead carefully so as to prevent any infiltration by water. Vers. 003 Magic Sat Easy...

  • Page 10: Connections

    Control Unit simultaneously (Fig.15). Any connection made in points other than as indicated (e.g. on the alternator) can give rise to equipment malfunction and/or damage resulting in loss of the warranty. Magic Sat Easy Vers. 003...
  • Page 11 Assembly instructions Vers. 003 Magic Sat Easy...
  • Page 12 The power supply cable must come directly from the battery and be of a minimum cross- section of 5 sq.mm. Only the Magic Sat Easy must be connected to this cable; all the other devices must be connected to another power supply cable.

  • Page 13: Important Information For Proper Antenna Tracking

    It is also important to know that satellites do not transmit with the same intensity throughout Europe, so if you are outside the reception area, your Magic Sat Easy search might be unsuccessful. The reception areas for each Satellite can be found on the main magazines dealing in this line of business.

  • Page 14: Tips On The Best Use Of Magic Sat Easy

    2) Remove any snow or ice from the Magic Sat Easy before actuating it in order to avoid wasting battery power trying to lift it.

  • Page 15: Magic Sat Easy - Rear View

    Magic Sat Easy – rear view Magic Sat Easy – rear view 1) F type connector – input from LNB converter of the driving unit 2) F type connector – signal output to be connected to any satellite receiver 3) RJ45 type connector – connected to the control board 4) USB B type connector –...

  • Page 16: Operation Of Magic Sat Easy

    Turning on the Magic Sat Easy To turn on the Magic Sat Easy system, press the button (3). Upon pressing the button and for 1 second time, all signal lights will go on to allow you to check the proper operation of the board.

  • Page 17: Seeking The Satellite

    Turning off the Magic Sat Easy If you wish to turn off the Magic Sat Easy, press the button (3) and make sure that all signal lights are off. In this case the antenna remains in the position it was before turning off.

  • Page 18: Troubleshooting

    Troubleshooting Troubleshooting • If the Magic Sat Easy has not found the satellite after a complete search, check the following: a) Is the view towards the South free from any obstacle? b) Is the place you are at within the reception area of the satellite you have chosen? c) Is the cable connecting the LNB to the antenna firmly fastened? It could have been ripped off or come loose because of contact with an unexpected obstacle.
  • Page 19 Magic Sat Easy - Vers.002 Page 19...
  • Page 20 Technical specifications...
  • Page 21 Magic Sat Easy - Vers.002 Page 21...
  • Page 22 MagicSat Easy (Tav. 1 - Vers. 2 del 20/01/2012)
  • Page 23 Pos Code Q.tà Descrizione/Description Dèsignation/Bezeichnung Denomination/Descripcion 03676 N.1 Disco parabola D=650mm Antenne parabole D=650 mm Schotel antenne D=650 mm Parabolic antenna D=650 mm Parabolspiegel D=650 mm Disco parabola D=650 mm 06681 N.1 Disco parabola D=500mm Antenne parabole D=500 mm Schotel antenne D=500 mm Parabolic antenna D=500 mm PARABOLSPIEGEL D=500 mm Disco parabola D=500mm...
  • Page 24 09775 N.2 Rondella D=8 piana inox Rondelle D=8 plate inox Onderlegring D=8 plat inox Stainless steel flat D=8 washer SCHEIBE D=8 FLACH, AUS ROSTFREIEM Arandela D=8 plana inox STAHL 09774 N.2 Rondella D=8 inox dent.est. Rondelle D=8 inox Onderlegring D=8 inox Washer D=8 stainless steel SCHEIBE D=8, rostfreier stahl Arandela D=8 inox...
  • Page 25 MagicSat Easy (Tav. 2 - Vers. 2 del 20/01/2012)
  • Page 26 Pos Code Q.tà Descrizione/Description Dèsignation/Bezeichnung Denomination/Descripcion 06037 N.2 Guarnizione laterale Joint lateral Zijafdichting Side gasket SEITLICHE DICHTUNG Junta lateral 04761 N.2 Microinterruttore a tenuta stagna Microcontact etanche Microschakelaar in stor- en waterdichte uit Waterproof microswitch MIKROSCHALTER, DICHT Microinterruptor estanco 11161 N.2 Motore elettrico Moteur électrique Electric motor...
  • Page 27 MagicSat Easy (Tav. 3 - Vers. 2 del 20/01/2012)
  • Page 28 Pos Code Q.tà Descrizione/Description Dèsignation/Bezeichnung Denomination/Descripcion 10826 N.1 Coperchio unita' comando Capot boite/comm. Kap bedieningsunit 14897 Control unit lid Deckel Steuereinheit Tapa unidad de mando 14896 10827 N.1 Fondo unita' comando Fond boite/comm. Onderkant bedieningsunit Control unit bottom Boden Steuereinheit Fondo unidad de mando 09835 N.4 Piedino nero in gomma...
  • Page 29 MagicSat Easy (Tav. 4 - Vers. 2 del 20/01/2012)
  • Page 30 Pos Code Q.tà Descrizione/Description Dèsignation/Bezeichnung Denomination/Descripcion 05950 N.1 Cavo coassiale 3mt con connet. F/F Cable coaxial 3 m avec connecteur F/F Coaxkabel 3m inclusief F/F-connector 3 m coax cable F/F.connector KOAXIALKABEL 3 m MIT F-FVERBINDER Cable coaxial 3mt con conect F/F 03598 N.1 Guaina termorestringente Gaine thermoretractible...
  • Page 31 " < 32: 31' = ) > " " " %< " 6 !''! ; '' '&.; ''& G )&; ''. 6 !&''' B . / ; ''' G ) ; 6 !&''' B . B .; &22 G )&; ''& G ) ; '' ' ';...
