Assembly instructions

1) Position the Control Box in an easy accessible, ventilated compartment.
2) Place the control board comando in an easily accessible, visible position.

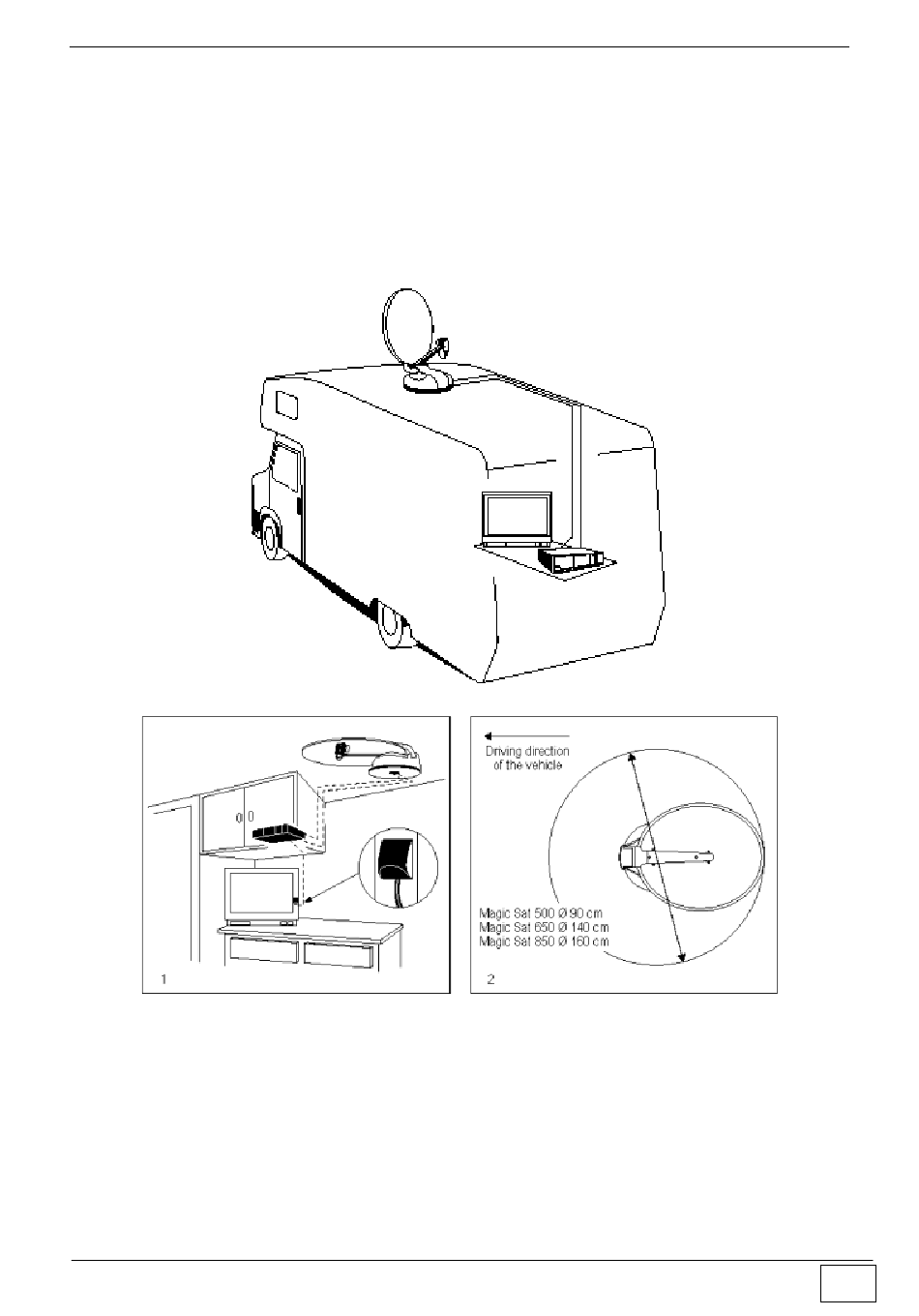

3) On the roof of the vehicle, choose a free area large enough to allow the antenna to
revolve (Fig. 2)
4) Install the connection cables (Grey and White) until you reach the OUTSIDE UNIT
installation area.
5) Clean the roof carefully in the area the OUTSIDE UNIT is to be installed in.
6) Remembering that the OUTSIDE UNIT must be fastened as shown on figure 3,
remove the BASE PLATE from the outside unit, unscrewing all 4 nuts. Position the
base plate as shown on figure 4, with the short side towards the driving direction of
the vehicle.
