Magic Sat Easy - Rear View; Magic Sat Easy - Control Board - Teleco MAGIC SAT EASY Installation Manual And User's Manual

1
2
1) F type connector – input from LNB converter of the driving unit
2) F type connector – signal output to be connected to any satellite receiver
3) RJ45 type connector – connected to the control board
4) USB B type connector – connection to a PC
5) MiniFIT jr. double connector– connection to the driving unit
6) Diagnostics button (for technical staff only)
7) MiniFIT jr. connector– power supply input
8) 5 A blade fuse
5
5
1) Satellite selection button
2) Antenna parking button
3) Switch-on button
4) Display
5) Selected satellite indicators
Vers. 003

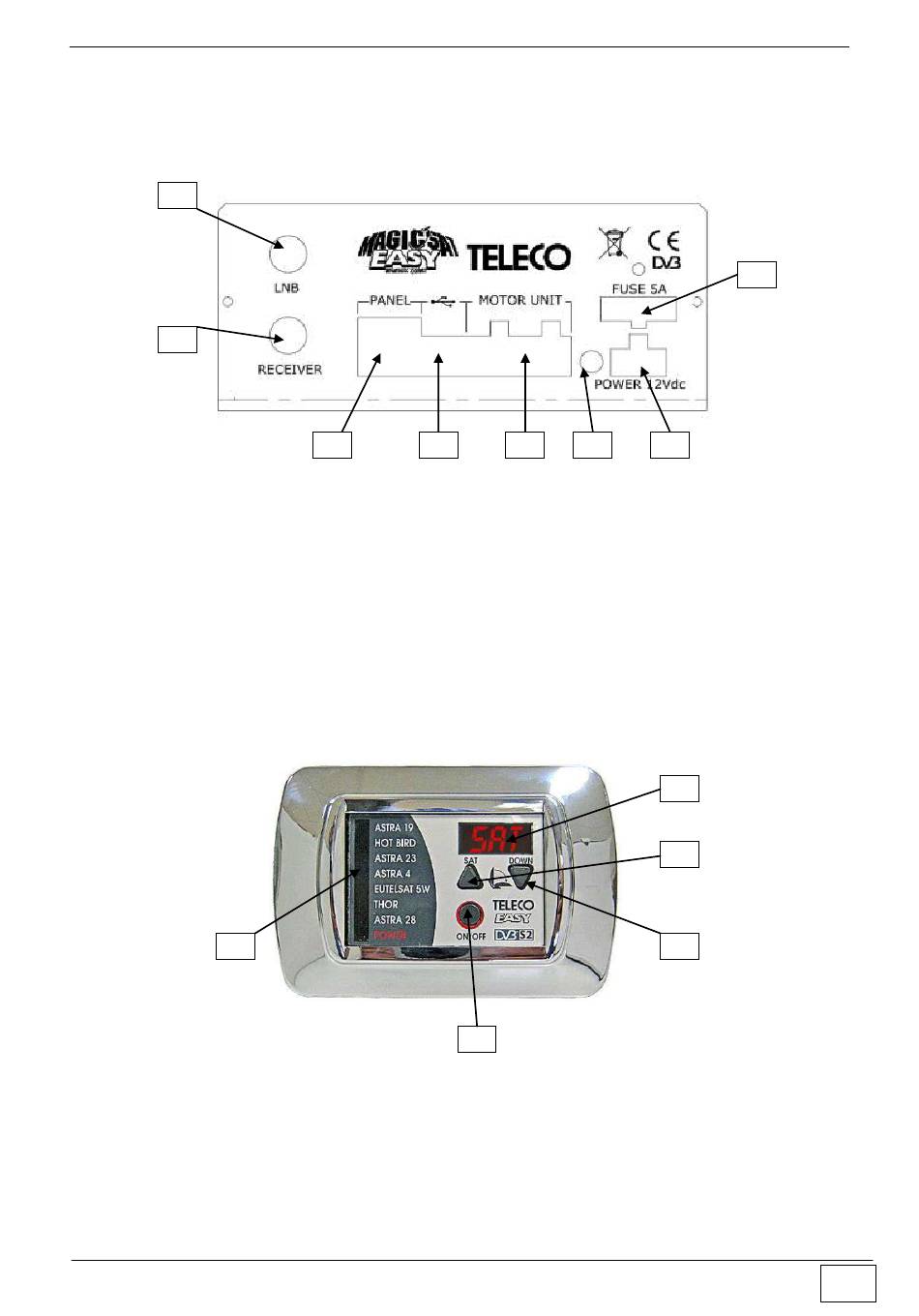

Magic Sat Easy – rear view
3 4
Magic Sat Easy – control board
Magic Sat Easy
5 6
3
Magic Sat Easy – rear view
8
7
4
1
2
