48 en | Maintenance
To replace the power distributor:
1.
2.
3.
4.
5.
6.
7.
10.13

Monitoring the system

The system provides tools for health monitoring.
To activate the monitoring functionality:
1.
2.
3.
4.
5.
6.
10.14

Recovering the unit

Following procedure describes how to restore the factory default image.
To restore the unit to factory default image
1.
2016.07 | V2 | DOC
Turn off the unit and remove the plug from the wall socket or power strip.
Remove all cable connections to the power supply from the motherboard, backplane, and
other components. Also, remove both power supplies.

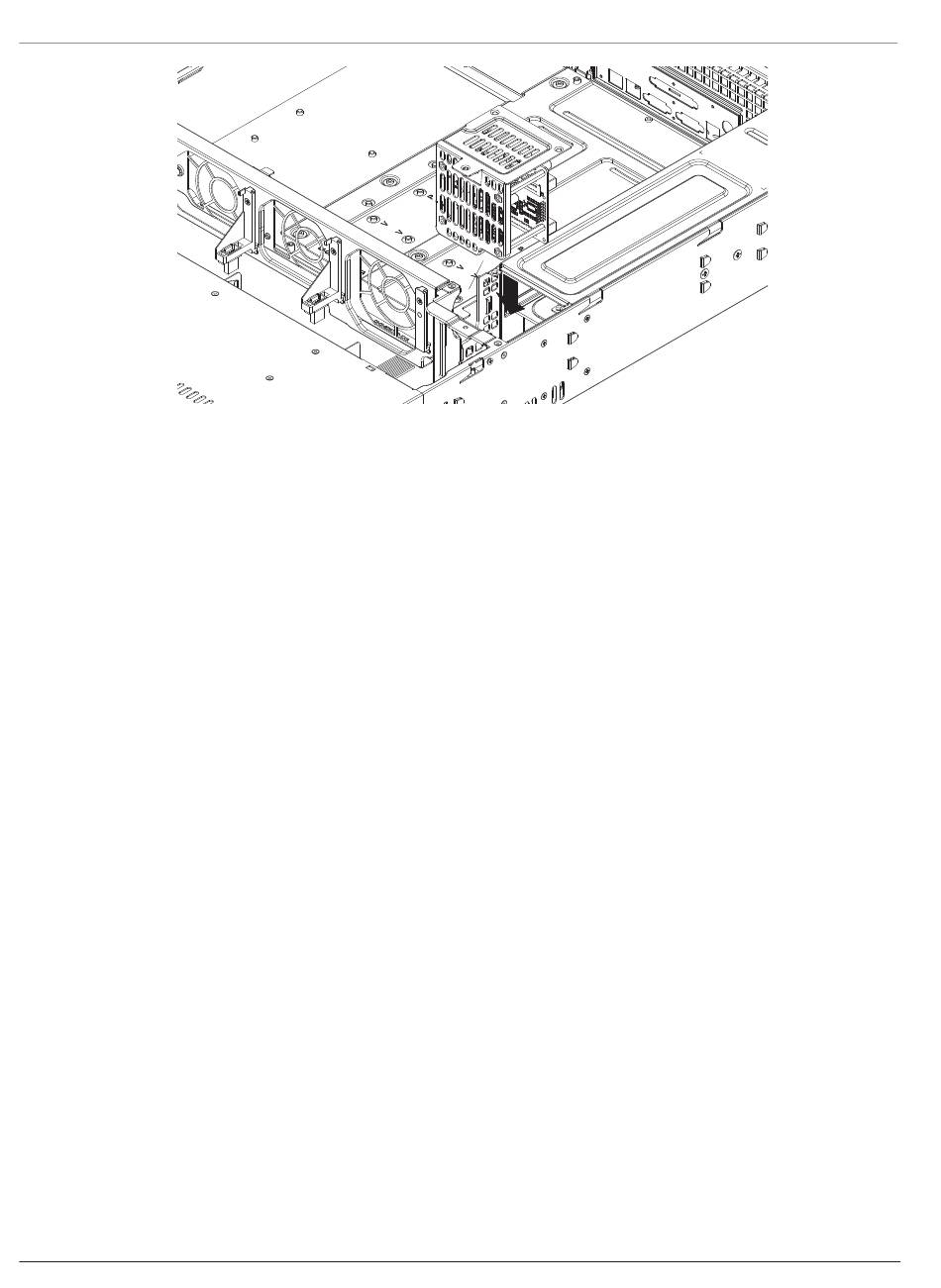

Locate the power distributor between the power supply and the fan row.
Remove the three screws securing the power supply.
Gently pull the power distributor from the chassis. Gently guide all the cables through the
power distributor housing.
Slide the new power distributor module into the power distributor housing. Make that
you slide the cables through the bottom of the housing.
Reconnect all the power cables, replace the power supply, and insert the plug into the
wall.
Turn on the unit and log on as user BVRAdmin. The default screen is displayed.
Double-click the SuperDoctor 5 service icon on the screen.
Log on to the web interface using the following default credentials:
User Name: ADMIN
Password: ADMIN
Click the Configuration tab, then click Password Settings and change the default
password.
Click the Configuration tab, then click Alert Configuration.
Activate the SNMP Trap feature and specify the IP address of the receiver for SNMP
traps.
Turn on the unit and insert the system recovery DVD 1.
