40 en | Maintenance
2.
Notice!
Except for short periods of time (swapping hard drives), do not operate the unit with the
hard drives removed from the bays.
10.4.2

Installing a hard drive into a hard drive carrier

The hard drives are mounted in hard drive carriers.
To install a hard drive into a hard drive carrier:
1.
2.
3.
4.
5.
2016.07 | V2 | DOC

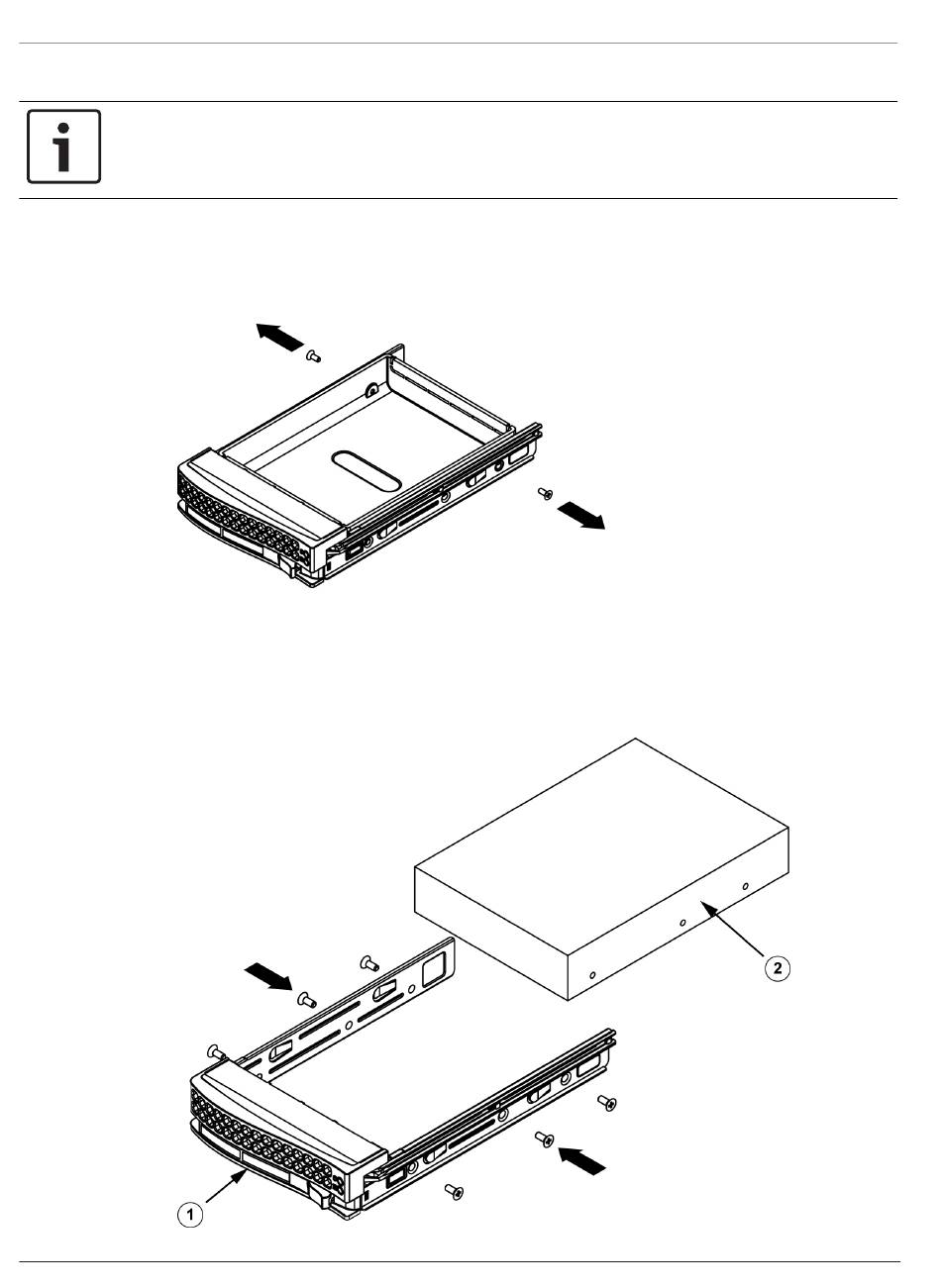

Use the handle to pull the drive out of the chassis.
Remove the screws securing the dummy drive to the hard drive carrier.
Remove the dummy drive from the hard drive carrier and place the hard drive carrier on a
flat surface.
Slide a new hard drive into the hard drive carrier with the printed circuit board side
facing down.
Align the mounting holes in both, the hard drive carrier and the hard drive.
Secure the hard drive to the hard drive carrier using six screws.
Installation Manual
DIVAR IP 7000 (2U)
