Current Audio PRO SUB801-70V User's Installation Manual

PRO SUB801-70V
8.0" 8 ohm/70Volt, Indoor/Outdoor
In-Ceiling Subwoofer
The dual purpose PRO SUB801-70V Indoor/Outdoor Constant
Voltage Distribution speaker is the perfect choice for either main
listening or sound reinforcement applications. It can be used in
household applications or commercial distributed public address
and sound systems. It is the choice of casinos. This full range
speaker supplies serious sound. It is provided with a switchable
8 ohm or 70 Volt input with adjustable wattage taps. If used with
100 volt systems the wattage taps will be 30 and 15 watts. DO
NOT use the 70 volt 30 watt tap on 100 volt systems. See Chart
on Page 2.
The 8" Injection Molded Carbon Fiber woofer cone and butyl
rubber surround are virtually impervious to the weather and
insects. It delivers shock and awe.
The speaker is housed in a painted steel back-can with a Safety
Tether connection. The back of the can houses the protected
wiring connections and switchable wattage taps or 8 ohm knob.
This speaker color offered is white. It can be painted to match
any décor. The speaker enclosure is a durable UV-resistant
material that allows for both indoor and outdoor installations.
The perforated powdered coated steel alloy grill is long lasting,
corrosion resistant.
Electrical connection via a BX style connector in a ½" conduit
hole is available on the back cover. Up to 16 gauge wire, is
made by constant tension spring loaded terminals via a ½"
knock out terminal cover. An external switch on the back- can
allows selectable wattage taps of
With our limited Lifetime warranty you are assured years of
superior trouble free operation.

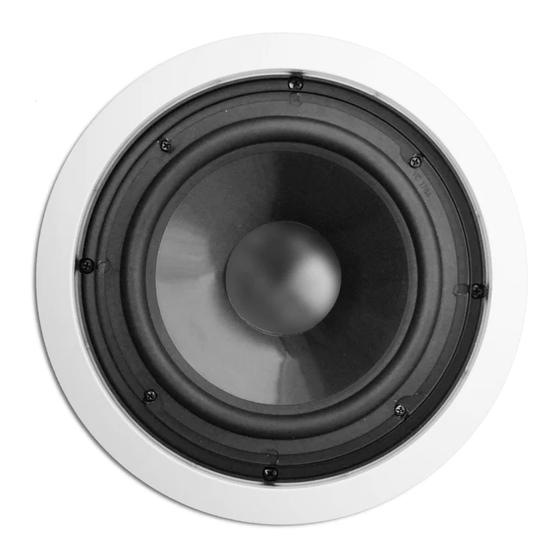

SUB801-70V Front
Part Number 93200 SUB801-70V
Manual URL www.currentaudio.com
Accessories 92084 TB8 Tile Support Bracket
Specifications subject to change without notice.
Indoor/Outdoor Speaker
60-30-15-7.5 or pass thru 8Ω.
SUB801-70V Back
User's Installation Guide
SPECIFICATIONS
Driver
Frequency Response
Power Handling 8Ω
Power Handling 70Volts
SPL @ 1 Watt/1 meter
Impedance 8 ohm Nominal
Retrofit Cutout Diameter
Height X Width X Can Depth
Color
SUB801-70V Side
1830 John Towers Avenue El Cajon, CA 92020 Sales 866-927-7181
PRO SUB801-70V
8" Injection Molded Carbon Fiber
35Hz-300kHz
5-150 Watts @ 8Ω
60-30-15-7.5 Watts @ 70Volts
90db
Fixed Crossovers
9 7/16" (240 mm)
8"(203.2mm) X 10"(273mm) X
7.5"(190.5mm)
White. Black Special Order
SUB801-70V Back
www.currentaudio.com
©2009 Current Audio LLC
SUB801-70V RPA 062811
