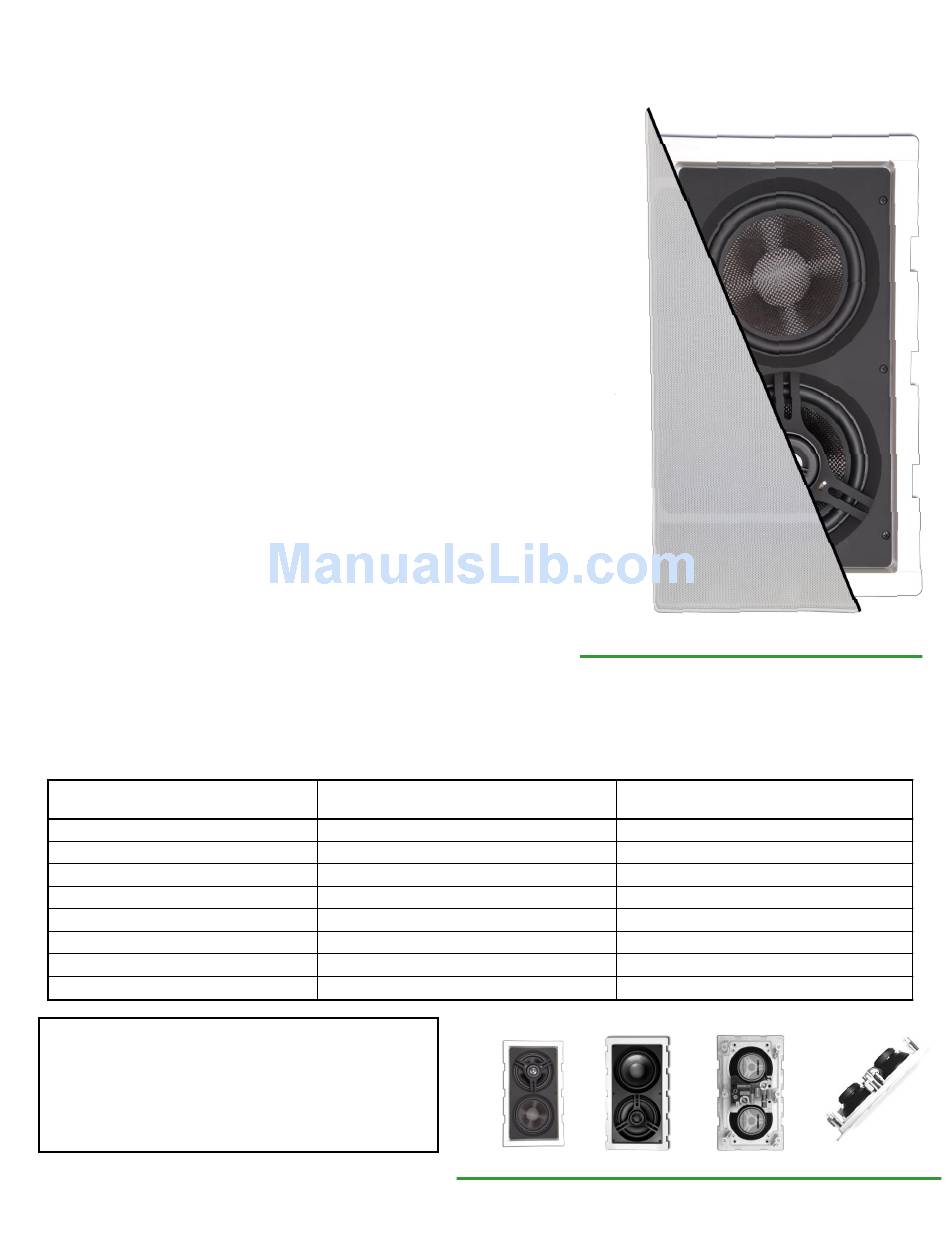

Current Audio WSLCR650FL Installation Manual

WSLCRFL Series In-Wall Speaker
Low Profile, In-Wall, Coaxial, Infinite Baffle
Loudspeaker with Easy Install FastLoc™ Grille
Double 6.5" Thumping Trumping sound that fits both vertically and horizontally between
standard 2" X 4" studs. They include revolutionary Zero Edge Grilles that allow the grille
to be inserted and locked in either vertical or horizontal up/down or left /right direction.
The easy to install WSLCRFL series speakers are a two way In-Wall loudspeaker that
incorporates high tech woofer materials with a butyl rubber surround, specially
formulated TPV Santoprene™ covered baffle membrane
Diffractionless pivoting dome Ferrofluid cooled tweeter. The TPV Santoprene™ covered
baffle membrane dampens energy emitted from the drivers and accurately couples the
sound to the entire assembly wall surface. Also, the TPV Santoprene™ covered baffle
membrane reduces any high frequency bounce emitted from the tweeter. The pivoting
tweeter allows for deeper penetration into the room and focuses robust high frequency
energy sound to the sweet spot.
This revolutionary combination provides superior and more natural sound for both
foreground and background applications. This design is a great choice for 3-D Audio,
stereo and surround sound applications.
For efficiency and consistency the WSLCR series speakers are timbre matched to the
CSLCR, WS and CS series of speakers. The CSDBFL series is a great compliment for
Surround systems. In addition, some of the WSLCR speakers incorporate a 3 position
equalization switch, one for bass and one for treble, to fine tune the acoustics and adjust
for various room surfaces.
The speaker grille color is white, and is a close match to Frazee White Shadow 181. It
can be effortlessly painted to match any décor. The speaker enclosure is a durable UV-
resistant material that allows for both indoor and outdoor installations. Unlike other grilles
that use magnets to hold them on, they must be made of steel that will rust and can fall
off. The patent pending perforated zero edge FastLoc grille is a powder-coated
aluminum alloy grille is long-lasting, corrosion resistant and rust-free. It conforms to any
surface with no shadows or gaps and does not cause sunbursts from
attraction on magnets like other designs. The Grille is only .255" (6.48mm) in height.
Six built-in expanding transverse dog leg clamps permit installation with or without pre-
wire construction brackets in drywall or material with thickness of 7/32" to 1 3/16".
Electrical connection, up to 12 gauge wire, is made by two gold plated constant tension
spring-loaded terminals.
With our limited 5 year warranty you are assured years of superior trouble free operation
SPECIFICATIONS for
WSLCR65FL Series
Driver with Butyl Rubber Surround
Tweeter, 1"(25mm), Pivoting Dome
Frequency Response
Power handling
SPL @ 1 Watt/1 meter
Impedance 8 ohm Nominal
Length x Width x Depth
Retro-fit Cutout Length x Width
Part Number 92091 WSLCR650FL; 92092
Manual URL www.currentaudio.com
Accessories 92096 NC6LCRWB; New Construction
Bracket, SpeKap
Specifications subject to change without notice.
and a state-of the-art
ferric dust
WSLCR650FL
MetaPlex Composite
Silk Ferrofluid Cooled
42Hz-20kHz
5-100 Watts
90.5 dB
Fixed Crossovers
17"(431.8mm)x9.62"(244.4mm)x3.88"(98.55mm)
14.2"(360.7mm)x7.6"(193mm)
WSLCR654FL;
WSLCR654FL
User's Installation Guide
WSLCR650FL
WSLCR654FL
Woven Carbon Fiber
Ceramic Coated Aluminum Ferrofluid Cooled
35Hz-21kHz
5-150Watts
91.5 dB
3 Position Crossovers
17"(431.8mm)x9.62"(244.4mm)x3.88"(98.55mm)
14.2"(360.7mm)x7.6"(193mm)
WSLCR650FL
WSLCRFL Series Rev2 092611 RPA
