OC525 OC65 Indoor/Outdoor Speaker User's Installation Guide
OC525 OC65 " 2-Way, Indoor/Outdoor
Dual Purpose, Full Range Loudspeaker

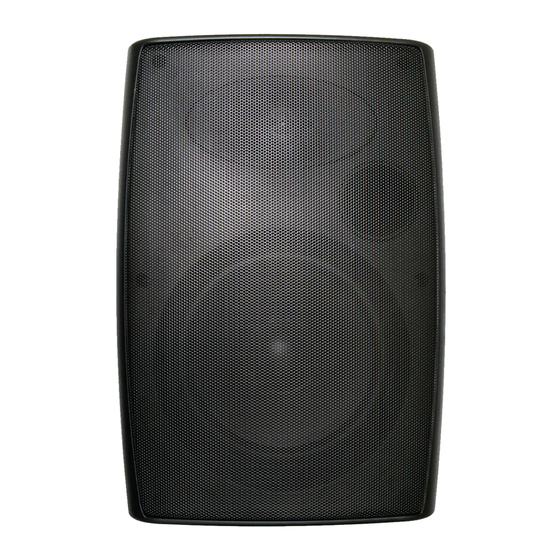

The dual purpose Indoor/Outdoor cabinet speaker is the perfect choice
for either main listening or sound reinforcement applications. Get ready
for serious sound with this ported bass reflex speaker. The OC525
makes a great choice when used as satellite speakers.
The graphite mica mineral impregnated polypropylene woofer cone and
butyl rubber surround are virtually impervious to weather and insects.
The 1" titanium tweeter delivers clear crisp high frequencies to provide
high performance high fidelity sound and it is the work horse of the line.
This speaker color is offered in both white and black. The white is a
close match to Frazee White Shadow 181. It can be painted to match
any décor. The speaker enclosure is a durable UV-resistant material
that allows for both indoor and outdoor installations. The perforated
powered coated aluminum alloy grill is long lasting, corrosion resistant
and rust free.
Included in the package is a universal heavy gauge mounting kit. The
kit includes a rust proof U bracket and large easy to install positive
locking serrated knobs. The knobs are attached to the matching
serrated area on the zero balanced point of the enclosure via threaded
studs. This allows the speaker to easily be positioned to place the
sound where you want it. Hand tightening the knobs will clamp the
speaker in place. The speaker may be mounted either horizontally or
vertically.
Electrical connection, up to 12 gauge wire, is made by gold plated
constant tension spring loaded terminals.
This speaker is also offered in a Pro 70Volt version with various
wattage taps and a ½" knock out terminal cover.
One Hardwood Tree is planted in the National Forest to offset the
Styrofoam packaging on each pair.
SPECIFICATIONS
Driver
Tweeter, 1" (25.4mm) Dome
Frequency Response
Power handling
SPL @ 1 Watt/1 meter
Impedance 8 ohm Nominal
Height X Width X Depth
Color
Part Number 92041 OC525W White, 92042 OC525B Black
92039 OC65W White, 92040 OC65B Black
Manual URL www.currentaudio.com
Accessories Volume Control ZL45R, ZL60S
Specifications subject to change without notice.
OC525
5.25" Mica Filled Polypropylene
Titanium
52Hz-20kHz
5-100 Watts
89db
Fixed Crossovers
9.88"(251m) X 6.75"(172mm) X 6.75"(149mm)
Black or White
OC65W Front
OC65
5.25" Mica Filled Polypropylene
Titanium
47Hz-20kHz
5-125 Watts
90db
Fixed Crossovers
12.13"(308m) X 8.5"(216mm) X 14.75"(200mm)
Black or White
OC65B Top
1830 John Towers Avenue El Cajon, CA 92020 Sales 866-927-7181
OC525 and OC65
OC65W Back
www.currentaudio.com
©2009 Current Audio LLC
RPA 060210
