Current Audio CECS65 Installation Manual

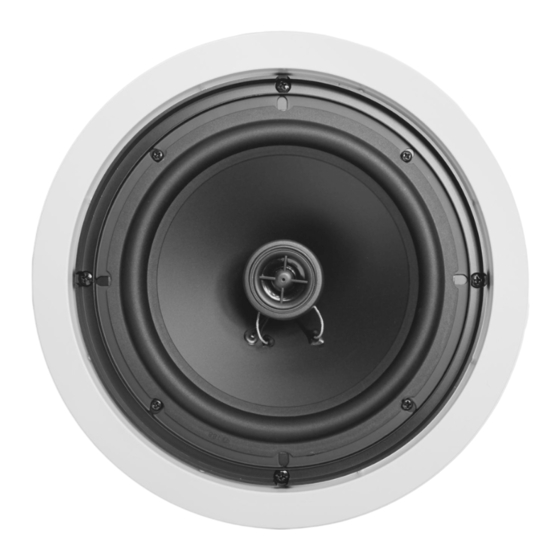

CECS Series Ceiling Speaker
Low Profile, In-Ceiling, 2-Way Coaxial,
Infinite Baffle Loudspeaker
The Contractor Edition CECS is a competitively priced
2-Way Ceiling Loudspeaker that introduces the customer
to the possibilities of whole house audio for every room.
It incorporates a Talc Filled Polypropylene woofer with a
butyl rubber surround and pivoting polycarbonate dome
Ferrofluid cooled tweeter. The DT is a dual voice coil dual
tweeter speaker that delivers blended stereo sound from
one speaker for bathrooms, walk-in
Even in this competitive package our speaker provides
exceptional natural sound for both foreground and
background applications.
The Infinite Baffle design makes it the ideal choice for
typical application in open beam attic or enclosed ceilings.
The low profile design allows mounting in low headroom
spaces.
The speaker color is white, and is a close match to Frazee
White Shadow 181. It can be painted to match any decor.
The grill is a powder coated steel design. For outdoor
applications use the CS series.
Four built-in expanding transverse dog leg clamps permit
installation with or without pre-wire construction brackets
in drywall or material with thickness of 5/16" to 1 3/16".
Electrical connection, up to 14 gauge wire, is made by
standard constant tension
terminals.
SPECIFICATIONS for CECS
Series
Driver with Butyl Rubber Surround
Tweeter, Pivoting 5/8" (12mm)
Frequency Response
Power handling
SPL @ 1 Watt/1 meter
Impedance 8 ohm Nominal
Diameter x Depth)
Retro-fit Cutout Diameter
Part Number 92065 CECS65; 92066 CECS80;
92122 CESC65DT
92070 R70VT 70Volt Xrmr
Manual URL www.currentaudio.com
Accessories NC6CECB 92086 or NC8CECB 92085 New
Construction Bracket, TB6 92083 or TB8
92084 Tile Support Bridge
ZL25R 92034 Volume Control,
SpeKap 92069
Specifications subject to change without notice.
red/black spring-loaded
CECS65
6.5" Talc Filled Polypropylene
Polycarbonate Ferrofluid Cooled Dome
70Hz-19.5kHz
5-55 Watts
88db
Fixed Crossovers
8 5/16"(227mm)x 2 53/64" (71.37mm)
7 7/8 " (200mm)
User's Installation Guide
CECS80
8" Talc Filled Polypropylene
Polycarbonate Ferrofluid Cooled
Dome
50Hz-19.5kHz
5-60 Watts
88.5db
Fixed Crossovers
9 5/8"(245mm)x 3.24" (82.25mm
9 7/16" (240mm)
1830 John Towers Avenue El Cajon, CA 92020 Sales 866-927-7181
CECS65DT
6.5" Talc Filled Polypropylene
Polycarbonate Ferrofluid Cooled
Dome
55Hz-19.5kHz
5-55 Watts
Fixed Crossovers
8 5/16"(227mm)x 2 53/64" (71.37mm)
7 7/8 " (200mm)
www.currentaudio.com
©2011Current Audio LLC
CECS Series Rev1 07081 RPA
