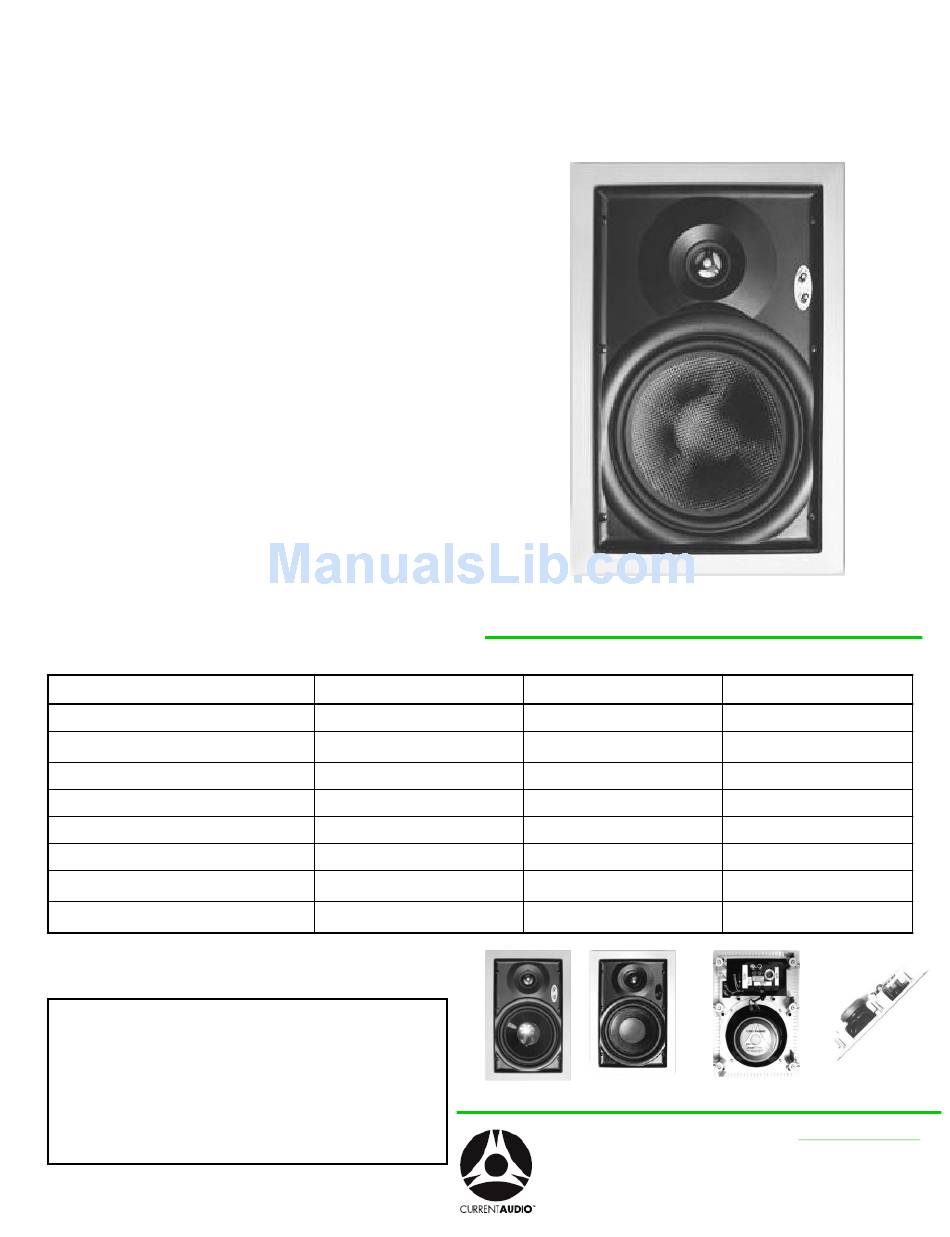

Current Audio WS650 Installation Manual

WS Series Ceiling Speaker
Low Profile, In-Wall, Coaxial, Infinite Baffle
Loudspeaker with Easy Install Grille
The easy to install WS series In-Wall speakers are a full range
loudspeaker that incorporates high tech woofer materials with a butyl
rubber surround and a state-of the-art pivoting dome Ferrofluid cooled
tweeter. The pivoting tweeter allows for deeper penetration into the room
and concentrated sound to the sweet spot or your favored location.
This revolutionary combination provides superior and more natural sound
for both foreground and background applications.
This design is a great choice for stereo and surround sound applications.
For 3-D audio our LCR series is a more accurate choice.
For efficiency and consistency the WS series speakers are timbre
matched to the FIT series, LCR and CS series of speakers.
In addition, most of the WS speakers incorporate a 3 position
equalization switch, one each for bass and treble to fine tune the
acoustics and allow for various room surfaces.
The speaker grille color is white, and is a close match to Frazee White
Shadow 181. It can be painted to match any décor. The speaker
enclosure is a durable UV-resistant material that allows for both indoor
and outdoor installations. Unlike other grilles that use magnets to hold
them on they must be made of steel that will rust. The perforated powder-
coated aluminum alloy grill is long-lasting, corrosion resistant and rust-
free.
Six built-in expanding transverse dog leg clamps permit installation with
or without pre-wire construction brackets in drywall or material with
thickness of 7/32" to 1 3/16".
Electrical connection, up to 12 gauge wire, is made by two gold plated
constant tension spring-loaded terminals.
With our limited 5 year warranty you are assured years of superior
trouble free operation.

SPECIFICATIONS for WS65 Series

Driver with Butyl Rubber Surround
Tweeter, 1"(25mm), Pivoting Dome
Frequency Response
Power handling
SPL @ 1 Watt/1 meter
Impedance 8 ohm Nominal
Length x Width x Depth
Retro-fit Cutout Length x Depth
Part Number 92025 WS650; 92024 WS651;92018 WS654;
92098 WS800; 92099 WS801;92023 WS804:
92070 R70VT 70Volt Xrmr
Manual URL www.currentaudio.com
Accessories NC6WB; NC8WB
New Construction Bracket
Volume Control ZL45R, ZL60S, SpeKap
Specifications subject to change without notice.
WS650
MetaPlex Composite
Silk Ferrofluid Cooled
42Hz-20kHz
5-100 Watts
90db
Fixed Crossovers
12 1/4"(311mm)x8 3/16"(208mm)x3
1/16"(168mm)
10 11/16"(272mm)x6 5/8"(168mm) 10 11/16"(272mm)x6 5/8"(168mm
User's Installation Guide
WS804
WS651
Injection Molder Carbon Fiber
Aluminum Ferrofluid Cooled
40Hz-20kHz
5-125 Watts
90db
3 Position Crossovers
12 1/4"(311mm)x8
3/16"(208mm)x3 1/16"(168mm)
1830 John Towers Avenue El Cajon, CA 92020 Sales 866-927-7181
WSS654
Woven Carbon Fiber
Ceramic Coated Aluminum
Ferrofluid Cooled
35Hz-21kHz
5-150Watts
91.5db
3 Position Crossovers
12 1/4"(311mm)x8
3/16"(208mm)x3 1/16"(168mm)
10 11/16"(272mm)x6
5/8"(168mm
www.currentaudio.com
©2009 Current Audio LLC
WS Series 1110 RPA
