Current Audio PRO 70V Series User's Installation Manual

PRO 70V Indoor/Outdoor Speaker User's Installation Guide
6.5"/5.25" 2-Way 70Volt, Indoor/Outdoor
Loudspeaker

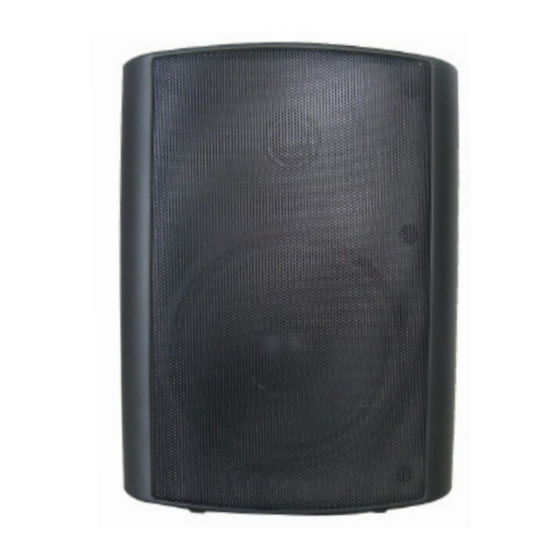

The OC65/OC525 70V Indoor/Outdoor Constant Voltage
Distribution speaker is the perfect choice for either main listening or sound
reinforcement applications. It can be used in household applications or commercial
distributed public address and sound systems. This ported bass reflex speaker
supplies serious sound.
The graphite mica mineral injected polypropylene woofer cone and butyl rubber
surround are virtually impervious to the weather and insects.
This speaker color is offered in black. It can be painted to match any décor. The
speaker enclosure is a durable UV-resistant material that allows for both indoor and
outdoor installations. The perforated powdered coated aluminum alloy grill is long
lasting, corrosion resistant and rust free.
Included in the package is a universal heavy gauge mounting kit. The kit includes
a rust proof serrated U bracket and large easy to install positive locking knobs. The
knobs are attached to the matching serrated area on the zero balanced point of
the enclosure via threaded studs. This allows the speaker to easily be positioned
to place the sound where you want it. Hand tightening the knobs will clamp the
speaker in place. The speaker may be mounted either horizontally or vertically.
Electrical connection, up to 14 gauge wire, is made by a detachable four screw
loaded terminal block for speaker IN/OUT via a ½" knock out terminal cover.
With our limited 5 year warranty you are assured years of excellent sound and
trouble free operation.
SPECIFICATIONS
Driver
Tweeter
Frequency Response
Power Handling 70Volts
SPL
Height X Width X Depth
Color
Part Number 93208 OC65B-70V
93206 OC525B-70V
93207 OC525W-70V
OC65B-70V
6.5" Mica Filled Polypropylene Cone
with Butyl Rubber Surround
1" (25mm) Silk Dome
47Hz - 20kHz
Single Tap 30 Watts @ 70Volts
90 dB 1W/1m
8 ½ (215 mm) x 7 11/16 (194 mm)
x 11 7/8 (301 mm)
Black
OC525B-70V
5.25" Mica Filled Polypropylene Cone
with Butyl Rubber Surround
5/8" (13mm) Polycarbonate Dome
52Hz - 20kHz
Single Tap 30 Watts @ 70Volts
89 dB 1W/1m
7 5/16 (185mm) x 6 ½ (165mm) x 9
7/8 (249 mm)
Black
8141 Center St, La Mesa, CA 91942 • 866-927-7181
OC525W-70V
5.25" Mica Filled Polypropylene Cone
with Butyl Rubber Surround
5/8" (13mm) Polycarbonate Dome
52Hz - 20kHz
Single Tap 30 Watts @ 70Volts
89 dB 1W/1m
7 5/16 (185mm) x 6 ½ (165mm) x 9
7/8 (249 mm)
White
www.currentaudio.com
©2016 Current Audio - All Rights Reserved.
Rev. 01, 09/16
