Current Audio FastLoc CS650FL User's Installation Manual

CS FastLoc™ Series Ceiling Speaker
Low Profile, In-Ceiling, Coaxial, Infinite
Baffle Loudspeaker with FastLoc™ Grille

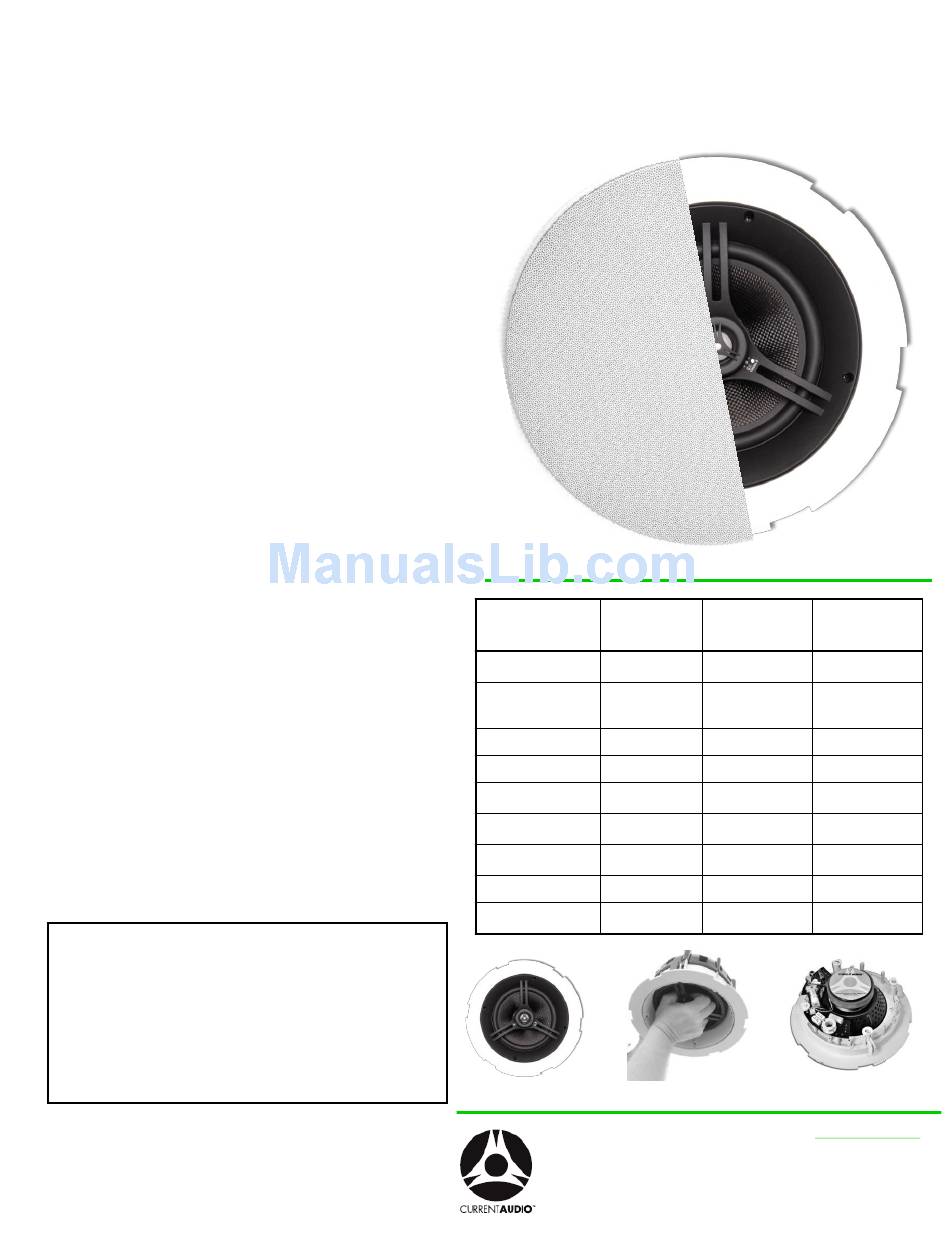

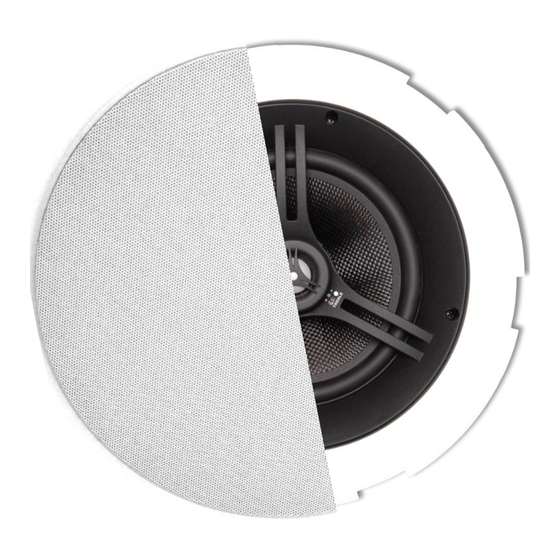

The easy to install CSFL series speakers are a full range ceiling
loudspeaker that incorporates high tech woofer materials with a butyl
rubber surround and the Patent Pending stat-of the- art diffractionless
dome Ferrofluid cooled tweeter. The Patent Pending pivoting tweeter
allows for deeper penetration into the room and concentrated sound to
the sweet spot.
This revolutionary combination provides superior and more natural sound
for both foreground and background applications.
The Infinite Baffle design makes it the ideal choice for typical applications
in open beam attic or enclosed ceilings.
For efficiency and consistency the CS series are timbre matched to the
FIT series and WS series of speakers.
In addition, most of the CS speakers incorporate a 3 position equalization
switch, one each for bass and treble to fine tune the acoustics and allow
for various room surfaces.
These speakers feature the innovative FastLoc™ zero edge quick
connect grille. Architects and designers have resisted the size of the
traditional bezel. The FastLoc™ feature, found only at Current Audio,
exhibits the smallest exposed bezel that virtually disappears into the
ceiling. But the major feature is the Patent Pending design that allows for
rapid install that conforms to uneven surfaces. The grille is anodized
aluminum, not steel. It will not rust like magnetic grilles. The FastLoc™
feature prevents the grille from falling off even in earthquakes and does
not collect ferric dust on magnets that cause multiple sunbursts around
the edge.
The speaker grille color is white, and is a close match to Frazee White
Shadow 181. It can be painted to match any décor. The speaker
enclosure is a durable UV-resistant material that allows for both indoor
and outdoor installations. Unlike other grilles that use magnets to hold
them on they must be made of steel that will rust. The perforated powder-
coated aluminum alloy grill is long-lasting, corrosion resistant and rust-
free.
Four built-in expanding transverse dog leg clamps permit installation with
or without pre-wire construction brackets in drywall or material with
thickness of 7/32" to 1 3/16".
Electrical connection, up to 12 gauge wire, is made by two gold plated
constant tension spring-loaded terminals.
With our limited 5 year warranty you are assured years of superior
trouble free operation.
Part Number 92400 CS650FL; 92017 CS651FL;
92016 CS654FL;
92013 CS801FL; 92113 CS802FL;
92014 CS804FL: 92070 R70VT 70Volt Xrmr
Manual URL www.currentaudio.com
Accessories NC6CB; NC8CB
New Construction Bracket
Volume Control ZL45R, ZL60S, SpeKap
Specifications subject to change without notice.
User's Installation Guide
SPECIFICATIONS
for CS650FL
CS65FL Series
MetaPlex
Driver with Butyl
Composite
Rubber Surround
Tweeter, 1",
Silk Ferrofluid
Diffraction-less,
Cooled
Dome
Frequency Response 42Hz-20kHz
5-100 Watts
Power handling
SPL @ 1 Watt/1
90db
meter
Impedance 8 ohm
Fixed Crossovers
Nominal
10 ¼""(260mm) x
Diameter x Depth
3 3/4"(97mm)
13" (330mm)
Grille Diameter
Retro-fit Cutout
8 ¼" (209.6mm)
Diameter
1830 John Towers Avenue El Cajon, CA 92020 Sales 866-927-7181
CS651FL CS654FL
Injection Molder Woven Carbon
Carbon Fiber Fiber
Ceramic Coated
Aluminum
Aluminum
Ferrofluid Cooled
Ferrofluid Cooled
40Hz-20kHz 35Hz-21kHz
5-125 Watts 5-150Watts
90db 91.5db
3 Position 3 Position
Crossovers Crossovers
10 ¼""(260mm) x 10 ¼""(260mm) x
3 3/4"(97mm) 3 3/4"(97mm)
13" (330mm) 13" (330mm)
8 ¼" (209.6mm) 8 ¼" (209.6mm)
www.currentaudio.com
©2011 Current Audio LLC
CS FL Series 10132011 RPA
