9889 Garrymore Ln
Missoula, MT 59808
888-687-3552 | +1-406-549-0769
www.aquacreek.com
Check entire box and all packing materials for parts. Before beginning assembly, read the
instructions and identify parts using the fi gures and parts listed in this document.
It is critical that all parts be carefully inspected prior to installation. If any damage occurred in
transit, Aqua Creek Products, LLC must be notifi ed within three days of receipt of unit.
Proper installation cannot be overstressed, as an improper installation voids Aqua Creek's
warranty and may affect the safety of the user.
Copyright © 2017 Aqua Creek Products All Rights Reserved

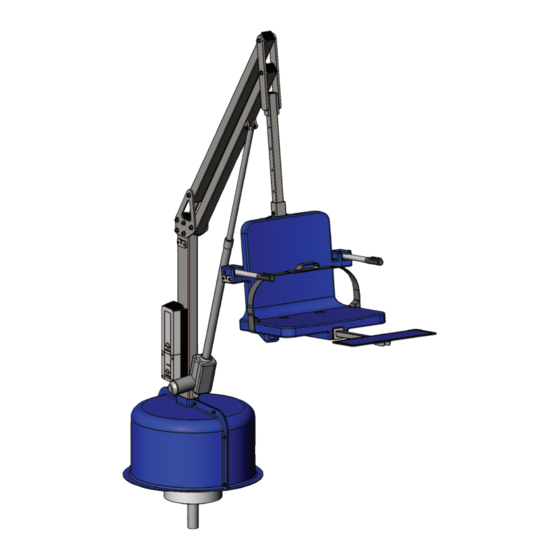

Revolution Deep
Draft Spa Lift
400 LB. [181 kg] MAXIMUM WEIGHT CAPACITY
LEAVE THIS MANUAL WITH LIFT OWNER
Lift safety can only be ensured if installed and operated
• NEVER permit children to play on or around the lift
• Do not allow children to use the lift without adult
supervision
• NEVER apply direct water pressure to the electronics
• NEVER use the lift with a dry pool
ADA COMPLIANT
READ CAREFULLY
PART #: F-702RLSDD
US PATENT NUMBER: [D507,769 S]
MANDATORY
Read and follow all instructions.
according to these instructions.
1
Revised 9/19/17
Advertisement
Table of Contents
Related Manuals for Aqua Creek F-702RLSDD
Summary of Contents for Aqua Creek F-702RLSDD
- Page 1 It is critical that all parts be carefully inspected prior to installation. If any damage occurred in transit, Aqua Creek Products, LLC must be notifi ed within three days of receipt of unit. Proper installation cannot be overstressed, as an improper installation voids Aqua Creek’s warranty and may affect the safety of the user.
-
Page 2: Table Of Contents
1. The Revolution Deep Draft Spa Lift Main Assembly 2. Deep Draft Control Arm 3. Deep Draft Lifting Arm 4. Spa Seat Arm 5. Pull-out Legrest 6. Actuator 7. Handset 8. 24V Battery Copyright © 2017 Aqua Creek Products All Rights Reserved Revised 9/19/17... - Page 3 Anchor setbacks are based on straight pool/spa walls. Curved pool/spa walls will effect the anchor setback. [122cm] 48" REQUIRED CLEAR DECK [91.4cm] 36" SPACE [30.5cm] 12" [73.7cm] 29" [40.6cm] 16" WATER POOL WALL FIGURE 1 Copyright © 2017 Aqua Creek Products All Rights Reserved Revised 9/19/17...
-
Page 4: Anchor Installation: New Construction
You may need to saw cut and remove a portion of an existing pool deck in order to achieve the 10 inch depth footing requirement. Aqua Creek does NOT recommend a core drill installation for this lift. To properly install this anchor, you will need to have a concrete footing comprised of 2500 psi concrete that is 10 inches deep and 4 feet - 3 inches square and reinforced with rebar. -
Page 5: Ada Fixing Insert Installation
TO PREVENT BREAKING THE FIXING BRACKET, DO NOT OVERTIGHTEN! 1/2" X 2" HEX BOLT 1/2" FLAT WASHER MAIN ASSEMBLY LOCKING PIN POST LOCKING SLOT DECK ANCHOR STEP 1 Copyright © 2017 Aqua Creek Products All Rights Reserved Revised 9/19/17... -
Page 6: Revolution Deep Draft Spa Assembly Instructions
SHOULDER BOLT 3/8" FLAT SHOULDER BOLT WASHER 3/8" NYLOCK NUT CONTROL 5/16" NYLOCK NUT 5/16" FLAT WASHER 3/8" NYLOCK 3/8" X 2" SHOULDER BOLT LIFTING ACTUATOR STEP 2 STEP 3 Copyright © 2017 Aqua Creek Products All Rights Reserved Revised 9/19/17... -
Page 7: Main Assembly
SEAT ASSEMBLY TO THE CHAIR ARM! STEP 5 STEP 5 3/8" X 2" SHOULDER BOLT 5/16" FLAT WASHER (3) 5/16" NYLOCK NUT (2) 5/16" X 4 1/2" HEX BOLT Copyright © 2017 Aqua Creek Products All Rights Reserved Revised 9/19/17... -
Page 8: Pull-Out Legrest
NOT PROPERLY ALIGNED. FOOTREST TUBE. HANDSET CONTROL STEP 6 BATTERY SEAT ASSEMBLY CONTROL PULL-OUT LEGREST STEP 7 Not Seated Seated Copyright © 2017 Aqua Creek Products All Rights Reserved Revised 9/19/17... - Page 9 Pull-out Legrest Installation Instructions The PULL-OUT LEGREST ASSEMBLY is designed to fit under the standard Aqua Creek chair, and is installed inside the 2” square tubing that supports the chair from underneath. Installation is the same for every lift, Ranger lift is shown in picture below. To install the pull-out leg-rest;...
- Page 10 LEGREST STOWED PULL LEGREST OUT FLIP LEGREST UP AND PIN SLIDE FORWARD AND INSERT PIN TO LOCK IN "UP" POSITION SLOT Copyright © 2017 Aqua Creek Products All Rights Reserved Revised 9/19/17...
-
Page 11: Battery
Note: the lift will not retract if the battery is not fully charged or if the control box is not working. The emergency button only overrides the remote handset. Copyright © 2017 Aqua Creek Products All Rights Reserved Revised 9/19/17... - Page 12 3M Scotch Brite™ pad. Use white epoxy paint to touch up the finish. Apply wax to protect when dry. For service and/or replacement parts contact Aqua Creek direct at Toll free: (888) 687-3552 Copyright © 2017 Aqua Creek Products All Rights Reserved...
- Page 13 WF 1/4 WASHER, FLAT, 1/4, 316 SS NN 1/4 NUT, 316 SS, NYLOCK, 1/4-20 BOLT, 18-8 SS, 1/2 X 2 3/4 BS 1/2 X 2 3/4 18-8 SHOULDER, 3/8-16 THREAD Copyright © 2017 Aqua Creek Products All Rights Reserved Revised 9/19/17...
- Page 14 LOCK WASHER, 1/4, 316 SS NN 1/4 NUT, 316 SS, NYLOCK, 1/4-20 COTTER PIN, 1/4 X 3 1/4 PIN, COTTERLESS PIN, 18-8 SS, 1/4 X 3 3/4 LANYARD LANYARD, FOR FOOTREST PIN, SS Copyright © 2017 Aqua Creek Products All Rights Reserved Revised 9/19/17...
- Page 15 Aqua Creek may void warranty. To initiate a warranty claim, the owner of an Aqua Creek product must provide the place of purchase, in writing, with a full description of the product, its serial number, the dates of purchase and installation, and the exact nature of the defect. Within thirty (30) days after receipt of a written warranty claim by Aqua Creek, and barring any unforeseen delays, the place of purchase will be notified of Aqua Creek’s decision regarding the claim.
- Page 16 ROTATIONAL LIFT ACCESSORIES COVERS ACCESSORIES & OPTIONS F-450BL-C Scout 2 Lockable Cover F-019CA Cycle Attachment F-450SSC Scout 2 Cover F-105LAR Pull-Out Legrest (use with Solar Charger) F-422PLH-2 Headrest F-720BL-C Revolution/Titan Lockable Cover F-423CS Chest Strap F-720SSC Revolution/Titan Cover F-38SB Seat Belt, Standard (use with Solar Charger) F-806SLS Sling Seat Assembly, Scout 2...
