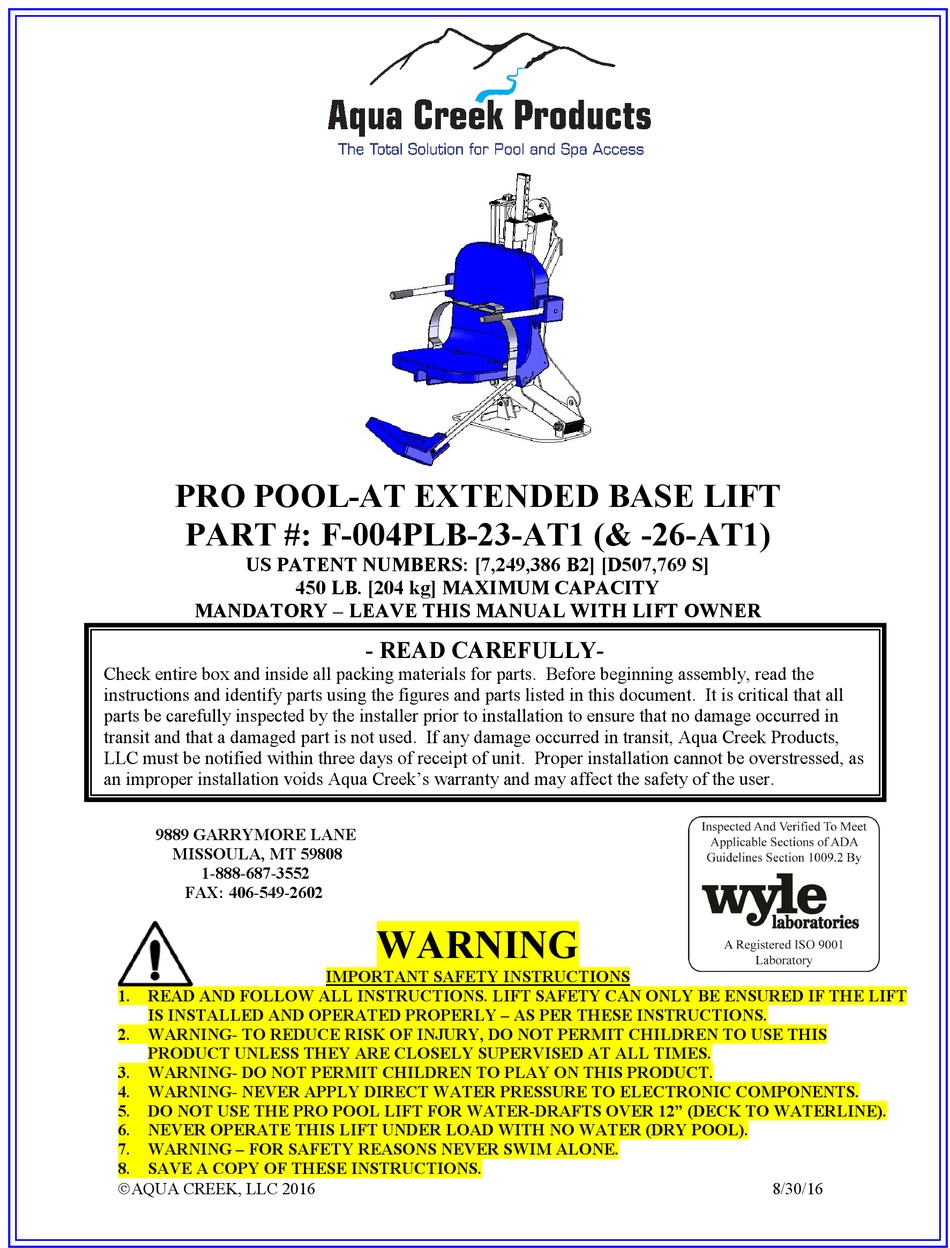

PRO POOL-AT EXTENDED BASE LIFT
PART #: F-004PLB-23-AT1 (& -26-AT1)
US PATENT NUMBERS: [7,249,386 B2] [D507,769 S]
MANDATORY – LEAVE THIS MANUAL WITH LIFT OWNER
Check entire box and inside all packing materials for parts. Before beginning assembly, read the
instructions and identify parts using the figures and parts listed in this document. It is critical that all
parts be carefully inspected by the installer prior to installation to ensure that no damage occurred in
transit and that a damaged part is not used. If any damage occurred in transit, Aqua Creek Products,
LLC must be notified within three days of receipt of unit. Proper installation cannot be overstressed, as
an improper installation voids Aqua Creek's warranty and may affect the safety of the user.
9889 GARRYMORE LANE
MISSOULA, MT 59808
1-888-687-3552
FAX: 406-549-2602
1.
READ AND FOLLOW ALL INSTRUCTIONS. LIFT SAFETY CAN ONLY BE ENSURED IF THE LIFT
IS INSTALLED AND OPERATED PROPERLY – AS PER THESE INSTRUCTIONS.
2.
WARNING- TO REDUCE RISK OF INJURY, DO NOT PERMIT CHILDREN TO USE THIS
PRODUCT UNLESS THEY ARE CLOSELY SUPERVISED AT ALL TIMES.
3.
WARNING- DO NOT PERMIT CHILDREN TO PLAY ON THIS PRODUCT.
4.
WARNING- NEVER APPLY DIRECT WATER PRESSURE TO ELECTRONIC COMPONENTS.
5.
DO NOT USE THE PRO POOL LIFT FOR WATER-DRAFTS OVER 12" (DECK TO WATERLINE).
6.
NEVER OPERATE THIS LIFT UNDER LOAD WITH NO WATER (DRY POOL).
7.
WARNING – FOR SAFETY REASONS NEVER SWIM ALONE.
8.
SAVE A COPY OF THESE INSTRUCTIONS.
AQUA CREEK, LLC 2016
450 LB. [204 kg] MAXIMUM CAPACITY
- READ CAREFULLY-
WARNING
IMPORTANT SAFETY INSTRUCTIONS
8/30/16
Advertisement
Table of Contents
Related Manuals for Aqua Creek F-004PLB-23-AT1
Summary of Contents for Aqua Creek F-004PLB-23-AT1
- Page 1 If any damage occurred in transit, Aqua Creek Products, LLC must be notified within three days of receipt of unit. Proper installation cannot be overstressed, as an improper installation voids Aqua Creek’s warranty and may affect the safety of the user.
- Page 2 PRO POOL-AT EXTENDED BASE LIFT TABLE OF CONTENTS PAGE DESCRIPTION PACKING LIST ADA INSTALLATION GUIDELINES ANCHOR INSTALLATION: CORE-DRILL RETROFIT ANCHOR INSTALLATION: SAW-CUT RETROFIT ANCHOR INSTALLATION: NEW CONSTRUCTION PRO POOL-AT LIFT ASSEMBLY INSTRUCTIONS 24V BATTERY OP & INSTALL INSTRUCTIONS BATTERY MAINTENANCE HANDSET KIT INSTALLATION (OPTIONAL) PRO POOL-AT LIFT OPERATING INSTRUCTIONS 14-16...
- Page 3 PRO POOL-AT EXT-BASE LIFT 1. PRO POOL-AT EXT-BASE LIFT W/ FOOTREST 2. 24V BATTERY 3. BATTERY CHARGER W/ MOUNTING PLATE & POWER CORD 4. ANCHOR INSERT BAG - SET OF 4 (IF ORDERED W/ ANCHOR) 5. ANCHOR JIG PLATE (IF ORDERED W/ ANCHOR) 6.
- Page 4 42”-48” of depth (deck to pool floor). NOTE: Anchor setbacks are based on straight pool/spa walls. Curved pool/spa walls will effect the anchor setback. Contact Aqua Creek for assistance. PRO POOL-AT 23” EXTENDED BASE PRO POOL-AT 26” EXTENDED BASE...
-
Page 5: Anchor Installation: Core-Drill Retro-Fit
High Strength 2 part construction epoxy* Black electrical tape (Optional) Masking tape *Aqua Creek recommends either Hilti™ Brand HIT RE-500-SD or Simpson™ brand SET-XP or equivalent Locate the anchor plate, four (4) anchor inserts with nuts and mounting hardware. (Part number F-04CAJP23 / F-04CAJP26 - See picture above). - Page 6 (not included). Aqua Creek recommends either Hilti™ Brand HIT RE-500-SD or Simpson™ brand SET-XP or equivalent.
-
Page 7: Anchor Installation: Saw-Cut Retro-Fit
ANCHOR INSTALLATION: SAW-CUT RETRO-FIT Required Materials & Tools: Concrete saw with Diamond blade Tape Measure 4’ long Straight edge or chalk line Sledge Hammer Cold Chisel Torpedo Level Sting line Concrete & Concrete tools #4 Rebar 1) Locate the anchor plate, four (4) anchor inserts with nuts mounting hardware). -
Page 8: Anchor Installation: New Construction
ANCHOR INSTALLATION: NEW CONSTRUCTION For installations where a new deck is being poured, or where a dedicated pad is being poured just for the pool lift, the concrete must satisfy the requirements outlined on page 4. For convenience here are the requirements again; YOUR POOL DECK MUST BE AT LEAST 4-FEET LONG BY 4-FEET WIDE BY 6- INCHES THICK. - Page 9 PRO POOL LIFT - ASSEMBLY INSTRUCTIONS Attach Seat belt to the seat as shown. Install the PRO POOL LIFT onto the four (4) anchors using the supplied 1/2 x 1-1/2” stainless steel hex-head bolts and 1/2" stainless steel flat washers. Make sure all bolts are tight before using the lift.
- Page 10 24V BATTERY SYSTEM OPERATING AND INSTALLATION INSTRUCTIONS The Pro Pool Lift Battery system comes with a 24v sealed rechargeable battery, wall mount charging unit (with mounting bracket), control box, and a waterproof handheld controller. The control box is mounted to the Pro Pool Lift has a plug-in socket for both the actuator and the handheld controller.
-
Page 11: Battery Maintenance
BATTERY MAINTENANCE 1. RECHARGE THE BATTERY AS OFTEN AS POSSIBLE. The battery power unit is a sealed lead acid battery pack. Frequent recharges will prolong the battery life and maintain a high cold amperage capacity. THE BATTERY CAN BE STORED ON THE CHARGER WHEN NOT IN USE. - Page 12 HANDSET-KIT INSTALLATION (OPTIONAL): For applications that require a 2 handset-remote, for instance in public facilities, the Pro Pool-AT has an optional 2 handset kit available. The kit consists of a 2 2-button handset-remote, a bracket for holding the remote at the proper, fixed location and a y- adapter cable for connecting the two handsets to the control box.
- Page 13 PRO POOL-AT LIFT OPERATING INSTRUCTIONS: NOTE: CHECK ALL NUTS & BOLTS FOR TIGHTNESS AND FOR WORN PARTS BEFORE EACH USE. NEVER OPERATE THE LIFT WITH THE ARMRESTS FLIPPED UP. The Pro Pool Lift should always be in the full up or deck position before a user attempts to transfer into the chair.
- Page 14 THE (OPTIONAL) HEADREST ASSEMBLY The HEADREST ASSEMBLY attaches directly to the chair assembly, and is adjustable for optimum comfort. The components of the HEADREST ASSEMBLY are shown below, along with the chair to show how it attaches. The wing-nuts allow for quick adjustment without having to remove the assembly from the chair.
- Page 15 INSTALLING THE HEADREST PAD The ADJUST BRACKET must be removed from the assembly to install or remove the HEADREST PAD. When installing the pad thread the bracket through the top loops first and then press the flaps together (hooks & loops fastener) to complete the installation. To remove the pad, reverse this procedure.
- Page 16 NOTE: The INTEGRATED HEADREST ASSEMBLY will work on all 2 generation 18” wide Aqua Creek Products’ chairs*. The 18” chair comes standard on all Aqua Creek Products’ Scout, Ranger, Pro Pool and Patriot pool lifts. *(The 2 generation 18”...
-
Page 17: Care Of Your Lift
Routine cleaning is an absolute necessity to ensure the integrity of the lift. Note that the Aqua Creek Pool Lift should not be stored in a pump room or in a storage room where pool chemicals are kept. Storing the lift near pool chemicals may cause rusting and other damage to occur. - Page 18 If the lift is used MONTHLY follow the same steps as above. Also check the nuts and bolts to make sure they are securely fastened (this is always a good idea, no matter how often or infrequently the lift is used). Also make sure to store the battery on the charger and not on the lift.
-
Page 19: Troubleshooting Guide
TROUBLESHOOTING GUIDE Before troubleshooting make sure the battery is fully charged. If the lift doesn’t move when the handset button is pressed: When you can’t get the lift to move check the following things: 1. Make sure the battery is fully charged: A. - Page 20 If the battery is fully charged and the lift is not moving then: 2. Check all cords: A. Check that the cords are properly plugged in. Start by unplugging the remote and the actuator cord from the control box. Once these cords are removed check the ends for corrosion or damage.
- Page 21 If the lift stops moving over the water and is stuck: 4. Then try pushing the emergency button: A. If the lift gets stuck out over the water use a pen or pencil tip and stick it into the emergency button on the front of the control box to retract the lift.
- Page 22 PRO POOL-AT EXTENDED BASE: PARTS LIST ITEM NO. QTY PART NUMBER DESCRIPTION PPB-100-EX23 (-EX26) PRO POOL-AT EXTENDED BASE ASSEMBLY PPF-200-11 PRO-POOL-AT MAIN FRAME ASSEMBLY F-ASAPRL SEAT POLE, ADJUSTABLE HEIGHT, PRO POOL A-2102SRS PRO POOL-AT SEAT SUPPORT ASSEMBLY L-2014FBL-PAT-R2 PRO POOL-AT CONTROL ARM A-8980PPAF-AT2 PRO POOL-AT2 ACTUATOR ASSEMBLY SA-0904CA-A...
- Page 23 SEAT ASSEMBLY: PARTS LIST ITEM NO. QTY. PART NUMBER DESCRIPTION P-901 CHAIR, PLASTIC, 18" BLUE P-2100FLA-38 CHAIR II ARMREST TUBE P-1208HSB BRACKET, PLASTIC, HANDSET BRACKET RUBBER HAND GRIPS GRIP, RUBBER HAND GRIP SFL 12 X 3/4 SCREW, 316 SS, #12 X 3/4", FHSMS WF 1/4 WASHER, FLAT, 1/4, 316 SS BB 1/4 X 3-1/4...
- Page 24 Non-payment for product to Aqua Creek may void warranty. To initiate a warranty claim, the owner of an Aqua Creek product must provide the place of purchase, in writing, with a full description of the product, its serial number, the dates of purchase and installation, and the exact nature of the defect.
