BLAUBERG Centro 100 L User Manual

BLAUBERG Centro 100 L User Manual

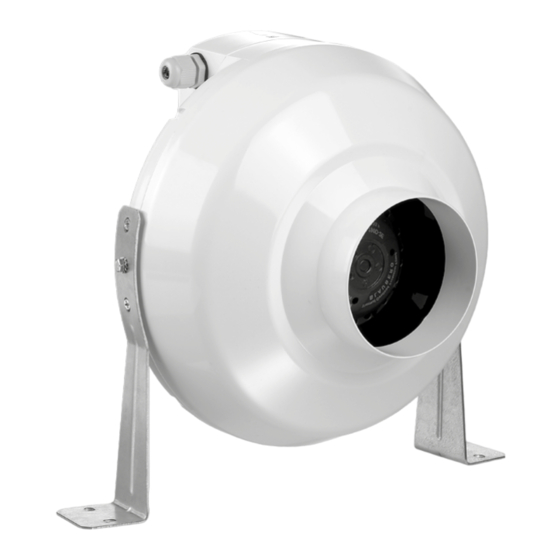

Centrifugal fan

Advertisement

Quick Links

Centrifugal fan
Centro
EN
USER'S MANUAL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Centro 100 L and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for BLAUBERG Centro 100 L

  • Page 1 Centrifugal fan Centro USER'S MANUAL...
  • Page 2: Table Of Contents

    Centro www.blaubergventilatoren.de CONTENTS Safety requirements ..................................3 Purpose ........................................ 5 Delivery set ......................................5 Designation key ....................................5 Technical data ....................................6 Design and operating principle ............................7 Mounting and set-up .................................. 8 Connection to power mains ..............................9 Technical maintenance ................................10 Storage and transportation regulations ..........................
  • Page 3: Safety Requirements

    Centro www.blaubergventilatoren.de SAFETY REQUIREMENTS All user’s manual requirements as well as the provisions of all the applicable local and national construction, electrical, and technical norms and standards must be observed when installing and operating the unit. Disconnect the unit from the power supply prior to any connection, servicing, maintenance, and repair operations.
  • Page 4 Centro www.blaubergventilatoren.de CAUTION: In order to avoid a safety hazard due to inadvertent resetting of the thermal cut-out, this appliance must not be supplied through an external switching device, such as a timer, or connected to a circuit that is regularly switched on and off by the utility. Precautions must be taken to avoid the back-flow of gases into the room from the open flue of gas or other fuel-burning appliances.
  • Page 5: Purpose

    Centro www.blaubergventilatoren.de PURPOSE The product described herein is a centrifugal inline fan for supply or exhaust ventilation of premises. The fan is designed for connection to ø 100, 125, 150, 200, 250 and 315 mm air ducts. A model with a duct diameter of 150 mm can be mounted in a duct with a diameter of 150 or 160 mm. Transported air must not contain any flammable or explosive mixtures, evaporation of chemicals, sticky substances, fibrous materials, coarse dust, soot and oil particles or environments favourable for the formation of hazardous substances (toxic substances, dust, pathogenic germs).
  • Page 6: Technical Data

    The unit is rated as a class II electric appliance. The unit design is constantly being improved, thus some models may be slightly different from those described in this manual. Parameter Centro 100 L Centro 100 Centro 125 L Centro 125...
  • Page 7: Design And Operating Principle

    Centro www.blaubergventilatoren.de Overall dimensions of the unit Dimensions [mm] Weight Model [kg] Centro 100 (L/max/V2) 2.01 Centro 125 (L/V2) Centro 150 (V2) 150/160 2.45 Centro 200(V2) Centro 200 max Centro 250 (L/max/V2) Centro 315 (V2) 4.85 Centro 315 max 4.85 DESIGN AND OPERATING PRINCIPLE 1.
  • Page 8: Mounting And Set-Up

    Centro www.blaubergventilatoren.de Temperature sensor failure Alarm code Alarm description Two short pulses Short circuit of the temperature sensor One pulse Breakdown of the temperature sensor The motor shuts down MOUNTING AND SET-UP READ THE USER'S MANUAL BEFORE INSTALLING THE UNIT. The fan is suitable both for horizontal or vertical mounting on the floor, on the wall or on the ceiling.
  • Page 9: Connection To Power Mains

    Centro www.blaubergventilatoren.de CONNECTION TO POWER MAINS POWER OFF THE POWER SUPPLY PRIOR TO ANY OPERATIONS WITH THE UNIT. THE UNIT MUST BE CONNECTED TO POWER SUPPLY BY A QUALIFIED ELECTRICIAN. THE RATED ELECTRICAL PARAMETERS OF THE UNIT ARE GIVEN ON THE MANUFACTURER’S LABEL.
  • Page 10: Technical Maintenance

    Centro www.blaubergventilatoren.de TECHNICAL MAINTENANCE DISCONNECT THE UNIT FROM POWER SUPPLY BEFORE ANY MAINTENANCE OPERATIONS! ENSURE THAT THE UNIT IS SWITCHED OFF FROM THE SUPPLY MAINS BEFORE REMOVING THE GUARD. Clean the product surfaces regularly (once in 6 months) from dust and dirt. To clean the fan, remove the self-tapping screws and remove the fan cover.
  • Page 11: Manufacturer's Warranty

    Centro www.blaubergventilatoren.de MANUFACTURER’S WARRANTY The product is in compliance with EU norms and standards on low voltage guidelines and electromagnetic compatibility. We hereby declare that the product complies with the provisions of Electromagnetic Compatibility (EMC) Directive 2014/30/EU of the European Parliament and of the Council, Low Voltage Directive (LVD) 2014/35/EU of the European Parliament and of the Council and CE-marking Council Directive 93/68/EEC.
  • Page 12: Certificate Of Acceptance

    Centro www.blaubergventilatoren.de CERTIFICATE OF ACCEPTANCE Unit Type Centrifugal fan Model Centro__________ Serial Number Manufacture Date Quality Inspector’s Stamp SELLER INFORMATION Seller Address Phone Number E-mail Purchase Date This is to certify acceptance of the complete unit delivery with the user’s manual. The warranty terms are acknowledged and accepted.
  • Page 13 Centro www.blaubergventilatoren.de...
  • Page 14 Centro www.blaubergventilatoren.de...
  • Page 15 Centro www.blaubergventilatoren.de...
  • Page 16 www.blaubergventilatoren.de B02EN-14...
