Summary of Contents for BLAUBERG Centro-mZ 100 L

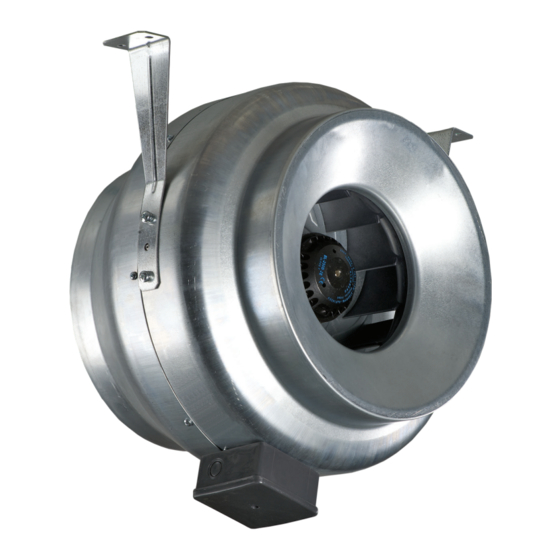

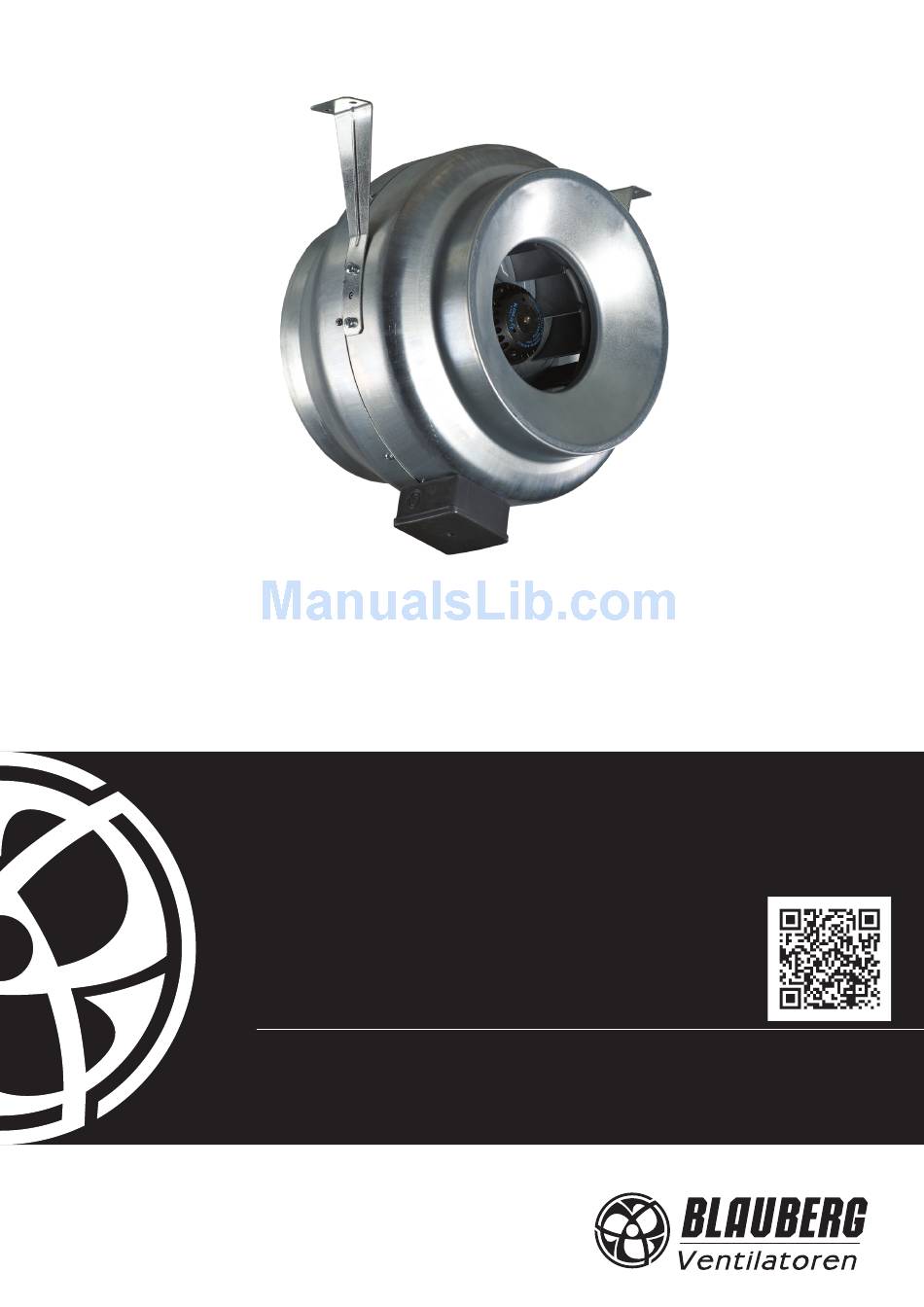

- Page 1 inline CentriFuGal Fan Centro-mZ OperatiOn manual...
-
Page 2: Table Of Contents
Centro-MZ www.blaubergventilatoren.de Content Introduction General Safety rules Transport and storage requirements Manufacturer's warranty Fan design Delivery set Modifications and options Technical data Mounting and operation guidelines Mounting sequence Installation and connection to power mains Maintenance Warranty card... -
Page 3: Introduction
GeneRAL protection requirements of Electromagnetic Council Directive 2004/108/ The inline centrifugal fan BLAUBERG Centro-MZ is not a ready for use EC, 89/336/EEC and Low Voltage Directive 2006/95/EC, 73/23/EEC and product. It is a component unit designed for integration into air conditioning CE-marking Directive 93/68/EEC on the approximation of the laws of the and ventilation systems. -
Page 4: Fan Design
Centro-MZ www.blaubergventilatoren.de FAn DeSIGn casing cover external mounting bracket impeller screws bolt terminal box DeLIVeRY Set fan - 1 item; operation manual. mounting brackets - 2 items; MoDIFICAtIonS AnD oPtIonS Centro-МZ ___ FR speed control knob The fan is equipped with a built-in speed controller and an external temperature sensor for automatic fan speed control (air flow regulation) depending on the air temperature, fig. -
Page 5: Technical Data
* Allowable deviation of the rated voltage: ±10% Table 2. Overall dimensions Dimensions [mm] Weight Type [kg] Ø D Ø D1 Centro-MZ 100 L Centro-MZ 100 Сentro-MZ 125 L Сentro-MZ 125 3,15 Сentro-MZ 150 Сentro-MZ 160 Сentro-MZ 200 L Сentro-MZ 200 Сentro-MZ 250 L... -
Page 6: Mounting And Operation Guidelines
Centro-MZ www.blaubergventilatoren.de InStALLAtIon AnD ConneCtIon to PoWeR MAInS MoUntInG AnD oPeRAtIon GUIDeLIneS Connection of the fan to power mains is allowed by a qualified electrician The air motion direction in the system must match the pointer on the fan only. The rated electrical parameter are stated on the rating plate. casing. -
Page 7: Maintenance
Centro-MZ www.blaubergventilatoren.de The recommended automatic switch trip current – 1 A. The reference cable cross section is 0.75 mm . For the cable selection please consider the maximum cable temperature depending on the wire and insulation type, the maximum current, the cable length and its layout type. Connect the fan to power mains through the terminal block located in the terminal box on the fan casing, following the wiring diagram and the terminal designation. -
Page 8: Warranty Card
WARRAntY CARD BLAUBeRG CentRo-MZ MAnUFACtURe DAte SeLLeR SALeS DAte RePReSentAtIVe In eU Blauberg Ventilatoren GmbH Aidenbachstr. 52a, D-81379 München, Germany www.blaubergventilatoren.de Centro-MZ / v.3 (6) / 01-2013 / EN...
