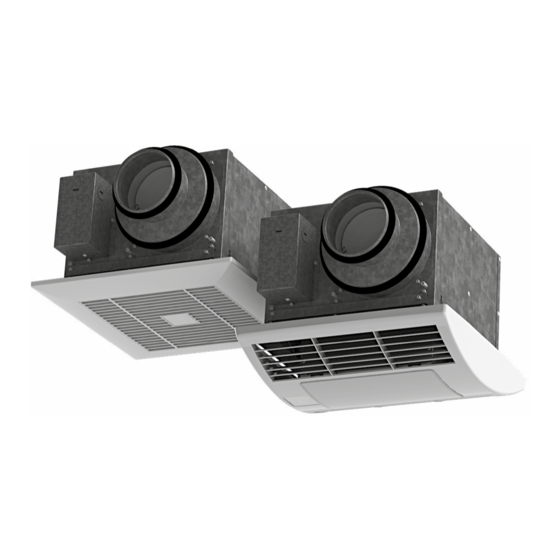

- Page 1 CENTRIFUGAL CEILING EXTRACT FAN Ceileo 200/250/300 Ceileo 200/250/300 Т/H/IR Ceileo 200/250/300 Light Ceileo 200/250/300 Light Т/H/IR USER'S MANUAL...
-
Page 2: Table Of Contents
Ceileio www.blaubergventilatoren.de CONTENTS Safety requirements ..................................2 Purpose ........................................ 4 Delivery set ......................................4 Designation key ....................................4 Technical data ....................................5 Design and operating principle ............................6 Mounting and set-up .................................. 7 Connection to power mains ..............................10 Control ......................................... 11 Technical maintenance ................................ - Page 3 Ceileio www.blaubergventilatoren.de Do not close or block the intake or extract vents in order to ensure the efficient air flow. Do not sit on the unit and do not put objects on it. The information in this user’s manual was correct at the time of the document’s preparation. The Company reserves the right to modify the technical characteristics, design, or configuration of its products at any time in order to incorporate the latest technological developments.
-
Page 4: Purpose
Ceileio www.blaubergventilatoren.de PURPOSE The centrifugal ceiling extract fan Ceileio is designed for extract ventilation of small to medium-sized premises. The unit is rated for continuous operation. Transported air must not contain any flammable or explosive mixtures, evaporation of chemicals, sticky substances, fibrous materials, coarse dust, soot and oil particles or environments favourable for the formation of hazardous substances (toxic substances, dust, pathogenic germs). -
Page 5: Technical Data
OVERALL AND CONNECTION DIMENSIONS OF THE FANS Ceileo 200/250 Ceileo 300 Ceileo 200/250 T/H/IR Ceileo 300 T/H/IR Ceileo 200/250 Light Ceileo 300 Light Ceileo 200/250 Light T/H/IR Ceileo 300 Light T/H/IR DIMENSIONS, mm MODEL Ceileo 200/250 Ceileo 200/250 T/H/IR Ceileo 200/250 Light... -
Page 6: Design And Operating Principle
Ceileo 300 Ceileo 200 T/H/IR Ceileo 250 T/H/IR Ceileo 300 T/H/IR PARAMETER Ceileo 200 Light Ceileo 250 Light Ceileo 300 Light Ceileo 200 Light T/H/IR Ceileo 250 Light T/H/IR Ceileo 300 Light T/H/IR Frequency [Hz] Speed Voltage, V 220-240 220-240... -
Page 7: Mounting And Set-Up
Ceileio www.blaubergventilatoren.de The fan casing is made of galvanized steel. The fan casing includes an exhaust spigot with a back draft damper to prevent back air flow. The terminal box comprises the terminals for wiring of the fan and is attached to the fan casing. The decorative grille is fixed to the casing via the springs inserted to the holders. - Page 8 Ceileio www.blaubergventilatoren.de MOUNTING STEPS 1. Attach the fan to the interjoist using the screws. 2. Connect the fan of a required diameter. 3. Connect the LED lamps (included in the delivery set) for the Light models. Option: connect the humidity sensor or the motion sensor (specially ordered accessory). For the Light models: connect the power socket of the LED lamp and the respective sockets in the terminal box.
- Page 9 Ceileio www.blaubergventilatoren.de BASIC FAN INSTALLATION OPTIONS Installation Side fixation Fixation between between the ceiling joists to one of the ceiling joists the ceiling joists using the mounting brackets Additional fastening holes in the fan casing may be used for mounting purposes...
-
Page 10: Connection To Power Mains
Ceileio www.blaubergventilatoren.de CONNECTION TO POWER MAINS POWER OFF THE POWER SUPPLY PRIOR TO ANY OPERATIONS WITH THE UNIT. THE UNIT MUST BE CONNECTED TO POWER SUPPLY BY A QUALIFIED ELECTRICIAN. THE RATED ELECTRICAL PARAMETERS OF THE UNIT ARE GIVEN ON THE MANUFACTURER’S LABEL. -
Page 11: Control
Ceileio www.blaubergventilatoren.de CONTROL CONTROL UNIT WITH A SPEED SWITCH HIGH Three-position speed switch The fan with AC motor is controlled by a three-position switch. The switch has three positions: — the fan is turned off. — the fan operates at reduced performance (speed 1). HIGH —... -
Page 12: Technical Maintenance
Ceileio www.blaubergventilatoren.de INDICATOR SYMBOLS OF THE MICROPROCESSOR CONTROL UNIT — turn-off delay timer adjustable from 1 to 90 minutes (default setting 15 minutes). — turn-on delay timer adjustable from 0 to 180 seconds with the increment of 10 seconds (default setting 0). —... - Page 13 Ceileio www.blaubergventilatoren.de LAMP REPLACEMENT DISCONNECT THE UNIT FROM POWER SUPPLY BEFORE ANY MAINTENANCE OPERATIONS! MAKE SURE THE UNIT IS DISCONNECTED FROM POWER MAINS BEFORE REMOVING THE PROTECTION. 1. Remove the decorative grille: • Pull the grille to release the springs from the holders on the casing. •...
-
Page 14: Storage And Transportation Regulations
Ceileio www.blaubergventilatoren.de TROUBLES AND TROUBLESHOOTING TROUBLE POSSIBLE REASONS TROUBLESHOOTING Check the electric connections and the operation status of the No power supply. circuit breaker. The fan does not get started. Turn the fan off. Troubleshoot clogging of the impeller. Restart Motor jam. -
Page 15: Manufacturer's Warranty
Ceileio www.blaubergventilatoren.de MANUFACTURER’S WARRANTY The product is in compliance with EU norms and standards on low voltage guidelines and electromagnetic compatibility. We hereby declare that the product complies with the provisions of Electromagnetic Compatibility (EMC) Directive 2014/30/EU of the European Parliament and of the Council, Low Voltage Directive (LVD) 2014/35/EU of the European Parliament and of the Council and CE-marking Council Directive 93/68/EEC. - Page 16 Ceileio www.blaubergventilatoren.de...
- Page 17 Ceileio www.blaubergventilatoren.de...
- Page 18 Ceileio www.blaubergventilatoren.de...
-
Page 19: Certificate Of Acceptance
Ceileio www.blaubergventilatoren.de CERTIFICATE OF ACCEPTANCE Unit Type Centrifugal ceiling extract fan Model Serial Number Manufacture Date Quality Inspector’s Stamp SELLER INFORMATION Seller Address Phone Number E-mail Purchase Date This is to certify acceptance of the complete unit delivery with the user’s manual. The warranty terms are acknowledged and accepted. - Page 20 www.blaubergventilatoren.de B166-1EN-02...
