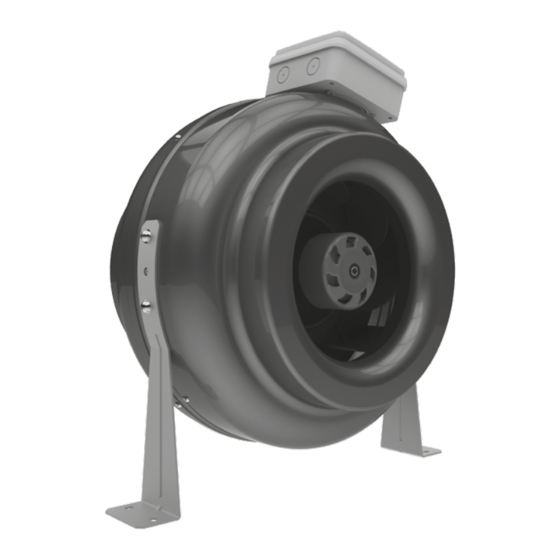

Centrifugal inline fan
Hide thumbs Also See for Centro-M EC 100:
Table of Contents

Advertisement

Quick Links

CENTRIFUGAL INLINE FAN
Centro-M EC
EN
USER'S MANUAL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Centro-M EC 100 and is the answer not in the manual?

Questions and answers

Related Manuals for BLAUBERG Centro-M EC 100

Summary of Contents for BLAUBERG Centro-M EC 100

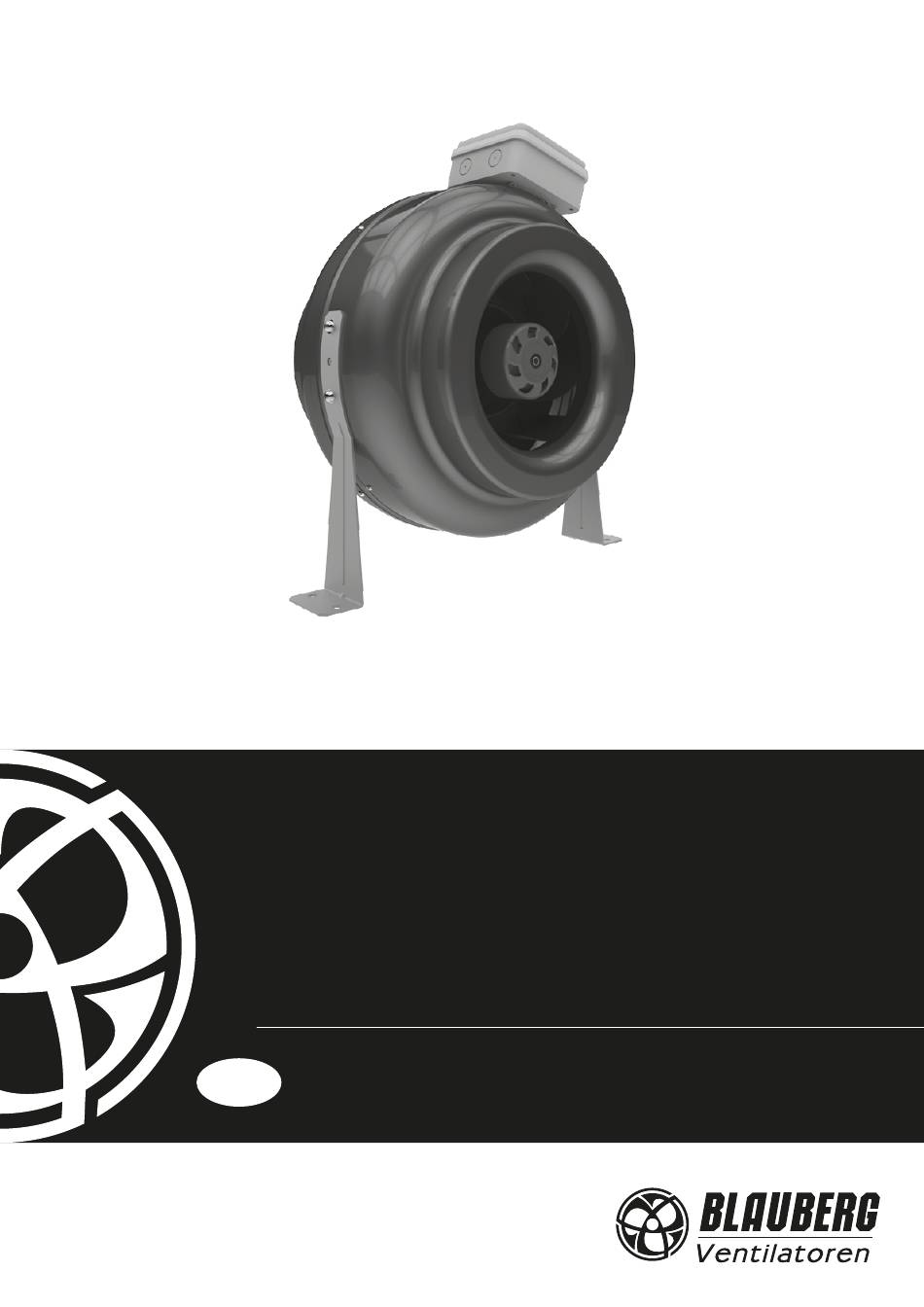

  • Page 1 CENTRIFUGAL INLINE FAN Centro-M EC USER'S MANUAL...

  • Page 2: Table Of Contents

    Centro-M EC www.blaubergventilatoren.de CONTENTS Safety requirements ................................... 2 Purpose ........................................ 4 Delivery set ......................................4 Designation key ....................................4 Technical data ....................................5 Installation and set-up ................................6 Connection to power mains ..............................8 Technical maintenance................................10 Storage and transportation requirements ........................11 Manufacturer’s warranty ................................
  • Page 3 Centro-M EC www.blaubergventilatoren.de • Do not change the power cable length at your own discretion. Do not bend the power cable. Avoid damaging the • Unpack the unit with care. power cable. Do not put any foreign objects on the power cable. •...

  • Page 4: Purpose

    Centro-M EC www.blaubergventilatoren.de PURPOSE The product described herein is a centrifugal inline fan Centro-M EC for ventilation of small and medium domestic premises. The unit is rated for continuous operation. THE UNIT SHOULD NOT BE OPERATED BY CHILDREN OR PERSONS WITH REDUCED PHYSICAL, MENTAL, OR SENSORY CAPACITIES, OR THOSE WITHOUT THE APPROPRIATE TRAINING.

  • Page 5: Technical Data

    Casing Impeller EC motor øD Fixing bracket øD1 ø6 4 holes Centro-M EC 100 Centro-M EC 125 Centro-M EC 150 Centro-M EC 160 Centro-M EC 200 Centro-M EC 200 max Centro-M EC 250 L Centro-M EC 250 Centro-M EC 315...

  • Page 6: Installation And Set-Up

    Centro-M EC www.blaubergventilatoren.de MOUNTING AND SET-UP READ THE USER'S MANUAL BEFORE INSTALLING THE UNIT. The air motion in the system must be as shown with the pointer of the fan casing. In case of the vertical installation the intake spigot must be protected with a ventilation hood. To attain the best performance of the fan and to minimise turbulence-induced air pressure losses while mounting connect straight air duct sections to the fan spigots.
  • Page 7 Centro-M EC www.blaubergventilatoren.de INSTALLATION STEPS Disconnect the fan from power supply Install the fixing brackets Lean the fan against the installation place and mark the Drill the holes and insert the expansion anschors |fastening holes Fix the fan Connect air ducts...

  • Page 8: Connection To Power Mains

    Centro-M EC www.blaubergventilatoren.de CONNECTION TO POWER MAINS DISCONNECT THE UNIT FROM POWER MAINS PRIOR TO ANY OPERATIONS. THE UNIT MUST BE CONNECTED TO POWER MAINS BY A QUALIFIED ELECTRICIAN. THE RATED ELECTRICAL PARAMETERS OF THE UNIT ARE SHOWN ON THE RATING PLATE.
  • Page 9 Centro-M EC www.blaubergventilatoren.de ACCESS TO THE TERMINAL BOX Disconnect the fan from power supply Unscrew the 4 screws that fix the terminal box lid Route the cables through the cable glad and complete electric Install the terminal box cover again connection...

  • Page 10: Technical Maintenance

    Centro-M EC www.blaubergventilatoren.de MAINTENANCE DISCONNECT THE UNIT FROM POWER SUPPLY BEFORE ANY MAINTENANCE OPERATIONS! Technical maintenance means regular cleaning of the unit surfaces of dust. Use a soft brush or compressed air to remove dust. Clean the impeller blades at least every 6 months. Installation of an air filter prolongs the interval between the cleaning.

  • Page 11: Storage And Transportation Requirements

    Centro-M EC www.blaubergventilatoren.de STORAGE AND TRANSPORTATION REGULATIONS • Store the unit in the manufacturer’ s original packaging box in a dry closed ventilated premise with temperature range from + 5 °C to + 40 °C. • Storage environment must not contain aggressive vapours and chemical mixtures provoking corrosion, insulation, and sealing deformation.

  • Page 12: Manufacturer's Warranty

    Centro-M EC www.blaubergventilatoren.de MANUFACTURER’S WARRANTY The manufacturer hereby warrants normal operation of the unit for 24 months after the retail sale date provided the user's observance of the transportation, storage, installation, and operation regulations. Should any malfunctions occur in the course of the unit operation through the Manufacturer's fault during the guaranteed period of operation, the user is entitled to get all the faults eliminated by the manufacturer by means of warranty repair at the factory free of charge.

  • Page 13: Certificate Of Acceptance

    Centro-M EC www.blaubergventilatoren.de ACCEPTANCE CERTIFICATE Unit Type Centrifugal inline fan Model Centro-M EC _____________ Serial Number Manufacture Date Quality Inspector’s Stamp The product is in compliance with EU norms and standards on low voltage guidelines and electromagnetic compatibility. We hereby declare that the product complies with the protection requirements of Electromagnetic Council Directive 2014/30/EU, Low Voltage Directive 2014/35/EU and CE-marking Directive 93/68/EEC on the approximation of the laws of the Member States relating to electromagnetic compatibility.
  • Page 14 Centro-M EC www.blaubergventilatoren.de...
  • Page 15 Centro-M EC www.blaubergventilatoren.de...
  • Page 16 www.blaubergventilatoren.de B88EN-04...
