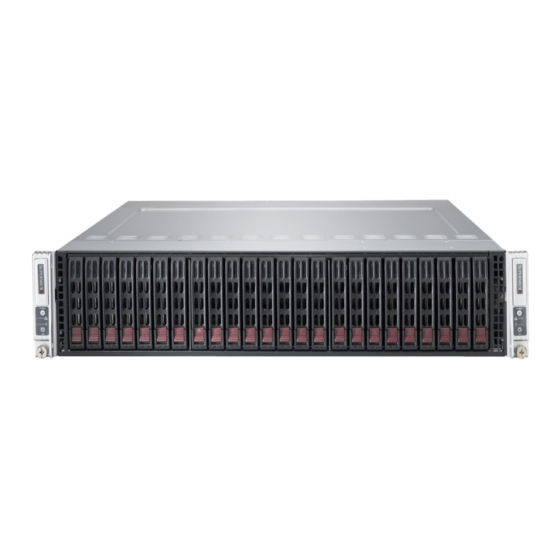

Supero SUPERSERVER 2027TR-H72RF User Manual
  1. Manuals
  2. Brands
  3. Supero Manuals
  4. Server
  5. SUPERSERVER 2027TR-H72RF
  6. User manual

Supero SUPERSERVER 2027TR-H72RF User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
S
UPER
®
SUPERSERVER
2027TR-H72RF
2027TR-H72QRF
2027TR-H72FRF
USER'S MANUAL
Revision 1.0

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SUPERSERVER 2027TR-H72RF and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Supero SUPERSERVER 2027TR-H72RF

Summary of Contents for Supero SUPERSERVER 2027TR-H72RF

  • Page 1 UPER ® SUPERSERVER 2027TR-H72RF 2027TR-H72QRF 2027TR-H72FRF USER'S MANUAL Revision 1.0...
  • Page 2 The information in this User’s Manual has been carefully reviewed and is believed to be accurate. The vendor assumes no responsibility for any inaccuracies that may be contained in this document, makes no commitment to update or to keep current the information in this manual, or to notify any person or organization of the updates.
  • Page 3 HIBFF dual processor serverboards. All models have an IPMI LAN port and two serverboard nodes, each with six hot-swap Hard Disk Drives (HDD) each per node. Each of the various models of the SuperServer 2027TR-H72RF/H72QRF/H72FRF servers and their associated serverboards for each of their unique options are listed...
  • Page 4 SUPERSERVER 2027TR-H72RF/H72QRF/H72FRF USER'S MANUAL Chapter 4: System Safety You should thoroughly familiarize yourself with this chapter for a general overview of safety precautions that should be followed when installing and servicing the SuperServer 2027TR-H72RF/H72QRF/H72FRF. Chapter 5: Advanced Serverboard Setup Chapter 5 provides detailed information on the X9DRT-HF/HIBQF/HIBFF serverboard, including the locations and functions of connections, headers and jumpers.
  • Page 5 SUPERSERVER 2027TR-H72RF/H72QRF/H72FRF USER'S MANUAL Notes...

  • Page 6: Table Of Contents

    SUPERSERVER 2027TR-H72RF/H72QRF/H72FRF USER'S MANUAL Table of Contents Chapter 1 Introduction Overview ......................1-1 Serverboard Features ..................1-2 Processors ...................... 1-2 Memory ......................1-2 SAS ......................... 1-2 PCI Expansion Slots ..................1-2 Onboard Controllers/Ports ................1-3 Graphics Controller ..................1-3 Infi niBand ......................1-3 Other Features ....................
  • Page 7 Table of Contents Ambient Operating Temperature ..............2-3 Reduced Airfl ow ..................2-3 Mechanical Loading ................... 2-3 Circuit Overloading ..................2-3 Reliable Ground ..................2-3 Installing the System into a Rack ..............2-4 Identifying the Sections of the Rack Rails ............2-4 Locking Tabs ....................
  • Page 8 SUPERSERVER 2027TR-H72RF/H72QRF/H72FRF USER'S MANUAL Rear I/O Ports ....................5-2 Processor and Heatsink Installation..............5-3 Installing a Passive CPU Heatsink ..............5-7 Removing the Heatsink ................... 5-8 Installing Memory .................... 5-9 Memory Support ....................5-9 Maximum Memory ................... 5-9 DIMM Module Population Confi guration ...........5-11 Adding PCI Expansion Cards ...............
  • Page 9 Table of Contents Accessing the Drive Bays ................6-17 6-11 Power Supply ....................6-20 Power Supply Replacement ................6-20 Chapter 7 BIOS Introduction ...................... 7-1 Starting BIOS Setup Utility ................7-1 How To Change the Confi guration Data ............7-1 Starting the Setup Utility .................
  • Page 10 SUPERSERVER 2027TR-H72RF/H72QRF/H72FRF USER'S MANUAL...

  • Page 11: Chapter 1 Introduction

    Chapter 1 Introduction Overview The SuperServer 2027TR-H72RF/H72QRF/H72FRF is a high-end server comprised of two main subsystems: the SC217HQ-R1620B 2U server chassis and the X9DRT- HF/HIBQF/HIBFF dual processor serverboard. Please refer to our web site for information on operating systems that have been certifi ed for use with the system (www.supermicro.com).

  • Page 12: Serverboard Features

    Note: The operating system you use must have RAID support to enable the hotswap capability and RAID function of the SAS drives. PCI Expansion Slots The SuperServer 2027TR-H72RF/H72QRF/H72FRF has for each node one (1) PCI Express 3.0 x16 slot (Slot 1) available for use with a riser card.

  • Page 13: Onboard Controllers/Ports

    Chapter 1: Introduction Onboard Controllers/Ports One Fast UART 16550 compatible serial port, one 9-pin RS-232 port and a ® Mellanox Infi niBand (on 2027TR-H72QRF and 2027TR-H72FRF servers only) supporting a single QSFP connector are located on the serverboard. The color- coded I/O ports include one COM port, a VGA (monitor) port, two USB 2.0 ports (an additional internal USB header is included on the serverboard), an IPMI 2.0 dedicated LAN port and two Ethernet ports.

  • Page 14: Server Chassis Features

    SUPERSERVER 2027TR-H72RF/H72QRF/H72FRF USER'S MANUAL Server Chassis Features The following is a general outline of the main features of the SC217 server chassis. System Power Each SC217 chassis model includes a high-effi ciency 80 Plus Platinum certifi ed power supply, rated at 1620 Watts plus one redundant backup power supply.

  • Page 15: Mounting Rails

    Chapter 1: Introduction Mounting Rails The SC217 includes a set of quick-release rails, and can be placed in a rack for secure storage and use. To setup your rack, follow the step-by-step instructions included in this manual. Advanced Power Management Intel®...
  • Page 16 SUPERSERVER 2027TR-H72RF/H72QRF/H72FRF USER'S MANUAL Figure 1-1. C602 Chipset: System Block Diagram Note: This is a general block diagram. Please see Chapter 5 for details. Gen3 x8 Gen3 x16 CPU FRONT FAN Side Socket 1 U7C1 PROCESSOR SANDYBRIDGE U7C1 U6H1 CPU REAR...

  • Page 17: Contacting Supermicro

    Chapter 1: Introduction Contacting Supermicro Headquarters Address: Super Micro Computer, Inc. 980 Rock Ave. San Jose, CA 95131 U.S.A. Tel: +1 (408) 503-8000 Fax: +1 (408) 503-8008 Email: marketing@supermicro.com (General Information) support@supermicro.com (Technical Support) Web Site: www.supermicro.com Europe Address: Super Micro Computer B.V. Het Sterrenbeeld 28, 5215 ML 's-Hertogenbosch, The Netherlands Tel:...

  • Page 18: Twin 2 : System Notes

    SUPERSERVER 2027TR-H72RF/H72QRF/H72FRF USER'S MANUAL 2U Twin : System Notes As a 2U Twin confi guration, the 2027TR-H72RF/H72QRF/H72FRF is a unique server system. With four system boards incorporated into a single chassis acting as four separate nodes, there are several points you should keep in mind.

  • Page 19: Chapter 2 Server Installation

    Rack and Server Precautions in the next section. Preparing for Setup The box the SuperServer 2027TR-H72RF/H72QRF/H72FRF was shipped in should include two sets of rail assemblies, two rail mounting brackets and the mounting screws you will need to install the system into the rack. Follow the steps in the order given to complete the installation process in a minimum amount of time.

  • Page 20: Choosing A Setup Location

    SUPERSERVER 2027TR-H72RF/H72QRF/H72FRF USER'S MANUAL Choosing a Setup Location • Leave enough clearance in front of the rack to enable you to open the front door completely (~25 inches) and approximately 30 inches of clearance in the back of the rack to allow for suffi cient airfl ow and ease in servicing.

  • Page 21: Rack Mounting Considerations

    Chapter 2: Server Installation Rack Mounting Considerations Ambient Operating Temperature If installed in a closed or multi-unit rack assembly, the ambient operating temperature of the rack environment may be greater than the ambient temperature of the room. Therefore, consideration should be given to installing the equipment in an environment compatible with the manufacturer’s maximum rated ambient temperature (Tmra).

  • Page 22: Installing The System Into A Rack

    SUPERSERVER 2027TR-H72RF/H72QRF/H72FRF USER'S MANUAL Installing the System into a Rack This section provides information on installing the 2027TR-H72RF/H72QRF/ H72FRF into a rack unit with the rails provided. There are a variety of rack units on the market, which may mean that the assembly procedure will differ slightly from the instructions provided.

  • Page 23: Locking Tabs

    Chapter 2: Server Installation Locking Tabs Each inner rail has a locking tab. This tab locks the chassis into place when installed and pushed fully into the rack. These tabs also lock the chassis in place when fully extended from the rack. This prevents the server from coming completely out of the rack when when the chassis is pulled out for servicing.

  • Page 24: Installing The Inner Rails On The Chassis

    SUPERSERVER 2027TR-H72RF/H72QRF/H72FRF USER'S MANUAL Installing The Inner Rails on the Chassis To install the inner rails, use the procedure below. Installing the Inner Rails (Figures 2-3 and 2-4) 1. Confi rm that the left and right inner rails have been correctly identifi ed.

  • Page 25: Installing The Outer Rails On The Rack

    Chapter 2: Server Installation Installing the Outer Rails on the Rack Use the procedure below to install the outer rails onto the rack. Installing the Outer Rails (Figure 2-5) 1. Press upward on the locking tab at the rear end of the middle rail. 2.

  • Page 26: Standard Chassis Installation

    SUPERSERVER 2027TR-H72RF/H72QRF/H72FRF USER'S MANUAL Standard Chassis Installation Installing the Chassis into a Rack (Figure 2-6) 1. Confi rm that the inner rails are properly installed on the chassis. 2. Confi rm that the outer rails are correctly installed on the rack.

  • Page 27: Checking The Serverboard Setup

    Chapter 2: Server Installation Stability hazard. The rack stabilizing mechanism must be in place, or the rack must be bolted to the fl oor before you slide the unit out for servicing. Failure to stabilize the rack can cause the rack to tip over. Note: The fi...
  • Page 28 SUPERSERVER 2027TR-H72RF/H72QRF/H72FRF USER'S MANUAL 5. Check that all ventilation openings on the top cover and the top of the chassis are clear and unobstructed. 6. Replace the chassis cover and reconnect the AC power cord. Caution: Except for short periods of time, do NOT operate the server without the cover in place.

  • Page 29: Checking The Drive Bay Setup

    Chapter 2: Server Installation Checking the Drive Bay Setup Next, you should check to make sure the peripheral drives and the SAS/SATA drives have been properly installed and all connections have been made. Checking the Drives 1. All drives are accessable from the front of the server. A hard drive can be installed and removed from the front of the chassis without removing the top chassis cover.
  • Page 30 SUPERSERVER 2027TR-H72RF/H72QRF/H72FRF USER'S MANUAL Notes 2-12...

  • Page 31: Chapter 3 System Interface

    Chapter 3: System Interface Chapter 3 System Interface Overview There are several LEDs on the control panel and on the drive carriers to keep you constantly informed of the overall status of the system. SC217 models include four front panels on the handles of the chassis which control each of the systems. This chapter explains the meanings of all LED indicators and the appropriate response you may need to take.

  • Page 32: Control Panel Button

    SUPERSERVER 2027TR-H72RF/H72QRF/H72FRF USER'S MANUAL Control Panel Button • Power: The main power button on each of the four control panels is used to apply or remove power from the power supply to each of the four systems in the chassis. Turning power to the system off with this button removes the main power, but keeps standby power supplied to the system.

  • Page 33: Drive Carrier Leds

    Chapter 3: System Interface When notifi ed of an alert, check the routing of the cables and make sure all fans are present and operating normally. You should also check to make sure that the chassis covers and air shrouds are installed. Finally, verify that the heatsinks are installed properly.
  • Page 34 SUPERSERVER 2027TR-H72RF/H72QRF/H72FRF USER'S MANUAL Notes...

  • Page 35: Chapter 4 Standardized Warning Statements For Ac Systems

    Chapter 4: Warning Statements for AC Systems Chapter 4 Standardized Warning Statements for AC Systems About Standardized Warning Statements The following statements are industry standard warnings, provided to warn the user of situations which have the potential for bodily injury. Should you have questions or experience difficulty, Contact Supermicro's Technical Support department for assistance.
  • Page 36 UPER ERVER 2027TR-H72RF/H72QRF/H72FRF User's Manual Warnung WICHTIGE SICHERHEITSHINWEISE Dieses Warnsymbol bedeutet Gefahr. Sie befi nden sich in einer Situation, die zu Verletzungen führen kann. Machen Sie sich vor der Arbeit mit Geräten mit den Gefahren elektrischer Schaltungen und den üblichen Verfahren zur Vorbeugung vor Unfällen vertraut.
  • Page 37 Warning Statements for AC Systems ‫ﺟﺴﺪﻳﺔ‬ ‫ﺍﺻﺎﺑﺔ‬ ‫ﺗﺘﺴﺒﺐ ﻓﻲ‬ ‫ﺣﺎﻟﺔ ﻳﻤﻜﻦ ﺃﻥ‬ ‫ﺍﻧﻚ ﻓﻲ‬ ‫ﺧﻄﺮ‬ ‫ﻳﻌﻨﻲ‬ ‫ﻫﺬﺍ ﺍﻟﺮﻣﺰ‬ !‫ﺗﺤﺬﻳﺮ‬ ‫ﺍﻟﺪﻭﺍﺋﺮ‬ ‫ﺑﺎﻟﻤﺨﺎﻁﺮ ﺍﻟﻨﺎﺟﻤﺔ ﻋﻦ‬ ‫ﻦ ﻋﻠﻰ ﻋﻠﻢ‬ ، ‫ﻛ‬ ‫ﻣﻌﺪﺍﺕ‬ ‫ﺗﻌﻤﻞ ﻋﻠﻰ ﺃﻱ‬ ‫ﻗﺒﻞ ﺃﻥ‬ ‫ﺍﻟﻜﻬﺮﺑﺎﺋﻴﺔ‬ ‫ﺣﻮﺍﺩﺙ‬ ‫ﺃﻱ‬ ‫ﻭﻗﻮﻉ‬ ‫ﻤﻨﻊ‬ ‫ﻟ‬ ‫ﺍﻟﻮﻗﺎﺋﻴﺔ‬...

  • Page 38: Installation Instructions

    UPER ERVER 2027TR-H72RF/H72QRF/H72FRF User's Manual Installation Instructions Warning! Read the installation instructions before connecting the system to the power source. 設置手順書 システムを電源に接続する前に、 設置手順書をお読み下さい。 Warnung Vor dem Anschließen des Systems an die Stromquelle die Installationsanweisungen lesen. ¡Advertencia! Lea las instrucciones de instalación antes de conectar el sistema a la red de alimentación.

  • Page 39: Circuit Breaker

    Chapter 4: Warning Statements for AC Systems Circuit Breaker Warning! This product relies on the building's installation for short-circuit (overcurrent) protection. Ensure that the protective device is rated not greater than: 250 V, 20 A. サーキッ ト ・ ブレーカー この製品は、 短絡 （過電流） 保護装置がある建物での設置を前提としています。 保護装置の定格が250 V、...

  • Page 40: Power Disconnection Warning

    UPER ERVER 2027TR-H72RF/H72QRF/H72FRF User's Manual 경고! 이 제품은 전원의 단락(과전류)방지에 대해서 전적으로 건물의 관련 설비에 의존합니다. 보호장치의 정격이 반드시 250V(볼트), 20A(암페어)를 초과하지 않도록 해야 합니다. Waarschuwing Dit product is afhankelijk van de kortsluitbeveiliging (overspanning) van uw electrische installatie. Controleer of het beveiligde aparaat niet groter gedimensioneerd is dan 220V,20A.
  • Page 41 Chapter 4: Warning Statements for AC Systems Le système doit être débranché de toutes les sources de puissance ainsi que de son cordon d'alimentation secteur avant d'accéder à l'intérieur du chassis pour ‫אזהרה מפני ניתוק חשמלי‬ installer ou enlever des composants de systéme. !‫אזהרה‬...

  • Page 42: Equipment Installation

    UPER ERVER 2027TR-H72RF/H72QRF/H72FRF User's Manual Equipment Installation Warning! Only trained and qualifi ed personnel should be allowed to install, replace, or service this equipment. 機器の設置 トレーニングを受け認定された人だけがこの装置の設置、 交換、 またはサービスを許可 されています。 Warnung Das Installieren, Ersetzen oder Bedienen dieser Ausrüstung sollte nur geschultem, qualifi...

  • Page 43: Restricted Area

    Chapter 4: Warning Statements for AC Systems Waarschuwing Deze apparatuur mag alleen worden geïnstalleerd, vervangen of hersteld door geschoold en gekwalifi ceerd personeel. Restricted Area Warning! This unit is intended for installation in restricted access areas. A restricted access area can be accessed only through the use of a special tool, lock and key, or other means of security.

  • Page 44: Battery Handling

    UPER ERVER 2027TR-H72RF/H72QRF/H72FRF User's Manual ‫אזור עם גישה מוגבלת‬ !‫אזהרה‬ ‫יש להתקין את היחידה באזורים שיש בהם הגבלת גישה. הגישה ניתנת בעזרת‬ .('‫כלי אבטחה בלבד )מפתח, מנעול וכד‬ ‫ﻣﺤﻈﻮﺭﺓ‬ ‫ﻣﻨﺎﻁﻖ‬ ‫ﻟﺘﺮﻛﻴﺒﻬﺎ ﻓﻲ‬ ‫ﻫﺬﻩ ﺍﻟﻮﺣﺪﺓ‬ ‫ﺗﺨﺼﻴﺺ‬ ‫ﺗﻢ‬ ،‫ﺃﺩﺍﺓ ﺧﺎﺻﺔ‬ ‫ﻣﻦ ﺧﻼﻝ ﺍﺳﺘﺨﺪﺍﻡ‬ ‫ﻓﻘﻂ‬...
  • Page 45 Chapter 4: Warning Statements for AC Systems Warnung Bei Einsetzen einer falschen Batterie besteht Explosionsgefahr. Ersetzen Sie die Batterie nur durch den gleichen oder vom Hersteller empfohlenen Batterietyp. Entsorgen Sie die benutzten Batterien nach den Anweisungen des Herstellers. Attention Danger d'explosion si la pile n'est pas remplacée correctement. Ne la remplacer que par une pile de type semblable ou équivalent, recommandée par le fabricant.

  • Page 46: Redundant Power Supplies

    UPER ERVER 2027TR-H72RF/H72QRF/H72FRF User's Manual Redundant Power Supplies Warning! This unit might have more than one power supply connection. All connections must be removed to de-energize the unit. 冗長電源装置 このユニッ トは複数の電源装置が接続されている場合があります。 ユニッ トの電源を切るためには、 すべての接続を取り外さなければなりません。 Warnung Dieses Gerät kann mehr als eine Stromzufuhr haben. Um sicherzustellen, dass der Einheit kein trom zugeführt wird, müssen alle Verbindungen entfernt werden.

  • Page 47: Backplane Voltage

    Chapter 4: Warning Statements for AC Systems ‫ﺍﻣﺪﺍﺩ ﺍﻟﻄﺎﻗﺔ‬ ‫ﺑﻮﺣﺪﺍﺕ‬ ‫ﻋﺪﺓ ﺍﺗﺼﺎﻻﺕ‬ ‫ﺠﻬﺎﺯ‬ ‫ﺍﻟ‬ ‫ﻳﻜﻮﻥ ﻟﻬﺬﺍ‬ ‫ﻗﺪ‬ ‫ﺍﻟﻜﻬﺮﺑﺎء‬ ‫ﻋﻦ‬ ‫ﻮﺣﺪﺓ‬ ‫ﺍﻟ‬ ‫ﻟﻌﺰﻝ‬ ‫ﻛﺎﻓﺔ ﺍﻻﺗﺼﺎﻻﺕ‬ ‫ﻳﺠﺐ ﺇﺯﺍﻟﺔ‬ 경고! 이 장치에는 한 개 이상의 전원 공급 단자가 연결되어 있을 수 있습니다. 이 장치에 전원을...

  • Page 48: Comply With Local And National Electrical Codes

    UPER ERVER 2027TR-H72RF/H72QRF/H72FRF User's Manual ‫מתח בפנל האחורי‬ !‫הרה‬ ‫אז‬ ‫קיימת סכנת מתח בפנל האחורי בזמן תפעול המערכת. יש להיזהר במהלך‬ .‫העבודה‬ ‫ﺍﻟﻠﻮﺣﺔ‬ ‫ﺃﻭﺍﻟﻄﺎﻗﺔ ﺍﻟﻤﻮﺟﻮﺩﺓ ﻋﻠﻰ‬ ‫ﺍﻟﺘﻴﺎﺭ ﺍﻟﻜﻬﺮﺑﺎﺋﻲ‬ ‫ﻣﻦ‬ ‫ﺧﻄﺮ‬ ‫ﻫﻨﺎﻙ‬ ‫ﻫﺬﺍ ﺍﻟﺠﻬﺎﺯ‬ ‫ﺧﺪﻣﺔ‬ ‫ﻛﻦ ﺣﺬﺭﺍ ﻋﻨﺪ‬ ‫ﻳﻌﻤﻞ‬ ‫ﺍﻟﻨﻈﺎﻡ‬ ‫ﻋﻨﺪﻣﺎ ﻳﻜﻮﻥ‬ 경고! 시스템이...

  • Page 49: Product Disposal

    Chapter 4: Warning Statements for AC Systems Attention L'équipement doit être installé conformément aux normes électriques nationales et locales. ‫תיאום חוקי החשמל הארצי‬ !‫אזהרה‬ ‫הציוד חייבת להיות תואמת לחוקי החשמל המקומיים והארציים‬ ‫התקנת‬ ‫ﺍﻟﻤﺘﻌﻠﻘﺔ‬ ‫ﺍﻟﻤﺤﻠﻴﺔ ﻭﺍﻟﻮﻁﻨﻴﺔ‬ ‫ﻘﻮﺍﻧﻴﻦ‬ ‫ﻳﺠﺐ ﺃﻥ ﻳﻤﺘﺜﻞ ﻟﻠ‬ ‫ﺍﻟﻜﻬﺮﺑﺎﺋﻴﺔ‬...

  • Page 50: Hot Swap Fan Warning

    UPER ERVER 2027TR-H72RF/H72QRF/H72FRF User's Manual Warnung Die Entsorgung dieses Produkts sollte gemäß allen Bestimmungen und Gesetzen des Landes erfolgen. ¡Advertencia! Al deshacerse por completo de este producto debe seguir todas las leyes y reglamentos nacionales. Attention La mise au rebut ou le recyclage de ce produit sont généralement soumis à des lois et/ou directives de respect de l'environnement.
  • Page 51 Chapter 4: Warning Statements for AC Systems Warnung Die Lüfter drehen sich u. U. noch, wenn die Lüfterbaugruppe aus dem Chassis genommen wird. Halten Sie Finger, Schraubendreher und andere Gegenstände von den Öffnungen des Lüftergehäuses entfernt. ¡Advertencia! Los ventiladores podran dar vuelta cuando usted quite ell montaje del ventilador del chasis.

  • Page 52: Power Cable And Ac Adapter

    UPER ERVER 2027TR-H72RF/H72QRF/H72FRF User's Manual Power Cable and AC Adapter Warning! When installing the product, use the provided or designated connection cables, power cables and AC adaptors. Using any other cables and adaptors could cause a malfunction or a fi re. Electrical Appliance and Material Safety Law prohibits the use of UL or CSA -certifi...
  • Page 53 Chapter 4: Warning Statements for AC Systems Attention Lors de l'installation du produit, utilisez les bables de connection fournis ou désigné. L'utilisation d'autres cables et adaptateurs peut provoquer un dysfonctionnement ou un incendie. Appareils électroménagers et de loi sur la sécurité Matériel interdit l'utilisation de UL ou CSA câbles certifi...
  • Page 54 UPER ERVER 2027TR-H72RF/H72QRF/H72FRF User's Manual Notes 4-20...

  • Page 55: Chapter 5 Advanced Motherboard Setup

    Chapter 5: Advanced Motherboard Setup Chapter 5 Advanced Motherboard Setup This chapter covers the steps required to install the X9DRT-HF/HIBQF/HIBFF motherboard into the chassis, connect the data and power cables and install add-on cards. All motherboard jumpers and connections are also described. A layout and quick reference chart are included in this chapter for your reference.

  • Page 56: Rear I/O Ports

    SUPERSERVER 2027TR-H72RF/H72QRF/H72FRF USER'S MANUAL Rear I/O Ports The rear I/O ports are color coded in conformance with the PC 99 specifi cation. See Figure 5-1 below for the colors and locations of the various I/O ports. Figure 5-1. Rear I/O Ports Back Panel I/O Port Locations and Defi...

  • Page 57: Processor And Heatsink Installation

    Chapter 5: Advanced Motherboard Setup Processor and Heatsink Installation Caution! When handling the processor package, avoid placing direct pressure on the label area. Always connect the power cord last, and always remove it before adding, removing or changing any hardware components. Make sure that you install the processor into the CPU socket before you install the CPU heatsink.
  • Page 58 SUPERSERVER 2027TR-H72RF/H72QRF/H72FRF USER'S MANUAL 2. Press the second load lever labeled 'Close 1st' to release the load plate that covers the CPU socket from its locking position. Press down on Load the Pull lever away Lever labeled 'Close 1st' from the socket 3.
  • Page 59 Chapter 5: Advanced Motherboard Setup 5. Use your thumb and index fi nger to hold the CPU on its edges. Align the CPU keys, which are semi-circle cutouts, against the socket keys. Socket Keys CPU Keys 6. Once they are aligned, carefully lower the CPU straight down into the socket. (Do not drop the CPU on the socket.
  • Page 60 SUPERSERVER 2027TR-H72RF/H72QRF/H72FRF USER'S MANUAL 7. With the CPU inside the socket, inspect the four corners of the CPU to make sure that the CPU is properly installed. 8. Close the load plate with the CPU inside the socket. Lock the lever labeled 'Close 1st' fi...

  • Page 61: Installing A Passive Cpu Heatsink

    Chapter 5: Advanced Motherboard Setup Installing a Passive CPU Heatsink 1. Do not apply any thermal grease to the heatsink or the CPU die -- the required amount has already been applied. 2. Place the heatsink on top of the CPU so that the four mounting holes are aligned with those on the Motherboard's and the Heatsink Bracket underneath.

  • Page 62: Removing The Heatsink

    SUPERSERVER 2027TR-H72RF/H72QRF/H72FRF USER'S MANUAL Removing the Heatsink Caution: We DO NOT recommend that the CPU or the heatsink be removed. However, if you do need to uninstall the heatsink, please follow the instructions below to uninstall the heatsink to prevent damage done to the CPU or the CPU socket.

  • Page 63: Installing Memory

    Chapter 5: Advanced Motherboard Setup Installing Memory Installing Memory 1. Insert each memory module vertically into its slot, paying attention to the notch along the bottom of the module to prevent inserting the module incorrectly (see Figure 5-2). 2. Install to slots P1/DIMM1A, P1/DIMM2A, etc. For best performance always use the same memory type and speed in the same memory bank.
  • Page 64 SUPERSERVER 2027TR-H72RF/H72QRF/H72FRF USER'S MANUAL Figure 5-2. Installing DIMM into Slot To Install: Insert Notch Notch module vertically and press down until it snaps into place. Front View Pay attention to the alignment notch at the bottom. Note: Notch should align with...

  • Page 65: Dimm Module Population Confi Guration

    Chapter 5: Advanced Motherboard Setup DIMM Module Population Confi guration For memory to work properly, follow the tables below for memory installation: UDIMM Support on the E5-2600 Series Processor Platform DIMMs Populated UDIMM Type POR Speeds Ranks per DIMM per DDR Channel (Unb.

  • Page 66: Adding Pci Expansion Cards

    SUPERSERVER 2027TR-H72RF/H72QRF/H72FRF USER'S MANUAL Adding PCI Expansion Cards The 2027TR-H72RF/H72QRF/H72FRF includes four preinstalled riser cards designed specifi cally for use in the SC217HQ-R1620B 2U rackmount chassis. These riser cards support low-profi le PCI Express x16 cards to fi t inside the chassis.

  • Page 67: Motherboard Details

    Chapter 5: Advanced Motherboard Setup Motherboard Details Figure 5-3. X9DRT-HF/HIBQF/HIBFF Motherboard Layout (not drawn to scale) COM1 LEB2 JBR1 LEB1 LEM1 JRK1 RAID KEY JPME1 JPME2 JNMI1 JRST1 Controller InfiniBand Controller JPB1 JPL1 JSD1 JPG1 C602 Chipset BATTERY BIOS JBT1 CPU1 CPU2 5-13...
  • Page 68 SUPERSERVER 2027TR-H72RF/H72QRF/H72FRF USER'S MANUAL Notes: 1. For the latest CPU/Memory updates, please refer to our website at http:// www.supermicro.com/products/motherboard/ for details. 2. Use only the correct type of onboard CMOS battery as specifi ed by the manufacturer. Do not install the onboard battery upside down to avoid possible explosion.
  • Page 69 Chapter 5: Advanced Motherboard Setup Connector Description COM1 Backplane COM Port1 Infi niBand Connector (X9DRT-HIBQF and X9DRT-HIBFF only) I-SATA 0/1 Intel PCH SATA Connectors 0/1 JBAT1 Onboard Battery (See the warning on P. 1-6.) SMC Proprietary Slot for Power, FP Control & I-SATA Connections JNMI1 NMI (Non-Maskable Interrupt) Header JIPMB1...

  • Page 70: Connector Defi Nitions

    SUPERSERVER 2027TR-H72RF/H72QRF/H72FRF USER'S MANUAL Connector Defi nitions Ethernet LAN Ports LAN Ports (LAN1/2) Pin Defi nition Two Gigabit Ethernet ports (LAN1/2) Pin# Defi nition Pin# Defi nition are located on the I/O backplane on P2V5SB SGND the motherboard. In addition, an IPMI...
  • Page 71 Chapter 5: Advanced Motherboard Setup Serial Ports Serial Port Pin Defi nitions (COM1/COM2) The COM1 serial port is located beside Pin # Defi nition Pin # Defi nition the VGA port. Refer to the motherboard layout for the location of the COM2 header.
  • Page 72 SUPERSERVER 2027TR-H72RF/H72QRF/H72FRF USER'S MANUAL Unit Identifi er Switches UID Switch Two Unit Identifi er (UID) Switches and Pin# Defi nition two LED Indicators are located on the Ground motherboard. The Front Panel UID Ground Switch is located at Pin 16 on JF2. The...
  • Page 73 Chapter 5: Advanced Motherboard Setup System Reset System Reset (JRST1) Pin Defi nition A System Reset header is located at Pin Setting Defi nition JRST1 on the motherboard. Connect Pin 1 Signal a cable to this header for system Pin 2 Ground reset.

  • Page 74: Jumper Settings

    SUPERSERVER 2027TR-H72RF/H72QRF/H72FRF USER'S MANUAL Jumper Settings Connector Pins Explanation of Jumpers To modify the operation of the motherboard, Jumper jumpers can be used to choose between optional settings. Jumpers create shorts between two pins to change the function Setting of the connector. Pin 1 is identifi ed with a square solder pad on the printed circuit board.
  • Page 75 Chapter 5: Advanced Motherboard Setup Watch Dog Enable/Disable Watch Dog (JWD1) Jumper Settings Watch Dog (JWD1) is a system monitor Jumper Setting Defi nition that can reboot the system when a Pins 1-2 Reset (default) software application hangs. Close Pins Pins 2-3 1-2 to reset the system if an application Open...

  • Page 76: Onboard Indicators

    SUPERSERVER 2027TR-H72RF/H72QRF/H72FRF USER'S MANUAL I2C Bus to PCI-Exp. Slots I2C to PCI-E (JI2C1/JI2C2) Jumper Settings Jumpers JI C1 and JI C2 allow you to Jumper Setting Defi nition connect the System Management Bus Enabled C) to PCI-Express slots. The default Disabled (Default) setting is Open to disable the connection.
  • Page 77 Chapter 5: Advanced Motherboard Setup BMC Heartbeat LED BMC Heartbeat LED (LEM1) Status A BMC Heartbeat LED is located at Color/State Defi nition LEM1 on the motherboard. When LEM1 Green: Blinking BMC:Normal is blinking, BMC functions normally. See the table at right for more information. Infi...

  • Page 78: 5-10 Pci-Express And Serial Ata Connections

    SUPERSERVER 2027TR-H72RF/H72QRF/H72FRF USER'S MANUAL 5-10 PCI-Express and Serial ATA Connections PCI-Express 3.0 x16 Slot A PCI-Express 3.0 x16 slot (Slot 1) is located on the motherboard. Refer to the layout on page 5-14 for the locations. PCI-Express 3.0 x8 Slots Two PCI-Express 3.0 x8 slots (Slots SXB1/ SXB2) are on the motherboard.

  • Page 79: 5-11 Installing Drivers

    Chapter 5: Advanced Motherboard Setup 5-11 Installing Drivers The CD that came bundled with the system contains drivers, some of which must be installed, such as the chipset driver. After inserting this CD into your CD-ROM drive, the display shown in Figure 5-4 should appear. (If this display does not appear, click on the My Computer icon and then on the icon representing your CD-ROM drive.

  • Page 80: Supero Doctor Iii

    SuperDoctor, as the SuperDoctor settings override the BIOS settings. To set the BIOS temperature threshold settings again, you would fi rst need to uninstall SuperDoctor. Figure 5-5. Supero Doctor III Interface Display Screen (Health Information) 5-26...
  • Page 81 Chapter 5: Advanced Motherboard Setup Figure 5-6. Supero Doctor III Interface Display Screen (Remote Control) Note: The SuperDoctor III program and User’s Manual can be downloaded from the Supermicro web site at http://www.supermicro.com/products/accessories/software/ SuperDoctorIII.cfm.For Linux, we recommend that you use the SuperoDoctor II application instead.

  • Page 82: 5-12 Onboard Battery

    SUPERSERVER 2027TR-H72RF/H72QRF/H72FRF USER'S MANUAL 5-12 Onboard Battery Caution: There is a danger of explosion if the onboard battery is installed upside down, which will reverse its polarites (see Figure 5-7). This battery must be replaced only with the same or an equivalent type recommended by the manufacturer (CR2032).

  • Page 83: Chapter 6 Advanced Chassis Setup

    Chapter 6: Advanced Chassis Setup Chapter 6 Advanced Chassis Setup This chapter covers the steps required to install components and perform maintenance on the SC217HQ-R1620B chassis. For component installation, follow the steps in the order given to eliminate the most common problems encountered. If some steps are unnecessary, skip ahead to the step that follows.

  • Page 84: Control Panel

    SUPERSERVER 2027TR-H72RF/H72QRF/H72FRF USER'S MANUAL Figure 6-1. Front and Rear Chassis Views Control Panel Control Panel Control Panel SATA/SAS Drives (24) Control Panel IPMI LAN Port Ethernet Ports USB Ports Infi niband Port COM1 Port VGA Port (2027TR-H72QRF and 2027TR-H72FRF only) Control Panel The control panel is located on the front of the chassis.

  • Page 85: Chassis Cover

    Chapter 6: Advanced Chassis Setup Chassis Cover Before operating the SC217 chassis for the fi rst time, it is important to remove the protective fi lm covering the top of the chassis, in order to allow for proper ventilation and cooling. Removing the Chassis Cover and Protective Film (Figure 6-2) 1.

  • Page 86: Air Shrouds

    SUPERSERVER 2027TR-H72RF/H72QRF/H72FRF USER'S MANUAL Air Shrouds Air shrouds concentrate airfl ow to maximize fan effi ciency. The SC217 chassis requires air shrouds for each motherboard node. Air shrouds vary depending upon the motherboard used. See the illustrations below. Installing an Air Shroud (Figure 6-3) 1.

  • Page 87: Checking The Airfl Ow

    Chapter 6: Advanced Chassis Setup Checking the Airfl ow Checking Airfl ow 1. Make sure there are no objects obstructing the airfl ow in and out of the chassis. In addition, if you are using a front bezel, make sure the bezel's fi lter is replaced periodically.
  • Page 88 SUPERSERVER 2027TR-H72RF/H72QRF/H72FRF USER'S MANUAL Changing a System Fan 1. If necessary, open the chassis while the power is running to determine which fan has failed. (Never run the server for an extended period of time with the chassis cover open.) 2.
  • Page 89 Chapter 6: Advanced Chassis Setup Figure 6-5. Replacing a System Fan in the Fan Housing...

  • Page 90: Removing And Installing The Backplane

    SUPERSERVER 2027TR-H72RF/H72QRF/H72FRF USER'S MANUAL Removing and Installing the Backplane The SC217 chassis backplane is located behind the hard drives and in front of the front system fans. Although backplane failure rarely occurs, in the event of a backplane failure, follow the instructions below.
  • Page 91 Chapter 6: Advanced Chassis Setup 6. Loosen the three screws in the spring bar, located on the fl oor of the chassis, indicated by the arrows below (Figure 6-7). Figure 6-7. Loosening the Spring Bar Screws in the Floor of the Chassis 7.

  • Page 92: Installing The Backplane

    SUPERSERVER 2027TR-H72RF/H72QRF/H72FRF USER'S MANUAL Installing the Backplane Installing the Backplane into the Chassis (Figure 6-9) 1. Ensure that all of the hard drive carriers have been removed from the bays in the front of the chassis and that the spring bar has been loosened as directed in the previous section.

  • Page 93: Installing The Motherboard

    Chapter 6: Advanced Chassis Setup Installing the Motherboard I/O Shield The I/O shield holds the motherboard ports in place. The I/O shield does not require installation (see Figure 6-10). Figure 6-10. I/O Shield Placement I/O Shields Permanent and Optional Standoffs Standoffs prevent short circuits by creating space between the motherboard and the chassis surface.
  • Page 94 SUPERSERVER 2027TR-H72RF/H72QRF/H72FRF USER'S MANUAL Figure 6-11. Removing Motherboard Node Drawer 4. Remove the expansion card brackets: 3a. Remove screw securing the expansion card bracket to the back of the node drawer. 3b. Lift the bracket out of the node drawer.
  • Page 95 Chapter 6: Advanced Chassis Setup Figure 6-12. Installing the Motherboard in the Motherboard Node Drawer 6-13...

  • Page 96: Adapter Card Replacement

    SUPERSERVER 2027TR-H72RF/H72QRF/H72FRF USER'S MANUAL Adapter Card Replacement Each motherboard drawer comes equipped with an adapter card which plugs into the backplane. In the unlikely event that the adapter card needs to be replaced, installation requires only a Phillips head screwdriver.

  • Page 97: Expansion Card/Pci Slot Setup

    Chapter 6: Advanced Chassis Setup Expansion Card/PCI Slot Setup The SC217 chassis supports one low-profi le expansion PCI slot for each node, for a total of four PCI slots in the chassis. To install a low-profi le PCI card, follow the following instructions.
  • Page 98 SUPERSERVER 2027TR-H72RF/H72QRF/H72FRF USER'S MANUAL Installing Add-On Cards (Figure 6-15) 1. Disconnect the chassis from any power source, lay the chassis on a fl at surface, and open the chassis cover. 2. Pull out the motherboard node drawer from the chassis.

  • Page 99: 6-10 Drive Bay Installation/Removal

    Chapter 6: Advanced Chassis Setup 6-10 Drive Bay Installation/Removal Accessing the Drive Bays SAS/SATA Drives: You do not need to access the inside of the chassis or remove power to replace or swap SAS/SATA drives. Proceed to the next step for instructions. You must use standard 1"...
  • Page 100 SUPERSERVER 2027TR-H72RF/H72QRF/H72FRF USER'S MANUAL Removing Hard Drive Trays from the Chassis (Figure 6-17) 1. Press the release button on the drive tray. This extends the drive bay handle. 2. Use the handle to pull the drive out of the chassis.
  • Page 101 Chapter 6: Advanced Chassis Setup Installing a Drive into the Hard Drive Tray The drives are mounted in drive carriers to simplify their installation and removal from the chassis. These carriers also help promote proper airfl ow for the drive bays. 1.

  • Page 102: 6-11 Power Supply

    SUPERSERVER 2027TR-H72RF/H72QRF/H72FRF USER'S MANUAL 6-11 Power Supply The SC217 chassis includes two 1620 Watt power supplies. This power supply is auto-switching capable. This enables it to automatically sense and operate at a 100v to 240v input voltage. An amber light will be illuminated on the power supply when the power is off.

  • Page 103: Chapter 7 Bios

    Chapter 7: BIOS Chapter 7 BIOS Introduction This chapter describes the AMI BIOS Setup Utility for the X9DRT-HF/HIBQF/HIBFF serverboard. The 16 Mb AMI BIOS® is stored in a Flash EEPROM and can be easily updated. This chapter describes the basic navigation of the AMI BIOS Setup Utility setup screens.

  • Page 104: Starting The Setup Utility

    SUPERSERVER 2027TR-H72RF/H72QRF/H72FRF USER'S MANUAL Starting the Setup Utility Normally, the only visible Power-On Self-Test (POST) routine is the memory test. As the memory is being tested, press the <Delete> key to enter the main menu of the AMI BIOS Setup Utility. From the main menu, you can access the other setup screens.
  • Page 105 Chapter 7: BIOS Interrupt 19 Capture Interrupt 19 is the software interrupt that handles the boot disk function. When this item is set to Enabled, the ROM BIOS of the host adaptors will "capture" Interrupt 19 at bootup and allow the drives that are attached to these host adaptors to function as bootable disks.
  • Page 106 SUPERSERVER 2027TR-H72RF/H72QRF/H72FRF USER'S MANUAL CPU Confi guration This submenu displays the information of the CPU as detected by the BIOS. It also allows the user to confi guration CPU settings. Socket 1 CPU Information/Socket 2 CPU Information This submenu displays the following information regarding the CPU installed in Socket 1 and (or) Socket 2 as detected by the BIOS.
  • Page 107 Chapter 7: BIOS Active Processor Cores Set to Enabled to use a processor's second core and above. (Please refer to Intel's website for more information.) The options are All, 1, 2, 4, and 6. Limit CPUID Maximum Use this feature to set the maximum CPU ID value. Select Enabled to boot a legacy operating system that cannot support processors with extended CPUID functions.
  • Page 108 SUPERSERVER 2027TR-H72RF/H72QRF/H72FRF USER'S MANUAL Intel® Virtualization Technology (Available when supported by the CPU) Select Enabled to support Intel Virtualization Technology, which will allow one platform to run multiple operating systems and applications in independent partitions, creating multiple "virtual" systems in one physical computer. The options are Enabled and Disabled.
  • Page 109 Chapter 7: BIOS Chipset Confi guration North Bridge This feature allows the user to confi gure the following North Bridge settings. Integrated IO Confi guration Intel VT-d Select Enabled to enable Intel Virtualization Technology support for Direct I/O VT-d by reporting the I/O device assignments to the VMM (Virtual Working Memory) through the DMAR ACPI Tables.
  • Page 110 SUPERSERVER 2027TR-H72RF/H72QRF/H72FRF USER'S MANUAL Port 1B Link Speed Select GEN1 to enable PCI-Exp Generation 1 support for Port 1B. Select GEN2 to enable PCI-Exp Generation 2 support for Port 1B. Select GEN3 to enable PCI- Exp Generation 3 support for Port 1B. The options are GEN1, GEN2, and GEN3.
  • Page 111 Chapter 7: BIOS IOU3-PCIe Port If this feature allows the user to set the bus speed between the IOU3 and the PCI-Exp port. The options are x4x4x4x4, x4x4x8, x8x4x4, x8x8, and x16. Port 3A Link Speed Select GEN1 to enable PCI-Exp Generation 1 support for Port 3A. Select GEN2 to enable PCI-Exp Generation 2 support for Port 3A.
  • Page 112 SUPERSERVER 2027TR-H72RF/H72QRF/H72FRF USER'S MANUAL DIMM Confi guration This item displays the following information of a DIMM module specifi ed by the user. CPU Socket 1 DIMM Information This item displays the memory type/speed of a memory module specifi ed. •...
  • Page 113 Chapter 7: BIOS Rank Interleaving This feature allows the user to select a rank memory interleaving method. The options are Auto, 1 Way, 2 Way, 4, Way, and 8 Way. Patrol Scrub Patrol Scrubbing is a process that allows the CPU to correct correctable memory errors detected on a memory module and send the correction to the requestor (the original source).
  • Page 114 SUPERSERVER 2027TR-H72RF/H72QRF/H72FRF USER'S MANUAL South Bridge Confi guration This feature allows the user to confi gure the settings for the Intel PCH chip. PCH Information This feature displays the following PCH information. Name: This item displays the name of the PCH chip.
  • Page 115 Chapter 7: BIOS SATA Confi guration When this submenu is selected, the AMI BIOS automatically detects the presence of IDE or SATA devices and displays the following items. SATA Port0~SATA Port5: The AMI BIOS displays the status of each SATA port as detected by the BIOS.
  • Page 116 SUPERSERVER 2027TR-H72RF/H72QRF/H72FRF USER'S MANUAL PCH RAID CodeBase Select Intel or LSI to specify the code base to be used for RAID support. The options are Intel and LSI. Port 0~5 Hot Plug Select Enabled to enable hot-plug support for the particular port. The options are Enabled and Disabled.
  • Page 117 Chapter 7: BIOS SERR# Generation Select Enabled to allow a PCI device to generate an SERR number for a PCI Bus Signal Error Event. The options are Enabled and Disabled. Maximum Payload Select Auto to allow the system BIOS to automatically set the maximum payload value for a PCI-E device to enhance system performance.
  • Page 118 SUPERSERVER 2027TR-H72RF/H72QRF/H72FRF USER'S MANUAL Network Stack Select Enabled enable PXE (Preboot Execution Environment) or UEFI (Unifi ed Extensible Firmware Interface) for network stack support. The options are Enabled and Disabled. Super IO Confi guration Super IO Chip: This item displays the name of the super IO chip used in the system.
  • Page 119 Chapter 7: BIOS Serial Port Console Redirection COM 1 This submenu allows the user to confi gure the following Console Redirection settings for a COM Port specifi ed by the user. Console Redirection Select Enabled to use a COM Port selected by the user for Console Redirection. The options are Enabled and Disabled.
  • Page 120 SUPERSERVER 2027TR-H72RF/H72QRF/H72FRF USER'S MANUAL Bits Per second Use this feature to set the transmission speed for a serial port used in Console Redirection. Make sure that the same speed is used in the host computer and the client computer. A lower transmission speed may be required for long and busy lines.
  • Page 121 Chapter 7: BIOS RTID This feature indicates the total number of RTIDs for local and remote poots. The options are Optimal and Alternate. High Precision Event Timer Select Enabled to activate the High Precision Event Timer (HPET) that produces periodic interrupts at a much higher frequency than a Real-time Clock (RTC) does in synchronizing multimedia streams, providing smooth playback, reducing the dependency on other timestamp calculation devices, such as an x86 RDTSC Instruction embedded in the CPU.

  • Page 122: Event Logs

    SUPERSERVER 2027TR-H72RF/H72QRF/H72FRF USER'S MANUAL Port Confi guration Information This section displays the following LAN Port settings. • UEFI Drive • Adapter PBA • Chip Type • PCI Device ID • PCI Bus: Device: Function • Link Status • Factory MAC Address •...
  • Page 123 Chapter 7: BIOS Erasing Settings Erase Event Log Select Enabled to erase the SMBIOS (System Management BIOS) Event Log, which is completed before a event logging is initialized upon system reboot. The options are No, Yes Next Reset, and Yes Every Reset. When Log is Full Select Erase Immediately to immediately erase SMBIOS error event logs that exceed the limit when the SMBIOS event log is full.

  • Page 124: Ipmi

    SUPERSERVER 2027TR-H72RF/H72QRF/H72FRF USER'S MANUAL IPMI Use this feature to confi gure Intelligent Platform Management Interface (IPMI) settings. IPMI Firmware Revision This item indicates the IPMI fi rmware revision used in your system. IPMI Status This item indicates the status of the IPMI fi rmware installed in your system.
  • Page 125 Chapter 7: BIOS BMC Network Confi guration LAN Channel 1: This feature allows the user to confi gure the settings for LAN1 Port. Update IPMI LAN Confi guration This feature allows the user to decide if the BIOS should confi gure the IPMI setting at next system boot.

  • Page 126: Boot

    SUPERSERVER 2027TR-H72RF/H72QRF/H72FRF USER'S MANUAL Boot This submenu allows the user to confi gure the following boot settings for the system. CSM Support Select Enabled to enable UEFI Compatibility Support Module (CSM) to provide compatibility support to a traditional legacy BIOS which will allow an OS that requires CSM support to boot from a traditional option ROM.

  • Page 127: Security

    Chapter 7: BIOS Security This menu allows the user to confi gure the following security settings for the system. Administrator Password Use this feature to set the Administrator Password which is required to enter the BIOS setup utility. The length of the password should be from 3-character to 8-character long.
  • Page 128 SUPERSERVER 2027TR-H72RF/H72QRF/H72FRF USER'S MANUAL Discard Changes Select this feature and press <Enter> to discard all the changes and return to the BIOS setup. When the dialog box appears, asking you if you want to load previous values, click Yes to load the values previous saved, or click No to keep the changes you've made so far.

  • Page 129: Appendix A Bios Error Beep Codes

    Appendix A: BIOS Error Beep Codes Appendix A BIOS Error Beep Codes During the POST (Power-On Self-Test) routines, which are performed each time the system is powered on, errors may occur. Non-fatal errors are those which, in most cases, allow the system to continue the boot-up process.
  • Page 130 SUPERSERVER 2027TR-H72RF/H72QRF/H72FRF USER'S MANUAL Notes...

  • Page 131: Appendix B System Specifi Cations

    The SuperServer 2027TR-H72RF/H72QRF/H72FRF contains twenty-four (24) 3.5 inch hot-swap drive bays to house twelve standard SAS/SATA drives PCI Expansion The SuperServer 2027TR-H72RF/H72QRF/H72FRF has one (1) PCI Express 3.0 x16 slot (Slot 1) available per node. Serverboard X9DRT-HF/HIBQF/HIBFF serverboard (proprietary form factor)
  • Page 132 SUPERSERVER 2027TR-H72RF/H72QRF/H72FRF User's Manual Chassis SC217HQ-R1620B (2U rackmount) Dimensions: (WxHxD) 17.25 x 3.47 x 26.75 in. (438 x 88 x 679 mm) Weight Gross (Bare Bone): 85 lbs. (38.6 kg.) System Cooling The system has four (4) 8-cm PWM system cooling fans...
  • Page 133 Appendix B: System Specifi cations Notes...
  • Page 134 SUPERSERVER 2027TR-H72RF/H72QRF/H72FRF User's Manual (continued from front) The products sold by Supermicro are not intended for and will not be used in life support systems, medical equipment, nuclear facilities or systems, aircraft, aircraft devices, aircraft/emergency communication devices or other critical systems whose failure to perform be reasonably expected to result in signifi...
