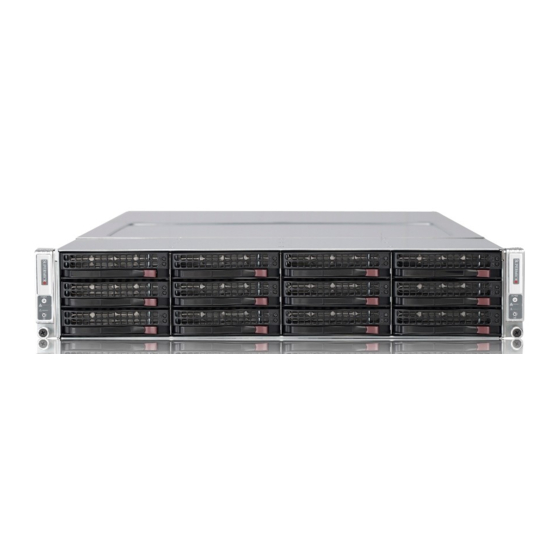

Summary of Contents for Supero SUPERSERVER 2027TR-D70RF+

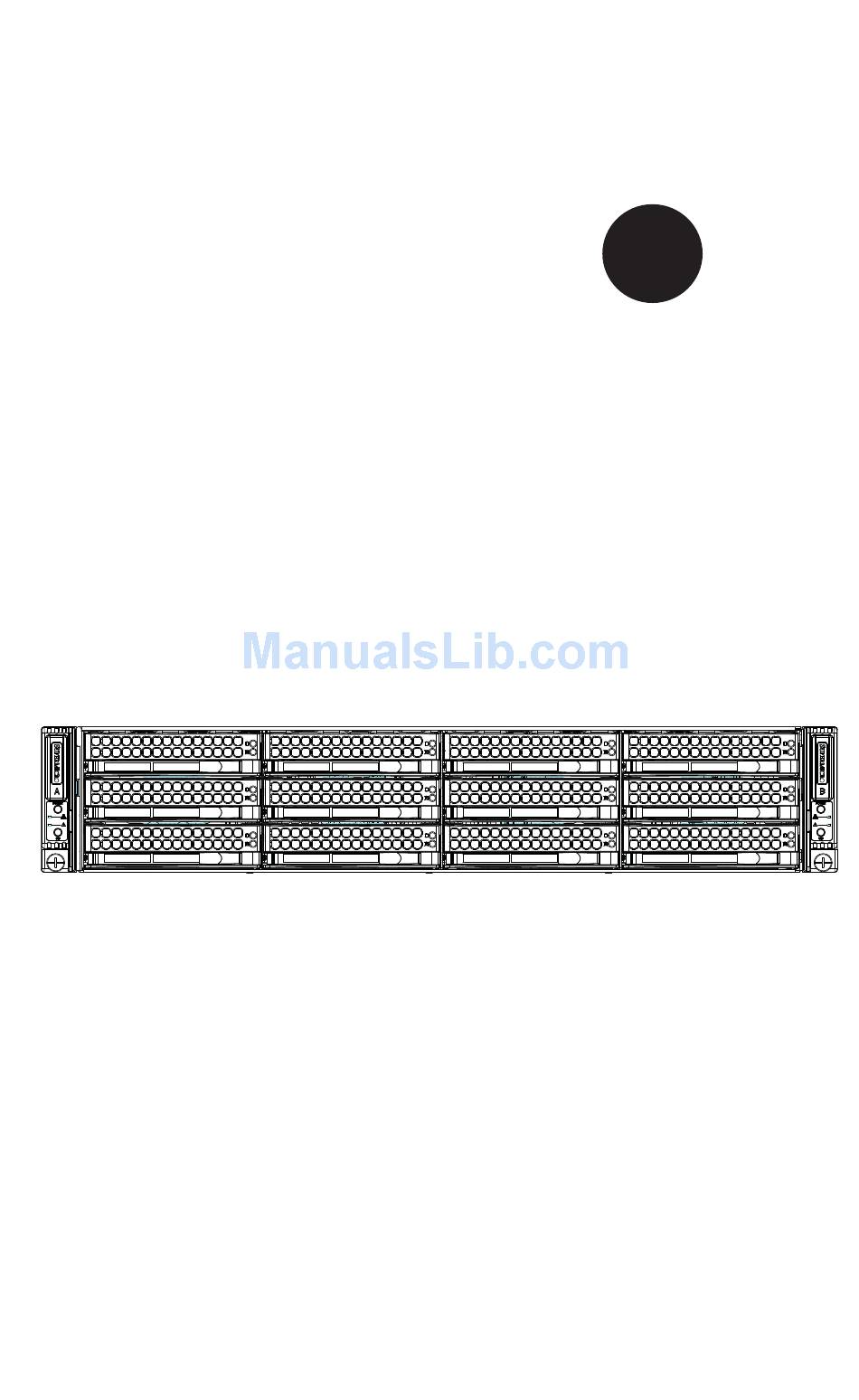

  • Page 1 UPER ® SUPERSERVER 2027TR-D70RF+ SUPERSERVER Revision 1.0...
  • Page 2 The information in this User’s Manual has been carefully reviewed and is believed to be accurate. The vendor assumes no responsibility for any inaccuracies that may be contained in this document, makes no commitment to update or to keep current the information in this manual, or to notify any person or organization of the updates.

  • Page 3: About This Manual

    Preface Preface About This Manual This manual is written for professional system integrators and PC technicians. It provides information for the installation and use of the SuperServer 2027TR-D70RF+. Installation and maintainance should be performed by experienced technicians only. The SuperServer 2027TR-D70RF+ are all high-end servers based on the SC217HD-R1K28MB 2U rackmount chassis and the dual processor X9DRT-HF+ serverboard.
  • Page 4 SUPERSERVER 2027TR-D70RF+ SUPERSERVER Chapter 6: Advanced Chassis Setup Refer to Chapter 6 for detailed information on the SC217HD-R1K28MB server chassis. You should follow the procedures given in this chapter when installing, removing or reconfi guring SATA or peripheral drives and when replacing system power supply units and cooling fans.
  • Page 5 SUPERSERVER 2027TR-D70RF+ SUPERSERVER Notes...

  • Page 6: Table Of Contents

    SUPERSERVER 2027TR-D70RF+ SUPERSERVER Table of Contents Chapter 1 Introduction Overview ......................1-1 Serverboard Features ..................1-2 Processors ...................... 1-2 Memory ......................1-2 SAS/SATA......................1-2 PCI Expansion Slots ..................1-2 Onboard Controllers/Ports ................1-3 Graphics Controller ..................1-3 Other Features ....................1-3 Server Chassis Features ................
  • Page 7 Table of Contents Ambient Operating Temperature ..............2-3 Reduced Airfl ow ..................2-3 Mechanical Loading ................... 2-3 Circuit Overloading ..................2-3 Reliable Ground ..................2-3 Installing the System into a Rack ..............2-4 Separating the Sections of the Rack Rails ............. 2-4 Locking Tabs ....................
  • Page 8 Explanation of Jumpers ................5-19 Onboard Indicators ..................5-21 5-10 PCI-Express and Serial ATA Connections ............ 5-23 5-11 Installing Drivers .................... 5-24 Supero Doctor III ................... 5-25 5-12 Onboard Battery .................... 5-27 Chapter 6 Advanced Chassis Setup Static-Sensitive Devices .................. 6-1 Precautions ..................... 6-1 Unpacking .......................
  • Page 9 Table of Contents Compatible Motherboards ................6-11 Permanent and Optional Standoffs ..............6-11 Node Installation/Removal ................6-13 6-10 Installing and Replacing the Adapter Card ........... 6-15 PCI Slot Setup ....................6-16 6-11 Installing and Removing Hard Drives ............6-18 6-12 Power Supply ....................6-22 Power Supply Replacement ................
  • Page 10 SUPERSERVER 2027TR-D70RF+ SUPERSERVER Notes...

  • Page 11: Chapter 1 Introduction

    Chapter 1: Introduction Chapter 1 Introduction Overview The SuperServer 2027TR-D70RF+ is a high-end server comprised of two main subsystems: the SC217HD-R1K28MB 2U server chassis and the X9DRT-HF+ dual processor serverboard in two hot-swap nodes. Please refer to our web site for information on operating systems that have been certifi...

  • Page 12: Serverboard Features

    SUPERSERVER 2027TR-D70RF+ USER'S MANUAL Serverboard Features t h e h e a r t t h e 2 0 2 7 T R - D 7 0 R F + s e r v e r l i e s t h e ®...

  • Page 13: Onboard Controllers/Ports

    Chapter 1: Introduction Onboard Controllers/Ports The color-coded I/O ports include a VGA (monitor) port, two USB 2.0 ports (an additional internal USB header and one Type A USB connector are included on the serverboard), an IPMI 2.0 dedicated LAN port and two Ethernet ports. Note: For IPMI Confi...

  • Page 14: Front Control Panel

    SUPERSERVER 2027TR-D70RF+ USER'S MANUAL Front Control Panel SC217HD-R1K28MB chassis includes two front panels on the handles of the chassis which control each of the systems. Each control panel on the SuperServer 2027TR-D70RF+ provides you with system monitoring and control for one server node.

  • Page 15: Manageability Engine (Me)

    Chapter 1: Introduction Management Controller), your system must also have IPNM-compatible Manageability Engine (ME) fi rmware installed to use this feature. Manageability Engine (ME) The Manageability Engine, which is an ARC controller embedded in the IOH (I/O Hub), provides Server Platform Services (SPS) to your system. The services provided by SPS are different from those proveded by the ME on client platforms.

  • Page 16: System Block Diagram

    SUPERSERVER 2027TR-D70RF+ USER'S MANUAL Figure 1-1. Intel C602 Chipset: System Block Diagram Note: This is a general block diagram and may not exactly repre- sent the features on your motherboard. See the previous pages for the actual specifi cations of your motherboard. This block diagram is intended for your reference only.

  • Page 17: Contacting Supermicro

    Chapter 1: Introduction Contacting Supermicro Headquarters Address: Super Micro Computer, Inc. 980 Rock Ave. San Jose, CA 95131 U.S.A. Tel: +1 (408) 503-8000 Fax: +1 (408) 503-8008 Email: marketing@supermicro.com (General Information) support@supermicro.com (Technical Support) Web Site: www.supermicro.com Europe Address: Super Micro Computer B.V. Het Sterrenbeeld 28, 5215 ML 's-Hertogenbosch, The Netherlands Tel:...

  • Page 18: Twin: System Notes

    SUPERSERVER 2027TR-D70RF+ USER'S MANUAL 2U Twin: System Notes As a 2U Twin confi guration, the SuperServer 2027TR-D70RF+ is a unique server system. With two system boards incorporated into a single chassis acting as two separate nodes, there are several points you should keep in mind. Nodes Each of the two serverboards act as a separate node in the system.

  • Page 19: Chapter 2 Server Installation

    Chapter 2: Server Installation Chapter 2 Server Installation Overview This chapter provides a quick setup checklist to get your SuperServer 2027TR-D70RF+ up and running. Following these steps in the order given should enable you to have the system operational within a minimum amount of time. This quick setup assumes that your system has come to you with the processors and memory preinstalled.

  • Page 20: Choosing A Setup Location

    SUPERSERVER 2027TR-D70RF+ USER'S MANUAL Choosing a Setup Location • Leave enough clearance in front of the rack to enable you to open the front door completely (~25 inches) and approximately 30 inches of clearance in the back of the rack to allow for suffi cient airfl ow and ease in servicing. •...

  • Page 21: Rack Mounting Considerations

    Chapter 2: Server Installation Rack Mounting Considerations Ambient Operating Temperature If installed in a closed or multi-unit rack assembly, the ambient operating temperature of the rack environment may be greater than the ambient temperature of the room. Therefore, consideration should be given to installing the equipment in an environment compatible with the manufacturer’s maximum rated ambient temperature (Tmra).

  • Page 22: Installing The System Into A Rack

    SUPERSERVER 2027TR-D70RF+ USER'S MANUAL Installing the System into a Rack This section provides information on installing the chassis into a rack unit with the rails provided. There are a variety of rack units on the market, which may mean that the assembly procedure will differ slightly from the instructions provided. You should also refer to the installation instructions that came with the rack unit you are using.

  • Page 23: Locking Tabs

    Chapter 2: Server Installation Locking Tabs Each inner rail has a locking tab. This tab locks the chassis into place when installed and pushed fully into the rack. These tabs also lock the chassis in place when fully extended from the rack. This prevents the server from coming completely out of the rack when when the chassis is pulled out for servicing.

  • Page 24: Installing The Inner Rails On The Chassis

    SUPERSERVER 2027TR-D70RF+ USER'S MANUAL Installing The Inner Rails on the Chassis Installing the Inner Rails (Figure 2-3 and Figure 2-4) 1. Confi rm that the left and right inner rails have been correctly identifi ed. Place the inner rail fi rmly against the side of the chassis, aligning the hooks on the side of the chassis with the holes in the inner rail.

  • Page 25: Installing The Outer Rails On The Rack

    Chapter 2: Server Installation Installing the Outer Rails on the Rack Installing the Outer Rails (Figure 2-5) 1. Press upward on the locking tab at the rear end of the middle rail. 2. Push the middle rail back into the outer rail. 3.

  • Page 26: Standard Chassis Installation

    SUPERSERVER 2027TR-D70RF+ USER'S MANUAL Standard Chassis Installation Installing the Chassis into a Rack (Figure 2-6) 1. Confi rm that the inner rails are properly installed on the chassis. 2. Confi rm that the outer rails are correctly installed on the rack. 3.

  • Page 27: Optional Quick Installation Method

    Chapter 2: Server Installation Optional Quick Installation Method The following quick installation method may be used to install the chassis onto a rack. Installing the Chassis into a Rack 1. Install the whole rail assembly onto the rack as described on page 2-7. 2.
  • Page 28 SUPERSERVER 2027TR-D70RF+ USER'S MANUAL Figure 2-7. Accessing the Inside of the System Remove two screws Check Ventilation Openings Caution: Except for short periods of time, do NOT operate the server without the cover in place. The chassis cover must be in place to allow proper airfl ow and prevent overheating.

  • Page 29: Checking The Drive Bay Setup

    Chapter 2: Server Installation Checking the Drive Bay Setup Next, you should check to make sure the peripheral drives and the SATA drives have been properly installed and all connections have been made. Checking the Drives 1. All drives are accessable from the front of the server. A hard drive can be installed and removed from the front of the chassis without removing the top chassis cover.
  • Page 30 SUPERSERVER 2027TR-D70RF+ USER'S MANUAL Notes 2-12...

  • Page 31: Chapter 3 System Interface

    Chapter 3: System Interface Chapter 3 System Interface Overview There are several LEDs on each control panel and on the drive carriers to keep you constantly informed of the overall status of the system. SC217 models include four control panels on the handles of the chassis which control each of the systems. This chapter explains the meanings of all LED indicators and the appropriate re- sponses you may need to take.

  • Page 32: Control Panel Buttons

    SUPERSERVER 2027TR-D70RF+ USER'S MANUAL Control Panel Buttons • Power: The main power button on each of the four control panels is used to apply or remove power from the power supply to each of the four systems in the chassis. Turning power to the system off with this button removes the main power, but keeps standby power supplied to the system.

  • Page 33: Drive Carrier Leds

    Chapter 3: System Interface • NIC: Indicates network activity on either LAN1 or LAN2 when fl ashing. Drive Carrier LEDs The SC217 chassis uses SAS/SATA drives. SAS/SATA Drives Each SAS/SATA drive carrier has two LEDs. • Blue: Each Serial ATA drive carrier has a blue LED. When illuminated, this blue LED (on the front of the SATA drive carrier) indicates drive activity.
  • Page 34 SUPERSERVER 2027TR-D70RF+ USER'S MANUAL Notes...

  • Page 35: Chapter 4 Standardized Warning Statements For Ac Systems

    Chapter 4: Warning Statements for AC Systems Chapter 4 Standardized Warning Statements for AC Systems About Standardized Warning Statements The following statements are industry standard warnings, provided to warn the user of situations which have the potential for bodily injury. Should you have questions or experience difficulty, contact Supermicro's Technical Support department for assistance.
  • Page 36 UPER ERVER "servername" User's Manual Warnung WICHTIGE SICHERHEITSHINWEISE Dieses Warnsymbol bedeutet Gefahr. Sie befi nden sich in einer Situation, die zu Verletzungen führen kann. Machen Sie sich vor der Arbeit mit Geräten mit den Gefahren elektrischer Schaltungen und den üblichen Verfahren zur Vorbeugung vor Unfällen vertraut.
  • Page 37 Warning Statements for AC Systems ‫ﺟﺴﺪﻳﺔ‬ ‫ﺍﺻﺎﺑﺔ‬ ‫ﺗﺘﺴﺒﺐ ﻓﻲ‬ ‫ﺣﺎﻟﺔ ﻳﻤﻜﻦ ﺃﻥ‬ ‫ﺍﻧﻚ ﻓﻲ‬ ‫ﺧﻄﺮ‬ ‫ﻳﻌﻨﻲ‬ ‫ﻫﺬﺍ ﺍﻟﺮﻣﺰ‬ !‫ﺗﺤﺬﻳﺮ‬ ‫ﺍﻟﺪﻭﺍﺋﺮ‬ ‫ﺑﺎﻟﻤﺨﺎﻁﺮ ﺍﻟﻨﺎﺟﻤﺔ ﻋﻦ‬ ‫ﻦ ﻋﻠﻰ ﻋﻠﻢ‬ ، ‫ﻛ‬ ‫ﻣﻌﺪﺍﺕ‬ ‫ﺗﻌﻤﻞ ﻋﻠﻰ ﺃﻱ‬ ‫ﻗﺒﻞ ﺃﻥ‬ ‫ﺍﻟﻜﻬﺮﺑﺎﺋﻴﺔ‬ ‫ﺣﻮﺍﺩﺙ‬ ‫ﺃﻱ‬ ‫ﻭﻗﻮﻉ‬ ‫ﻤﻨﻊ‬ ‫ﻟ‬ ‫ﺍﻟﻮﻗﺎﺋﻴﺔ‬...

  • Page 38: Installation Instructions

    UPER ERVER "servername" User's Manual Installation Instructions Warning! Read the installation instructions before connecting the system to the power source. 警告 将此系统连接电源前,请先阅读安装说明。 警告 將系統與電源連接前，請先閱讀安裝說明。 Warnung Vor dem Anschließen des Systems an die Stromquelle die Installationsanweisungen lesen. ¡Advertencia! Lea las instrucciones de instalación antes de conectar el sistema a la red de alimentación.

  • Page 39: Circuit Breaker

    Chapter 4: Warning Statements for AC Systems Circuit Breaker Warning! This product relies on the building's installation for short-circuit (overcurrent) protection. Ensure that the protective device is rated not greater than: 250 V, 20 A. 警告 此产品的短路(过载电流)保护由建筑物的供电系统提供,确保短路保护设备的额定电 流不大于250V,20A。 警告 此產品的短路(過載電流)保護由建築物的供電系統提供,確保短路保護設備的額定電 流不大於250V,20A。...

  • Page 40: Power Disconnection Warning

    UPER ERVER "servername" User's Manual Waarschuwing Dit product is afhankelijk van de kortsluitbeveiliging (overspanning) van uw electrische installatie. Controleer of het beveiligde aparaat niet groter gedimensioneerd is dan 220V, 20A. Power Disconnection Warning Warning! The system must be disconnected from all sources of power and the power cord removed from the power supply module(s) before accessing the chassis interior to install or remove system components.
  • Page 41 Chapter 4: Warning Statements for AC Systems ¡Advertencia! El sistema debe ser disconnected de todas las fuentes de energía y del cable eléctrico quitado de los módulos de fuente de alimentación antes de tener acceso el interior del chasis para instalar o para quitar componentes de sistema. Attention Le système doit être débranché...

  • Page 42: Equipment Installation

    UPER ERVER "servername" User's Manual Equipment Installation Warning! Only trained and qualifi ed personnel should be allowed to install, replace, or service this equipment. 警告 只有经过培训且具有资格的人员才能进行此设备的安装、更换和维修。 警告 只有經過受訓且具資格人員才可安裝、更換與維修此設備。 Warnung Das Installieren, Ersetzen oder Bedienen dieser Ausrüstung sollte nur geschultem, qualifi ziertem Personal gestattet werden. ¡Advertencia! Solamente el personal califi...

  • Page 43: Restricted Area

    Chapter 4: Warning Statements for AC Systems Waarschuwing Deze apparatuur mag alleen worden geïnstalleerd, vervangen of hersteld door geschoold en gekwalifi ceerd personeel. Restricted Area Warning! This unit is intended for installation in restricted access areas. A restricted access area can be accessed only through the use of a special tool, lock and key, or other means of security.

  • Page 44: Battery Handling

    UPER ERVER "servername" User's Manual ‫אזור עם גישה מוגבלת‬ !‫אזהרה‬ ‫יש להתקין את היחידה באזורים שיש בהם הגבלת גישה. הגישה ניתנת בעזרת‬ .('‫כלי אבטחה בלבד )מפתח, מנעול וכד‬ ‫ﻣﺤﻈﻮﺭﺓ‬ ‫ﻣﻨﺎﻁﻖ‬ ‫ﻟﺘﺮﻛﻴﺒﻬﺎ ﻓﻲ‬ ‫ﻫﺬﻩ ﺍﻟﻮﺣﺪﺓ‬ ‫ﺗﺨﺼﻴﺺ‬ ‫ﺗﻢ‬ ،‫ﺃﺩﺍﺓ ﺧﺎﺻﺔ‬ ‫ﻣﻦ ﺧﻼﻝ ﺍﺳﺘﺨﺪﺍﻡ‬ ‫ﻓﻘﻂ‬...
  • Page 45 Chapter 4: Warning Statements for AC Systems Warnung Bei Einsetzen einer falschen Batterie besteht Explosionsgefahr. Ersetzen Sie die Batterie nur durch den gleichen oder vom Hersteller empfohlenen Batterietyp. Entsorgen Sie die benutzten Batterien nach den Anweisungen des Herstellers. Attention Danger d'explosion si la pile n'est pas remplacée correctement. Ne la remplacer que par une pile de type semblable ou équivalent, recommandée par le fabricant.

  • Page 46: Redundant Power Supplies

    UPER ERVER "servername" User's Manual Redundant Power Supplies Warning! This unit might have more than one power supply connection. All connections must be removed to de-energize the unit. 警告 此部件连接的电源可能不止一个，必须将所有电源断开才能停止给该部件供电。 警告 此裝置連接的電源可能不只一個，必須切斷所有電源才能停止對該裝置的供電。 Warnung Dieses Gerät kann mehr als eine Stromzufuhr haben. Um sicherzustellen, dass der Einheit kein trom zugeführt wird, müssen alle Verbindungen entfernt werden.

  • Page 47: Backplane Voltage

    Chapter 4: Warning Statements for AC Systems ‫ﺍﻣﺪﺍﺩ ﺍﻟﻄﺎﻗﺔ‬ ‫ﺑﻮﺣﺪﺍﺕ‬ ‫ﻋﺪﺓ ﺍﺗﺼﺎﻻﺕ‬ ‫ﺠﻬﺎﺯ‬ ‫ﺍﻟ‬ ‫ﻳﻜﻮﻥ ﻟﻬﺬﺍ‬ ‫ﻗﺪ‬ ‫ﺍﻟﻜﻬﺮﺑﺎء‬ ‫ﻋﻦ‬ ‫ﻮﺣﺪﺓ‬ ‫ﺍﻟ‬ ‫ﻟﻌﺰﻝ‬ ‫ﻛﺎﻓﺔ ﺍﻻﺗﺼﺎﻻﺕ‬ ‫ﻳﺠﺐ ﺇﺯﺍﻟﺔ‬ Waarschuwing Deze eenheid kan meer dan één stroomtoevoeraansluiting bevatten. Alle aansluitingen dienen verwijderd te worden om het apparaat stroomloos te maken. Backplane Voltage Warning! Hazardous voltage or energy is present on the backplane when the system is...

  • Page 48: Comply With Local And National Electrical Codes

    UPER ERVER "servername" User's Manual ‫מתח בפנל האחורי‬ !‫הרה‬ ‫אז‬ ‫קיימת סכנת מתח בפנל האחורי בזמן תפעול המערכת. יש להיזהר במהלך‬ .‫העבודה‬ ‫ﺍﻟﻠﻮﺣﺔ‬ ‫ﺃﻭﺍﻟﻄﺎﻗﺔ ﺍﻟﻤﻮﺟﻮﺩﺓ ﻋﻠﻰ‬ ‫ﺍﻟﺘﻴﺎﺭ ﺍﻟﻜﻬﺮﺑﺎﺋﻲ‬ ‫ﻣﻦ‬ ‫ﺧﻄﺮ‬ ‫ﻫﻨﺎﻙ‬ ‫ﻫﺬﺍ ﺍﻟﺠﻬﺎﺯ‬ ‫ﺧﺪﻣﺔ‬ ‫ﻛﻦ ﺣﺬﺭﺍ ﻋﻨﺪ‬ ‫ﻳﻌﻤﻞ‬ ‫ﺍﻟﻨﻈﺎﻡ‬ ‫ﻋﻨﺪﻣﺎ ﻳﻜﻮﻥ‬ Waarschuwing Een gevaarlijke spanning of energie is aanwezig op de backplane wanneer het systeem in gebruik is.

  • Page 49: Product Disposal

    Chapter 4: Warning Statements for AC Systems Attention L'équipement doit être installé conformément aux normes électriques nationales et locales. ‫תיאום חוקי החשמל הארצי‬ !‫אזהרה‬ ‫הציוד חייבת להיות תואמת לחוקי החשמל המקומיים והארציים‬ ‫התקנת‬ ‫ﺍﻟﻤﺘﻌﻠﻘﺔ‬ ‫ﺍﻟﻤﺤﻠﻴﺔ ﻭﺍﻟﻮﻁﻨﻴﺔ‬ ‫ﻘﻮﺍﻧﻴﻦ‬ ‫ﻳﺠﺐ ﺃﻥ ﻳﻤﺘﺜﻞ ﻟﻠ‬ ‫ﺍﻟﻜﻬﺮﺑﺎﺋﻴﺔ‬...

  • Page 50: Hot Swap Fan Warning

    UPER ERVER "servername" User's Manual ¡Advertencia! Al deshacerse por completo de este producto debe seguir todas las leyes y reglamentos nacionales. Attention La mise au rebut ou le recyclage de ce produit sont généralement soumis à des lois et/ou directives de respect de l'environnement. Renseignez-vous auprès de l'organisme compétent.
  • Page 51 Chapter 4: Warning Statements for AC Systems 警告 當您從機架移除風扇裝置，風扇可能仍在轉動。小心不要將手指、螺絲起子和其他 物品太靠近風扇。 Warnung Die Lüfter drehen sich u. U. noch, wenn die Lüfterbaugruppe aus dem Chassis genommen wird. Halten Sie Finger, Schraubendreher und andere Gegenstände von den Öffnungen des Lüftergehäuses entfernt. ¡Advertencia! Los ventiladores podran dar vuelta cuando usted quite ell montaje del ventilador del chasis.

  • Page 52: Power Cable And Ac Adapter

    UPER ERVER "servername" User's Manual Power Cable and AC Adapter Warning! When installing the product, use the provided or designated connection cables, power cables and AC adaptors. Using any other cables and adaptors could cause a malfunction or a fi re. Electrical Appliance and Material Safety Law prohibits the use of UL or CSA -certifi...
  • Page 53 Chapter 4: Warning Statements for AC Systems Attention Lors de l'installation du produit, utilisez les bables de connection fournis ou désigné. L'utilisation d'autres cables et adaptateurs peut provoquer un dysfonctionnement ou un incendie. Appareils électroménagers et de loi sur la sécurité Matériel interdit l'utilisation de UL ou CSA câbles certifi...
  • Page 54 UPER ERVER "servername" User's Manual Notes 4-20...

  • Page 55: Chapter 5 Advanced Motherboard Setup

    Chapter 5: Advanced Motherboard Setup Chapter 5 Advanced Motherboard Setup This chapter covers the steps required to install the X9DRT-HF+ motherboard into the chassis, connect the data and power cables and install add-on cards. All motherboard jumpers and connections are also described. A layout and quick reference chart are included in this chapter for your reference.

  • Page 56: Rear I/O Ports

    SUPERSERVER 2027TR-D70RF+ USER'S MANUAL Rear I/O Ports The rear I/O ports are color coded in conformance with the PC 99 specifi cation. See Figure 5-1 below for the colors and locations of the various I/O ports. Figure 5-1. Rear I/O Ports Back Panel I/O Port Locations and Defi...

  • Page 57: Processor And Heatsink Installation

    Chapter 5: Advanced Motherboard Setup Processor and Heatsink Installation Caution! When handling the processor package, avoid placing direct pressure on the label area. Always connect the power cord last, and always remove it before adding, removing or changing any hardware components. Make sure that you install the processor into the CPU socket before you install the CPU heatsink.
  • Page 58 SUPERSERVER 2027TR-D70RF+ USER'S MANUAL 2. Press the second load lever labeled 'Close 1st' to release the load plate that covers the CPU socket from its locking position. Press down on Load the Pull lever away Lever labeled 'Close 1st' from the socket 3.
  • Page 59 Chapter 5: Advanced Motherboard Setup 5. Use your thumb and index fi nger to hold the CPU on its edges. Align the CPU keys, which are semi-circle cutouts, against the socket keys. Socket Keys CPU Keys 6. Once they are aligned, carefully lower the CPU straight down into the socket. (Do not drop the CPU on the socket.
  • Page 60 SUPERSERVER 2027TR-D70RF+ USER'S MANUAL 7. With the CPU inside the socket, inspect the four corners of the CPU to make sure that the CPU is properly installed. 8. Close the load plate with the CPU inside the socket. Lock the lever labeled 'Close 1st' fi...

  • Page 61: Installing A Passive Cpu Heatsink

    Chapter 5: Advanced Motherboard Setup Installing a Passive CPU Heatsink 1. Apply the proper amount of thermal grease to the heatsink. 2. Place the heatsink on top of the CPU so that the four mounting holes on the heatsink are aligned with those on the retention mechanism. 3.

  • Page 62: Installing Memory

    SUPERSERVER 2027TR-D70RF+ USER'S MANUAL Installing Memory Installing Memory 1. Insert each memory module vertically into its slot, paying attention to the notch along the bottom of the module to prevent inserting the module incorrectly (see Figure 5-2). 2. Install to slots P1/DIMM1A, P1/DIMM2A, etc. For best performance always use the same memory type and speed in the same memory bank.
  • Page 63 Chapter 5: Advanced Motherboard Setup Figure 5-2. Installing DIMM into Slot To Install: Insert Notch Notch module vertically and press down until it snaps into place. Front View Pay attention to the alignment notch at the bottom. Note: Notch should align with To Remove: Use the receptive key point on the slot.

  • Page 64: Dimm Module Population Confi Guration

    SUPERSERVER 2027TR-D70RF+ USER'S MANUAL DIMM Module Population Confi guration For memory to work properly, follow the tables below for memory installation: Intel E5-2600 Series Processor UDIMM Memory Support Ranks Memory Capacity Speed (MT/s) and Voltage Validated by Slot per Per DIMM Channel (SPC) and DIMM Per Channel (DPC) DIMM 1 Slot Per...
  • Page 65 Chapter 5: Advanced Motherboard Setup Intel E5-2600 Series Processor LRDIMM Memory Support Ranks Per Memory Speed (MT/s) and Voltage DIMM & Capacity Validated by Slot per Channel Data Width Per DIMM (SPC) and DIMM Per Channel (DPC) (See the 1 Slot Per 2 Slots Per Note Below) Channel...

  • Page 66: Adding Pci Expansion Cards

    SUPERSERVER 2027TR-D70RF+ USER'S MANUAL Adding PCI Expansion Cards The 2027TR-D70RF+ includes two BPN-ADP-E16-L adapter cards for use in the SC217HD-R1K28MB 2U chassis and SuperServer 2027TR-D70RF+ system. Installing an Expansion Card 1. After powering down the system, remove the PCI slot shield. 2.

  • Page 67: Motherboard Details

    Chapter 5: Advanced Motherboard Setup Motherboard Details Figure 5-3. X9DRT-HF+ Motherboard Layout (not drawn to scale) USB0 USB1 LAN1 IPMI_LAN LAN2 Battery FAN4 FAN3 JPME1 COM1 JPME2 LAN CTRL JBT1 Intel PCH CPU1 X9DRT-HF+ Rev. 1.02 CPU2 CPU2 5-13...
  • Page 68 SUPERSERVER 2027TR-D70RF+ USER'S MANUAL Notes: 1. For the latest CPU/Memory updates, please refer to our website at http:// www.supermicro.com/products/motherboard/ for details. 2. Use only the correct type of onboard CMOS battery as specifi ed by the manufacturer. Do not install the onboard battery upside down to avoid possible explosion.
  • Page 69 Chapter 5: Advanced Motherboard Setup Connector Description JBAT1 Onboard battery (see warning in chapter 4) I-SATA 0/1 Intel PCH SATA Connectors 0/1 SMC Proprietary Slot for Power, FP Control & I-SATA Connections JIPMB1 4-pin External BMC I C Header (for an IPMI Card) JPTM1 TPM (Trusted Platform Module)/Port 80 LAN1/2...

  • Page 70: Connector Defi Nitions

    SUPERSERVER 2027TR-D70RF+ USER'S MANUAL Connector Defi nitions Ethernet LAN Ports LAN Ports (LAN1/2) Pin Defi nition Two Gigabit Ethernet ports (LAN1/2) Pin# Defi nition Pin# Defi nition are located on the I/O backplane on P2V5SB SGND the motherboard. In addition, an IPMI TD0+ Act LED Dedicated LAN is located above USB...
  • Page 71 Chapter 5: Advanced Motherboard Setup Unit Identifi er Switches UID Switch Two Unit Identifi er (UID) Switches and Pin# Defi nition two LED Indicators are located on the Ground motherboard. The Front Panel UID Ground Switch is located at Pin 16 on JF2. The Button In Rear UID Switch is located at SW1 next Ground...
  • Page 72 SUPERSERVER 2027TR-D70RF+ USER'S MANUAL TPM Header/Port 80 TPM/Port 80 Header (JTPM1) Pin Defi nitions A Trusted Platform Module/Port 80 Pin# Defi nition Pin# Defi nition header is located at JTPM1 to provide LCLK TPM support and Port 80 connection. LFRAME# <(KEY)>...

  • Page 73: Jumper Settings

    Chapter 5: Advanced Motherboard Setup Jumper Settings Connector Pins Explanation of Jumpers To modify the operation of the motherboard, Jumper jumpers can be used to choose between optional settings. Jumpers create shorts between two pins to change the function Setting of the connector.
  • Page 74 SUPERSERVER 2027TR-D70RF+ USER'S MANUAL Watch Dog Enable/Disable Watch Dog (JWD1) Jumper Settings Watch Dog (JWD1) is a system monitor Jumper Setting Defi nition that can reboot the system when a Pins 1-2 Reset (default) software application hangs. Close Pins Pins 2-3 1-2 to reset the system if an application Open Disabled...

  • Page 75: Onboard Indicators

    Chapter 5: Advanced Motherboard Setup Onboard Indicators GLAN LEDs LAN LED (Connection Speed Indicator) The Gigabit LAN ports are located on LED Color Defi nition the IO Backplane on the motherboard. 10 MHz On each Gb LAN port, one LED blinks Green 100 MHz to indicate activity while the other may be...
  • Page 76 SUPERSERVER 2027TR-D70RF+ USER'S MANUAL HDD/SATA LED (LE3) HDD/SATA LED (LE3) Settings An HDD/SATA LED Indicator is located Status Defi nition at LE3 on the motherboard. This LED HDD/SATA Connected indicates the status of hard drive activities No connection or SATA activities supported by the South Bridge.

  • Page 77: 5-10 Pci-Express And Serial Ata Connections

    Chapter 5: Advanced Motherboard Setup 5-10 PCI-Express and Serial ATA Connections PCI-Express 3.0 x8 Micro LP Card Slot One PCI-E 3.0 x8 Slot for SMC-Proprietary Micro LP Card (CPU1 Slot2) is located on the motherboard. Refer to the layout on page 5-14 for the location. PCI-Express 3.0 x8 Daughter Card Slot One PCI-E 3.0 x8 Slot for SMC-Proprietary Daughter (Add-On) Card (CPU1 Slot1) supports a SMC-proprietary daughter card.

  • Page 78: 5-11 Installing Drivers

    SUPERSERVER 2027TR-D70RF+ USER'S MANUAL 5-11 Installing Drivers The CD that came bundled with the system contains drivers, some of which must be installed, such as the chipset driver. After inserting this CD into your CD-ROM drive, the display shown in Figure 5-4 should appear. (If this display does not appear, click on the My Computer icon and then on the icon representing your CD-ROM drive.

  • Page 79: Supero Doctor Iii

    SuperDoctor, as the SuperDoctor settings override the BIOS settings. To set the BIOS temperature threshold settings again, you would fi rst need to uninstall SuperDoctor. Figure 5-5. Supero Doctor III Interface Display Screen (Health Information) 5-25...
  • Page 80 SUPERSERVER 2027TR-D70RF+ USER'S MANUAL Figure 5-6. Supero Doctor III Interface Display Screen (Remote Control) Note: The SuperDoctor III program and User’s Manual can be downloaded from the Supermicro web site at http://www.supermicro.com/products/accessories/ software/SuperDoctorIII.cfm. For Linux, we recommend that you use the SuperoDoctor II application instead.

  • Page 81: 5-12 Onboard Battery

    Chapter 5: Advanced Motherboard Setup 5-12 Onboard Battery Caution: There is a danger of explosion if the onboard battery is installed upside down, which will reverse its polarites (see Figure 5-7). This battery must be replaced only with the same or an equivalent type recommended by the manufacturer (CR2032).
  • Page 82 SUPERSERVER 2027TR-D70RF+ USER'S MANUAL Notes 5-28...

  • Page 83: Chapter 6 Advanced Chassis Setup

    Chapter 6: Advanced Chassis Setup Chapter 6 Advanced Chassis Setup This chapter covers the steps required to install components and perform maintenance on the SC217HD-R1K28MB chassis. For component installation, follow the steps in the order given to eliminate the most common problems encountered.

  • Page 84: Control Panel

    SUPERSERVER 2027TR-D70RF+ USER'S MANUAL Figure 6-1. Chassis Front View Node A Control Panel Node B Control Panel Hard Drives Figure 6-2. Chassis Rear View Power Supply LAN Ports USB Ports VGA Port Control Panel Each control panel on the front of the chassis must be connected to the JF2 connector on its associated serverboard to provide you with system control buttons and status indicators.

  • Page 85: Accessing The Inside Of The System

    Chapter 6: Advanced Chassis Setup Accessing the inside of the System Before operating the SC217 chassis for the fi rst time, it is important to remove the protective fi lm over the cover of the chassis, in order to allow for proper ventilation and cooling.

  • Page 86: Installing The Air Shrouds

    SUPERSERVER 2027TR-D70RF+ USER'S MANUAL Installing the Air Shrouds Air Shrouds Air shrouds concentrate airfl ow to maximize fan effi ciency. The SC217 chassis requires air shrouds for each motherboard node. Air shrouds vary depending upon the motherboard used. See the illustrations below. Installing an Air Shroud (Figure 6-4) 1.

  • Page 87: Checking The Airfl Ow

    Chapter 6: Advanced Chassis Setup Checking the Airfl ow Checking Airfl ow 1. Make sure there are no objects obstructing the airfl ow in and out of the chassis. In addition, if you are using a front bezel, make sure the bezel's fi lter is replaced periodically.
  • Page 88 SUPERSERVER 2027TR-D70RF+ USER'S MANUAL Changing a System Fan 1. If necessary, open the chassis while the system is running to determine which fan has failed. (Never run the server for an extended period of time with the chassis cover open.) After determining which fan needs to be replaced, power down the system and disconnect the power cord from the rear of both power supplies.
  • Page 89 Chapter 6: Advanced Chassis Setup Figure 6-6. Replacing a System Fan in the Fan Housing...

  • Page 90: Removing And Installing The Backplane

    SUPERSERVER 2027TR-D70RF+ USER'S MANUAL Removing and Installing the Backplane The SC217HD chassis backplane is located behind the hard drives and in front of the front system fans. Although backplane failure rarely occurs, in the event of a backplane failure, follow the instructions below. Removing the Backplane Removing the Backplane from the Chassis 1.
  • Page 91 Chapter 6: Advanced Chassis Setup 8. Loosen the three screws in the spring bar, located on the fl oor of the chassis, indicated by the arrows below (Figure 6-8). Figure 6-8: Loosening the Spring Bar Screws in the Floor of the Chassis 9.

  • Page 92: Installing The Backplane

    SUPERSERVER 2027TR-D70RF+ USER'S MANUAL Installing the Backplane Installing the Backplane into the Chassis (Figure 6-10) 1. Ensure that all of the hard drive carriers have been removed from the bays in the front of the chassis and that the spring bar has been loosened as directed in the previous section.

  • Page 93: Installing The Motherboard

    Chapter 6: Advanced Chassis Setup Installing the Motherboard I/O Shield The I/O shield (Figure 6-11) holds the motherboard ports in place. The I/O shield does not require installation. Figure 6-11. I/O Shield Placement I/O Shields Compatible Motherboards Most Supermicro wirelessTwin series motherboards are compatible with the SC217HD chassis.
  • Page 94 SUPERSERVER 2027TR-D70RF+ USER'S MANUAL Installing the Motherboard (Figure 6-12) 1. Review the documentation that came with your motherboard. Become familiar with component placement, requirements, cautions, and cable connections. 2. Remove the motherboard node from the back of the chassis. It is not necessary to power down the system.

  • Page 95: Node Installation/Removal

    Chapter 6: Advanced Chassis Setup Node Installation/Removal As with any server system, power must be removed from the serverboard when upgrading or installing memory or processors. In the 2U Twin server, the serverboards (nodes) are capable of being hot-swapped from the chassis, allowing one to be powered down for servicing while the other continues operating.
  • Page 96 SUPERSERVER 2027TR-D70RF+ USER'S MANUAL Figure 6-13. Removing a System Node 6-14...

  • Page 97: 6-10 Installing And Replacing The Adapter Card

    Chapter 6: Advanced Chassis Setup 6-10 Installing and Replacing the Adapter Card Adapter cards (Figure 6-14) provide hot-swappable functionality to the chassis. Figure 6-14: Adapter Card Installation Adapter Card Motherboard Drawer Ten Screws Removing the Adapter Card 1. Remove the motherboard node from the back of the chassis. It is not necessary to power down the system.

  • Page 98: Pci Slot Setup

    SUPERSERVER 2027TR-D70RF+ USER'S MANUAL PCI Slot Setup The SC217HD chassis supports one low-profi le PCI slot for each node, for a total of four slots in the chassis (Figure 6-15). To install a low-profi le expansion card, follow the instructions on the following pages. Figure 6-15:PCI Slot Confi...
  • Page 99 Chapter 6: Advanced Chassis Setup Installing MicroLP Cards (Figure 6-17) 1. Pull out the motherboard node drawer from the chassis. It is not necessary to power down the system when removing a node. 2. Open the PCI slot clip in the rear of the motherboard node drawer. 3.

  • Page 100: 6-11 Installing And Removing Hard Drives

    SUPERSERVER 2027TR-D70RF+ USER'S MANUAL 6-11 Installing and Removing Hard Drives The SC217HDHD chassis contains two individual motherboards in separate node drawers. Each motherboard node controls a set of six hard drives. Note that if a motherboard node drawer is pulled out of the chassis, the hard drives associated with that node will power down as well.
  • Page 101 Chapter 6: Advanced Chassis Setup The SC217HD features hot-swappable hard drives which can be removed from the chassis without powering down the server. Removing Hard Drive Carriers from the Chassis (Figure 6-19) 1. Press the release button on the drive carrier. This extends the handle of the drive carrier.
  • Page 102 SUPERSERVER 2027TR-D70RF+ USER'S MANUAL Hard drives are mounted in the drive carrier to simplify their installation and removal from the chassis. These carriers also help promote proper airfl ow for the drive bays. Caution: Except for short periods of time while swapping hard drives, do not operate the server without hard drives in the hard drive bays.
  • Page 103 Chapter 6: Advanced Chassis Setup Figure 6-20: Installing the Hard Drive SAS/SATA Hard Drive Mounting Holes Drive Carrier 6-21...

  • Page 104: 6-12 Power Supply

    SUPERSERVER 2027TR-D70RF+ USER'S MANUAL 6-12 Power Supply The SC217HD chassis includes a 1280 Watt power supply. This power supply is auto-switching capable. This enables it to automatically sense and operate at a 100v to 240v input voltage. An amber light will be illuminated on the power supply when the power is off.

  • Page 105: Chapter 7 Bios

    Chapter 7: BIOS Chapter 7 BIOS Introduction This chapter describes the AMI BIOS Setup Utility for the X9DRT-HF+ serverboard. The 128 Mb AMI BIOS® is stored in a Flash EEPROM and can be easily updated. This chapter describes the basic navigation of the AMI BIOS Setup Utility setup screens.

  • Page 106: Starting The Setup Utility

    SUPERSERVER 2027TR-D70RF+ USER'S MANUAL Starting the Setup Utility Normally, the only visible Power-On Self-Test (POST) routine is the memory test. As the memory is being tested, press the <Delete> key to enter the main menu of the AMI BIOS Setup Utility. From the main menu, you can access the other setup screens.

  • Page 107: Advanced Settings Menu

    Chapter 7: BIOS Supermicro X9DRT-HF+ Version This item displays the SMC version of the BIOS ROM used in this system. Build Date This item displays the date that the BIOS Setup utility was built. Memory Information Total Memory This displays the amount of memory that is available in the system. Advanced Settings Menu Boot Feature Quiet Boot...
  • Page 108 SUPERSERVER 2027TR-D70RF+ USER'S MANUAL AddOn ROM Display Mode This item sets the display mode for the Option ROM. Select Keep Current to use the current AddOn ROM Display setting. Select Force BIOS to use the Option ROM display mode set by the system BIOS. The options are Force BIOS and Keep Current.
  • Page 109 Chapter 7: BIOS CPU Confi guration This submenu displays the information of the CPU as detected by the BIOS. It also allows the user to confi guration CPU settings. Socket 1 CPU Information/Socket 2 CPU Information This submenu displays the following information regarding the CPU installed in Socket 1 and (or) Socket 2 as detected by the BIOS.
  • Page 110 SUPERSERVER 2027TR-D70RF+ USER'S MANUAL Active Processor Cores Set to Enabled to use a processor's second core and above. (Please refer to Intel's website for more information.) The options are All, 1, 2, 4, and 6. Limit CPUID Maximum Use this feature to set the maximum CPU ID value. Select Enabled to boot a legacy operating system that cannot support processors with extended CPUID functions.
  • Page 111 Chapter 7: BIOS Intel® Virtualization Technology (Available when supported by the CPU) Select Enabled to support Intel Virtualization Technology, which will allow one platform to run multiple operating systems and applications in independent partitions, creating multiple "virtual" systems in one physical computer. The options are Enabled and Disabled.
  • Page 112 SUPERSERVER 2027TR-D70RF+ USER'S MANUAL CPU C7 Report (Available when Power Technology is set to Custom) Select Enabled to allow the BIOS to report the CPU C7 State (ACPI C3) to the operating system. CPU C7 State is a processor-specifi c low C-State. The options are Enabled and Disabled.

  • Page 113: North Bridge

    Chapter 7: BIOS Chipset Confi guration North Bridge This feature allows the user to confi gure the following North Bridge settings. Integrated IO Confi guration Intel VT-d Select Enabled to enable Intel Virtualization Technology support for Direct I/O VT-d by reporting the I/O device assignments to the VMM (Virtual Working Memory) through the DMAR ACPI Tables.
  • Page 114 SUPERSERVER 2027TR-D70RF+ USER'S MANUAL IIO 2 PCIe Port Bifurcation Control This submenu confi gures the following IO PCIe Port Bifurcation Control settings for IIO 2 PCIe ports to determine how the available PCI-Express lanes to be distributed between the PCI-Exp. Root Ports. QPI Confi...
  • Page 115 Chapter 7: BIOS Sparing This item displays if memory sparing is supported by the motherboard. Memory sparing enhances system performance. DIMM Information The status of the memory modules detected by the BIOS is displayed. Memory Mode When Independent is selected, all DIMMs are available to the operating system.
  • Page 116 SUPERSERVER 2027TR-D70RF+ USER'S MANUAL Patrol Scrub Patrol Scrubbing is a process that allows the CPU to correct correctable memory errors detected on a memory module and send the correction to the requestor (the original source). When this item is set to Enabled, the IO hub will read and write back one cache line every 16K cycles, if there is no delay caused by internal processing.
  • Page 117 Chapter 7: BIOS South Bridge Confi guration This feature allows the user to confi gure the settings for the Intel PCH chip. PCH Information This feature displays the following PCH information. Name: This item displays the name of the PCH chip. Stepping: This item displays the status of the PCH stepping.
  • Page 118 SUPERSERVER 2027TR-D70RF+ USER'S MANUAL SATA Confi guration When this submenu is selected, the AMI BIOS automatically detects the presence of IDE or SATA devices and displays the following items. SATA Port0~SATA Port5: The AMI BIOS displays the status of each SATA port as detected by the BIOS.
  • Page 119 Chapter 7: BIOS RAID Mode The following items are displayed when RAID Mode is selected: Port 0~5 Hot Plug Select Enabled to enable hot-plug support for the particular port. The options are Enabled and Disabled. SCU Confi guration This menu is used to confi gure SCU (Storage Controller Unit) confi guration menu options.
  • Page 120 SUPERSERVER 2027TR-D70RF+ USER'S MANUAL PERR# Generation Select Enabled to allow a PCI device to generate a PERR number for a PCI Bus Signal Error Event. The options are Enabled and Disabled. SERR# Generation Select Enabled to allow a PCI device to generate an SERR number for a PCI Bus Signal Error Event.
  • Page 121 Chapter 7: BIOS Network Stack Select Enabled enable PXE (Preboot Execution Environment) or UEFI (Unifi ed Extensible Firmware Interface) for network stack support. The options are Enabled and Disabled. IPv4 PXE Support (Available when Network Stack is set to Enabled) Set this item to Enabled to activate IPv4 PXE Support.

  • Page 122: Serial Port Console Redirection

    SUPERSERVER 2027TR-D70RF+ USER'S MANUAL Device Mode Use this feature to select the desired mode for a serial port specifi ed. The options are Normal and High Speed. SOL Confi guration Serial Port Select Enabled to enable a serial port specifi ed by the user. The options are Enabled and Disabled.

  • Page 123: Console Redirection Settings

    Chapter 7: BIOS Console Redirection Select Enabled to use the SOL Port for Console Redirection. The options are Enabled and Disabled. Console Redirection Settings This feature allows the user to specify how the host computer will exchange data with the client computer, which is the remote computer used by the user. Terminal Type This feature allows the user to select the target terminal emulation type for Console Redirection.
  • Page 124 SUPERSERVER 2027TR-D70RF+ USER'S MANUAL Flow Control This feature allows the user to set the fl ow control for Console Redirection to prevent data loss caused by buffer overfl ow. Send a "Stop" signal to stop sending data when the receiving buffer is full. Send a "Start" signal to start sending data when the receiving buffer is empty.
  • Page 125 Chapter 7: BIOS Console Redirection Settings (for EMS) This feature allows the user to specify how the host computer will exchange data with the client computer, which is the remote computer used by the user. Out-of-Band Management Port The feature selects a serial port used by the Microsoft Windows Emergency Management Services (EMS) to communicate with a remote server.

  • Page 126: Acpi Settings

    SUPERSERVER 2027TR-D70RF+ USER'S MANUAL ACPI Settings Use this feature to confi gure Advanced Confi guration and Power Interface (ACPI) power management settings for your system. ACPI Sleep State Use this feature to select the ACPI State when the system is in sleep mode. Select S1 (CPU Stop Clock) to erase all CPU caches and stop executing instructions.
  • Page 127 Chapter 7: BIOS Pending Operation Use this item to schedule an operation for the security device. The options are None, Enable Take Ownership, Disable Take Ownership, and TPM Clear. Note: During restart, the computer will reboot in order to execute the pending operation and change the state of the security device.
  • Page 128 SUPERSERVER 2027TR-D70RF+ USER'S MANUAL TPM Support: Trusted Platform support TPM State: Trusted Platform state ME Subsystem This feature displays the following ME Subsystem Confi guration settings. • ME BIOS Interface Version • ME Version iSCSI Confi guration This item displays iSCSI confi guration information: iSCSI Initiator Name This item displays the name of the iSCSI Initiator, which is a unique name used in the world.
  • Page 129 Chapter 7: BIOS Wake on LAN Select enabled to wake the system with a magic packet. The options are Enabled and Disabled. Blink LEDs This feature allows the user to specify the duration for LEDs to blink. The range is from 0 ~ 15 seconds.

  • Page 130: Event Logs

    SUPERSERVER 2027TR-D70RF+ USER'S MANUAL Event Logs Select the Event Logs tab to access the following submenu items. Change SMBIOS Event Log Settings This feature allows the user to confi gure SMBIOS Event settings. Enabling/Disabling Options SMBIOS Event Log Select Enabled to enable SMBIOS (System Management BIOS) Event Logging during system boot.
  • Page 131 Chapter 7: BIOS Erasing Settings Erase Event Log Select Enabled to erase the SMBIOS (System Management BIOS) Event Log, which is completed before a event logging is initialized upon system reboot. The options are No, Yes, Next reset, and Yes, Every reset. When Log is Full Select Erase Immediately to immediately erase SMBIOS error event logs that exceed the limit when the SMBIOS event log is full.

  • Page 132: Ipmi

    SUPERSERVER 2027TR-D70RF+ USER'S MANUAL IPMI Select the IPMI (Intelligent Platform Management Interface) tab to access the following submenu items. IPMI Firmware Revision, IPMI Status These items indicates your system IPMI fi rmware revision number and status. System Event Log SEL Components Select Enabled for all system event logging at bootup.
  • Page 133 Chapter 7: BIOS Custom EFI Logging Options Log EFI Status Codes Select Enabled to log EFI (Extensible Firmware Interface) Status Codes, Error Codes or Progress Codes. The options are Enabled and Disabled. Note: After making changes on a setting, be sure to reboot the system for the changes to take effect.

  • Page 134: Boot

    SUPERSERVER 2027TR-D70RF+ USER'S MANUAL Boot This submenu allows the user to confi gure the following boot settings for the system. Boot Option Priorities Boot Option #1/ Boot Option #2/ Boot Option #3, etc. Use this feature to specify the sequence of boot device priority. Network Devices, USB Device BBS Priorities, Hard Disk Drives The above options appear when detected by the BIOS.

  • Page 135: Security

    Chapter 7: BIOS Security This menu allows the user to confi gure the following security settings for the system. Password Check Use this feature to determine when a password entry is required. Select Setup to require the password only when entering setup. Select Always to require the password when entering setup and on each boot.

  • Page 136: Save & Exit

    SUPERSERVER 2027TR-D70RF+ USER'S MANUAL Save & Exit This submenu allows the user to confi gure the Save and Exit settings for the system. Discard Changes and Exit Select this option to quit the BIOS Setup without making any permanent changes to the system confi...
  • Page 137 Chapter 7: BIOS Discard Changes Select this feature and press <Enter> to discard all the changes and return to the BIOS setup. When the dialog box appears, asking you if you want to load previous values, select Yes to load the values previous saved, or select No to keep the changes you've made so far.
  • Page 138 SUPERSERVER 2027TR-D70RF+ USER'S MANUAL Notes 7-34...

  • Page 139: Appendix A Bios Error Beep Codes

    Appendix A: BIOS Error Beep Codes Appendix A BIOS Error Beep Codes During the POST (Power-On Self-Test) routines, which are performed each time the system is powered on, errors may occur. Non-fatal errors are those which, in most cases, allow the system to continue the boot-up process.
  • Page 140 SUPERSERVER 2027TR-D70RF+ USER'S MANUAL Notes...

  • Page 141: Appendix B System Specifi Cations

    Appendix B: System Specifi cations Appendix B System Specifi cations Note: Unless noted specifi cations apply to a complete system (all serverboards). Processors Two E5-2600 series processors per node in Socket R LGA 2011 type sockets Note: please refer to our website for details on supported processors. Chipset One C602 chipset per node BIOS...
  • Page 142 SUPERSERVER 2027TR-D70RF+ USER'S MANUAL Chassis SC217HD-R1K28MB (2U rackmount) Dimensions: (WxHxD) 17.25 x 3.47 x 26.75 in. (438 x 88 x 679 mm) Weight Gross (Bare Bone): 85 lbs. (38.6 kg.) System Cooling The SuperServer 2027TR-D70RF+ has four (4) 8-cm PWM system cooling fans System Input Requirements AC Input Voltage: 85-264V AC auto-range Rated Input Current: 13 - 5.5A...
  • Page 143 Appendix B: System Specifi cations Notes...
  • Page 144 SUPERSERVER 2027TR-D70RF+ USER'S MANUAL (continued from front) The products sold by Supermicro are not intended for and will not be used in life support systems, medical equipment, nuclear facilities or systems, aircraft, aircraft devices, aircraft/emergency communication devices or other critical systems whose failure to perform be reasonably expected to result in signifi...

Table of Contents
