⚫ Type：
SDR DIN rail power supply
（Series：SDR-75, SDR-120, SDR-240, SDR-480, SDR-480P, SDR-960）
SDR-75-12
SDR-75-24
SDR-75-48
SDR-120-12
SDR-120-24
SDR-120-48
SDR-240-24
SDR-240-48
SDR-480-24
SDR-480-48
SDR-480P-24
SDR-480P-48
SDR-960-24
SDR-960-48
⚫ Introduction

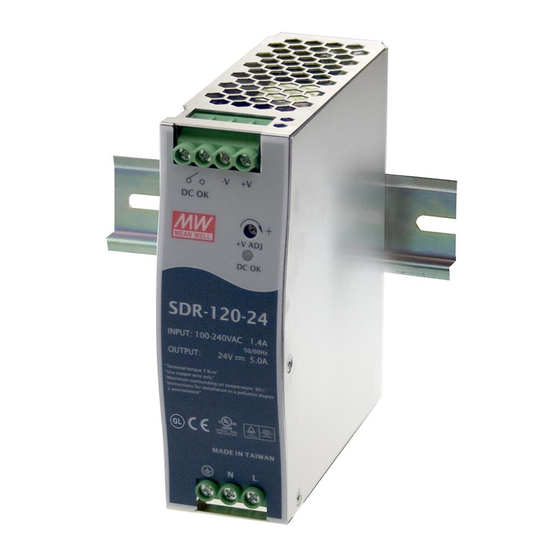

SDR is a DIN rail power supply series with a 150% peak load capability (3 seconds) and high efficiency of up to 94%.
Like other Mean Well's DIN series, they can be mounted on a TS35 Standard DIN rail.
⚫ Installation
（1）Always allow good ventilation clearances, 5mm left and right, 40mm above and 20mm below, around the unit
in use to prevent it from overheating.
（2）The appropriate mounting orientation for the unit is vertical, the input terminals at the bottom and output on
the top. Mounting orientations other than that, such as upside down, horizontal, or table-top mounting, is not
allowed.
Installation Manual
INPUT: 100-240VAC 1.55A
INPUT: 100-240VAC 1.55A
INPUT: 100-240VAC 1.55A
INPUT: 100-240VAC 1.4A
INPUT: 100-240VAC 1.4A
INPUT: 100-240VAC 1.4A
INPUT: 100-240VAC 2.6A
INPUT: 100-240VAC 2.6A
INPUT: 100-240VAC 5A
INPUT: 100-240VAC 5A
INPUT: 100-240VAC 5A
INPUT: 100-240VAC 5A
INPUT: 200-240VAC 6A
INPUT: 200-240VAC 6A
50/60Hz
OUTPUT: 12V 6.3A
50/60Hz
OUTPUT: 24V 3.2A
50/60Hz
OUTPUT: 48V 1.6A
50/60Hz
OUTPUT: 12V 10A
50/60Hz
OUTPUT: 24V 5A
50/60Hz
OUTPUT: 48V 2.5A
50/60Hz
OUTPUT: 24V 10A
50/60Hz
OUTPUT: 48V 5A
50/60Hz
OUTPUT: 24V 20A
50/60Hz
OUTPUT: 48V 10A
50/60Hz
OUTPUT: 24V 20A
50/60Hz
OUTPUT: 48V 10A
50/60Hz
OUTPUT: 24V 40A
50/60Hz
OUTPUT: 48V 20A
Advertisement
Related Manuals for Mean Well SDR Series
Summary of Contents for Mean Well SDR Series
- Page 1 SDR is a DIN rail power supply series with a 150% peak load capability (3 seconds) and high efficiency of up to 94%. Like other Mean Well’s DIN series, they can be mounted on a TS35 Standard DIN rail. ⚫ Installation （1）Always allow good ventilation clearances, 5mm left and right, 40mm above and 20mm below, around the unit...
- Page 2 Installation Manual （3）Use copper wire only, and recommended wires are shown as below. Rated Current of 6-10A 13-16A 16-25A 25-32A Equipment (Amp) Cross-section of 0.75 1.00 Lead(mm Note: 1. Current each wire carries should be de-rated to 80% of the current suggested above when using 5 or more wires connected to the unit.
- Page 3 Installation Manual （10）For SDR-960, if it is necessary for your system to meet EN61204-3 Radiation class B. Then, attaching a ferrite core clamp filter to the AC cable, as close as possible to the AC source, can fulfil the radiated emissions requirements.
- Page 4 Installation Manual Manufacturer： MEAN WELL ENTERPRISES Co., LTD. No.28, Wuquan 3rd Rd., Wugu Dist., New Taipei City 24891, Taiwan Tel: +886-2-2299-6100 Web: www.meanwell.com Branch Office： China U.S.A. Europe MEAN WELL (GUANGZHOU) MEAN WELL USA, INC. MEAN WELL EUROPE B.V. ENTERPRISES Co., LTD.
- Page 5 In order to reduce the impacts on the environment and take the more responsibility for protecting the earth, MEAN WELL is confirming and announcing the conformity to China RoHS, an Administrative Measures for the Restriction of the Use of Hazardous Substances in Electrical and Electronic Products.
- Page 6 Declaration of China VOC Conformity In order to reduce the impacts on the environment and take the more responsibility for protecting the earth, MEAN WELL is confirming and announcing the conformity to China’s Standardization Administration Releases VOC Standards Standard No.
- Page 7 Declaration of Five PBT TSCA Conformity In order to reduce the impacts on the environment and take the more responsibility for protecting the earth, MEAN WELL hereby confirms that MEAN WELL product series comply with Use and Risk Management for Five PBT Chemicals under TSCA section 6(h) CAS No.
