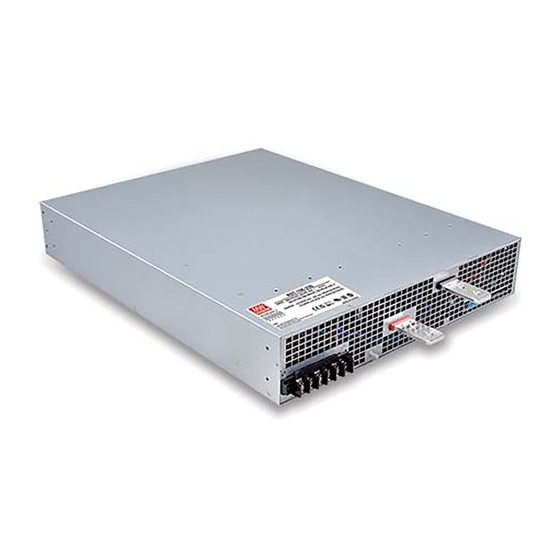

Enclosed Type Switching Power Supply
Type：
(Families: CSP, DPU, ENP, ERP, G3, HDP, HEP, HRP, HRP-N, HRP-N3, HRPG, HSP, LRS,
MSP, NED, NEL, NES, NSP, PSP, PSPA, QP, RS, RSP, RST, SE, SP, SPV, TP, UHP,
USP)
Introduction
Enclosed type switching power supplies possess a metal or plastic case for covering their internal PCB and will be
installed inside the case of the end system. Mean Well's enclosed type power supplies include 2 different groups of
power supplies, with built-in fan and without built-in fan, depending on their rated power or design concept.
Installation
（1）Before any installation or maintenance work, please disconnect your system from the utility.
Ensure that it can't be re-connected inadvertently!
（2）Keep enough insulation distance between mounting screws and internal components of power supplies. Please
refer to case drawing on specifications to receive the maximum length of mounting screw.
（3）Mounting orientations other than standard orientation or operate under high ambient temperature may
increase the internal component temperature and will require a de-rating in output current. Please refer to
the specification sheets to receive the optimum mounting position and information about the de-rating curve.
（4）Fans and ventilation holes must be kept free from any obstructions. Also a 10-15 cm clearance must be kept
when the adjacent device is a heat source.
（5）Input and Output terminal
Series
RSP-750 / 1000 / 1500 / 2000 / 2400 / 3000
SE-450 / 1000 / 1500
HEP-600 ， HRP-300 ， HRP-300N ， HRP-300N3 ， HRPG-300 ， MSP-300
SP-480，SP-750，SPV-1500，USP-500，RST-5000，RST-10000，
RST-7K5，RST-15K
HRP-075 / 100 / 150/ 150N / 150N3 / 200，HRPG-150 / 200
LRS-035 / 050 / 075 / 100 / 150 / 150F / 200 / 350 / 450 / 600
MSP-100 / 200
NED-035 / 050 / 075 / 100，NET-035 / 050 / 075
NES-025 / 035 / 050 / 075 / 100 / 150 / 200 / 350
QP-200 / 320 / 375
RD-050 / 065 / 085 / 125，RID-050 / 065 / 085 / 125
RS-035 / 050 / 075 / 100 / 150
RSP-075 / 100 / 150 / 200 / 320
SP-075 / 100 / 150 / 200 / 240 / 320，SPV-150/300
NSP-1600 / 3200，DPU-3200，RSP-1600
SE-100 / 200 / 350，HSP-250，PSP-600
RD-035，RT-050 / 065 / 085 / 125
RQ-050 / 065 / 085 / 125
TP-075 / 100 / 150，QP-100 / 150
RS-015 / 025
NES-015，USP-150
ERP-350
HDP-190 / 240
Installation Manual
Terminal Screw
Suggested
Screw Size
Torque
M4
10-12
M3.5
8-10
M3
6-8
#6
8-10
Advertisement
Related Manuals for Mean Well RST-15K Series
Summary of Contents for Mean Well RST-15K Series
- Page 1 Enclosed type switching power supplies possess a metal or plastic case for covering their internal PCB and will be installed inside the case of the end system. Mean Well’s enclosed type power supplies include 2 different groups of power supplies, with built-in fan and without built-in fan, depending on their rated power or design concept.
- Page 2 Installation Manual NEL-200 / 300 ENP-120 / 180 / 240 / 360 M2.6 Input Output Terminal Screw Suggested Suggested Series Screw Size Screw Size Torque Torque RST-7K5-L 10-12kgf-cm 10-12 HRP-450 / 600 / 600N / 600N3 HRPG-450 / 600 M3.5 6-8kgf-cm 10-12 MSP-450 / 600 / 1000...
- Page 3 Installation Manual B Recommend torque for iron： Size of screw (Imperial units) Recommend torque (kgf-cm) 3-56 5.0±20% 4-40 6.9±20% 4-48 7.0±20% 5-40 9.4±20% 5-44 9.9±20% 6-32 12.0±20% 6-40 13.4±20% 8-32 21.8±20% 8-36 23.0±20% Size of screw (Metric Units) Recommend torque (kgf-cm) M2.5 4.6±20% 8.8±20%...
- Page 4 Installation Manual (8-2) Wiring in a three phase electricity system (a) 3Φ 3-wire/ ∆ 230VAC (b) 3Φ 4-wire/Y 400VAC （9）For other information about the products, please refer to www.meanwell.com for details. Warning / Caution !! （1）Risk of electrical shock and energy hazard. All failure should be examined by a qualified technician. Please do not remove the case of the power supply by yourself! （2）Please do not install power supplies in places with high moisture or near the water.
- Page 5 Installation Manual （6）All MW’s PSUs are designed in accordance with EMC regulations and the related test reports are available by request. Since they are belong to component power supplies and will be installed inside system enclosure, when they are integrated into a system, the EMC characteristics of the end system must be re-verified again. （7）This device complies with Part 15 of the FCC Rules.
- Page 6 Installation Manual Manufacturer： MEAN WELL ENTERPRISES Co., LTD. No.28, Wuquan 3rd Rd., Wugu Dist., New Taipei City 24891, Taiwan Tel: +886-2-2299-6100 Web: www.meanwell.com Branch Office： China China China MEAN WELL (GUANGZHOU) MEAN WELL (GUANGZHOU) SUZHOU MEAN WELL ENTERPRISES Co., LTD.
- Page 7 In order to reduce the impacts on the environment and take the more responsibility for protecting the earth, MEAN WELL is confirming and announcing the conformity to China RoHS, an Administrative Measures for the Restriction of the Use of Hazardous Substances in Electrical and Electronic Products.
- Page 8 Declaration of China VOC Conformity In order to reduce the impacts on the environment and take the more responsibility for protecting the earth, MEAN WELL is confirming and announcing the conformity to China’s Standardization Administration Releases VOC Standards Standard No.
- Page 9 Declaration of Five PBT TSCA Conformity In order to reduce the impacts on the environment and take the more responsibility for protecting the earth, MEAN WELL hereby confirms that MEAN WELL product series comply with Use and Risk Management for Five PBT Chemicals under TSCA section 6(h) CAS No.
