VERSION # 20-03-14
1 / 10

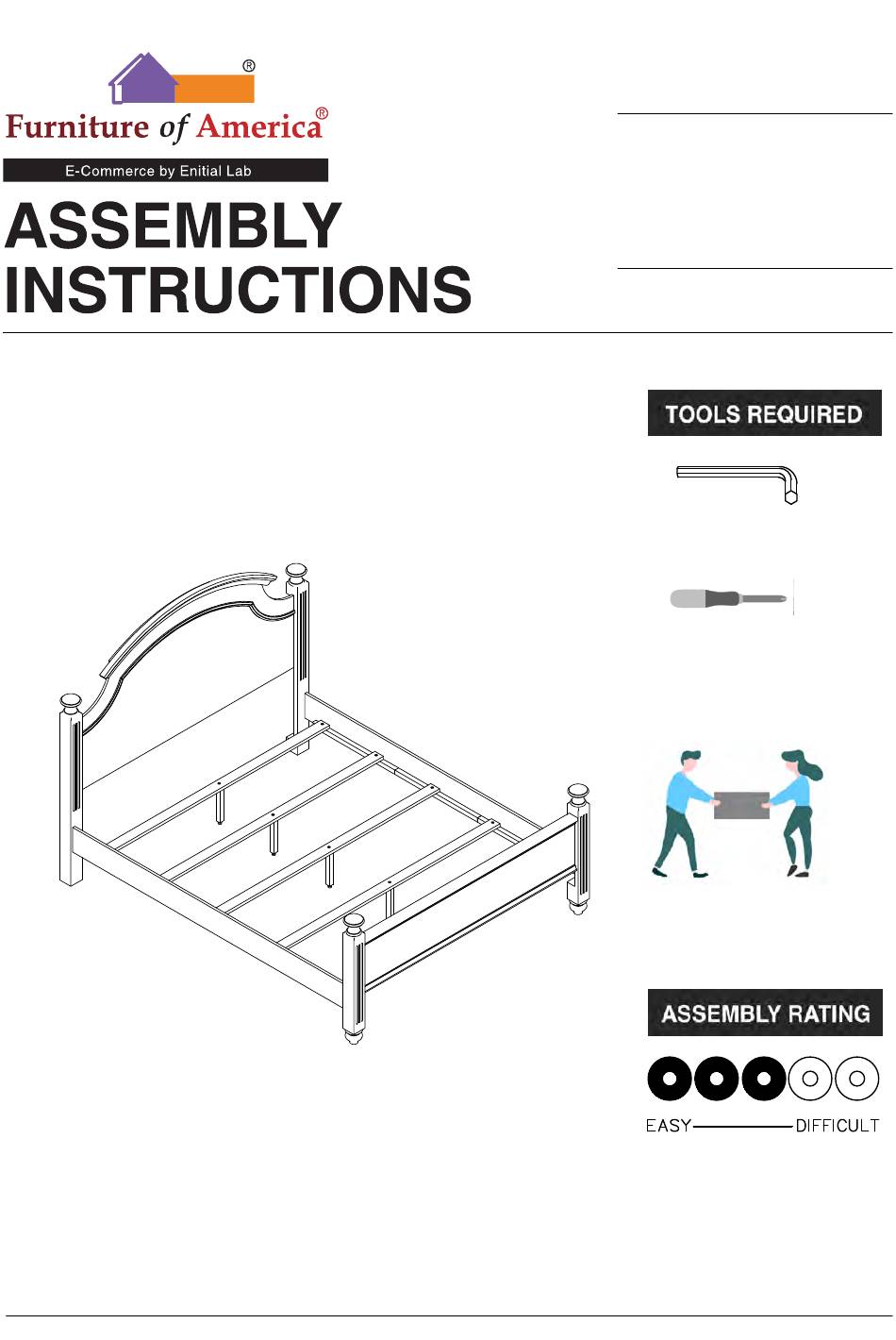

MODEL #
CM7083Q
Questions?
GIVE US CALL: 1-888-980-5122
MON-FRI 8:30AM - 5:30PM (PST)
Allen Wrench
(Included)
Phillips
Screwdriver
(Not Included)
2 - People
Recommended
The Assembly Rating is a
5-point system showing the
level of effort needed to
assemble a specific product.
Advertisement
Related Manuals for Furniture of America CM7083Q
Summary of Contents for Furniture of America CM7083Q
- Page 1 MODEL # CM7083Q Questions? GIVE US CALL: 1-888-980-5122 MON-FRI 8:30AM - 5:30PM (PST) Allen Wrench (Included) Phillips Screwdriver (Not Included) 2 - People Recommended The Assembly Rating is a 5-point system showing the level of effort needed to assemble a specific product.
- Page 2 America Furniture FOA Intro Thank you for your purchase! We hope you enjoy this new addition to your home for many years to come. Our commitment to providing quality products does not simply end when you purchase our product. We fully stand behind our products from start to finish. Our customer service department is available Monday –...
- Page 3 PRE ASSEMBLY INTRODUCTION We understand building ready-to-assemble furniture can be a challenging experience for some. To help avoid confusion, we have provided some helpful tips that may speed up the process. Teamwork ALWAYS have at least two people to help with transporting and assembling the product to avoid potential injury and/or damage.
- Page 4 4 / 10...
- Page 5 CM7083Q #1 1pc #2 1pc #3 1pc Headboard Footboard HB Leg (R) #4 1pc #5 2pcs #6 4pcs HB Leg (L) Siderail Slat #7 4pcs #8 1pc #9 1pc (Ø5/16") Slat support leg FB Leg (R) FB Leg (L) (238x30x30mm)
-
Page 6: Exploded View
Exploded View 6 / 10... - Page 7 CM7083Q is packed in 2 cases Disignation Hardware Carton Part Headboard #A x 4pcs #B x 4pcs CM7083Q-HB HB Legs (R) #C x 4pcs #E x 1pc HB Legs (L) Footboard #A x 4pcs #B x 4pcs #C x 4pcs...
- Page 8 ASSEMBLY INSTRUCTIONS Align HB legs (#3,4) to the headboard (#1), then secure by using bolts (#A) with washers (#B,C). Part #1 x1pc Part #3 x1pc Part #4 x1pc Hardware #A x4pcs Hardware #B x4pcs Hardware #C x4pcs Align FB legs (#8,9) to the footboard (#2), then secure by using bolts (#A) with washers (#B,C).
- Page 9 ASSEMBLY INSTRUCTIONS Align and attach side rails (#5) to the headboard (#1) and footboard (#2). Part #5 x2pcs Part #6 x4pcs Attach support legs (#7) to the slats (#6). Part #7 x4pcs 9 / 10...
- Page 10 ASSEMBLY INSTRUCTIONS Align slats (#6) to the side rails (#5), then secure by using screws (#D). Hardware #D x8pcs 10 / 10...
