USB-1608FS-Plus-OEM User's Guide

Synchronized operations

You can connect the SYNC pin of multiple devices together in a master/slave configuration and acquire data
from the analog inputs of all devices using one clock.
When the SYNC pin is configured as an output, the internal A/D pacer clock signal is sent to the header
connector. You can output the clock to the SYNC pin of another device that is configured for A/D pacer input.

Mechanical drawings

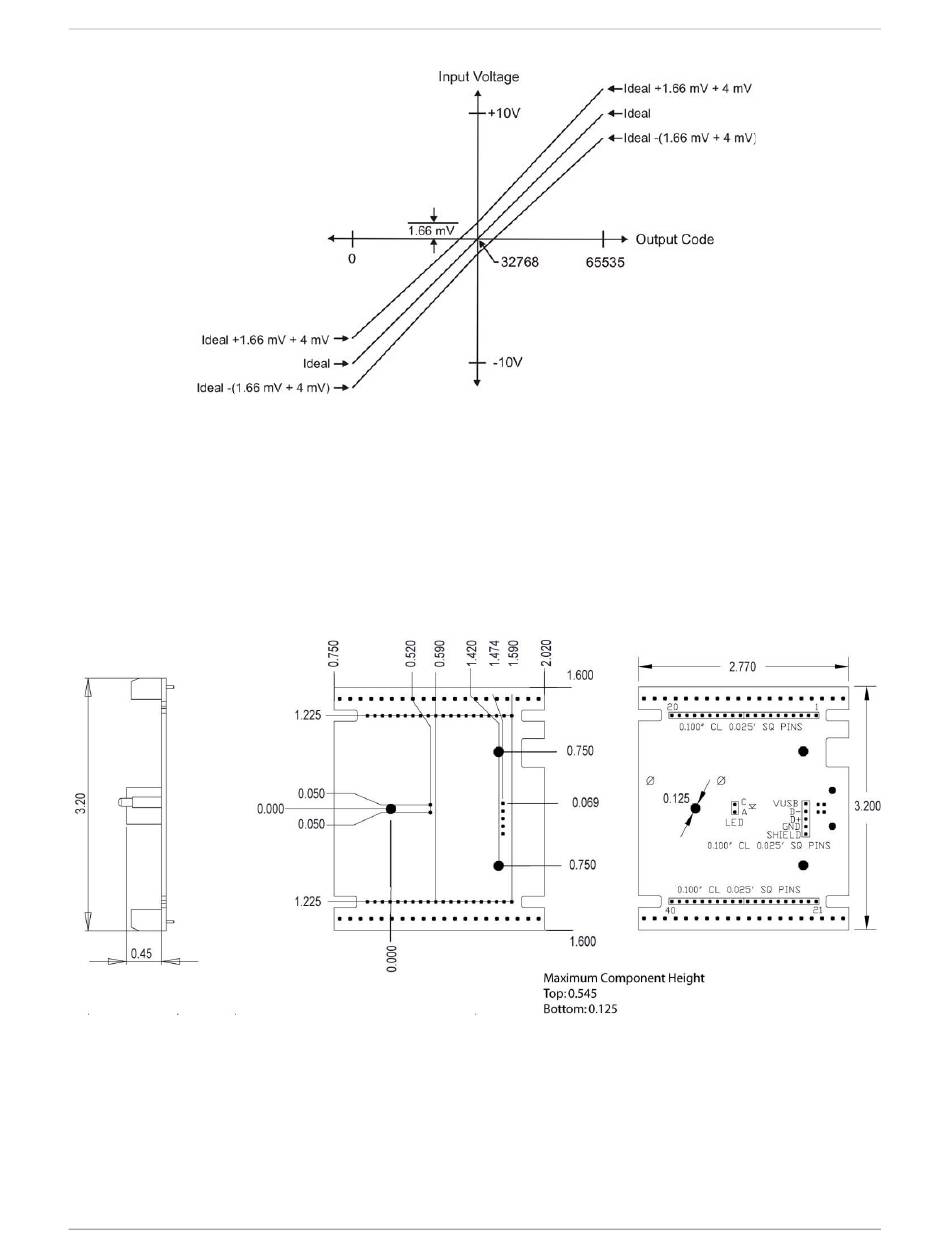

Figure 9. Error band plot
Figure 10. USB-1608FS-Plus-OEM circuit board dimensions
16
Functional Details
