3.2 Digital Inputs

Module Input:
Voltage Range:
ON Voltage Level:
OFF Voltage Level:
Input Impedance:
Isolation:
OFF to ON Response:
ON to OFF Response:
Fast Counter Inputs:
Fast Counter Inputs Max. Frekans
11
16 Channel
0-36V DC
12-36V DC
0-10V DC
>2M
Optical
20 us
90 us
DI12, DI13, DI14, DI15
200 kHz

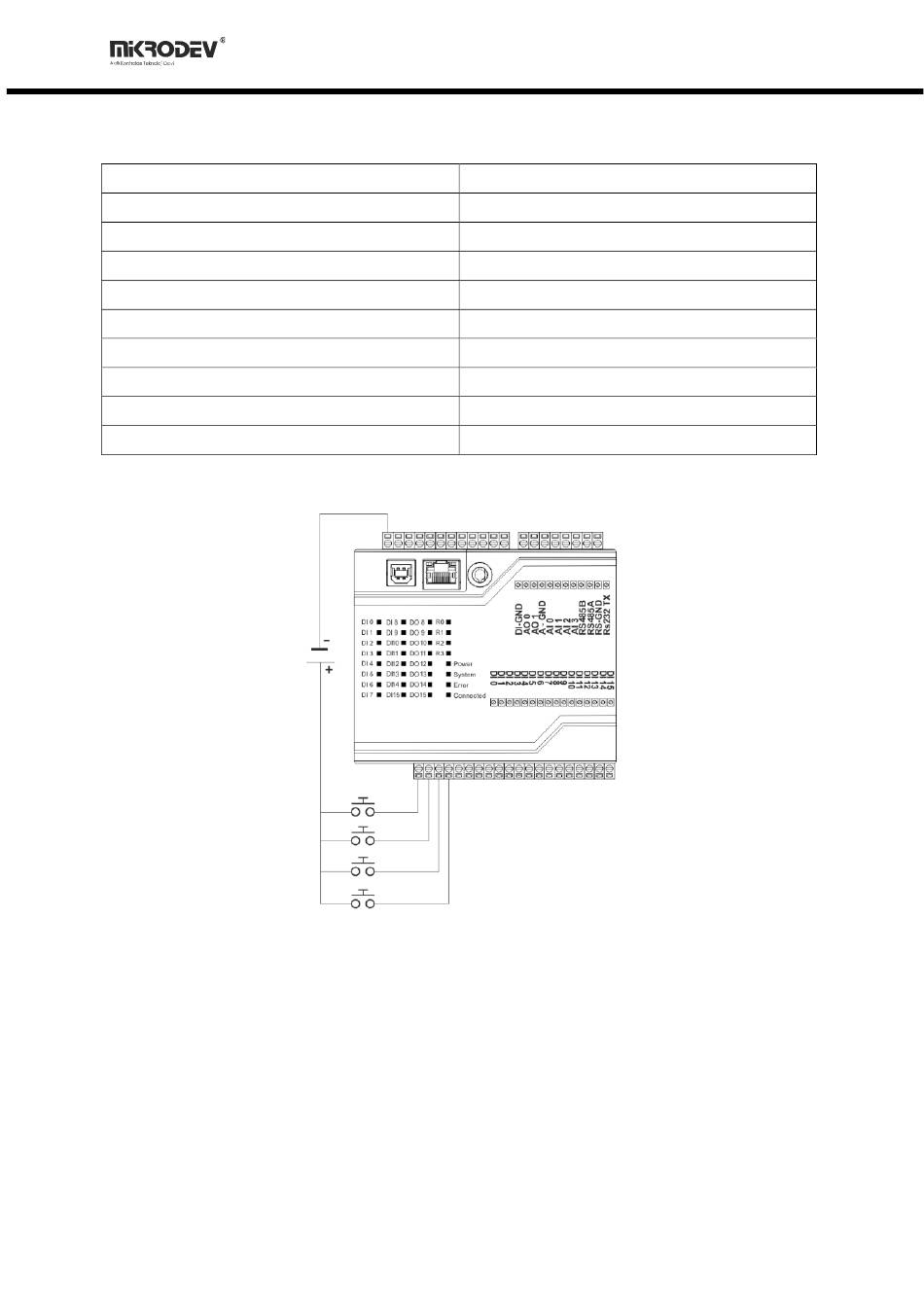

Figure 5 Digital Input Connection Diagram
