  • Page 1 MP110 HARDWARE MANUAL • MP110 PLC Series 12 / 2019 MIKRODEV_HM_MP110_EN v1.3...
  • Page 2: Table Of Contents

    CONTENTS FIGURES LIST ....................... 2 Preface ......................... 3 About Mikrodev ..................... 4 WARNING! ......................5 MP110 GENERAL INFORMATION ................ 6 Physical Interfaces ..................6 General Device Specifications ..............7 INSTALLATION INFORMATION................8 Rail Installation ..................8 Expansion Installation ................9 CONNECTION DIAGRAMS ................10...
  • Page 3: Figures List

    FIGURES LIST Figure 1 Connector and Physical Interfaces ............... 6 Figure 2 Mounting ....................8 Figure 3 Expansion Installation ................9 Figure 4 Power Connection Diagram ................10 Figure 5 Digital Input Connection Diagram ...............11 Figure 6 Digital Output Connection Diagram .............12 Figure 7 Analog Input Connection Diagram ..............13 Figure 8 RS485 Serial Port Connection Diagram ............14 MP110 SERIES –...
  • Page 4: Preface

    Preface Mikrodev MP201 and MP110 PLC series are programmable control devices that are used in a wide range of applications from process automation to building automation, from machine automation to telemetry applications. In this document, you can find information about the hardware specifications of Mikrodev MP201/MP110 series PLCs.
  • Page 5: About Mikrodev

    MIKRODEV is one of the few companies in the world that has its own designed IEC 61131-3 compliant library for its programmable logic control devices. In addition, the open, flexible, programmable SCADA solution developed by MIKRODEV is also available to customers.
  • Page 6: Warning

    ✓ Make sure that the environment in which your device is being used is free of moisture, electric shock, vibration and dust. ✓ Pay attention to the supply voltage and the connections of the product. Mikrodev is not responsible for any issues due to power failure since there is no auxiliary supply (UPS) on the device.
  • Page 7: Mp110 General Information

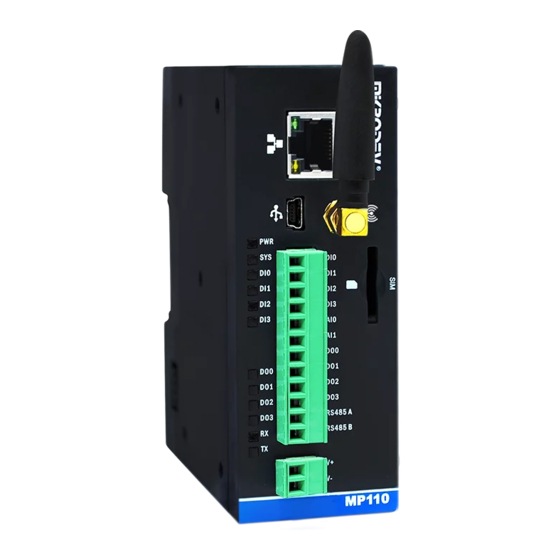

    MP110 GENERAL INFORMATION 1.1 Physical Interfaces Figure 1 Connector and Physical Interfaces Ethernet Port Antenna Connection USB Port Digital Input Connections System Power /Running LED SIM Card Slot Digital Input Status Information Analog Input Connections Digital Output Status Information Digital Output Connections Protocol Data Transfer LED Expansion Connector Device Power (V+/V-) Connection...
  • Page 8: General Device Specifications

    1.2 General Device Specifications SPECIFICATION ITEM DESCRIPTION Processor Architecture ARM Cortex M4 Processor Adressing Architecture Little Endian Addressing Supply 24 VDC (12-36VDC) Electrical Power <10W @ 24V DC Real Time Clock Integrated Digital Input 4 Channel Input / Output Digital Output 4 Channel, 2A@30V DC, PNP Analog Input 2 Channel, 0-20 mA, 4-20 mA...
  • Page 9: Installation Information

    INSTALLATION INFORMATION 2.1 Rail Installation DIN Rail Mountage First, the upper part of the device is mounted on the DIN rail. Then, with the help of the springs behind the device, when a lightly force is applied to the lower part, the device locates into the DIN rail easily and the montage is completed.
  • Page 10: Expansion Installation

    2.2 Expansion Installation The MP110 product and its extensions are mounted by sliding over the rail in such a way that the connectors correponds. Figure 3 Expansion Installation MP110 SERIES – HARDWARE MANUAL...
  • Page 11: Connection Diagrams

    CONNECTION DIAGRAMS 3.1 Supply Connection Supply: 12-36 VDC, Protected Power: < 13 W Figure 4 Power Connection Diagram MP110 SERIES – HARDWARE MANUAL...
  • Page 12: Digital Inputs

    3.2 Digital Inputs Module Input: 4 Channel Voltage Range: 0-36 VDC ON Voltage Level: 12-36 VDC OFF Voltage Level: 0-10 VDC Input Impedance: >2M Isolation: Optical OFF to ON Response: 20 us ON to OFF Response: 90 us Fast Counter Inputs: DI1, DI2, DI3, DI4 Fast Counter Inputs Max.
  • Page 13: Digital Outputs

    3.3 Digital Outputs Module Output: 4 Channel, Mosfet Output Voltage Range: 12-36V DC Max. Output Current: 2A @ 30V DC Isolation: Optical Pulse Width Modulation Output and Pulse Train Output: DO1, DO2, DO3, DO4 Pulse Train Output Max. Frequency(PTO): 50 kHz Pulse Width Modulation Output Max.
  • Page 14: Analog Inputs

    3.4 Analog Inputs Module Input: 2 Channel Analog Input Type 0-20 mA, 4-20 mA Analog Input Resolution: 12 Bit Analog Input Precision: %1 Precision Common Input GND: 1 GND (4 Point / Common) Figure 7 Analog Input Connection Diagram MP110 SERIES – HARDWARE MANUAL...
  • Page 15: Rs485 Serial Port

    3.5 RS485 SERIAL PORT RS485 Port Count: 1 Port, 3 kV ESD Protection Maximum Slave Counts: Limited to Hardware Isolation: Galvanic and Optical Communication Distance: 1000 m Data Bits: Stop Bits: Parity: None-Even-Odd Baudrate: 300 bps to 200 kbps Figure 8 RS485 Serial Port Connection Diagram MP110 SERIES –...
