3.2 Digital Inputs

Module Input:
Voltage Range:
ON Voltage Level:
OFF Voltage Level:
Input Impedance:
Isolation:
OFF to ON Response:
ON to OFF Response:
Fast Counter Inputs:
Fast Counter Inputs Max. Frequency:
11
4 Channel
0-36 VDC
12-36 VDC
0-10 VDC
>2M
Optical
20 us
90 us
DI1, DI2, DI3, DI4
200 kHz

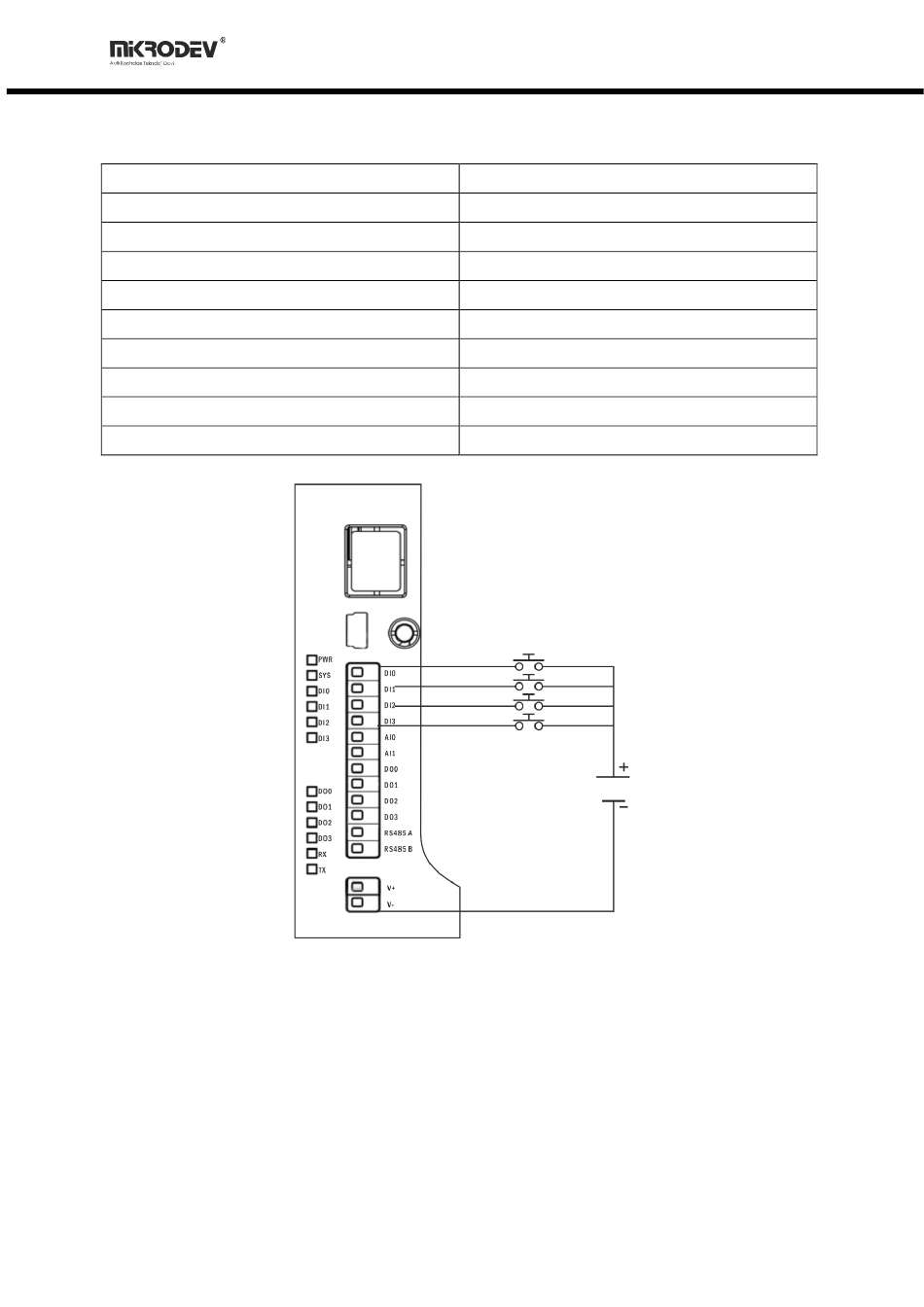

Figure 5 Digital Input Connection Diagram
MP110 SERIES – HARDWARE MANUAL
