3.6 Analog Outputs

Module Output:
Analog Output Type:
Analog Output Resolution:
Current Output Precision:
Common Output GND:
15

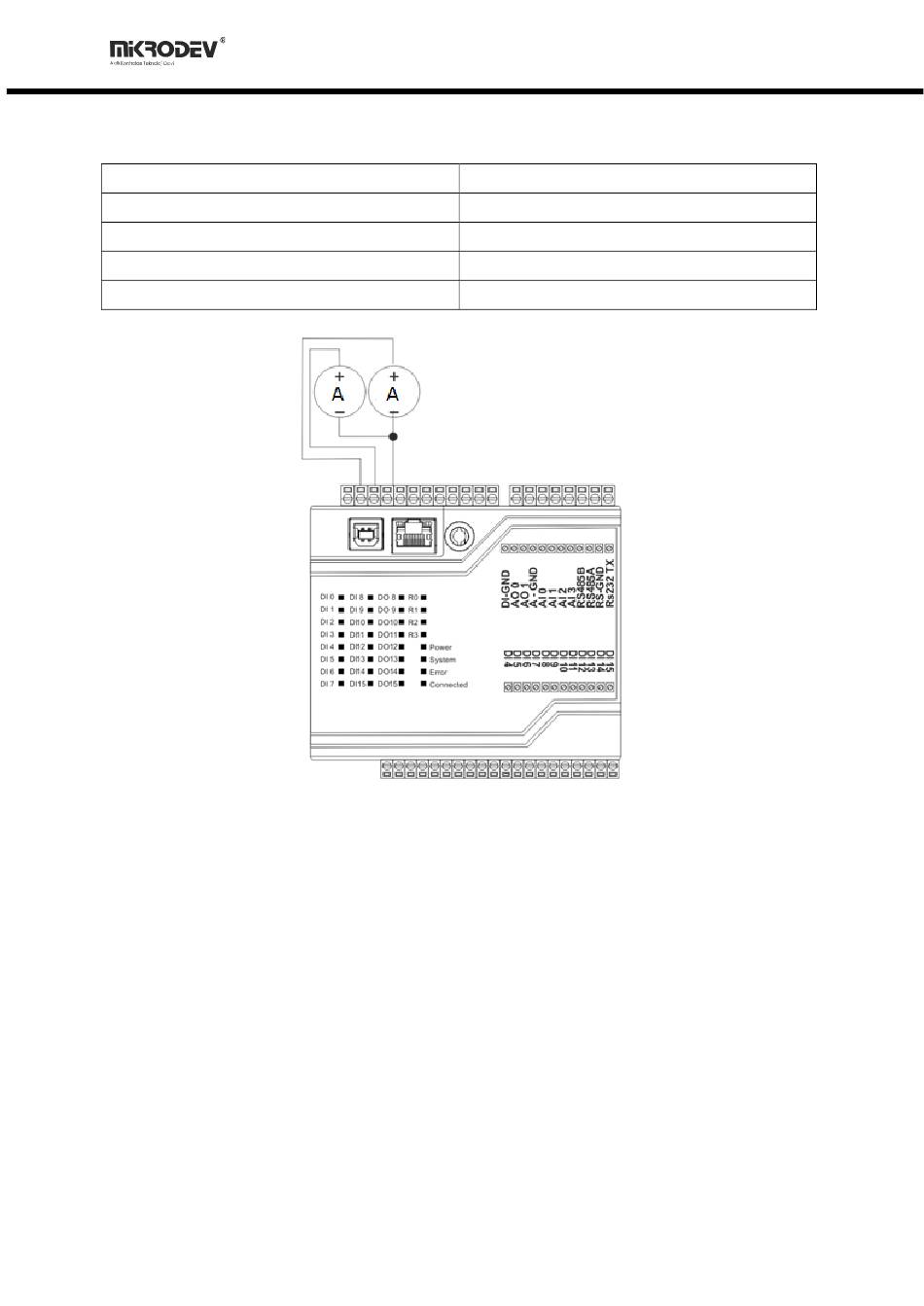

Figure 9 Analog Output Connection Diagram
2 Channel
0-20 mA, 4-20 mA
12 Bit
%1 Precision
1 GND (2 Point / Common)
