3.8 RS232 Serial Port
RS232 Port Count:
Communication Distance:
Data Bits:
Stop Bits:
Parity:
Baudrate:

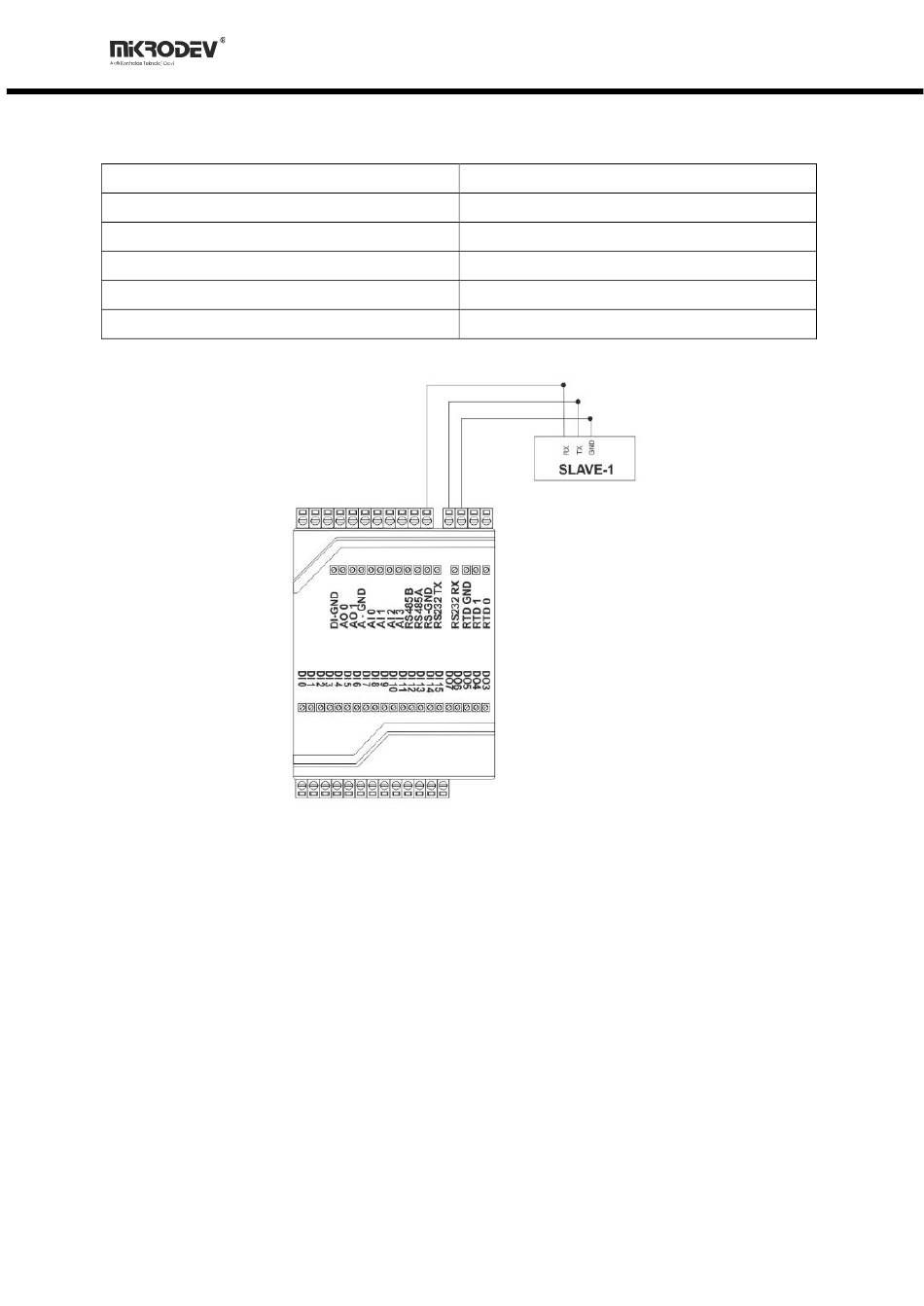

Figure 11 RS232 Serial Port Connection Diagram
17
1 Port
10 m
7-8
1-2
None-Even-Odd
300 bps to 200 kbps
MP211 SERIES – HARDWARE MANUAL
