3.2 Digital Inputs

Module Input:
Voltage Range:
ON Voltage Level:
OFF Voltage Level:
Input Impedance:
Isolation:
OFF to ON Response:
ON to OFF Response:
Fast Counter Inputs:
11
16 (Sink)
0-30 VDC
7 VDC -30 VDC
0-4 VDC
>2M
Optical
20 us
90 us
DI12, DI13, DI14, DI15

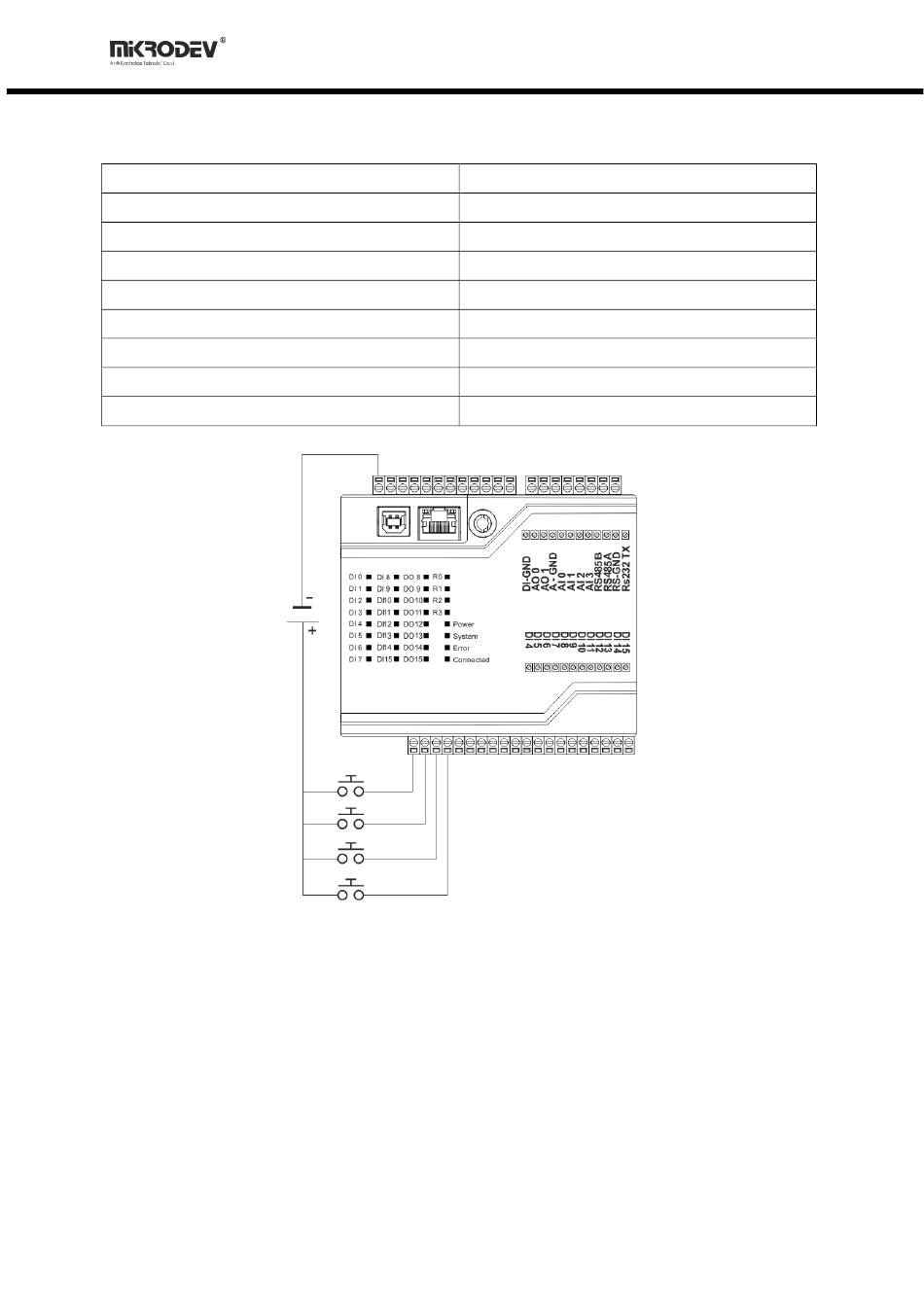

Figure 5 DIN Connection Diagram
