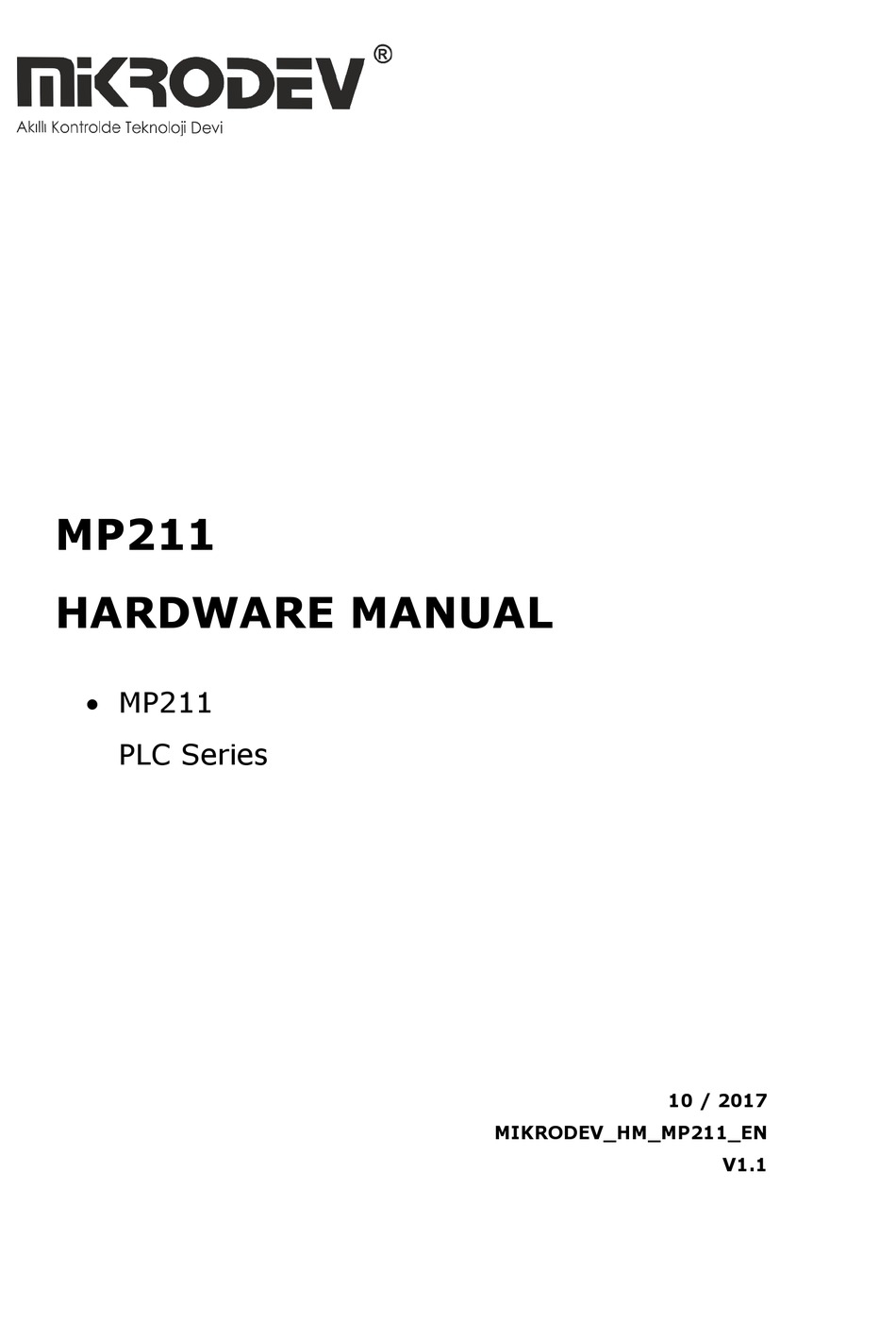

MP211
HARDWARE MANUAL
 MP211
PLC Series
10 / 2017
MIKRODEV_HM_MP211_EN
V1.1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MP211 PLC Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for MIKRODEV MP211 PLC Series

  • Page 1 MP211 HARDWARE MANUAL  MP211 PLC Series 10 / 2017 MIKRODEV_HM_MP211_EN V1.1...
  • Page 2: Table Of Contents

    CONTENTS MP211 GENERAL INFORMATION ................ 6 Physical Interfaces ..................6 General Device Specifications ..............7 INSTALLATION INFORMATION................8 Rail Installation ..................8 Extension Installation ................9 CONNECTION DIAGRAMS ................10 Supply Connection ..................10 Digital Inputs ...................11 Digital Outputs ..................12 Relay Outputs ..................13 Analog Inputs ..................14 Analog Outputs ..................15 RTD Inputs ....................16...
  • Page 3 FIGURES LIST Figure 1 Connector and Physical Interfaces ............... 6 Figure 2 Mounting ....................8 Figure 3 Extension Installation ................9 Figure 4 Power Connection Diagram ................10 Figure 5 DIN Connection Diagram ................11 Figure 6 DOUT Connection Diagram ................12 Figure 7 Relay Connection Diagram ................13 Figure 8 Analog Input Connection Diagram ..............14 Figure 9 Analog Output Connection Diagram ............15 Figure 10 RTD Input Connection Diagram ..............16...
  • Page 4 Preface Mikrodev MP201 and MP211 PLC series are programmable control devices that are used in a wide range of applications from process automation to building automation, from machine automation to telemetry applications. In this document, you can find information about the hardware specifications of Mikrodev MP201/MP211 series PLCs.
  • Page 5 MIKRODEV is one of the few companies in the world that has its own designed IEC 61131-3 compliant library for its programmable logic control devices. In addition, the open, flexible, programmable SCADA solution developed by MIKRODEV is also available to customers.
  • Page 6  Make sure that the environment in which your device is being used is free of moisture, electric shock, vibration and dust.  Pay attention to the supply voltage and the connections of the product. Mikrodev is not responsible for any issues due to power failure since there is no auxiliary supply (UPS) on the device.
  • Page 7: Mp211 General Information

    MP211 GENERAL INFORMATION 1.1 Physical Interfaces Figure 1 Connector and Physical Interfaces Digital Input Neutral Connection USB Port Analog Output Connections Relay Status Information Analog Neutral Connection Digital Output Status Information Analog Input Connection Digital Input Status Information RS485 Connections System Energised LED RS-232 Neutral Connections System Running LED...
  • Page 8: General Device Specifications

    1.2 General Device Specifications SPECIFICATION ITEM DESCRIPTION Processor Architecture ARM Cortex M4 Precossror Internal RAM 196 KB Processor CPU Processing Speed 168 MHz Adressing Architecture Little Endian Addressing Supply 24 VDC (12-36VDC) Electrical Power <10W Real Time Clock Integrated Digital Input Digital Output Analog Input Input / Output...
  • Page 9: Installation Information

    INSTALLATION INFORMATION 2.1 Rail Installation DIN Rail Mountage First, the upper part of the device is mounted on the DIN rail. Then, with the help of the springs behind the device, when a lightly force is applied to the lower part, the device locates into the DIN rail easily and the montage is completed.
  • Page 10: Extension Installation

    2.2 Extension Installation The MP211 product and its extensions are mounted by sliding over the rail in such a way that the connectors correponds. Figure 3 Extension Installation MP211 SERIES – HARDWARE MANUAL...
  • Page 11: Connection Diagrams

    CONNECTION DIAGRAMS 3.1 Supply Connection Supply: 12-36 VDC, Protected Power: < 13 W Figure 4 Power Connection Diagram MP211 SERIES – HARDWARE MANUAL...
  • Page 12: Digital Inputs

    3.2 Digital Inputs Module Input: 16 (Sink) Voltage Range: 0-30 VDC ON Voltage Level: 7 VDC -30 VDC OFF Voltage Level: 0-4 VDC Input Impedance: >2M Isolation: Optical OFF to ON Response: 20 us ON to OFF Response: 90 us Fast Counter Inputs: DI12, DI13, DI14, DI15 Figure 5 DIN Connection Diagram...
  • Page 13: Digital Outputs

    3.3 Digital Outputs Module Output: Mosfet Output Voltage Range: 0-40 VDC Max. Output Current: 2 A/point (@30V) Isolation: Optical External Voltage Input: 3.3-40 VDC Fast Outputs PWM, PTO: DQ1, DQ2, DQ3, DQ4 Fast Outputs Max. Frekans 20 kHz Figure 6 DOUT Connection Diagram MP211 SERIES –...
  • Page 14: Relay Outputs

    3.4 Relay Outputs Module Output: Relay Contact Outputs: COM-NO (Normally Open) Contact Max. Current: 3A@250VAC – 3A@30VDC Isolation Potential of relay contacts are isolated from power source inputs.(Dry Contacts) Figure 7 Relay Connection Diagram MP211 SERIES – HARDWARE MANUAL...
  • Page 15: Analog Inputs

    3.5 Analog Inputs Current Input Count Current Input Type Current, 0-20 mA Current Input Precision: %1 Precision Common Input GND: 1 (4 point / common) Figure 8 Analog Input Connection Diagram MP211 SERIES – HARDWARE MANUAL...
  • Page 16: Analog Outputs

    3.6 Analog Outputs Current Output Count Current Output Type Current, 0-20 mA Current Output Precision: %1 Precision Common Output GND: 1 (2 point / common) Figure 9 Analog Output Connection Diagram MP211 SERIES – HARDWARE MANUAL...
  • Page 17: Rtd Inputs

    3.7 RTD Inputs RTD Input Count RTD Input Type PT1000, 2 wire Temperature Range: -50 … +200 C Common Input GND: 1 (2 points / common) Figure 10 RTD Input Connection Diagram MP211 SERIES – HARDWARE MANUAL...
  • Page 18: Rs485 Serial Port

    3.8 RS485 SERIAL PORT RS485 port Count: Isolation: Galvanic Maximum Slave Counts: Communication Distance: 1000 m Data Bits: Stop Bits: Parity: None-Even-Odd Baudrate: 300 bps to 200 kbps Figure 11 RS485 Input Connection Diagram MP211 SERIES – HARDWARE MANUAL...
  • Page 19: Rs232 Serial Port

    3.9 RS232 SERIAL PORT RS232 port Count: Communication Distance: 10 m Data Bits: Stop Bits: Parity: None-Even-Odd Baudrate: 300 bps to 200 kbps Figure 12 RS232 Input Connection Diagram MP211 SERIES – HARDWARE MANUAL...
