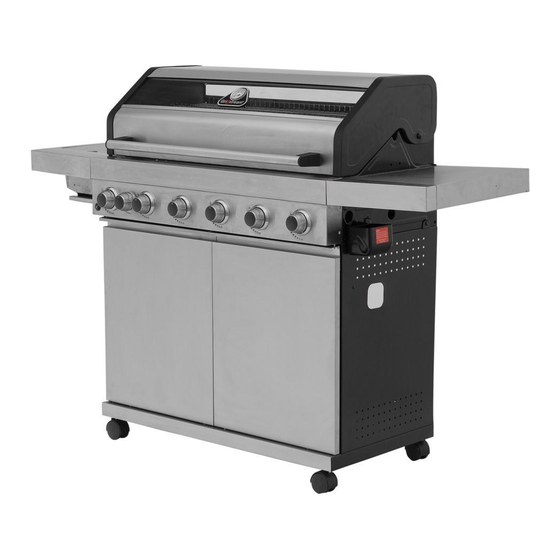

Elite 6 Burner Hybrid Barbecue
WARNING! FOR YOUR SAFETY, FOR OUTDOOR USE ONLY
Please read these instructions carefully and ensure that your barbecue is properly installed, assembled,
maintained and serviced in accordance with these instructions.
Failure to follow these instructions may result in serious injury and/or damage to property.
Necessary Tools
Please check the pack contents before attempting to assemble this product. A full checklist of
components is given in this leaflet. If any components are missing, please contact the retailer
from whom you bought this product.
This product takes approximately 60 MINUTES
to assemble with 2 PEOPLE. The fittings pack
contains SMALL ITEMS which should be KEPT
AWAY FROM YOUNG CHILDREN. Read this
leaflet in full before commencing assembly.
GSS66SS
x 44
x 12
x 4
x 2
x 44
x 12
Carbon Monoxide Hazard
Using a barbecue inside can kill you,
it gives off Carbon Monoxide, which has no odour.
Never use a barbecue in enclosed spaces such as
a tent, home/building, vehicle or garage.
x 1
AA Battery (Not included)
Advertisement
Table of Contents
Related Manuals for Grillstream Elite GSS66SS
Summary of Contents for Grillstream Elite GSS66SS
- Page 1 Elite 6 Burner Hybrid Barbecue GSS66SS x 44 x 44 x 12 x 12 WARNING! FOR YOUR SAFETY, FOR OUTDOOR USE ONLY Please read these instructions carefully and ensure that your barbecue is properly installed, assembled, maintained and serviced in accordance with these instructions. Failure to follow these instructions may result in serious injury and/or damage to property.
-
Page 2: Table Of Contents
GSS66SS Contents Warning Information Page Location of your BBQ Page Connecting to the gas cylinder Page The hose and regulator assembly Page Testing for leaks Page Gas cylinder safety Page What is Propane Page Are all gas bottle gases the same Page How is it different from natural gas Page... -
Page 3: Warning Information
THE MANUFACTURER’S INSTALLATION INSTRUCTIONS, LOCAL GAS FITTING REGULATIONS AND MUNICIPAL BUILDING CODES. Think carefully when deciding on a location where you are to use your GRILLSTREAM BARBECUES, BBQ. The BBQ must not be installed under or on any combustible LEISUREGROW PRODUCTS LTD. -
Page 4: Testing For Leaks
GSS66SS SECURING THE HOSE AND REGULATOR ASSEMBLY WHAT IS PROPANE Type A) Screw on hose connection (Fig. 4) It is a fuel gas compressed until it turns to liquid, then stored in a bottle - The BBQ’s manifold connection is 1/4” Male Thread BSP or cylinder under pressure for easy transport. -
Page 5: Lighting Your Bbq
- Your Side Burner is fitted with a separate electric ignition button and so the lighting procedure differs slightly from that of the main burners. Grillstream Grills fit directly on top of each other - do not offset them. - To light your side burner follow the instructions above but after... -
Page 6: Hybrid System
DIRECTIONS FOR USE - GAS: Your charcoal should now be lit and making the tell-tale popping and The beauty of the Grillstream Hybrid System is that there is no cracking sounds that indicate this. You should now turn off the burners additional assembly or conversion process required, whether you want completely and close your Barbecue Hood. -
Page 7: Maintenance Of Your Bbq
To clean the Grills effectively use the Grillstream cleaning brush which has been specially designed to quickly and effectively clean your Grillstream Grills. Rinse off with clean water and dry before returning to BBQ. -
Page 8: Troubleshooting
GSS66SS TROUBLESHOOTING A note on fire prevention: Most fires in outdoor BBQs are caused by a build up of greases and fat, IF BBQ FAILS TO OPERATE PROPERLY or gas connections which have not been secured properly. Remember - Stop, turn off gas at its source and turn all burner controls to • off to follow the manufacturer’s instructions on proper cleaning and - Do not smoke connection procedures. -
Page 9: Exploded Diagram
GSS66SS Page 9... -
Page 10: Parts List For Gss66Ss
Cabinet Door Warming Rack Ceramic Side Burner Side Shelf Circular Griddle Plate Ceramic Side Burner Assembly Grillstream Gastro Grill - Left Side Burner Lid Grillstream Gastro Grill - Right Side Burner Lid Axle Grillstream Grill - 230mm Ceramic Side Burner Grill... -
Page 11: Fittings List
x 44 GSS66SS x 12 x 12 x 44 x 12 x 12 FITTINGS x 44 x 44 Part Part Part Part x 12 x 44 x 12 x 44 x 12 x 44 x 12 x 12 x 44 x 12 x 12 x 12... -
Page 12: Assembly Instructions
GSS66SS STEP 1 Push each of the Castors (5) into indicated holes in underside of Cabinet Base Panel (6) until you hear a click. Page 12... - Page 13 GSS66SS STEP 2 Part unscrew the bolts indicated from Cabinet Base Panel (6), slot the Cabinet Side Panels (7 & 8) into place and retighten bolts. Page 13...
- Page 14 GSS66SS STEP 3 Insert and part tighten bolts (B) into Cabinet Side Panels (7 & 8). Slot Cabinet Rear Panel (9) into place and secure to Cabinet Base Panel (6) with Bolts (B). Now fully tighten bolts into Cabinet Side Panels (7 & 8). x 44 Part x 12...
- Page 15 GSS66SS STEP 4 Part unscrew bolts indicated from Cabinet Side Panels (7 & 8) and Cabinet Base Panel (6). Slot Corner Support Brackets (10) in place and retighten bolts. Page 15...
- Page 16 GSS66SS STEP 5 Insert Front Support Bar (11), ensuring magnets are at the bottom edge, and secure with Bolts (A). x 44 Part x 12 x 44 x 12 M4x12 Bolt Page 16...
- Page 17 Unscrew and remove Wingnut and Washer from Thermometer (2). Thread Thermometer Spindle through Grillstream Logo Plate and then through hole indicated in Hood (1). Replace Washer and Wingnut. Note: Do not overtighten as this could lead to damaging of the hood.
- Page 18 GSS66SS STEP 7 Secure cooking frame to side panels (7 & 8) using Bolts (B). Part x 44 x 12 M6x12 Bolt Page 18...
- Page 19 GSS66SS STEP 8 Attach Side Shelf (12) to Cooking Frame (5) from the outside using Bolts (B). Part x 44 x 12 M6x12 Bolt Page 19...
- Page 20 GSS66SS STEP 9 Further secure Side Shelf (12) in place from inside the cooking frame using Bolts (B) and Washers (D). Note: Washers (D) are domed and bottom of dome should be facing the cooking frame. x 44 Part x 12 x 44 x 12 M6x12 Bolt...
- Page 21 GSS66SS STEP 10 Remove Ceramic Side Burner Lid (16) from Side Burner Shelf (14) by pushing the Lid Axle left towards its spring and then lift right side of axle out first. Attach Side Burner Shelf (14) to Cooking Frame (5) from the outside using Bolts (B). Part x 44 x 12...
- Page 22 GSS66SS STEP 11 Further secure Side Burner Shelf (14) in place from inside the cooking frame using Bolts (B) and Washers (D). Note: Washers (D) are domed and bottom of dome should be facing the cooking frame. Part x 44 x 12 M6x12 Bolt Part...
- Page 23 GSS66SS STEP 12 insert Ceramic Side Burner Assembly into Ceramic Side Burner Shelf (14) from below, ensuring holes line up, and secure in place using 4 x Self Tapping Screw (packed with Side Burner Assembly). Reattach Ceramic Side Burner Lid by placing left side of axle through the left holes first, compress the spring and then slide right side into holes on the other side.
- Page 24 GSS66SS STEP 13 Unscrew Ignition Button from Side Burner Ignition Box (20) and insert 1 x AA battery (not supplied) noting correct polarity. Screw Ignition Button back in place. Line up the Ignition Box Bracket with holes indicated on the inside of Cabinet Side Panel (7) and attach from the outside using Bolts (B).
- Page 25 GSS66SS STEP 14 Slide Ceramic Side Burner Drip Tray (19) underneath the Ceramic Side Burner Assembly ensuring it is level and supported on both runners. Unscrew the pre-installed bolts and feed the Side Burner Hose into opening on the Ceramic Side Burner Assembly, line up holes and re-install the bolts.
- Page 26 GSS66SS STEP 15 Attach Gas Connection Bracket to Side Panel (8) using Bolt (A). Now tighten the nut above the Gas Connection Bracket, this will help hold the hose in place when you attach the hose and regulator later. Note: The Gas Connection Bracket and Hose will be attached behind the Control Panel via cable tie, please cut the cable tie carefully to avoid damaging the components behind the Control Panel.
- Page 27 GSS66SS STEP 16 Insert Door Spindles (C) into Cabinet Base Panel (6). Page 27...
- Page 28 GSS66SS STEP 17 To fit Cabinet Doors (13) in place, first slide the hole on bottom of door over Door Spindle (C), depress spring-loaded catch on underside of Cooking Frame and position top of door until spring-loaded catch slides into top hole. Page 28...
- Page 29 GSS66SS STEP 18 Attach Grease Cup Bracket (23) to underside of Grease Tray (22) using Bolts (A). Place Grease Cup (24) inside Grease Cup Bracket (23) and then slide underneath Cooking Frame ensuring it is level and on top of runners. Part x 44 M4x12 Bolt...
- Page 30 Cooking Frame. Leg tabs from bottom Grillstream Grills and Grillstream Gastro Grills should rest on lip at back of Cooking Frame with the logo tab at the front. Top Grillstream Grills should sit directly on top of the bottom Grills.
- Page 31 Attach Bottle Opener (28) through Cabinet Side Panel (7) using bolts and Bottle Opener Bracket (29) as shown. Hook Grillstream Fat Cup (27) over holes in Cabinet Side Panel (9). This should be located directly below the spout of Fat Channel (26) to catch fat and meat juices channelled from the Grillstream system.
- Page 32 GSS66SS STEP 21 Your Grillstream barbecue is now fully assembled and you are ready to connect the Gas Cylinder (see page 3 for more information). Please ensure you perform the gas leak check before operating. Page 32...
-
Page 33: Leak Test
GSS66SS TESTING YOUR BBQ TESTING FOR LEAKS - DO THIS BEFORE USING YOUR BBQ. Note - Do not test for gas leaks with an open flame. If you smell gas, turn off at the source. Before first use, at the beginning of each new season, or whenever a gas cylinder is changed, you must check for gas leaks. - Page 34 PLEASE KEEP THESE INSTRUCTIONS FOR FUTURE REFERENCE Grillstream Barbecues Part of the LeisureGrow Group Dewmead Farm, New Inn Road, Hinxworth, Hertfordshire SG7 5HG, United Kingdom. Tel: +44 (0)1462 744500 E-mail:salessupport@leisuregrow.com...
