WARNING! FOR YOUR SAFETY, FOR OUTDOOR USE ONLY
Please read these instructions carefully and ensure that your barbecue is properly installed, assembled,
maintained and serviced in accordance with these instructions.
Failure to follow these instructions may result in serious injury and/or damage to property.
Necessary
Tools
Please check the pack contents before attempting to assemble this product. A full checklist of
components is given in this leaflet. If any components are missing, please contact the retailer from
whom you bought this product.
This product takes approximately 35 MINUTES
to assemble with 2 PEOPLE. The fittings pack
contains SMALL ITEMS which should be KEPT
AWAY FROM YOUNG CHILDREN. Read this
leaflet in full before commencing assembly.

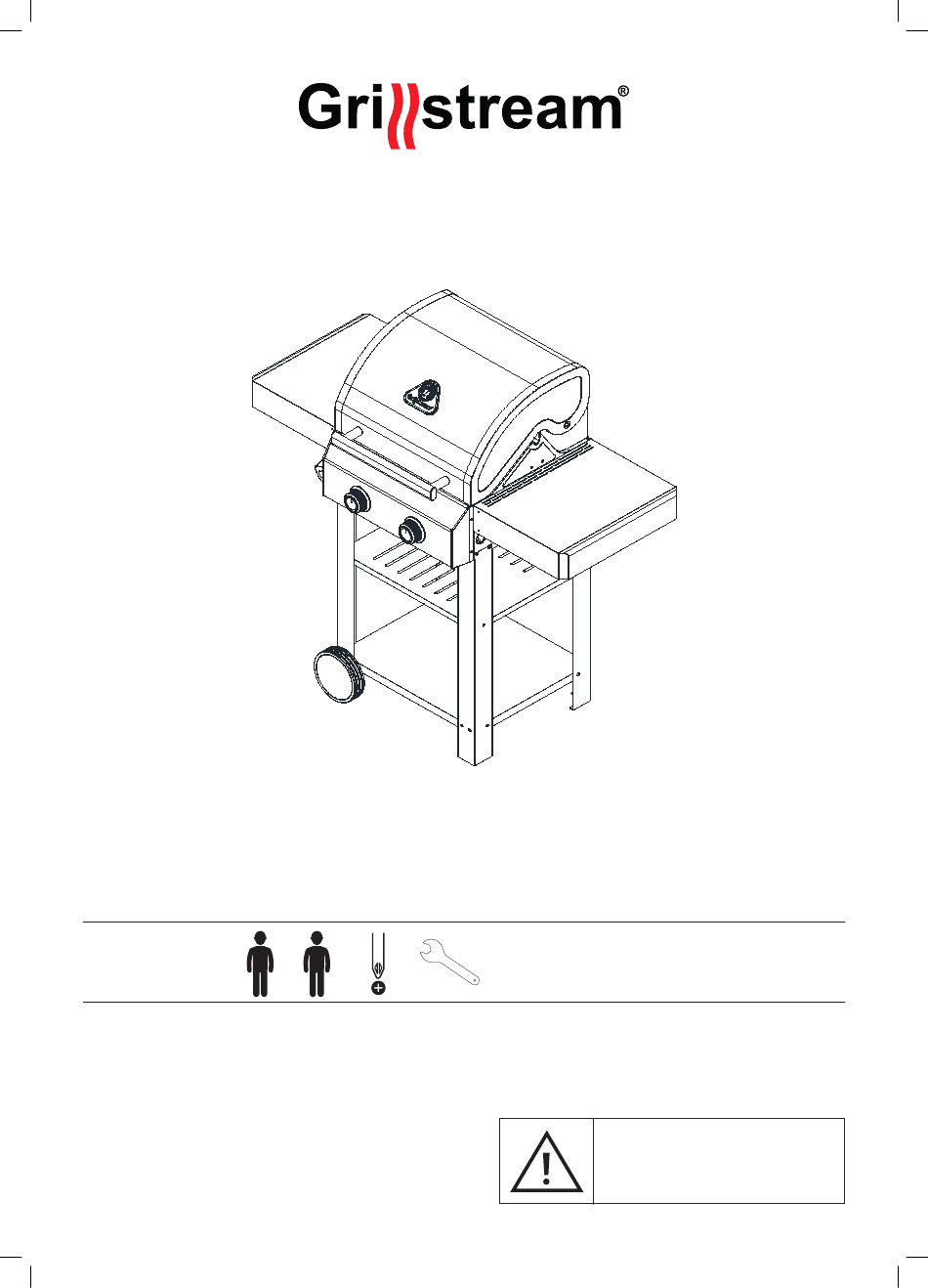

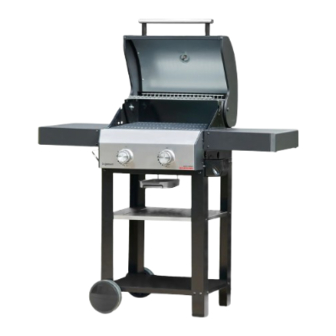

Aspect 2 Burner Barbecue
GAH20MK
x 4
x 12
x 12
x 2
x 44
Carbon Monoxide Hazard
Using a barbecue inside can kill you,
it gives off Carbon Monoxide, which has no odour.
Never use a barbecue in enclosed spaces such as
a tent, home/building, vehicle or garage.
Advertisement
Table of Contents
Related Manuals for Grillstream Aspect GAH20MK
Summary of Contents for Grillstream Aspect GAH20MK
- Page 1 Aspect 2 Burner Barbecue GAH20MK x 44 x 12 x 44 x 12 WARNING! FOR YOUR SAFETY, FOR OUTDOOR USE ONLY Please read these instructions carefully and ensure that your barbecue is properly installed, assembled, maintained and serviced in accordance with these instructions. Failure to follow these instructions may result in serious injury and/or damage to property.
-
Page 2: Table Of Contents
GAH20MK Contents Warning Information Page Location of your BBQ Page Connecting to the gas cylinder Page The hose and regulator assembly Page Testing for leaks Page Gas cylinder safety Page What is Propane Page Are all gas bottle gases the same Page How is it different from natural gas Page... -
Page 3: Warning Information
- Never alter or modify the regulator or gas supply assembly. Propane - 2.75 kPa Universal LPG - 2.75 kPa LOCATION OF YOUR BBQ IMPORTANT - BBQS MUST BE INSTALLED IN ACCORDANCE WITH GRILLSTREAM BARBECUES, THE MANUFACTURER’S INSTALLATION INSTRUCTIONS, LOCAL LEISUREGROW PRODUCTS LTD. 0359 – 24 2575 – 24 GAS FITTING REGULATIONS AND MUNICIPAL BUILDING CODES. -
Page 4: Testing For Leaks
GAH20MK SECURING THE HOSE AND REGULATOR ASSEMBLY GAS CYLINDER SAFETY Type A) Screw on hose connection (Fig. 4) - Always change over a gas cylinder away from any possible source - The BBQ’s manifold connection is 1/4” Male Thread BSP of ignition in a well ventilated area - The connection between the hose and regulator and the BBQ should - Do not smoke whilst handling gas cylinders... -
Page 5: Lighting Your Bbq
• off position and wait five minutes for any accumulated gas to clear out of the BBQ before repeating procedure. LIGHTING YOUR BBQ (cont.) Grillstream Grills fit directly on top of each other - do not offset them. lo position is obtained by turning the knob fully anti-clockwise - The... -
Page 6: Hybrid System
You should now turn off the burners DIRECTIONS FOR USE - GAS: completely and close your Barbecue Hood. The beauty of the Grillstream Hybrid System is that there is no additional assembly or conversion process required, whether you want STEP 4: to use it as a Charcoal Barbecue or Gas Barbecue. -
Page 7: Maintenance Of Your Bbq
To clean the Grills effectively use the Grillstream cleaning brush which has been specially designed to quickly and effectively clean your Grillstream Grills. Rinse off with clean water and dry before returning to BBQ. -
Page 8: Troubleshooting
Ignition tube and clear out any debris inside (fig C) WARRANTY All of our Grillstream BBQs and accessories are built to last. Our materials are carefully considered with longevity and safety in mind, the technology used in our products is second to none, and all of this is backed up with our friendly customer care team who are on hand for advice and assistance. -
Page 9: Exploded Diagram
GAH20MK Page 9... -
Page 10: Parts List
GAH20MK Description Code Hood Mid Shelf Thermometer Side Shelf Control Knob Grillstream Fat Cup Cooking Frame Grease Tray Trolley Base Panel Fat Channel Leg - Left Front Hybrid Flame Tamer Leg - Left Back Grillstream Grill Leg - Right Front... -
Page 11: Fittings List
GAH20MK FITTINGS Part Part Part Part x 44 x 12 x 44 x 12 x 44 x 12 x 12 Plastic Foot M6 x 12 Bolt M4 x 12 Bolt Washer Part Part Part Retaining Clip Plastic Washer M4 x 12 Bolt SS Make sure your grill is assembled properly. - Page 12 GAH20MK STEP 1 Install the Plastic Feet (A) into the holes on the underside of Leg – Right Front (8) and Leg – Right Back (9). Part Plastic Foot Page 12...
- Page 13 GAH20MK STEP 2 Attach Leg – Left Back (7) and Leg – Right Back (9) to Trolley Base Panel (5) using Bolts (B) and Washers (F). Part Part M6 x 12 Bolt Plastic Washer Page 13...
- Page 14 GAH20MK STEP 3 Attach Leg – Left Front (6) and Leg – Right Front (8) to Trolley Base Panel (5) using Bolts (B) and Washers (F). Part Part M6 x 12 Bolt Plastic Washer Page 14...
- Page 15 GAH20MK STEP 4 Attach Front Support Bar (10) to Leg – Left Front (6) and Leg – Right Front (8) using Bolts (B). Part M6 x 12 Bolt Page 15...
- Page 16 GAH20MK STEP 5 Slide Wheel Axle (11) through holes in Leg – Left Front (6) and Leg – Left Back (7). Thread Wheels (12) onto Wheel Axle and secure in place using Retaining Clip (E) by pushing it through the holes in the end of the Wheel Axle.
- Page 17 GAH20MK STEP 6 Attach the Mid Shelf (14) to each of the Trolley Legs using Bolts (B) and Washers (F). Part Part M6 x 12 Bolt Plastic Washer Page 17...
- Page 18 GAH20MK STEP 7 Further secure the Mid Shelf (14) in place using Bolts (B) and Washers (F). Part Part M6 x 12 Bolt Plastic Washer Page 18...
- Page 19 GAH20MK STEP 8 Carefully lower Cooking Frame onto trolley, ensuring fixing lugs are on the outside and that no wires or hoses are trapped between cooking frame and trolley. Page 19...
- Page 20 GAH20MK STEP 9 Secure Cooking Frame to each of the Trolley Legs using Bolts (B). Part M6 x 12 Bolt Page 20...
- Page 21 GAH20MK STEP 10 Attach Side Shelf Bracket A (24) to front of left side of Cooking Frame using Bolt (B). Attach Side Shelf Bracket B (25) to rear of left side of Cooking Frame using Bolt (B). Attach Side Shelf Bracket B (25) to front of right side of Cooking Frame using Bolt (B).
- Page 22 GAH20MK STEP 11 Further secure Side Shelf Bracket A and B (24 & 25) using Bolts (B) and Washers (D). Note: Washers (D) are domed and bottom of dome should be facing the Cooking Frame. Part Part M6 x 12 Bolt Washer Page 22...
- Page 23 GAH20MK STEP 12 Attach Side Shelf (15) to Side Shelf Bracket by slotting the peg on the Side Shelf through the larger hole on the Side Shelf Bracket. Offer up the peg on the other side of the Side Shelf to the opposite Side Shelf Bracket.
- Page 24 GAH20MK STEP 13 Repeat the same process as shown in Step 12 for the opposite Side Shelf. Attach Side Shelf (15) to Side Shelf Bracket by slotting the peg on the Side Shelf through the larger hole on the Side Shelf Bracket.
- Page 25 GAH20MK STEP 14 Locate the main gas hose within the Cooking Frame. Carefully cut all cable ties holding it in place and pull downwards. Attach the bracket on the main gas hose to Leg 0 Right Front (8) using Bolt (C). Part M4 x 12 Bolt Page 25...
- Page 26 GAH20MK STEP 15 Attach Grease Cup Bracket (22) to underside of Grease Tray (17) using Bolts (C). Place Grease Cup (23) inside Grease Cup Bracket (22) and then slide underneath Cooking Frame ensuring it is level and on top of runners. Part M4 x 12 Bolt Page 26...
- Page 27 GAH20MK STEP 16 Attach Bottle Opener (26) to side of Control Panel using Bolts (C). Part M4 x 12 Bolt SS Page 27...
- Page 28 Burners. Place Grillstream Grills (20) into Cooking Frame. Leg tabs from bottom Grillstream Grill should rest on lip at back of Cooking Frame. Top Grillstream Grill should sit directly on top of the bottom Grill. Install Warming Rack (21) in place as shown, with wire legs slotting through holes in side lip of Cooking Frame.
- Page 29 GAH20MK STEP 18 Hook Grillstream Fat Cup (16) over holes in Cooking Frame. This should be located directly below the spout of Fat Channel (18) to catch fat and meat juices channelled from the Grillstream system. Page 29...
-
Page 30: Leak Test
GAH20MK TESTING YOUR BBQ TESTING FOR LEAKS - DO THIS BEFORE USING YOUR BBQ. Note - Do not test for gas leaks with an open flame. If you smell gas, turn off at the source. Before first use, at the beginning of each new season, or whenever a gas cylinder is changed, you must check for gas leaks. - Page 31 GAH20MK Page 31...
- Page 32 GAH20MK PLEASE KEEP THESE INSTRUCTIONS FOR FUTURE REFERENCE Grillstream Barbecues Part of the LeisureGrow Group Dewmead Farm, New Inn Road, Hinxworth, Hertfordshire SG7 5HG, United Kingdom. Tel: +44 (0)1462 744500 Page 32 E-mail:salessupport@leisuregrow.com...
